Debiut wydajności Intel N100: Recenzja mini PC Beelink Mini S12 Pro

Name: Beelink Mini S12 Pro
Brand: Beelink

procesor 6W 12. generacji Alder Lake-N.

N100 jest przyzwoitym ulepszeniem w stosunku do starego Celerona lub Atoma przy zachowaniu kosztów poniżej 200 USD, ale jest niewiele lepszy od N95, jeśli szukają Państwo jeszcze bardziej przystępnych cenowo alternatyw.

Allen Ngo, 👁 Allen Ngo (tłumaczenie DeepL / Ninh Duy), Published 20/10/2023 🇺🇸 🇸🇪 ...

Intel Mini PC Alder Lake

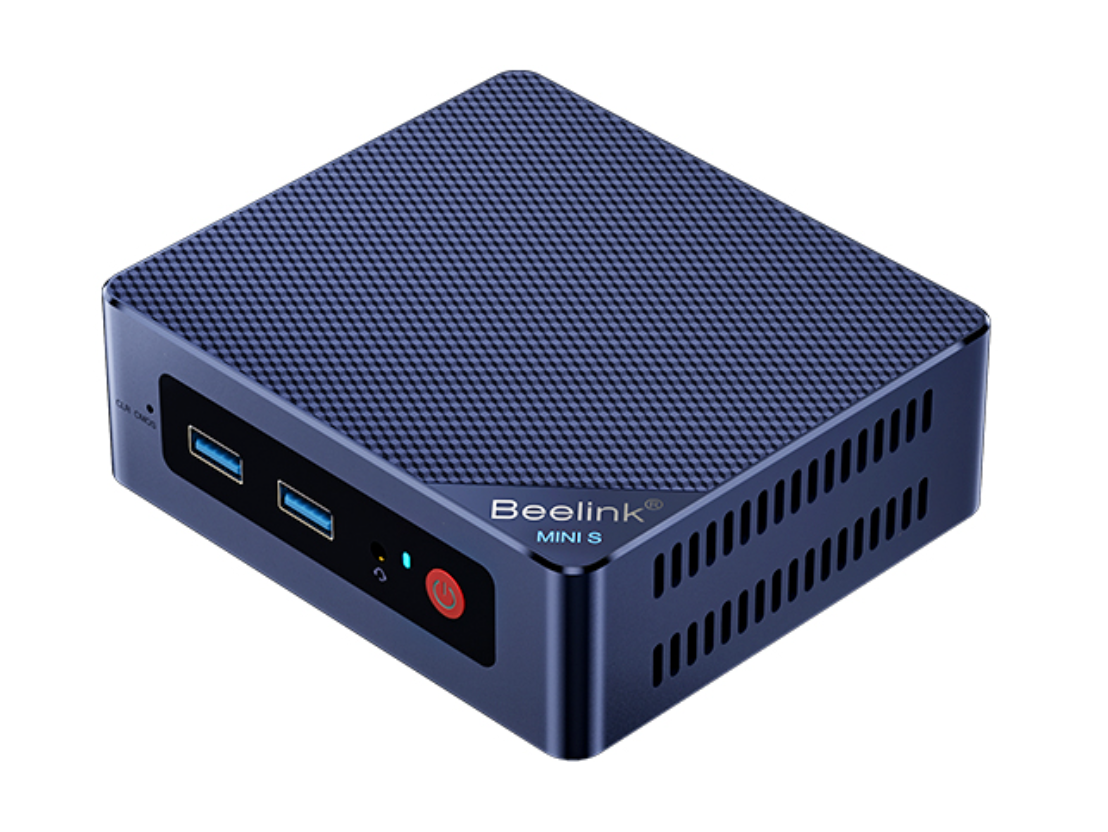

Beelink Mini S12 Pro (lub EQ12) to niedrogi mini PC o niskim poborze mocy, zaprojektowany do celów HTPC. Jest to jedno z niewielu urządzeń wyposażonych w procesor Intel 12. generacji N100, podczas gdy większość innych mini PC jest zwykle dostarczana z opcjami Core ix.

Naszą testową konfigurację z 16 GB pamięci jednokanałowej i 512 GB dyskiem SSD można znaleźć w Internecie za jedyne 200 USD, co czyni ją jedną z najtańszych w tej kategorii z procesorem 12. generacji.

Alternatywy dla Mini S12 Pro obejmują mini komputery PC z procesorami Pentium lub Atom, takie jak Intel NUC11ATKPE,Beelink U59lub Blackview MP80.

Więcej recenzji Beelink:

Test device courtesy of Beelink

Download your licensed rating image as PNG / SVG

Beelink Mini S12 Pro

Procesor

Intel Processor N100 4 x 1 - 3.4 GHz, 25 W PL2 / Short Burst, 20 W PL1 / Sustained, Alder Lake-N

Karta grafiki

Intel UHD Graphics 24EUs (Alder Lake-N), rdzeń: 750 MHz, pamięć: 2400 MHz, DDR5, 31.0.101.4575

Pamięć

16 GB

, Crucial DDR5-4800, 40-39-39-76

Chipset

Intel Alder Lake-N PCH

Karta dźwiękowa

Intel Alder Lake-N PCH - cAVS

Złącza

1 USB 2.0, 3 USB 3.0, 2 HDMI, gniazda audio: 3.5 mm headset

Łączność

Intel Ethernet Controller I225-V (10/100/1000/2500MBit/s), Intel Wi-Fi 6 AX201 (a/b/g/h/n = Wi-Fi 4/ac = Wi-Fi 5/ax = Wi-Fi 6/), Bluetooth 5

Gabaryty

wysokość x szerokość x głębokość (mm): 39.1 x 115 x 102

System operacyjny

Microsoft Windows 11 Pro

Inne

12 miesiące(y) gwarancji

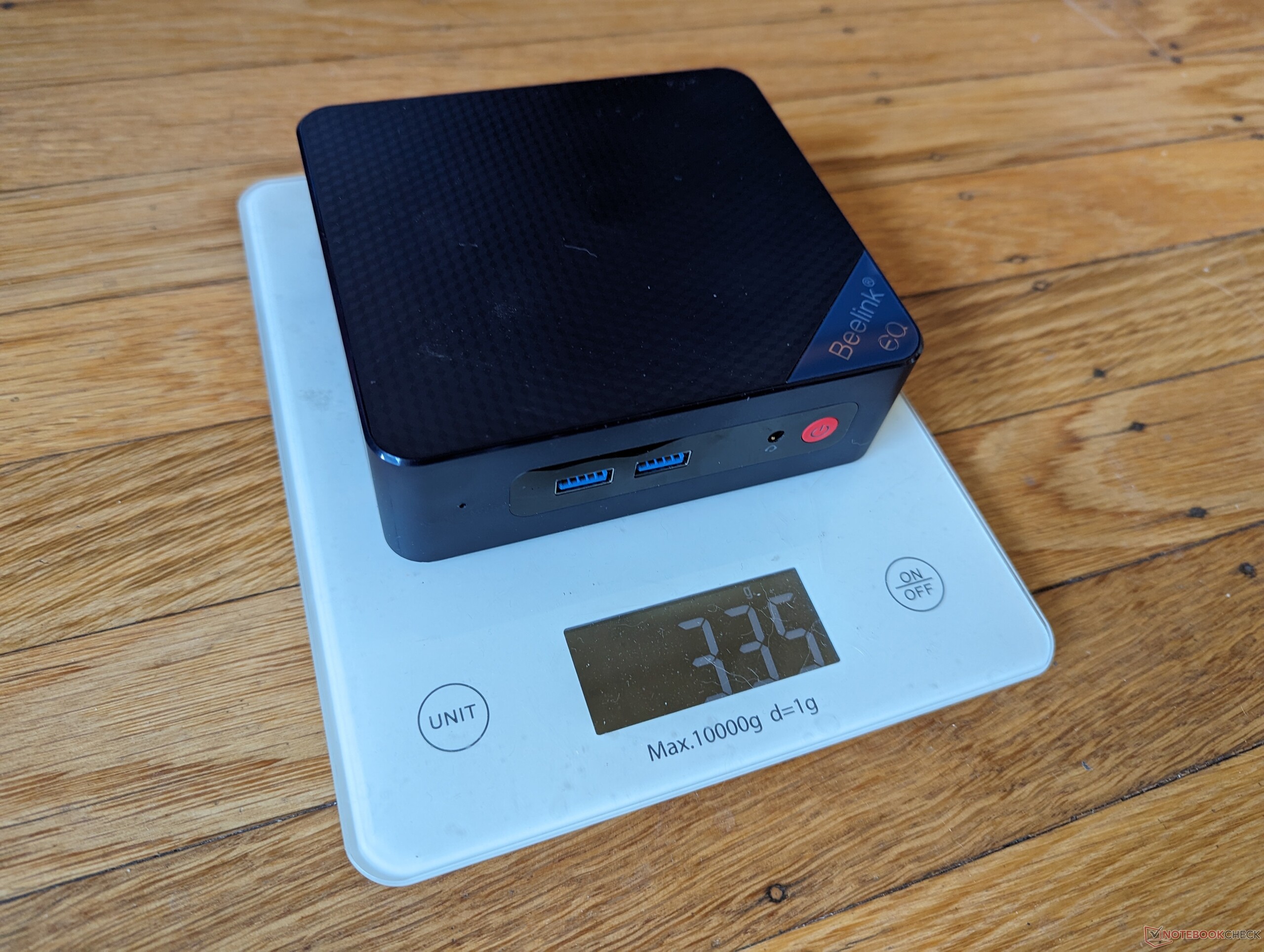

Waga

335 g, zasilacz: 153 g

Cena

200 USD

Odnośniki

Beelink strona producenta

Note: The manufacturer may use components from different suppliers including display panels, drives or memory sticks with similar specifications.

pełna specyfikacja

Potencjalni konkurenci w porównaniu

Rating	Date	Model	Weight	Height	Resolution
73.1 % v7 ^(old)	10/2023	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N)	335 g	39.1 mm	x
82.8 % v7 ^(old)	10/2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83.1 % v7 ^(old)	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x
v ^(old)	12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
v ^(old)		Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	329 g	42 mm	x
70.9 % v7 ^(old)	03/2023	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU)	530 g	36 mm	x

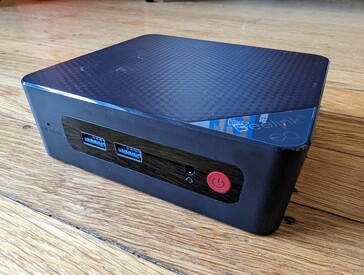

Sprawa

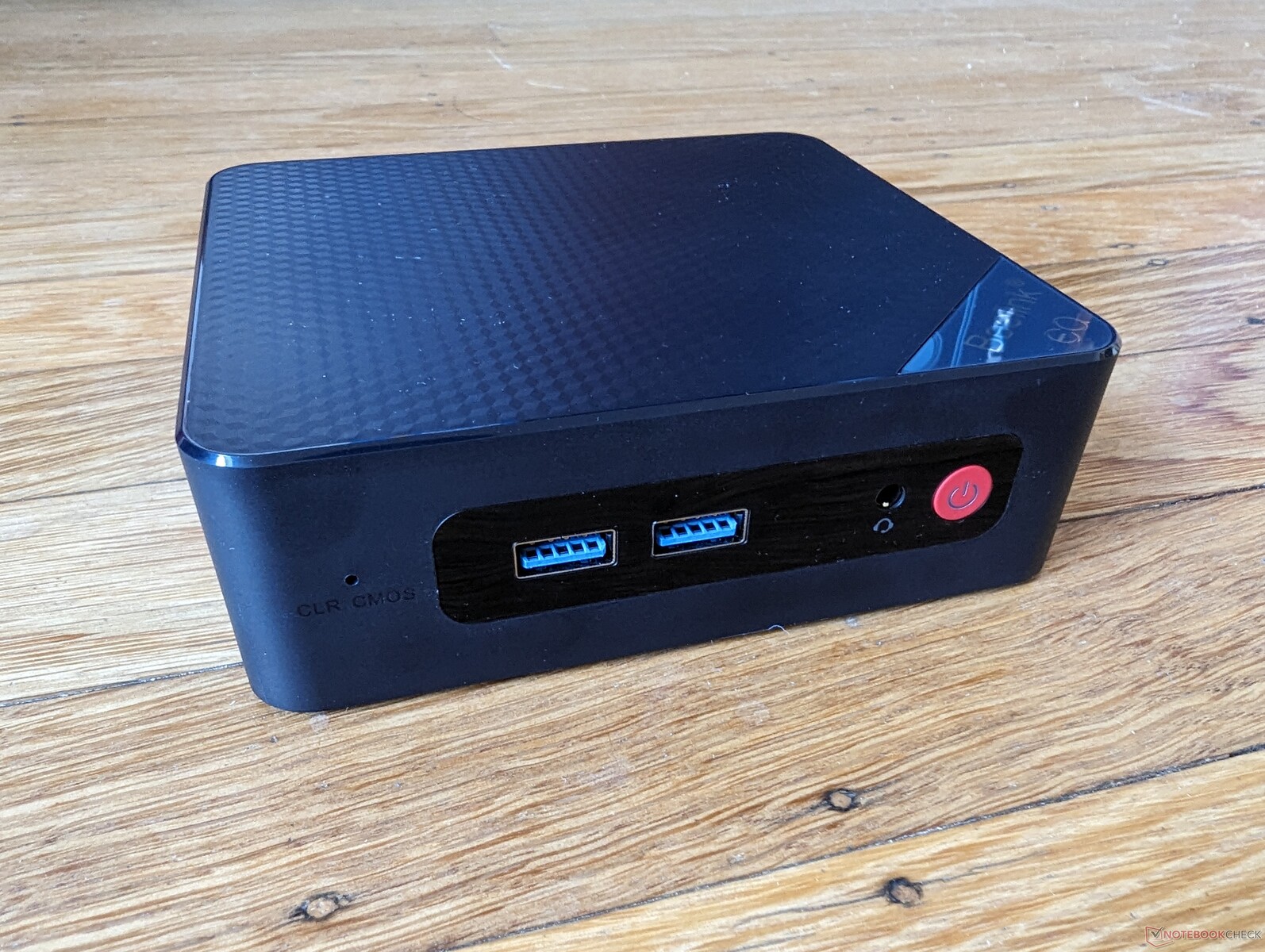

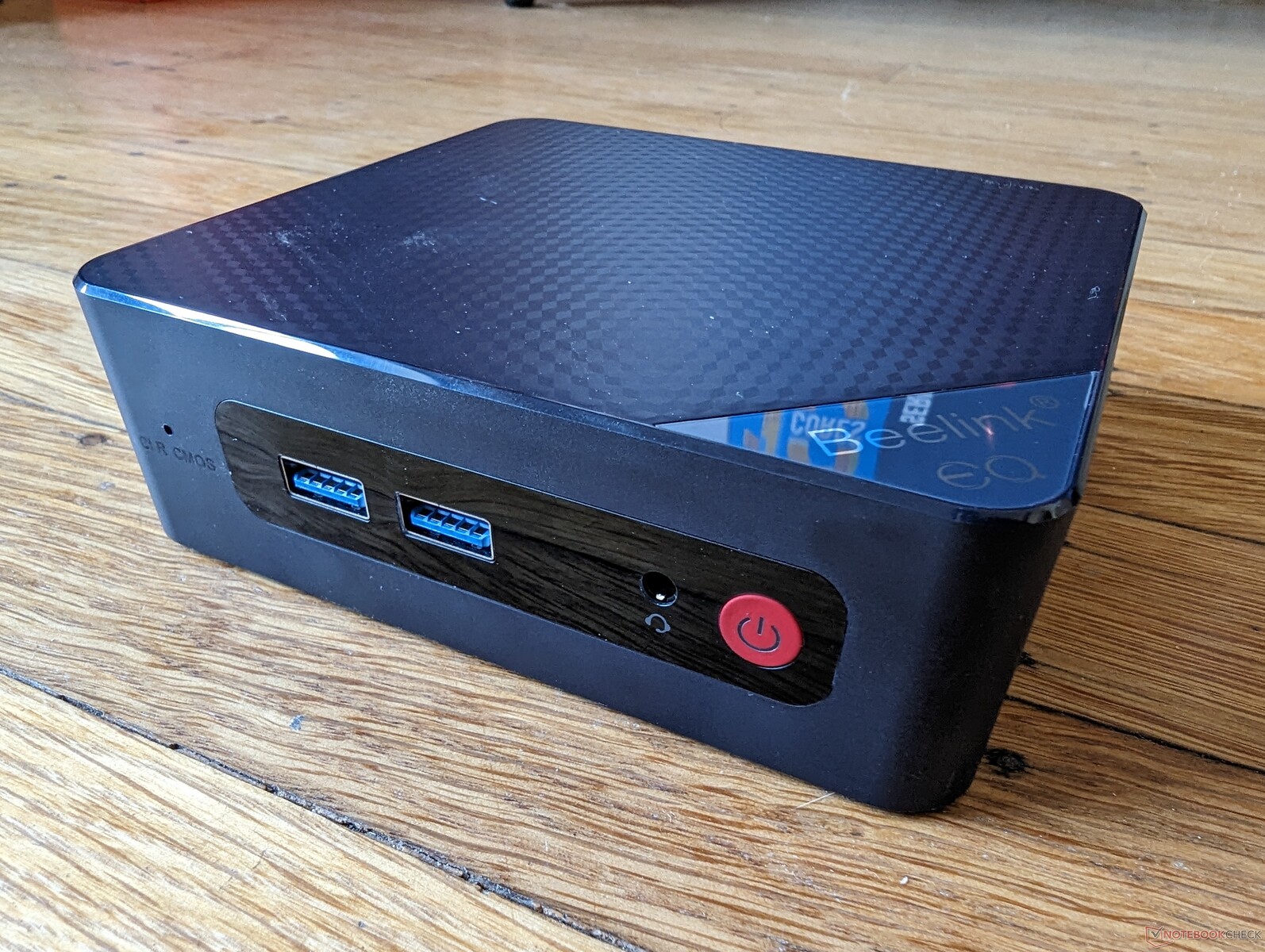

Obudowa jest najbardziej podobna do Beelink SEi12 z tym wyjątkiem, że górna część została przeprojektowana z wyboistą matową teksturą zamiast zdejmowanej pokrywy. S12 Pro wykorzystuje również więcej plastiku zamiast metalu, aby uzyskać zarówno mniejsze wymiary, jak i lżejszą wagę, jak pokazuje poniższy wykres porównawczy.

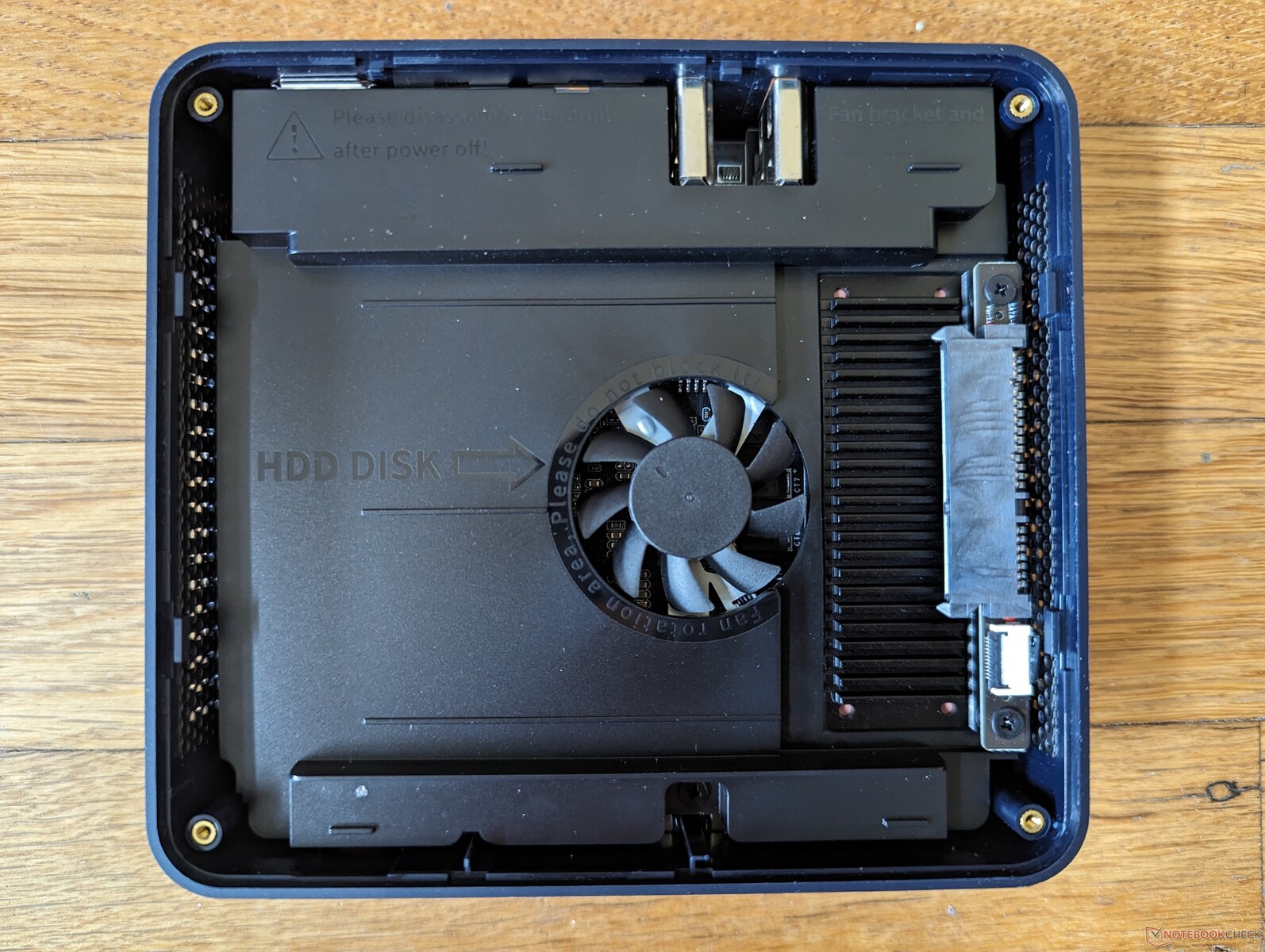

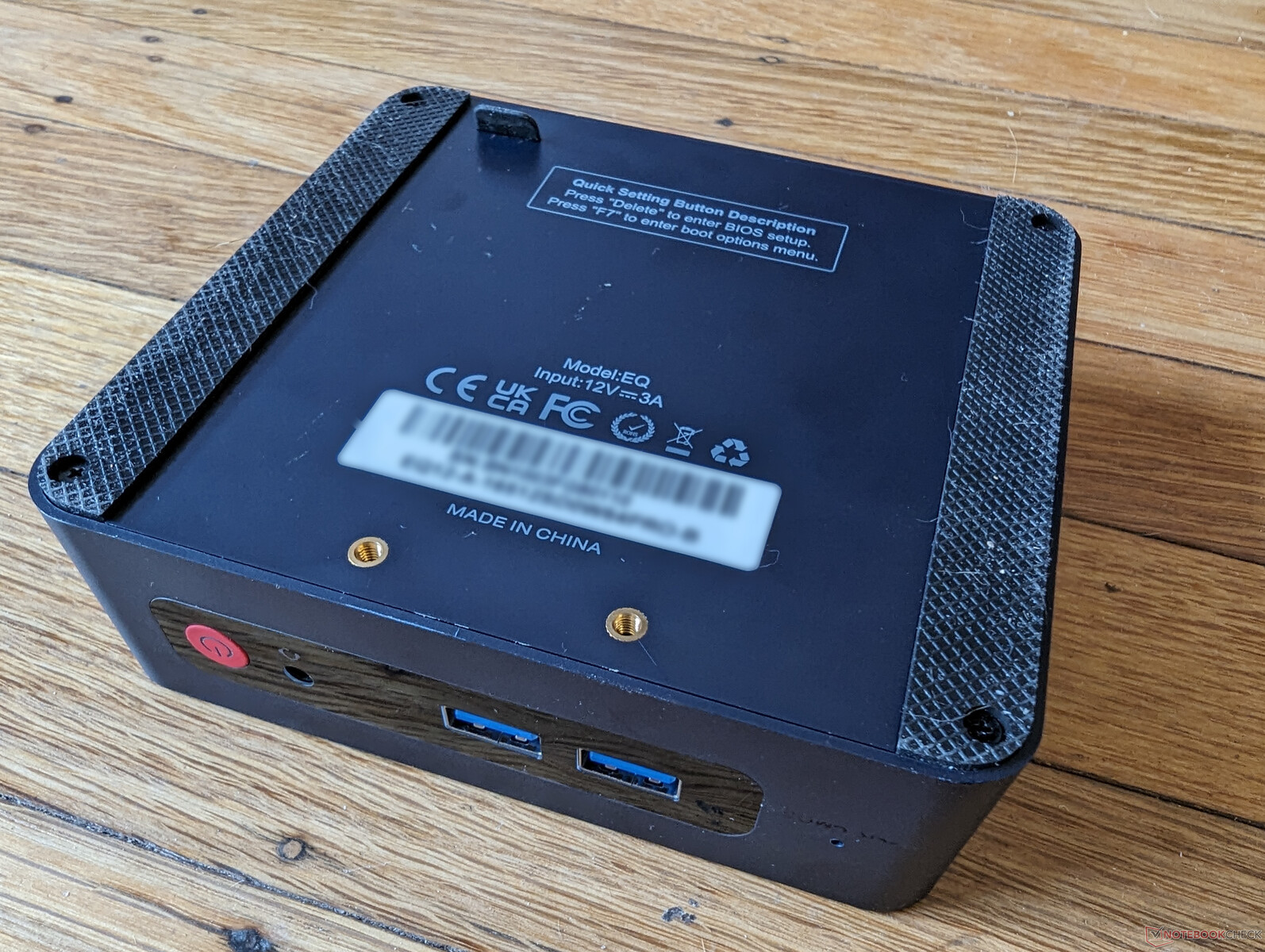

Dolną część można łatwo zdjąć za pomocą śrubokręta krzyżakowego

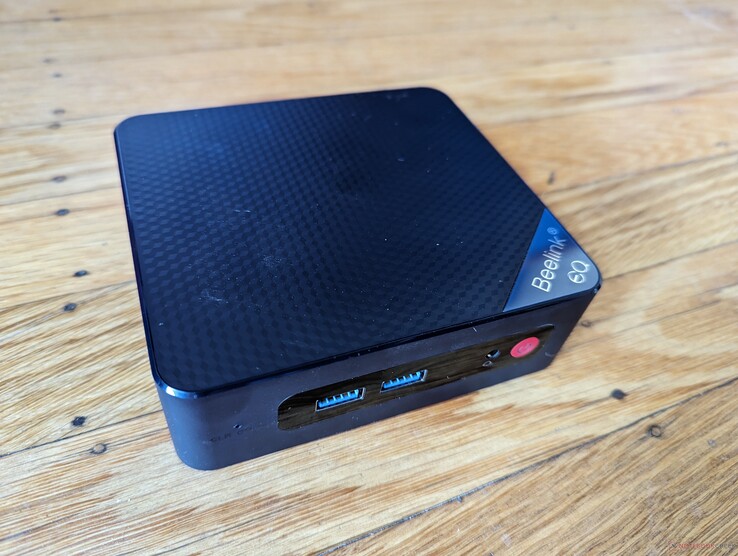

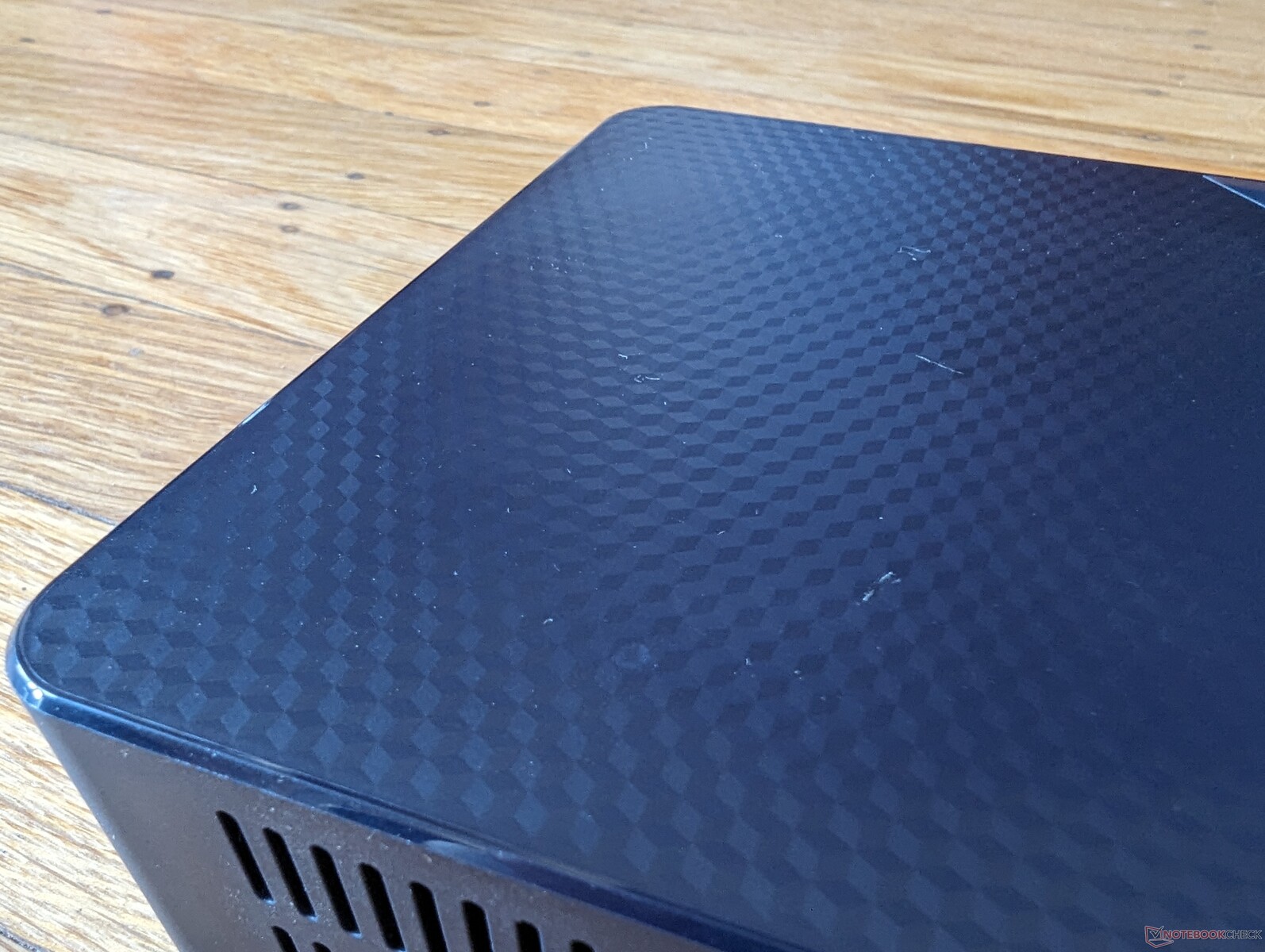

Górny plastikowy panel jest teksturowany i nie można go zdjąć

Porównanie rozmiarów

Intel NUC11ATKPE, N6005 Beelink SEi12 Core i5-1235U GMK NucBox K3 Pro Beelink U59 Beelink Mini S12 Pro Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

Łączność

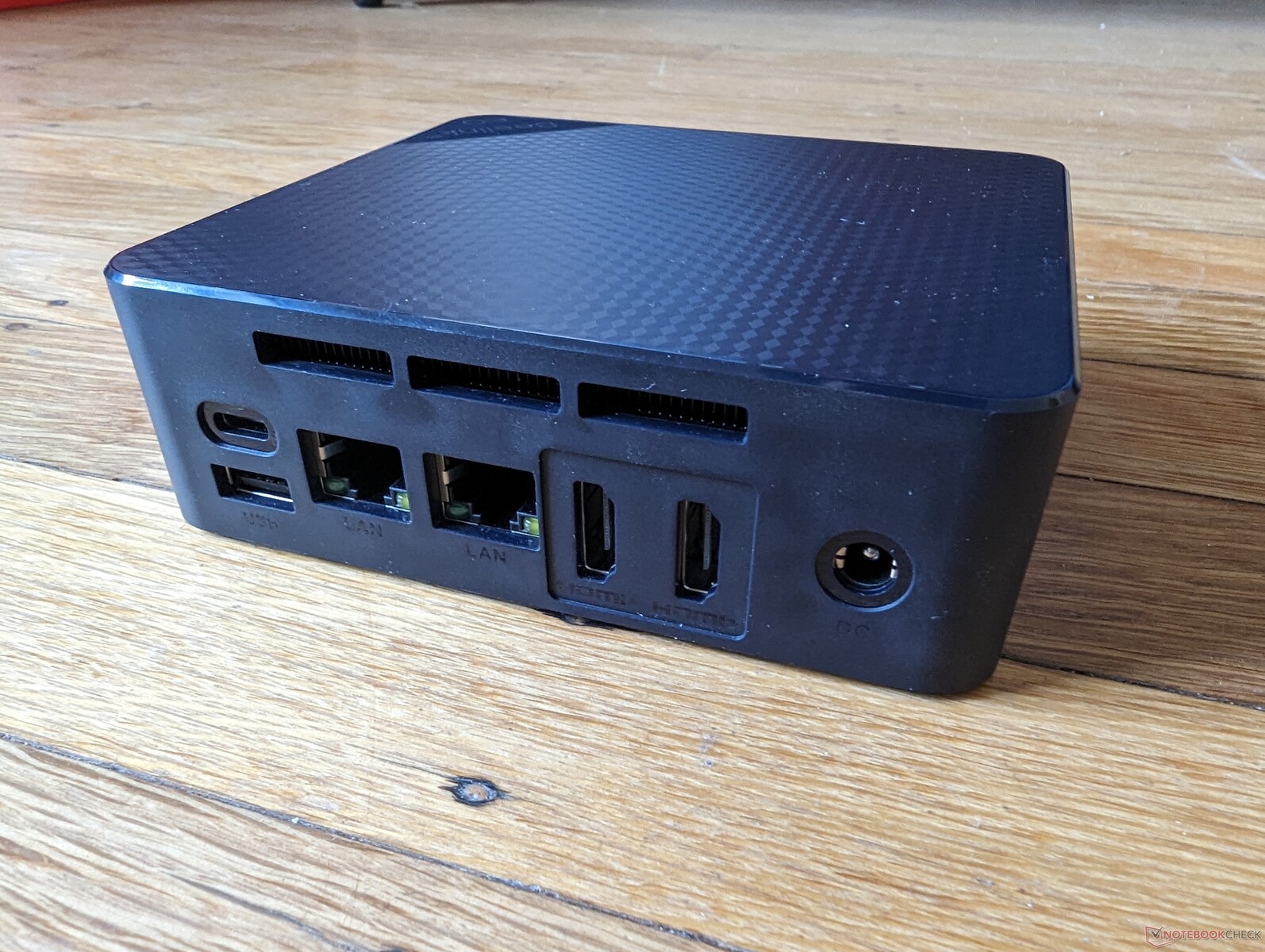

Opcje portów zmieniły się nieznacznie w stosunku do SEi12. Patrząc na tył, Mini S12 Pro ma o jeden port USB-A mniej, podczas gdy port USB-C został przesunięty. Każdy z dwóch portów HDMI obsługuje zewnętrzne monitory do 4K przy 60 Hz.

Niestety, tylny port USB-C w naszym urządzeniu ładował podłączone urządzenia zbyt wolno i wydaje się być niekompatybilny z żadnymi zewnętrznymi monitorami lub urządzeniami Thunderbolt. W związku z tym jest on przydatny głównie do przesyłania danych.

Komunikacja

Intel AX201 jest standardowo wyposażony w łączność Wi-Fi 6. Wi-Fi 6E lub 6G nie jest obsługiwane, co prawdopodobnie pozwoli zaoszczędzić na kosztach.

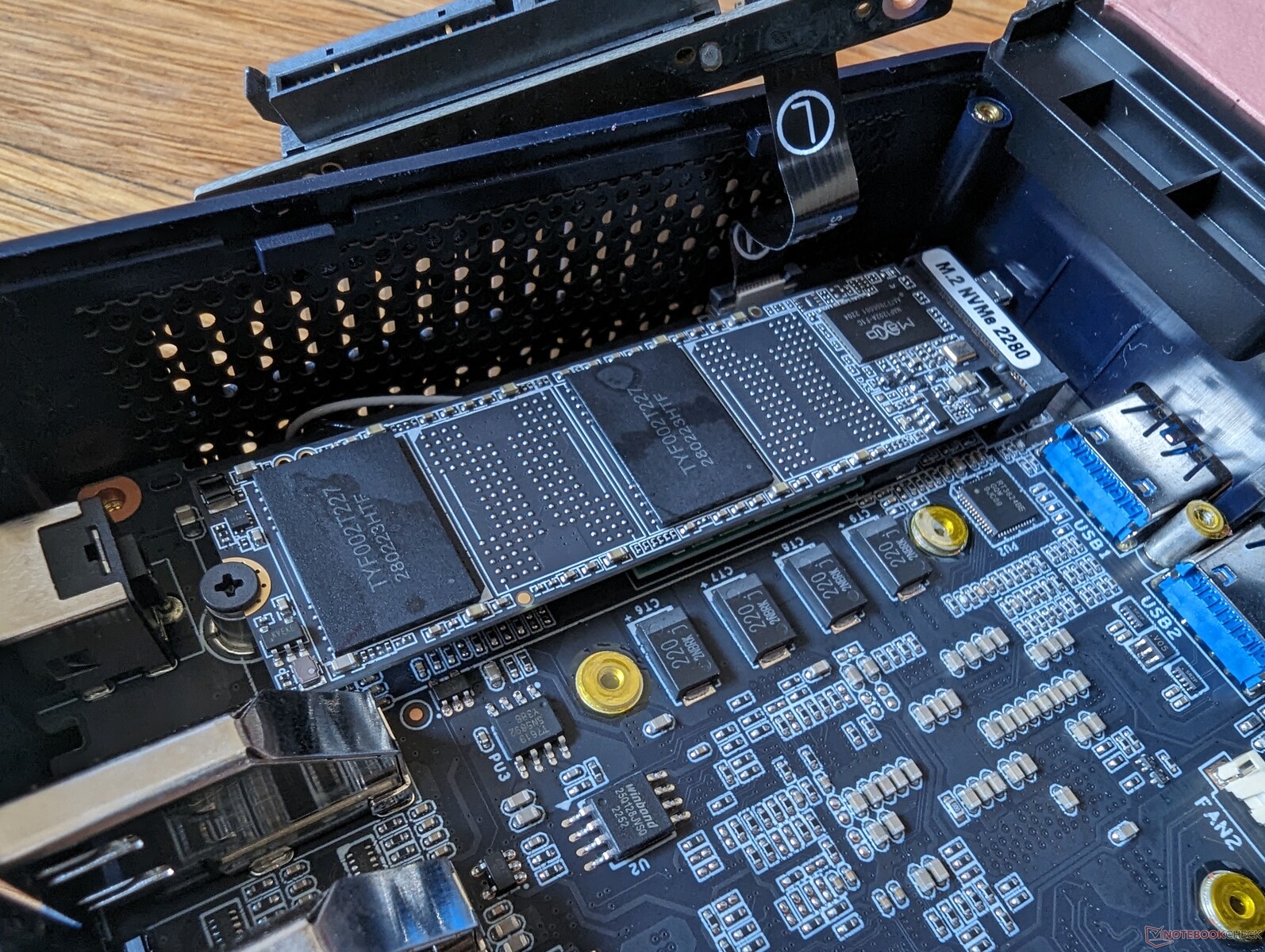

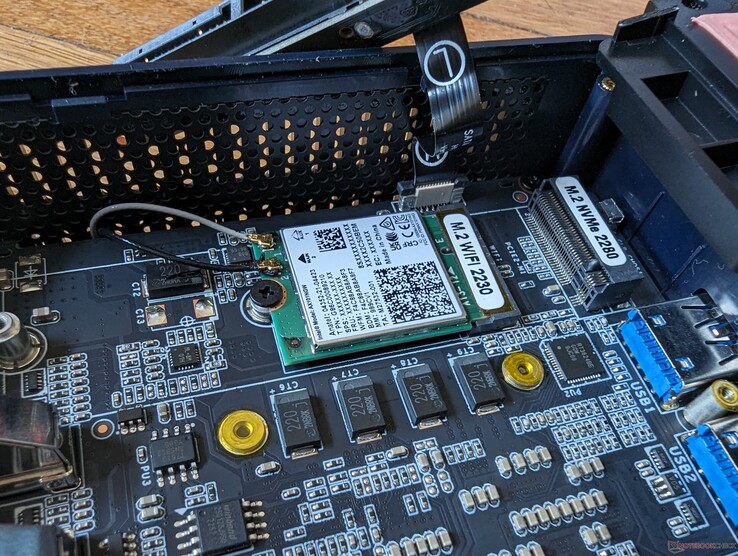

Wyjmowany moduł WLAN znajduje się pod dyskiem SSD

Networking
iperf3 transmit AX12
Beelink U59 Intel Dual Band Wireless-AC 3165	180 (157^min - 201^max) MBit/s
iperf3 receive AX12
Beelink U59 Intel Dual Band Wireless-AC 3165	346 (336^min - 355^max) MBit/s
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +240%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +197%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s +167%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	438 (376^min - 489^max) MBit/s
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	359 (322^min - 389^max) MBit/s -18%
iperf3 receive AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s +194%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s +176%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s +138%
Beelink Mini S12 Pro Intel Wi-Fi 6 AX201	470 (445^min - 491^max) MBit/s
Intel NUC11ATKPE, N6005 Intel Wireless AC 9462	371 (186^min - 374^max) MBit/s -21%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s

Beelink Mini S12 Pro; iperf3 transmit AXE11000; iperf 3.1.3: Ø438 (376-489)

Beelink Mini S12 Pro; iperf3 receive AXE11000; iperf 3.1.3: Ø470 (445-491)

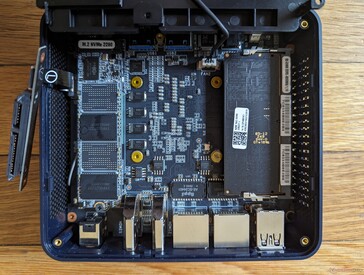

Konserwacja

2.5-calowa wnęka SATA III dla dodatkowej pamięci masowej

Akcesoria i gwarancja

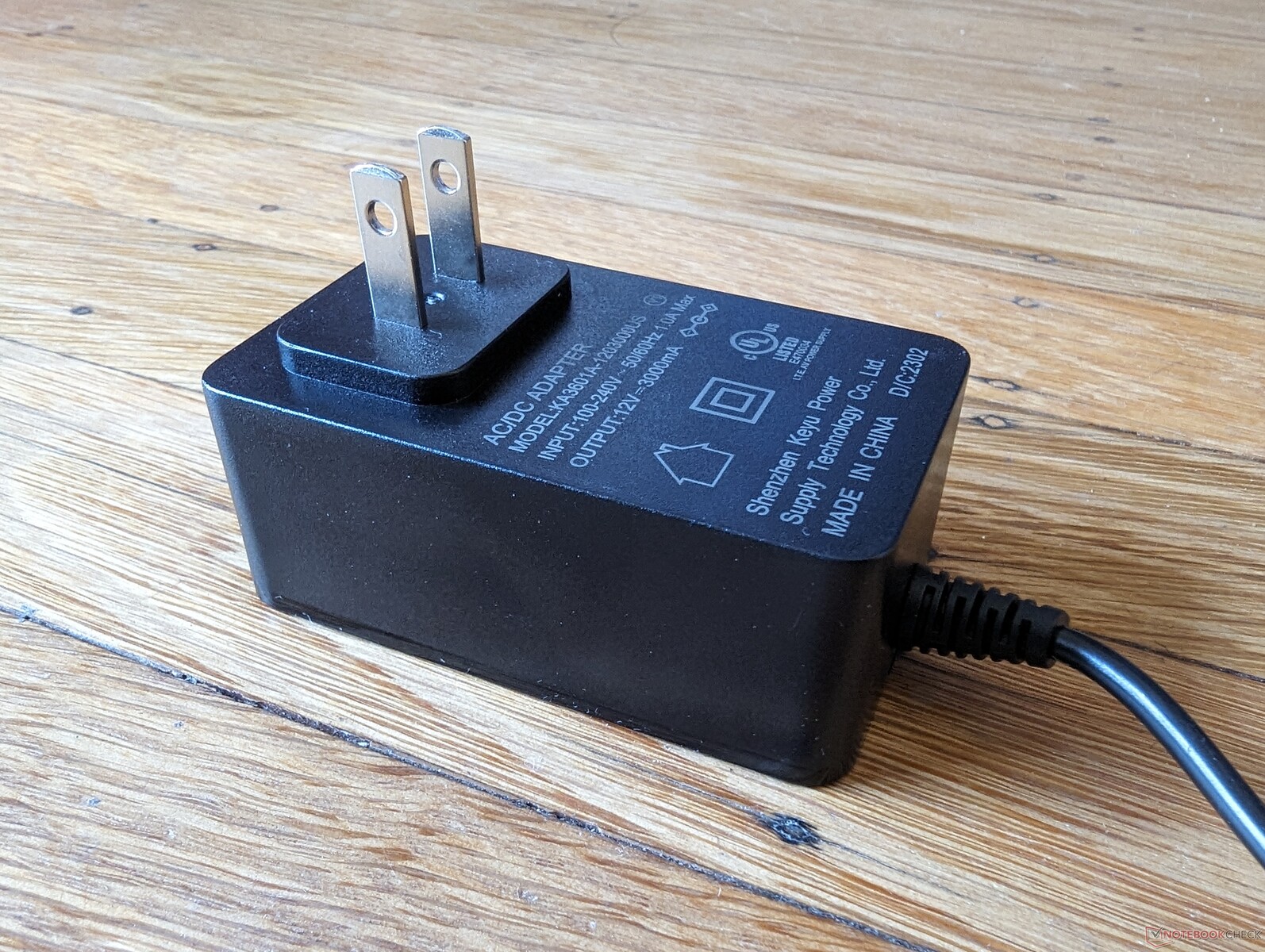

Pudełko detaliczne zawiera dwa kable HDMI, zasilacz, uchwyt ścienny VESA ze śrubami oraz instrukcję obsługi. W przypadku zakupu w Stanach Zjednoczonych obowiązuje roczna ograniczona gwarancja producenta.

Wydajność

Warunki testowania

Przed uruchomieniem poniższych testów porównawczych ustawiliśmy system Windows na tryb wydajności. Beelink nie zawiera specjalnego oprogramowania do regulacji funkcji pomocniczych lub profili zasilania.

Procesor

Ogólna wydajność N100 jest zaledwie od 5 do 10 procent szybsza niż w przypadku N95 wBlackview MP80. Niewielki wzrost nie jest na tyle znaczący, aby był zauważalny podczas codziennych obciążeń. Niemniej jednak, użytkownicy przesiadający się z Celerona N5095 zauważą przyzwoity wzrost wydajności zarówno w aplikacjach jedno-, jak i wielowątkowych.

Cinebench R15 Multi Loop

Beelink Mini S12 Pro Intel Processor N100: Ø461 (458.73-467.21)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Beelink U59 Intel Celeron N5095: Ø377 (375.08-378.57)

Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005: Ø414 (407.59-416.69)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
Minisforum Venus Series NPB5 Intel Core i5-13500H	94 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	92 pt
GMK NucBox K3 Pro Intel Core i7-12650H	86.1 pt
Minisforum Venus Series UN1245 Intel Core i5-12450H	76.4 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	74.9 pt
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	64.3 pt
Trigkey Speed S Intel Core i5-11320H	63.9 pt
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	53.6 pt
Beelink Mini S12 Pro Intel Processor N100	42.9 pt
Blackview MP80 Intel Processor N95	41.8 pt
Average Intel Processor N100	38.6 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	33.5 pt
Beelink U59 ^-2! Intel Celeron N5095	31.6 pt
Intel NUC11ATKC2, N4505 Intel Celeron N4505	24.1 pt
Higole PC Stick-J4125 Intel Celeron J4125	14.2 pt
Chuwi LapBook Plus ^-6! Intel Atom x7-E3950	9.9 pt

Cinebench R23 / Multi Core
Minisforum Venus Series NPB5 Intel Core i5-13500H	13542 Points +364%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +317%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +267%
Minisforum Venus Series UN1245 Intel Core i5-12450H	9134 Points +213%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points +179%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	5802 Points +99%
Trigkey Speed S Intel Core i5-11320H	5724 (5641.98^min - 5723.64^max) Points +96%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	5341 Points +83%
Beelink Mini S12 Pro Intel Processor N100	2916 (2877.53^min - 2916.35^max) Points
Blackview MP80 Intel Processor N95	2686 Points -8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2475 Points -15%
Average Intel Processor N100 (1577 - 2983, n=8)	2449 Points -16%
Beelink U59 Intel Celeron N5095	2219 (2211.53^min - 2219.25^max) Points -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1114 Points -62%
Higole PC Stick-J4125 Intel Celeron J4125	860 Points -71%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +102%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +92%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1775 Points +91%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1659 Points +78%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points +73%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	1581 Points +70%
Trigkey Speed S Intel Core i5-11320H	1465 Points +57%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	1115 Points +20%
Beelink Mini S12 Pro Intel Processor N100	931 Points
Blackview MP80 Intel Processor N95	914 Points -2%
Average Intel Processor N100 (747 - 942, n=8)	885 Points -5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	694 Points -25%
Beelink U59 Intel Celeron N5095	621 Points -33%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	592 Points -36%
Higole PC Stick-J4125 Intel Celeron J4125	392 Points -58%

Cinebench R20 / CPU (Multi Core)
Minisforum Venus Series NPB5 Intel Core i5-13500H	5108 Points +358%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +320%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +264%
Minisforum Venus Series UN1245 Intel Core i5-12450H	3510 Points +215%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points +179%
Trigkey Speed S Intel Core i5-11320H	2216 Points +99%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	2198 Points +97%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	2076 Points +86%
Beelink Mini S12 Pro Intel Processor N100	1115 Points
Blackview MP80 Intel Processor N95	1029 Points -8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	948 Points -15%
Average Intel Processor N100 (590 - 1139, n=8)	934 Points -16%
Beelink U59 Intel Celeron N5095	844 Points -24%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	431 Points -61%
Higole PC Stick-J4125 Intel Celeron J4125	346 Points -69%
Chuwi LapBook Plus Intel Atom x7-E3950	272 Points -76%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +103%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +94%
Minisforum Venus Series NPB5 Intel Core i5-13500H	687 Points +92%
Minisforum Venus Series UN1245 Intel Core i5-12450H	640 Points +79%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points +74%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	606 Points +70%
Trigkey Speed S Intel Core i5-11320H	567 Points +59%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	434 Points +22%
Beelink Mini S12 Pro Intel Processor N100	357 Points
Blackview MP80 Intel Processor N95	350 Points -2%
Average Intel Processor N100 (285 - 358, n=8)	338 Points -5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	262 Points -27%
Beelink U59 Intel Celeron N5095	239 Points -33%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	224 Points -37%
Higole PC Stick-J4125 Intel Celeron J4125	155 Points -57%
Chuwi LapBook Plus Intel Atom x7-E3950	93 Points -74%

Cinebench R15 / CPU Multi 64Bit
Minisforum Venus Series NPB5 Intel Core i5-13500H	2304 Points +393%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +326%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +262%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points +202%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1379 Points +195%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	906 (836^min - 906^max) Points +94%
Trigkey Speed S Intel Core i5-11320H	861 (839.91^min - 860.88^max) Points +84%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	832 (719.93^min - 831.53^max) Points +78%
Beelink Mini S12 Pro Intel Processor N100	467 (458.73^min - 467.21^max) Points
Blackview MP80 Intel Processor N95	434 Points -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	428 Points -8%
Average Intel Processor N100 (246 - 479, n=8)	385 Points -18%
Beelink U59 Intel Celeron N5095	379 (375.08^min - 378.57^max) Points -19%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	191 Points -59%
Higole PC Stick-J4125 Intel Celeron J4125	148 Points -68%
Chuwi LapBook Plus Intel Atom x7-E3950	125 Points -73%

Cinebench R15 / CPU Single 64Bit
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +73%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +66%
Minisforum Venus Series NPB5 Intel Core i5-13500H	255 Points +66%
Minisforum Venus Series UN1245 Intel Core i5-12450H	238 Points +55%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points +50%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	227 Points +47%
Trigkey Speed S Intel Core i5-11320H	215 Points +40%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	170 Points +10%
Beelink Mini S12 Pro Intel Processor N100	153.9 Points
Blackview MP80 Intel Processor N95	151 Points -2%
Average Intel Processor N100 (118.8 - 155, n=8)	143.8 Points -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	121 Points -21%
Beelink U59 Intel Celeron N5095	109 Points -29%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	104 Points -32%
Higole PC Stick-J4125 Intel Celeron J4125	68 Points -56%
Chuwi LapBook Plus Intel Atom x7-E3950	41 Points -73%

Blender / v2.79 BMW27 CPU
Chuwi LapBook Plus Intel Atom x7-E3950	4564 Seconds * -335%
Higole PC Stick-J4125 Intel Celeron J4125	3860 Seconds * -268%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2953 Seconds * -182%
Beelink U59 Intel Celeron N5095	1516 Seconds * -45%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1354 Seconds * -29%
Average Intel Processor N100 (1017 - 1956, n=8)	1322 Seconds * -26%
Blackview MP80 Intel Processor N95	1124 Seconds * -7%
Beelink Mini S12 Pro Intel Processor N100	1048 Seconds *
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	645 Seconds * +38%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	544 Seconds * +48%
Trigkey Speed S Intel Core i5-11320H	543 Seconds * +48%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * +63%
Minisforum Venus Series UN1245 Intel Core i5-12450H	349 Seconds * +67%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +69%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * +74%
Minisforum Venus Series NPB5 Intel Core i5-13500H	260 Seconds * +75%

7-Zip 18.03 / 7z b 4
Minisforum Venus Series NPB5 Intel Core i5-13500H	52630 MIPS +296%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +286%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +224%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS +168%
Minisforum Venus Series UN1245 Intel Core i5-12450H	33619 MIPS +153%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	24893 MIPS +87%
Trigkey Speed S Intel Core i5-11320H	24718 MIPS +86%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	21971 MIPS +65%
Beelink Mini S12 Pro Intel Processor N100	13291 MIPS
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	12851 MIPS -3%
Blackview MP80 Intel Processor N95	12177 MIPS -8%
Beelink U59 Intel Celeron N5095	11168 MIPS -16%
Average Intel Processor N100 (7532 - 13291, n=8)	11072 MIPS -17%
Higole PC Stick-J4125 Intel Celeron J4125	6862 MIPS -48%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	5871 MIPS -56%
Chuwi LapBook Plus Intel Atom x7-E3950	4569 MIPS -66%

7-Zip 18.03 / 7z b 4 -mmt1
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +48%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +46%
Minisforum Venus Series NPB5 Intel Core i5-13500H	5695 MIPS +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +31%
Trigkey Speed S Intel Core i5-11320H	5119 MIPS +29%
Minisforum Venus Series UN1245 Intel Core i5-12450H	4994 MIPS +26%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	4934 MIPS +25%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	3960 MIPS 0%
Beelink Mini S12 Pro Intel Processor N100	3958 MIPS
Blackview MP80 Intel Processor N95	3843 MIPS -3%
Average Intel Processor N100 (3046 - 3958, n=8)	3629 MIPS -8%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	3425 MIPS -13%
Beelink U59 Intel Celeron N5095	3111 MIPS -21%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2971 MIPS -25%
Higole PC Stick-J4125 Intel Celeron J4125	2369 MIPS -40%
Chuwi LapBook Plus Intel Atom x7-E3950	1454 MIPS -63%

Geekbench 5.5 / Multi-Core
Minisforum Venus Series NPB5 Intel Core i5-13500H	11465 Points +300%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +258%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +242%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points +172%
Minisforum Venus Series UN1245 Intel Core i5-12450H	7200 Points +151%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	6015 Points +110%
Trigkey Speed S Intel Core i5-11320H	4927 Points +72%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	4008 Points +40%
Beelink Mini S12 Pro Intel Processor N100	2867 Points
Blackview MP80 Intel Processor N95	2793 Points -3%
Average Intel Processor N100 (1911 - 2896, n=9)	2598 Points -9%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2402 Points -16%
Higole PC Stick-J4125 Intel Celeron J4125	1231 Points -57%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1225 Points -57%

Geekbench 5.5 / Single-Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +80%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +76%
Minisforum Venus Series NPB5 Intel Core i5-13500H	1762 Points +73%
Minisforum Venus Series UN1245 Intel Core i5-12450H	1655 Points +63%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points +60%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	1572 Points +54%
Trigkey Speed S Intel Core i5-11320H	1523 Points +50%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	1070 Points +5%
Beelink Mini S12 Pro Intel Processor N100	1018 Points
Blackview MP80 Intel Processor N95	1013 Points 0%
Average Intel Processor N100 (915 - 1018, n=9)	981 Points -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	738 Points -28%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	647 Points -36%
Higole PC Stick-J4125 Intel Celeron J4125	453 Points -56%

HWBOT x265 Benchmark v2.2 / 4k Preset
Minisforum Venus Series NPB5 Intel Core i5-13500H	14.6 fps +328%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps +308%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +261%
Minisforum Venus Series UN1245 Intel Core i5-12450H	10.8 fps +217%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps +177%
Trigkey Speed S Intel Core i5-11320H	7.25 fps +113%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	6.54 fps +92%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	5.33 fps +56%
Beelink Mini S12 Pro Intel Processor N100	3.41 fps
Blackview MP80 Intel Processor N95	3.29 fps -4%
Average Intel Processor N100 (1.72 - 3.49, n=8)	2.77 fps -19%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2.34 fps -31%
Beelink U59 Intel Celeron N5095	2.05 fps -40%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.16 fps -66%
Chuwi LapBook Plus Intel Atom x7-E3950	0.98 fps -71%
Higole PC Stick-J4125 Intel Celeron J4125	0.95 fps -72%

LibreOffice / 20 Documents To PDF
Higole PC Stick-J4125 Intel Celeron J4125	168.4 s * -142%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	111.7 s * -60%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	105.1 s * -51%
Beelink U59 Intel Celeron N5095	97 s * -39%
Average Intel Processor N100 (67 - 129.6, n=8)	88.1 s * -27%
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	76.8 s * -10%
Beelink Mini S12 Pro Intel Processor N100	69.6 s *
Blackview MP80 Intel Processor N95	68.3 s * +2%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	53.7 s * +23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * +30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * +33%
Minisforum Venus Series UN1245 Intel Core i5-12450H	46.6 s * +33%
Trigkey Speed S Intel Core i5-11320H	44 s * +37%
Minisforum Venus Series NPB5 Intel Core i5-13500H	44 s * +37%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +43%

R Benchmark 2.5 / Overall mean
Higole PC Stick-J4125 Intel Celeron J4125	1.565 sec * -90%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.224 sec * -49%
Beelink U59 Intel Celeron N5095	1.168 sec * -42%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1.073 sec * -31%
Average Intel Processor N100 (0.822 - 1.06, n=8)	0.91 sec * -11%
Blackview MP80 Intel Processor N95	0.83 sec * -1%
Beelink Mini S12 Pro Intel Processor N100	0.822 sec *
Lenovo IdeaPad 3 14ALC6-82KT0077GE AMD Ryzen 3 5300U	0.658 sec * +20%
Trigkey Speed S Intel Core i5-11320H	0.591 sec * +28%
Lenovo IdeaPad Flex 5 14IAU7-82R7007TGE Intel Core i3-1215U	0.547 sec * +33%
Minisforum Venus Series UN1245 Intel Core i5-12450H	0.515 sec * +37%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * +38%
Minisforum Venus Series NPB5 Intel Core i5-13500H	0.473 sec * +42%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +43%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +45%

* ... im mniej tym lepiej

Cinebench R15 CPU Multi 64Bit

467 Points

Cinebench R15 OpenGL 64Bit

40.4 fps

Cinebench R15 Ref. Match 64Bit

97.8 %

Cinebench R15 CPU Single 64Bit

153.9 Points

Cinebench R20 CPU (Multi Core)

1115 Points

Cinebench R20 CPU (Single Core)

357 Points

Cinebench R23 Single Core

931 Points

Cinebench R23 Multi Core

2916 Points

Pomoc

... porównanie

Performance Rating
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	93.1 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	87.8 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67.2 pt
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19.8 pt
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	17.7 pt
Average Intel Processor N100	15.7 pt
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	9.4 pt

AIDA64 / FP32 Ray-Trace
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s +1237%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s +1024%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s +711%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1451 KRay/s +73%
Average Intel Processor N100 (837 - 2179, n=8)	1364 KRay/s +63%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1245 KRay/s +49%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	837 KRay/s

AIDA64 / FPU Julia
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points +1196%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points +1010%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points +684%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	8792 Points +100%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	7466 Points +70%
Average Intel Processor N100 (4395 - 11392, n=8)	7127 Points +62%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	4395 Points

AIDA64 / CPU SHA3
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s +769%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s +582%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s +514%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	593 MB/s +93%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	515 MB/s +68%
Average Intel Processor N100 (307 - 797, n=8)	482 MB/s +57%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	307 MB/s

AIDA64 / CPU Queen
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points +900%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points +799%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points +588%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26238 Points +202%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	21959 Points +153%
Average Intel Processor N100 (8663 - 22605, n=8)	17079 Points +97%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8691 Points

AIDA64 / FPU SinJulia
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points +1585%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points +1426%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points +980%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	1182 Points +175%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	1003 Points +133%
Average Intel Processor N100 (430 - 1120, n=8)	828 Points +93%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	430 Points

AIDA64 / FPU Mandel
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points +1164%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points +966%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points +639%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	4670 Points +111%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	3967 Points +79%
Average Intel Processor N100 (2217 - 5749, n=8)	3562 Points +61%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	2217 Points

AIDA64 / CPU AES
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s +880%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s +697%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s +533%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	19099 MB/s +127%
Average Intel Processor N100 (8421 - 21774, n=8)	12816 MB/s +52%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	12455 MB/s +48%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	8426 MB/s

AIDA64 / CPU ZLib
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +849%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s +675%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s +636%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	222 MB/s +172%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	190 MB/s +133%
Average Intel Processor N100 (81.7 - 218, n=8)	136.1 MB/s +67%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	81.7 MB/s

AIDA64 / FP64 Ray-Trace
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s +1181%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s +1026%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s +660%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	814 KRay/s +75%
Average Intel Processor N100 (465 - 1169, n=8)	729 KRay/s +57%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	676 KRay/s +45%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	465 KRay/s

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +576%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s +352%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +348%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	11739 MPixel/s +80%
Average Intel Processor N100 (5384 - 16824, n=8)	10887 MPixel/s +67%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	9294 MPixel/s +42%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	6535 MPixel/s

Wydajność systemu

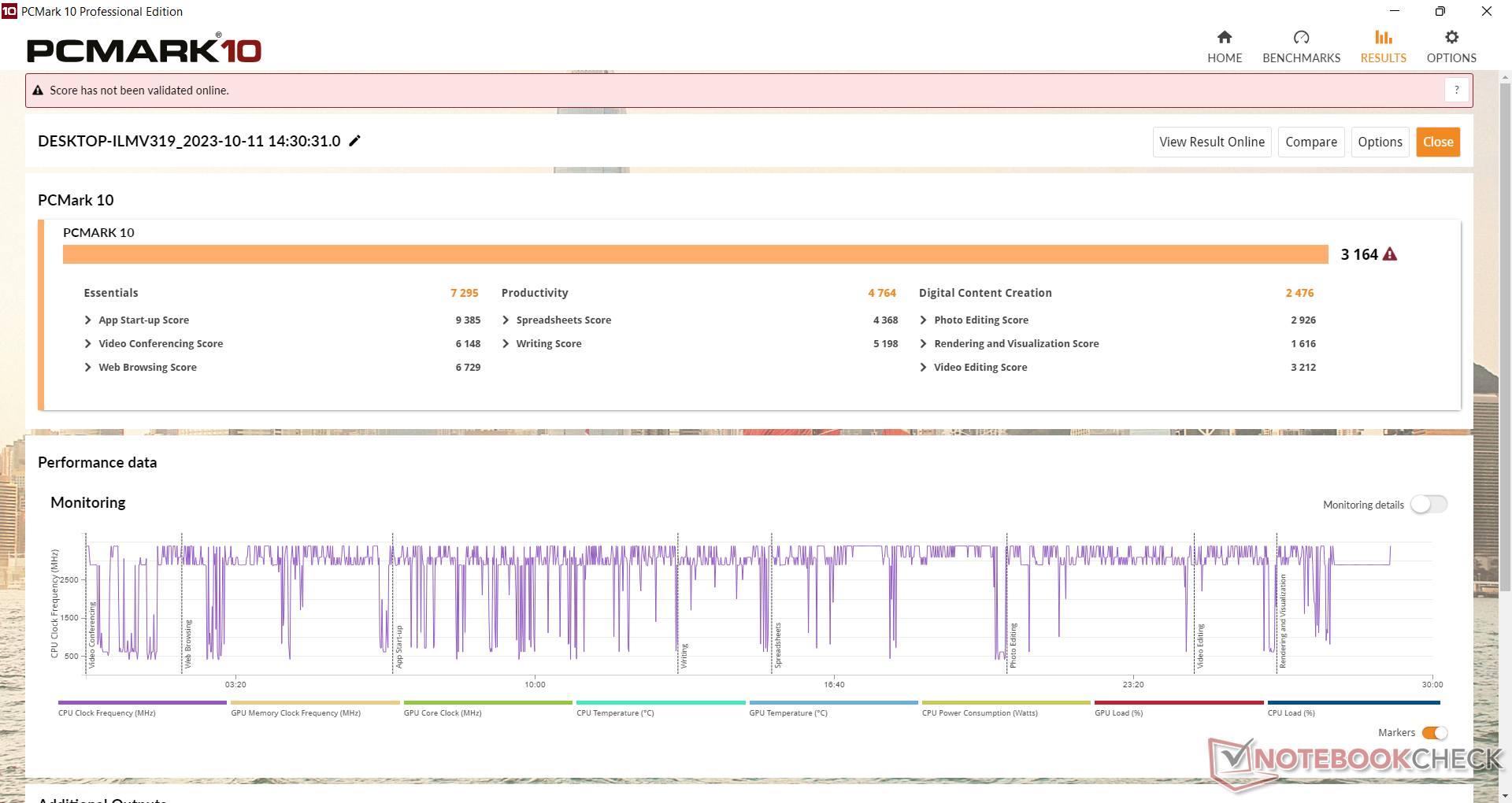

PCMark 10 / Score
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points +86%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +85%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points +75%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	3164 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (2786 - 3229, n=8)	3043 Points -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	2746 Points -13%
Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	2410 Points -24%

PCMark 10 / Essentials
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +51%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +49%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +48%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7295 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (6068 - 7482, n=8)	6969 Points -4%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	6113 Points -16%
Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	5874 Points -19%

PCMark 10 / Productivity
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points +64%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points +54%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points +38%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	4764 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (4167 - 5062, n=8)	4695 Points -1%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3719 Points -22%
Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	3623 Points -24%

PCMark 10 / Digital Content Creation
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +207%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +161%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points +134%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	2476 Points
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	2475 Points 0%
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (2126 - 2497, n=8)	2340 Points -5%
Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	1787 Points -28%

CrossMark / Overall
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +96%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points +90%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points +87%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	839 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (706 - 839, n=7)	779 Points -7%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	539 Points -36%

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +85%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points +70%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points +66%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	905 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (779 - 905, n=7)	840 Points -7%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	591 Points -35%

CrossMark / Creativity
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +129%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +127%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points +100%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	773 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (672 - 773, n=7)	727 Points -6%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	510 Points -34%

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +118%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +53%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points +52%
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	856 Points
Average Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N) (608 - 856, n=7)	763 Points -11%
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	482 Points -44%

PCMark 10 Score		3164 pkt.
Pomoc

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +502%
Average of class Mini PC (6481 - 89287, n=119, last 2 years)	47585 MB/s +311%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +283%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s +273%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	26521 MB/s +129%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	23009 MB/s +99%
Average Intel Processor N100 (8377 - 31917, n=8)	21466 MB/s +85%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	11580 MB/s

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +440%
Average of class Mini PC (6914 - 99171, n=119, last 2 years)	48328 MB/s +287%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s +273%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s +258%
Average Intel Processor N100 (8974 - 32913, n=8)	21721 MB/s +74%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	19297 MB/s +55%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	16406 MB/s +31%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12488 MB/s

AIDA64 / Memory Write
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +382%
Average of class Mini PC (6862 - 98583, n=119, last 2 years)	52056 MB/s +323%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s +278%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s +273%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	34452 MB/s +180%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	30499 MB/s +148%
Average Intel Processor N100 (8762 - 36423, n=8)	23677 MB/s +92%
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	12305 MB/s

AIDA64 / Memory Latency
Beelink Mini S12 Pro Intel Processor N100, UHD Graphics 24EUs (Alder Lake-N)	114.8 ns *
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * +16%
Average of class Mini PC (44.9 - 184.8, n=119, last 2 years)	91.9 ns * +20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +20%
Average Intel Processor N100 (49.5 - 139.9, n=8)	82.5 ns * +28%
Beelink U59 Intel Celeron N5095, UHD Graphics (Jasper Lake 16 EU)	60.2 ns * +48%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, UHD Graphics (Jasper Lake 32 EU)	55.3 ns * +52%

* ... im mniej tym lepiej

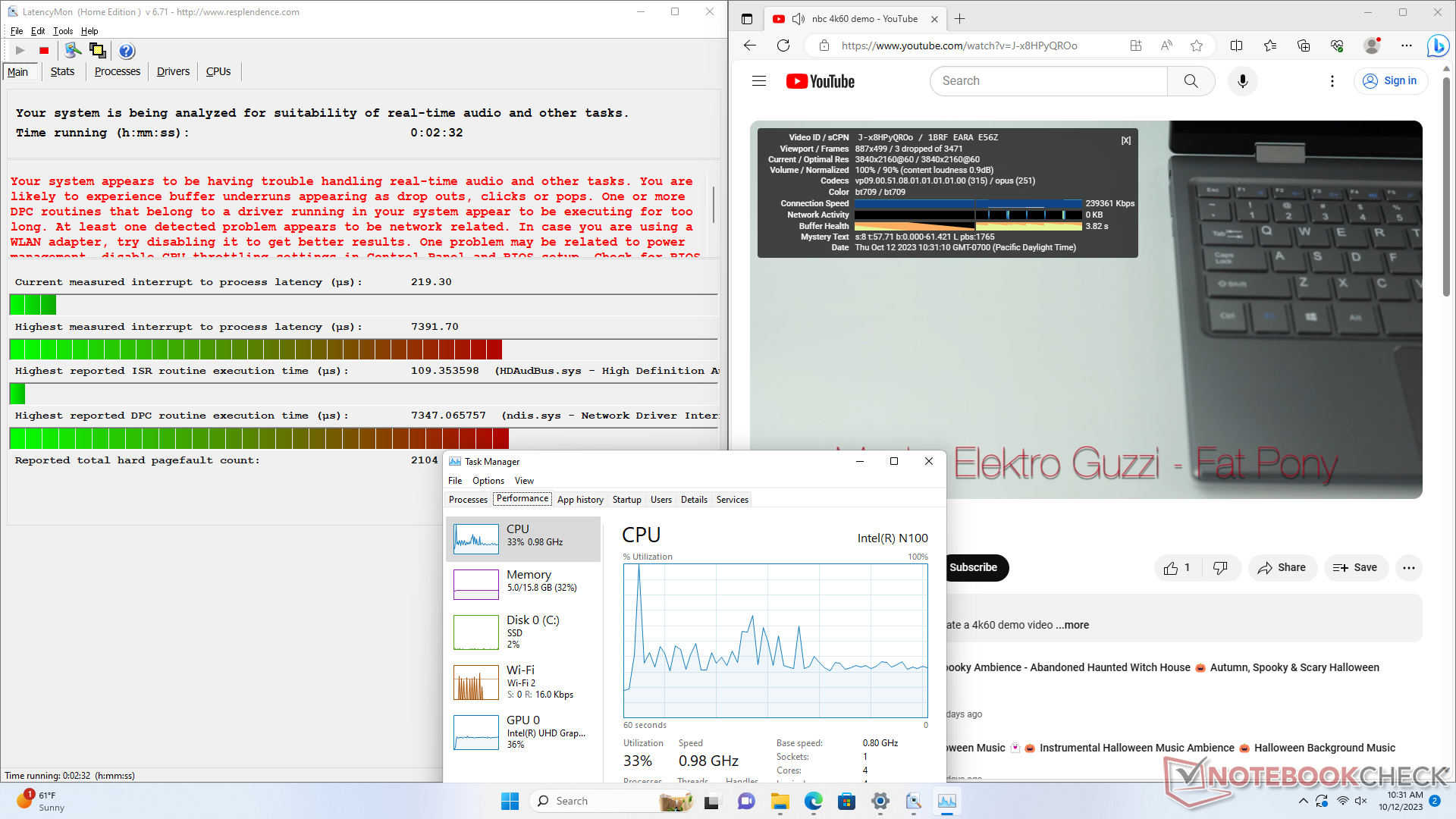

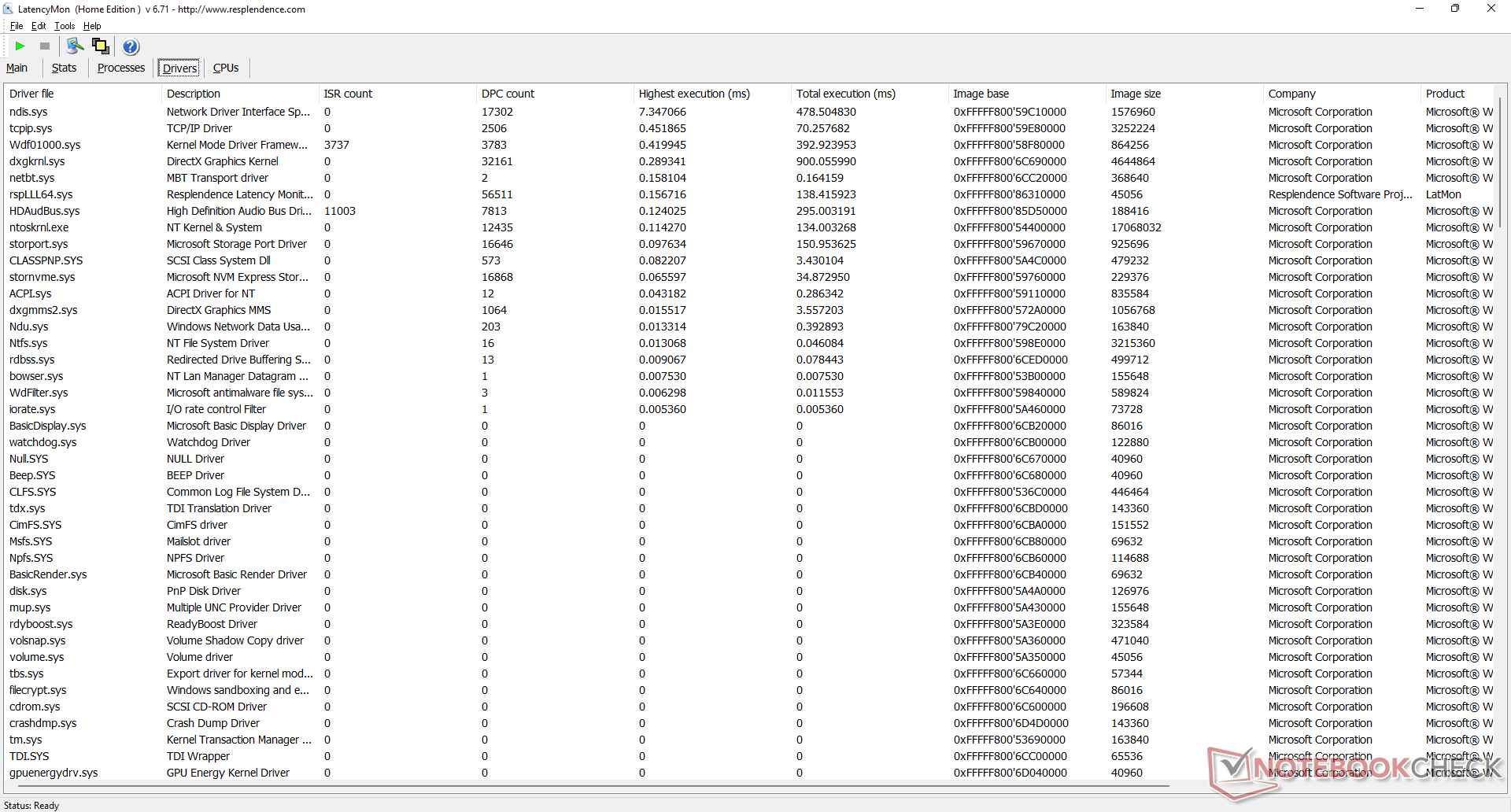

Opóźnienie DPC

LatencyMon ujawnia problemy z DPC podczas otwierania wielu kart przeglądarki na naszej stronie głównej. odtwarzanie wideo 4K przy 60 FPS jest również niedoskonałe z 3 utraconymi klatkami w ciągu jednej minuty. Przeskoki klatek na szczęście nie są na tyle zauważalne, ale nie powinno ich być w ogóle, zwłaszcza w przypadku HTPC.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	7391.7 μs *
Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G	3924 μs * +47%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * +81%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +86%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * +89%
Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	765 μs * +90%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

Urządzenie jest dostarczane z budżetowym dyskiem SSD AZW o pojemności 512 GB, aby zaoszczędzić na kosztach, z maksymalnymi szybkościami sekwencyjnego odczytu i zapisu wynoszącymi odpowiednio około 800 MB/s i 700 MB/s.

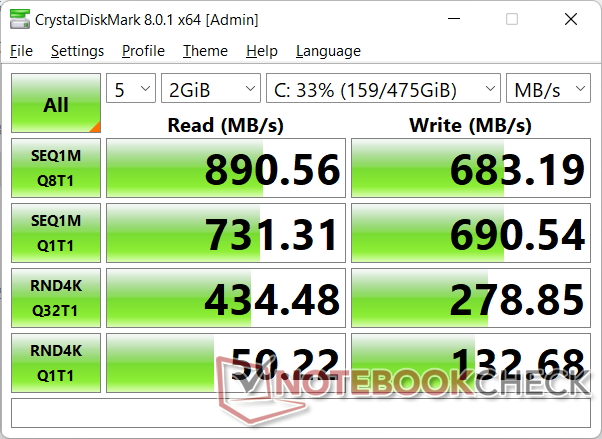

CrystalDiskMark 5.2 / 6

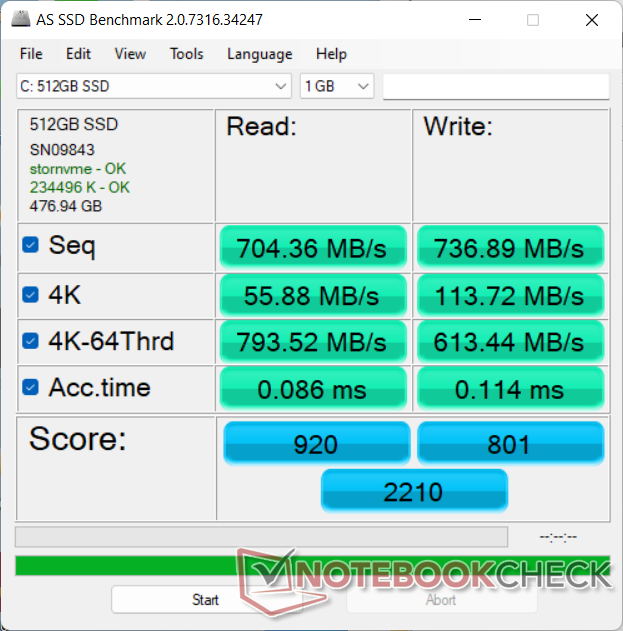

AS SSD

DiskSpd

CDM 5/6 Read Seq Q32T1: 802.8 MB/s

CDM 5/6 Write Seq Q32T1: 866.8 MB/s

CDM 5/6 Read 4K Q32T1: 414.7 MB/s

CDM 5/6 Write 4K Q32T1: 279.9 MB/s

CDM 5 Read Seq: 745.1 MB/s

CDM 5 Write Seq: 700.7 MB/s

CDM 5/6 Read 4K: 56.95 MB/s

CDM 5/6 Write 4K: 134.9 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	82.2 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	80.3 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	54.7 pt
Beelink Mini S12 Pro	38.6 pt
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	33.4 pt
Beelink U59 Silicon Motion AZW 512G NV428	12.1 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +361%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s +247%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s +177%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1057 (1032.22^min - 1057.37^max) MB/s +46%
Beelink Mini S12 Pro	724 (713.03^min - 723.5^max) MB/s
Beelink U59 Silicon Motion AZW 512G NV428	402 (394.68^min - 401.6^max) MB/s -44%
seq write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +369%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s +298%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s +168%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	976 (968.83^min - 975.8^max) MB/s +37%
Beelink Mini S12 Pro	715 (699.61^min - 714.88^max) MB/s
Beelink U59 Silicon Motion AZW 512G NV428	304 (291.46^min - 304.28^max) MB/s -57%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +522%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s +316%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s +298%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1461 (1238.96^min - 1460.88^max) MB/s +67%
Beelink Mini S12 Pro	874 (761^min - 873.67^max) MB/s
Beelink U59 Silicon Motion AZW 512G NV428	448 (407.08^min - 448.01^max) MB/s -49%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +472%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s +228%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s +178%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1316 (1303.71^min - 1316.48^max) MB/s +52%
Beelink Mini S12 Pro	867 (858.82^min - 866.96^max) MB/s
Beelink U59 Silicon Motion AZW 512G NV428	295 (288.36^min - 294.82^max) MB/s -66%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +68%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s +58%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s 0%
Beelink Mini S12 Pro	50.2 (48.32^min - 50.22^max) MB/s
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	24.3 (23.99^min - 24.31^max) MB/s -52%
Beelink U59 Silicon Motion AZW 512G NV428	13 (11.34^min - 13.03^max) MB/s -74%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +197%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s +24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s +10%
Beelink Mini S12 Pro	131.7 (124.21^min - 131.65^max) MB/s
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	41.6 (39.05^min - 41.6^max) MB/s -68%
Beelink U59 Silicon Motion AZW 512G NV428	41.3 (26.85^min - 41.32^max) MB/s -69%
4k q32 t16 read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s +126%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s +31%
Beelink Mini S12 Pro	861 (842.97^min - 860.59^max) MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -6%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	719 (712.63^min - 718.86^max) MB/s -16%
Beelink U59 Silicon Motion AZW 512G NV428	136 (135.53^min - 136^max) MB/s -84%
4k q32 t16 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s +208%
Beelink Mini S12 Pro	721 (676.73^min - 721.31^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -26%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	506 (502.96^min - 505.69^max) MB/s -30%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -37%
Beelink U59 Silicon Motion AZW 512G NV428	113 (106.48^min - 113.38^max) MB/s -84%

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +138%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points +109%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points +49%
Beelink Mini S12 Pro	2210 Points
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	2059 Points -7%
Beelink U59 Silicon Motion AZW 512G NV428	615 Points -72%
Score Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points +78%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points +49%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points +43%
Beelink Mini S12 Pro	920 Points
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	859 Points -7%
Beelink U59 Silicon Motion AZW 512G NV428	198 Points -78%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +315%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points +184%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points +60%
Beelink Mini S12 Pro	801 Points
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	770 Points -4%
Beelink U59 Silicon Motion AZW 512G NV428	321 Points -60%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +544%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s +355%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s +322%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1348 MB/s +91%
Beelink Mini S12 Pro	704.36 MB/s
Beelink U59 Silicon Motion AZW 512G NV428	512 MB/s -27%
Seq Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s +266%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s +131%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	1126 MB/s +53%
Beelink Mini S12 Pro	736.89 MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -37%
Beelink U59 Silicon Motion AZW 512G NV428	364.5 MB/s -51%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +29%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s +7%
Beelink Mini S12 Pro	55.88 MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s -8%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	21.8 MB/s -61%
Beelink U59 Silicon Motion AZW 512G NV428	10.74 MB/s -81%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +147%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +81%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +47%
Beelink Mini S12 Pro	113.72 MB/s
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	39.1 MB/s -66%
Beelink U59 Silicon Motion AZW 512G NV428	30.16 MB/s -73%
4K-64 Read
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s +58%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s +28%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s 0%
Beelink Mini S12 Pro	793.52 MB/s
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	703 MB/s -11%
Beelink U59 Silicon Motion AZW 512G NV428	135.7 MB/s -83%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +371%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +218%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s +48%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	618 MB/s +1%
Beelink Mini S12 Pro	613.44 MB/s
Beelink U59 Silicon Motion AZW 512G NV428	254.3 MB/s -59%
Access Time Read
Beelink U59 Silicon Motion AZW 512G NV428	0.173 ms * -101%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.124 ms * -44%
Beelink Mini S12 Pro	0.086 ms *
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * +8%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +30%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +43%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -222%
Beelink U59 Silicon Motion AZW 512G NV428	0.174 ms * -53%
Beelink Mini S12 Pro	0.114 ms *
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +39%
Intel NUC11ATKPE, N6005 WDC PC SN720 SDAPNTW-512G	0.059 ms * +48%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +79%

* ... im mniej tym lepiej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink Mini S12 Pro: Ø853 (744.93-890.66)

Wydajność GPU

Wydajność graficzna jest o 76 procent wolniejsza niż w przypadku zwykłych Iris Xe 96 EUs. W rzeczywistości jest niewiele szybszy niżUHD Graphics 620 który ma już prawie dekadę. Zalecamy strumieniowanie gier, jeśli zamierzają Państwo grać w jakiekolwiek gry na Mini S12 Pro.

Podejrzewamy, że nasze zintegrowane Xe 24EU działałyby znacznie szybciej, gdyby nasza jednostka została dostarczona z pamięcią dwukanałową zamiast jednokanałowej.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	100 pt
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	90.8 pt
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	85.2 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	78.1 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	69.2 pt
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	55.2 pt
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	25.7 pt
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	22.6 pt
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	22.2 pt
Average Intel UHD Graphics 24EUs (Alder Lake-N)	22.1 pt
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	21.7 pt
Beelink U59 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	12.8 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	12.1 pt
Chuwi LapBook Plus ^-1! Intel HD Graphics 505, Intel Atom x7-E3950	10.4 pt
Higole PC Stick-J4125 ^-1! Intel UHD Graphics 600, Intel Celeron J4125	6.8 pt

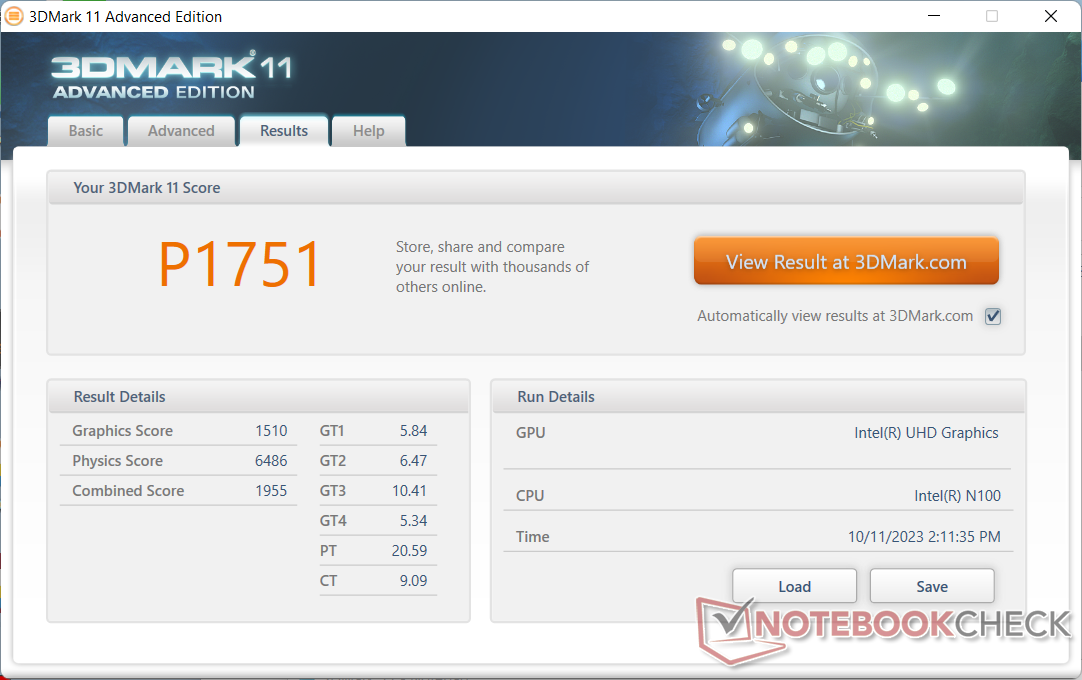

3DMark 11 - 1280x720 Performance GPU
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +385%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	6477 Points +329%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	6423 Points +325%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +269%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points +235%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3912 Points +159%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points +24%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1660 Points +10%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1458 - 2233, n=13)	1542 Points +2%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1510 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1490 Points -1%
Beelink U59 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	894 Points -41%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -43%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	765 Points -49%
Higole PC Stick-J4125 Intel UHD Graphics 600, Intel Celeron J4125	574 Points -62%

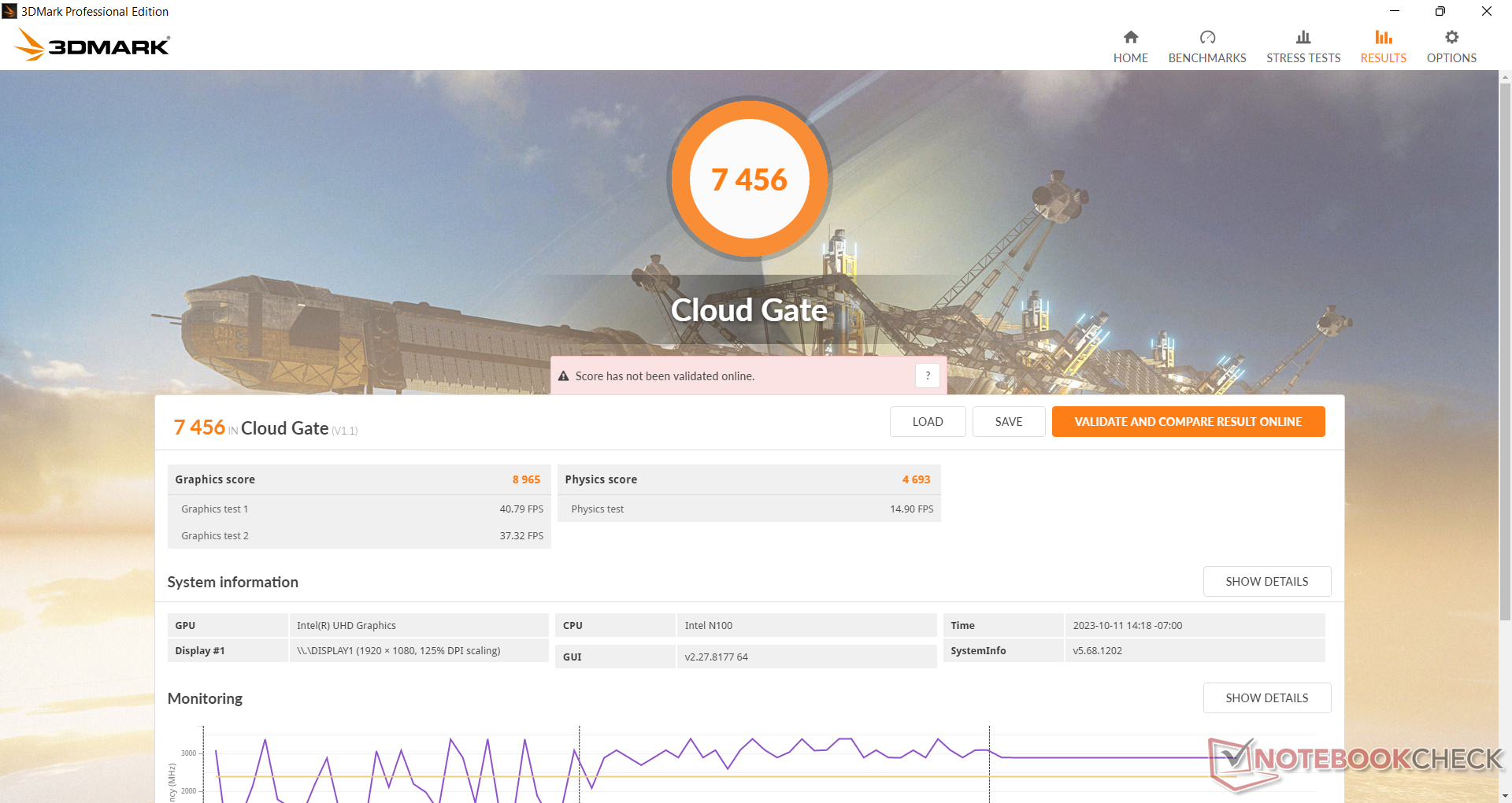

3DMark
1280x720 Cloud Gate Standard Graphics
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points +262%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	29178 Points +225%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	26412 Points +195%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points +149%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	20098 Points +124%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	9405 Points +5%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	8965 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	8548 Points -5%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7218 - 11498, n=13)	8482 Points -5%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	8164 Points -9%
Beelink U59 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	5212 Points -42%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	4625 Points -48%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	3997 Points -55%
Higole PC Stick-J4125 Intel UHD Graphics 600, Intel Celeron J4125	2346 Points -74%

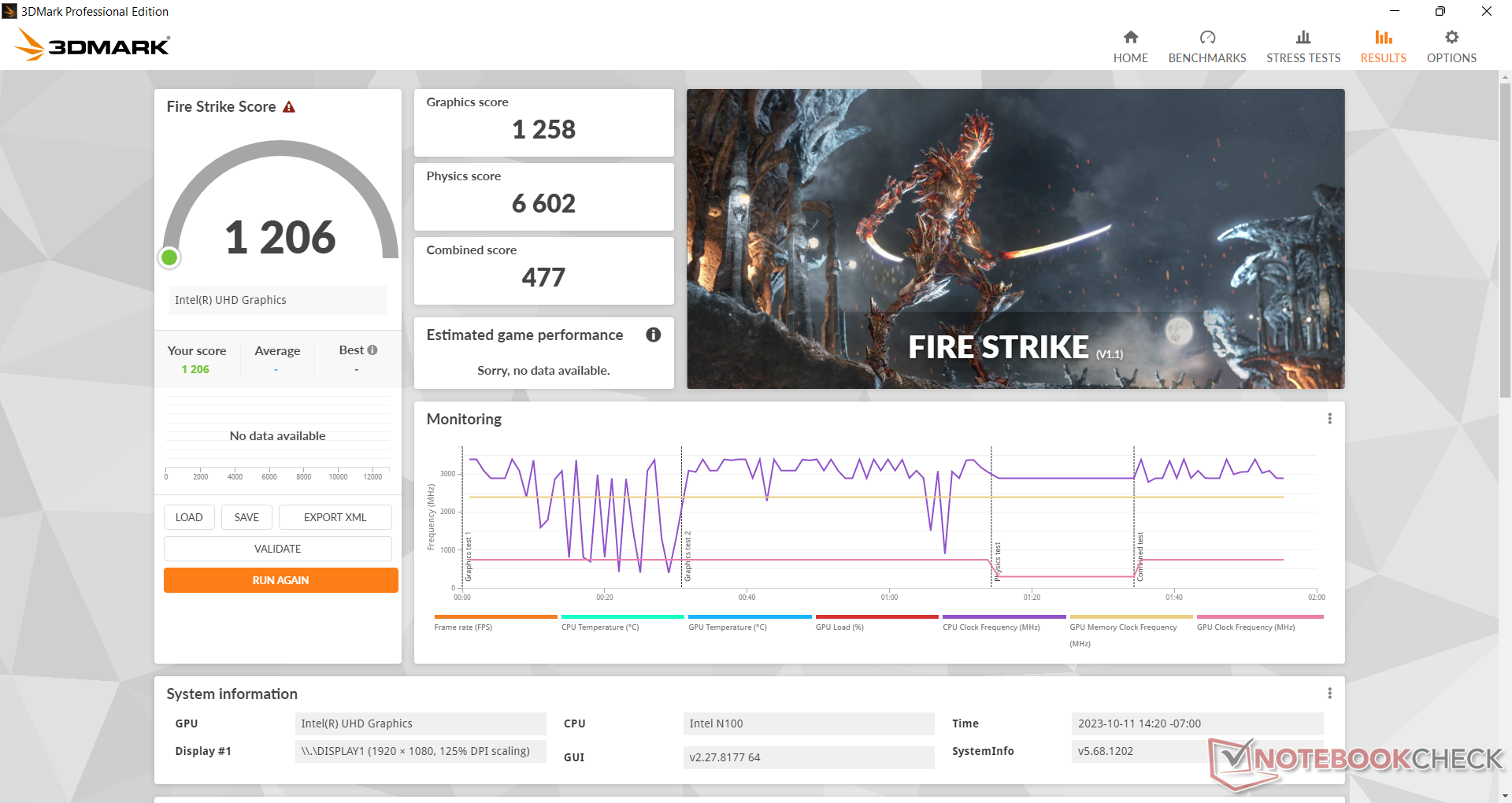

1920x1080 Fire Strike Graphics
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +346%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	5305 Points +322%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	4568 Points +263%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +263%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points +213%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3055 Points +143%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points +7%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	1258 Points
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1080 - 1646, n=12)	1207 Points -4%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	1172 Points -7%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	1078 Points -14%
Beelink U59 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	679 Points -46%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -48%
Higole PC Stick-J4125 Intel UHD Graphics 600, Intel Celeron J4125	307 Points -76%
2560x1440 Time Spy Graphics
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +410%
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1508 Points +360%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	1508 Points +360%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +293%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points +250%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points +161%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	402 Points +23%
Minipc Union NiPoGi CK10 - 10810U Intel UHD Graphics 620, Intel Core i7-10810U	365 Points +11%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (304 - 473, n=13)	331 Points +1%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	328 Points
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	321 Points -2%
Beelink U59 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N5095	182 Points -45%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	179 Points -45%
Chuwi LapBook Plus Intel HD Graphics 505, Intel Atom x7-E3950	142 Points -57%

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark 11 Performance		1751 pkt.
3DMark Cloud Gate Standard Score		7456 pkt.
3DMark Fire Strike Score		1206 pkt.
3DMark Time Spy Score		377 pkt.
Pomoc

... porównanie

Blender - v3.3 Classroom CPU
Higole PC Stick-J4125 Intel UHD Graphics 600, Intel Celeron J4125	7856 Seconds * -283%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	5764 Seconds * -181%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	2464 Seconds * -20%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (1992 - 3964, n=11)	2406 Seconds * -17%
Blackview MP80 Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N95	2208 Seconds * -8%
Beelink Mini S12 Pro Intel UHD Graphics 24EUs (Alder Lake-N), Intel Processor N100	2052 Seconds *
Trigkey Speed S Intel Iris Xe Graphics G7 96EUs, Intel Core i5-11320H	1010 Seconds * +51%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * +66%
Minisforum Venus Series UN1245 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	594 Seconds * +71%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +72%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * +77%
Minisforum Venus Series NPB5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-13500H	463 Seconds * +77%

* ... im mniej tym lepiej

Final Fantasy XV Benchmark | Dota 2 Reborn | The Witcher 3 | X-Plane 11.11

Final Fantasy XV Benchmark - 1280x720 Lite Quality
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	45.6 fps +240%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +240%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	39.8 fps +197%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps +196%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps +166%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	29.3 fps +119%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps +7%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	13.4 fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12 - 17.8, n=10)	13.3 fps -1%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	12.8 fps -4%
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	7.17 fps -46%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -48%

Dota 2 Reborn
1280x720 min (0/3) fastest
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	140.3 (102.2^min) fps +74%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	133.3 (93.2^min) fps +65%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	121 (109.7^min) fps +50%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps +48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps +41%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps +16%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	80.8 (58.2^min) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps -1%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	69.3 (50.1^min) fps -14%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (44.7 - 80.8, n=12)	68.6 fps -15%
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	57.3 (47^min) fps -29%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	37.5 (28.1^min) fps -54%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -55%
1366x768 med (1/3)
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	101.3 (78.4^min) fps +96%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps +81%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	88.9 (71.5^min) fps +72%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps +72%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps +67%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	79.4 (61.1^min) fps +54%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	51.6 (44.6^min) fps
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	48.3 (34.8^min) fps -6%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (27.6 - 52, n=12)	45.1 fps -13%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps -46%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -48%
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	26.6 (20.6^min) fps -48%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	9.7 (6.7^min) fps -81%
1920x1080 high (2/3)
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	70.7 (65.7^min) fps +242%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +227%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps +203%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	50.6 (42.5^min) fps +144%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps +120%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	44.7 (41.8^min) fps +116%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	20.7 (19.3^min) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (14.2 - 26.8, n=12)	19.7 fps -5%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	19.6 (18.2^min) fps -5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	19.5 (15.3^min) fps -6%
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	12 (9.3^min) fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	11.8 (7.4^min) fps -43%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	5.5 (3^min) fps -73%
1920x1080 ultra (3/3) best looking
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	64.5 (58.2^min) fps +238%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +217%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps +201%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	52.3 (43.7^min) fps +174%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps +121%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.6 (38.5^min) fps +118%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	19.1 (17.7^min) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	18.3 (14^min) fps -4%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (13.4 - 24.9, n=12)	18.3 fps -4%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	18 (16.9^min) fps -6%
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	11.2 (8.6^min) fps -41%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	10.9 (7.7^min) fps -43%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	5.2 (2.5^min) fps -73%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +538%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	97.4 fps +509%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	87.8 (79^min) fps +449%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps +433%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps +386%
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.4 (20.6^min, 26.1^P0.1, 35.1^P1) fps +290%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (16 - 33.3, n=8)	23 fps +44%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	16 fps
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	14 (13^min) fps -12%
1366x768 Medium Graphics & Postprocessing
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	53.5 (49^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39 (5.56^min, 18.6^P0.1, 21.3^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (14.6 - 20.9, n=5)	16 fps
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	33.5 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	23.5 (22^min) fps
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	20.2 (10.1^min, 10.8^P0.1, 11.1^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7.2 - 10.8, n=6)	8.31 fps
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	15.7 fps
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	13.1 (11^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps
Minisforum Venus Series UN1245 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	10.2 (5.67^min, 5.82^P0.1, 5.92^P1) fps
Average Intel UHD Graphics 24EUs (Alder Lake-N) (3.8 - 5.15, n=2)	4.48 fps

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +323%
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	51.1 fps +296%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	48.7 fps +278%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +275%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps +220%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	24.3 fps +88%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps +81%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (12.9 - 24.7, n=10)	19.5 fps +51%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps +2%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	12.9 fps
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	10.8 fps -16%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	6.74 fps -48%
1920x1080 med (fps_test=2)
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	43.7 fps +301%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +276%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	34.4 fps +216%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps +204%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps +201%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps +46%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	15 fps +38%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (8.75 - 15, n=10)	12.8 fps +17%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.9 fps
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -16%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -16%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	3.44 fps -68%
1920x1080 high (fps_test=3)
Trigkey Speed S Intel Core i5-11320H, Intel Iris Xe Graphics G7 96EUs	38.7 fps +272%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +240%
Minisforum Venus Series NPB5 Intel Core i5-13500H, Intel Iris Xe Graphics G7 80EUs	30.3 fps +191%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps +184%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps +150%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.6 fps +40%
Blackview MP80 Intel Processor N95, Intel UHD Graphics 24EUs (Alder Lake-N)	13.8 fps +33%
Average Intel UHD Graphics 24EUs (Alder Lake-N) (7.81 - 13.9, n=9)	11.8 fps +13%
Beelink Mini S12 Pro Intel Processor N100, Intel UHD Graphics 24EUs (Alder Lake-N)	10.4 fps
Beelink U59 Intel Celeron N5095, Intel UHD Graphics (Jasper Lake 16 EU)	8.62 fps -17%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	8.58 fps -17%
Higole PC Stick-J4125 Intel Celeron J4125, Intel UHD Graphics 600	3.37 fps -68%

Final Fantasy XV Benchmark | Dota 2 Reborn | The Witcher 3 | X-Plane 11.11

Witcher 3 FPS Chart

Beelink Mini S12 Pro: Ø16.3 (14-20)

	low	med.	high	ultra
The Witcher 3 (2015)	16
Dota 2 Reborn (2015)	80.8	51.6	20.7	19.1
Final Fantasy XV Benchmark (2018)	13.4
X-Plane 11.11 (2018)	12.9	10.9	10.4

Emisje

Hałas systemowy

Wewnętrzny wentylator jest zawsze aktywny na poziomie 26 dB(A) na cichym tle 23 dB(A), nawet gdy nie są uruchomione żadne aplikacje. Na szczęście jest on na tyle cichy, że jest praktycznie niesłyszalny w większości salonów i biur. Większe obciążenie spowodowałoby hałas wentylatora między 33 a 37 dB(A) w porównaniu do ponad 40 dB(A) na szybszych i droższych mini PC, takich jak Intel NUC 13 Pro lubGMK NucBox K3 Pro.

Hałas

luz		26.3 / 26.3 / 26.3 dB
obciążenie		31.9 / 36.7 dB

	30 dB cichy 40 dB(A) słyszalny 50 dB(A) irytujący
min: , med: , max: Earthworks M23R, Arta (odległość 15 cm) environment noise: 23.3 dB(A)

	Beelink Mini S12 Pro UHD Graphics 24EUs (Alder Lake-N), N100	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Beelink U59 UHD Graphics (Jasper Lake 16 EU), Celeron N5095, Silicon Motion AZW 512G NV428	Intel NUC11ATKPE, N6005 UHD Graphics (Jasper Lake 32 EU), Pentium N6005, WDC PC SN720 SDAPNTW-512G
Noise		-6%	-13%	-4%	2%	-16%
off / environment *	23.3	23.1 1%	25.2 -8%	23.3 -0%	24.5 -5%	30.3 -30%
Idle Minimum *	26.3	25 5%	28.1 -7%	27.8 -6%	24.5 7%	31.8 -21%
Idle Average *	26.3	25.5 3%	28.2 -7%	27.8 -6%	24.5 7%	31.9 -21%
Idle Maximum *	26.3	25.5 3%	28.3 -8%	27.8 -6%	28.6 -9%	32 -22%
Load Average *	31.9	39.9 -25%	42 -32%	32 -0%	29.7 7%	32.5 -2%
Witcher 3 ultra *	33	39.9 -21%		34.1 -3%	30.4 8%
Load Maximum *	36.7	39.9 -9%	42.1 -15%	39.2 -7%	37.6 -2%	36.8 -0%

* ... im mniej tym lepiej

Temperatura

Zasilacz AC może osiągnąć temperaturę ponad 41 C podczas długotrwałej pracy z wymagającymi obciążeniami

Temperatury powierzchni są najcieplejsze w pobliżu tylnych kratek wentylacyjnych. W szczególności górna powierzchnia może osiągnąć ponad 43 C w porównaniu do zaledwie 37 C w modelu SEi12 prawdopodobnie ze względu na brak kratek wentylacyjnych na górze Mini S12 Pro.

Test warunków skrajnych

Częstotliwość taktowania procesora i pobór mocy pakietu podczas inicjowania stresu Prime95 wzrosły odpowiednio do 2,6 GHz i 25 W. Po około 40 sekundach procesor spadłby do 2,6 GHz i 20 W, aby utrzymać temperaturę rdzenia na poziomie 74 C. Wysokie częstotliwości taktowania Turbo Boost są zatem nie do utrzymania przez długi czas, co nie jest zaskakujące w przypadku procesora o niskim poborze mocy.

	Taktowanie CPU (GHz)	Taktowanie GPU (MHz)	Średnia temperatura CPU (°C)
System bezczynności	--	--	47
Prime95Stress	2.6	--	74
Prime95+ FurMark Stress	2.1	748	78
Witcher 3 Obciążenie	~1.2	748	69

Frequency diagram (checkboxes can be checked and unchecked to compare devices)

Apple MacBook Pro 16 2021 M1 Pro audio analysis

(+) | speakers can play relatively loud (84.7 dB)
Bass 100 - 315 Hz
(+) | good bass - only 3.8% away from median
(+) | bass is linear (5.2% delta to prev. frequency)
Mids 400 - 2000 Hz
(+) | balanced mids - only 1.3% away from median
(+) | mids are linear (2.1% delta to prev. frequency)
Highs 2 - 16 kHz
(+) | balanced highs - only 1.9% away from median
(+) | highs are linear (2.7% delta to prev. frequency)
Overall 100 - 16.000 Hz
(+) | overall sound is linear (4.6% difference to median)
Compared to same class
» 0% of all tested devices in this class were better, 0% similar, 100% worse
» The best had a delta of 5%, average was 18%, worst was 45%
Compared to all devices tested
» 0% of all tested devices were better, 0% similar, 100% worse
» The best had a delta of 4%, average was 25%, worst was 134%

Zarządzanie energią

Zużycie energii

Oczekuje się, że system jest bardzo wydajny. Na biegu jałowym na pulpicie zużywałby zaledwie 8 do 9 W, podczas gdy bardzo duże obciążenia, takie jak gry, pobierałyby średnio tylko 20 W. Zużycie energii może tymczasowo osiągnąć szczytowy poziom około 33 W podczas uruchamiania aplikacji lub przy dużym obciążeniu procesora. Dołączony zasilacz sieciowy o mocy 36 W (~7,8 x 4,6 x 3,1 cm) ledwo wystarcza do zasilania mini PC przy 100-procentowym wykorzystaniu procesora.

Zużycie energii wzrosło do 31 W podczas inicjowania obciążenia Prime95, a następnie spadło do 26 W po około 40 sekundach testu

Prime95+FurMark stres zainicjowany w 10s mark

Pobór mocy

wyłączony / stan wstrzymania	1.1 / 1.3 W
luz	8.3 / 8.8 / 8.9 W
obciążenie	20.1 / 32.2 W


Legenda: min: , med: , max: Metrahit Energy

	Beelink Mini S12 Pro N100, UHD Graphics 24EUs (Alder Lake-N), , , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Beelink U59 Celeron N5095, UHD Graphics (Jasper Lake 16 EU), Silicon Motion AZW 512G NV428, , x,	Intel NUC11ATKPE, N6005 Pentium N6005, UHD Graphics (Jasper Lake 32 EU), WDC PC SN720 SDAPNTW-512G, , x,
Power Consumption		-76%	-70%	-142%	23%	10%
Idle Minimum *	8.3	7.1 14%	7 16%	15.8 -90%	6.7 19%	4.4 47%
Idle Average *	8.8	10.1 -15%	9.2 -5%	16.8 -91%	6.7 24%	7.3 17%
Idle Maximum *	8.9	18.6 -109%	11.8 -33%	17 -91%	7.4 17%	7.3 18%
Load Average *	20.1	45.3 -125%	45 -124%	54.4 -171%	16 20%	23.5 -17%
Witcher 3 ultra *	21.5	55.2 -157%		50.7 -136%	13.1 39%
Load Maximum *	32.2	52.9 -64%	97.2 -202%	119.1 -270%	25.6 20%	37.6 -17%

* ... im mniej tym lepiej

Power Consumption Witcher 3 / Stresstest

Beelink Mini S12 Pro; Witcher 3 ultra: Ø21.5 (20.9-24.3)

Beelink Mini S12 Pro; 1280x720 Prime95 28.10 and Furmark 1.25: Ø28.8 (27.3-32.2)

Power Consumption external Monitor

Beelink Mini S12 Pro; Prime95 V2810 Stress (external Monitor): Ø26.9 (25.6-30.7)

Beelink Mini S12 Pro; Cinebench R15 Multi (external Monitor): Ø24.5 (23.3-25.7)

Beelink Mini S12 Pro; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø15.6 (15.4-16.2)

Beelink Mini S12 Pro; 1920x1080 The Witcher 3 ultra (external Monitor): Ø21.5 (20.9-24.3)

Beelink Mini S12 Pro; Idle 1min (external Monitor): Ø9.02 (8.7-13.3)

Za

+ obsługuje do dwóch dysków SSD

+ Kompatybilny z mocowaniem VESA

+ łatwa dostępność

+ niedrogi

Przeciw

- Port USB-C nie obsługuje DisplayPort ani Power Delivery

- ograniczona wydajność CPU i GPU

- krótki kabel zasilacza sieciowego

- brak czytnika kart SD

Werdykt

W recenzji: Beelink Mini S12 Pro. Jednostka testowa dostarczona przez Beelink

Proszę nie dać się zwieść nazwie "Pro", ponieważ Mini S12 Pro wcale nie jest szybki w porównaniu do komputerów z podstawowymi procesorami Core i3 lub Ryzen 3. Zamiast tego, model ten stawia na wydajność, przystępną cenę i łatwość serwisowania dzięki procesorowi N100 i łatwo dostępnym podzespołom wewnętrznym. System ten sprawdzi się dobrze do podstawowych celów streamowania HTPC i lekkiego przeglądania stron internetowych, ale bardziej wymagający użytkownicy i wielozadaniowcy będą chcieli wydać nieco więcej na modele takie jak SEi12 lub SER7.

Niemniej jednak wartość jest niezwykła, ponieważ w cenie 200 USD otrzymują Państwo system Windows 11 Pro, 16 GB pamięci RAM i 512 GB pamięci masowej.

Cena i dostępność

Beelink EQ12 jest już dostępny na Amazon za jedyne 199 USD w naszej dokładnej konfiguracji.

Beelink Mini S12 Pro - 18/10/2023 v7 ^(old)
Allen Ngo

Wykonanie

67 / 98 → 68%

Komunikacja

50 / 81 → 62%

Waga

86%

Wydajność w grach

50%

Wydajność w programach użytkowych

82%

Temperatura

94%

Hałas

93%

Średnio

75%

73%

Mini PC - Ważona średnia

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.
