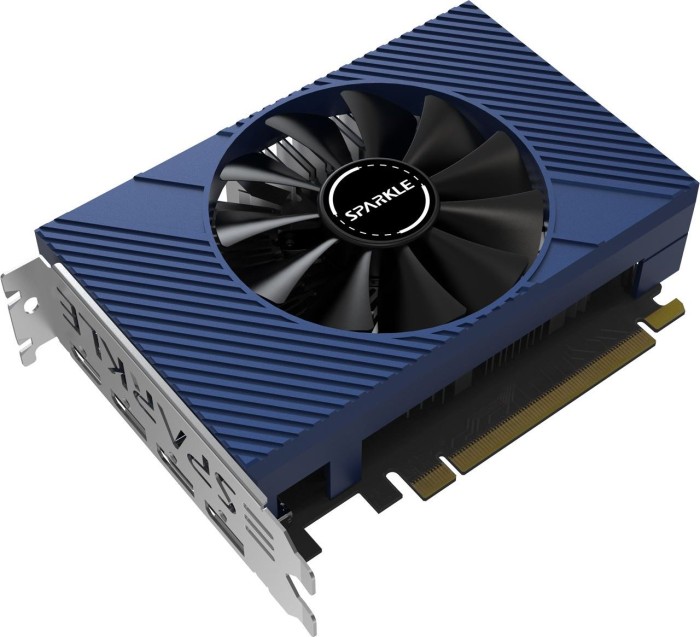

Intel Arc A310
Intel Arc A310 to dedykowana podstawowa karta graficzna firmy Intel dla komputerów stacjonarnych. Bazuje ona na układzie ACM-G11 i oferuje 6 z 8 rdzeni Xe (96 jednostek ALU), 6 z 8 jednostek ray tracing, 1,152 MB pamięci podręcznej L1 i 4 MB pamięci podręcznej L2. Interfejs pamięci ma szerokość 64 bitów i obsługuje 4 GB pamięci graficznej GDDR6 o przepustowości 15,5 Gb/s. TGP wynosi od 40 do 75 watów w zależności od modelu.
A310 jest podobny do mobilnego Arc A350Mz wyjątkiem wyższych częstotliwości taktowania rdzeni i pamięci.
Układ ACM-G11 jest produkowany w TSMC w procesie 6 nm (N6) i oferuje 7,2 miliarda tranzystorów, a jego powierzchnia wynosi 157 mm2. Zintegrowano w nim dwa silniki multimedialne do dekodowania VP9, AVC, HEVC, AV1 8k60 12-bit HDR i kodowania 8k 10-bit HDR. Zintegrowane 4 przewody wyświetlacza obsługują 4x 4k120 HDR, HDMI 2.0B, DP 2.0 10G i Adaptive Sync.
Arc Rodzina
| ||||||||||||||||||||||||||||||||||||||||
Nazwa robocza | Alchemist | |||||||||||||||||||||||||||||||||||||||
Architektura | Xe HPG | |||||||||||||||||||||||||||||||||||||||
Potoki | 6 - ZJC | |||||||||||||||||||||||||||||||||||||||
Raytracing Cores | 6 | |||||||||||||||||||||||||||||||||||||||
Zegar rdzenia | 2000 (Boost) MHz | |||||||||||||||||||||||||||||||||||||||
Cache | L1: 1.1 MB, L2: 4 MB | |||||||||||||||||||||||||||||||||||||||
Zegar pamięci | 15500 MHz | |||||||||||||||||||||||||||||||||||||||
Magistrala | 64 bit | |||||||||||||||||||||||||||||||||||||||
Typ pamięci | GDDR6 | |||||||||||||||||||||||||||||||||||||||
Maks. pamięci | 4 GB | |||||||||||||||||||||||||||||||||||||||
Pamięć współdzielona | nie | |||||||||||||||||||||||||||||||||||||||
Memory Bandwidth | 124 GB/s | |||||||||||||||||||||||||||||||||||||||
API | DirectX 12_2, OpenGL 4.6, Vulkan 1.3 | |||||||||||||||||||||||||||||||||||||||
Pobór prądu | 75 W (40 - 75 W TGP) | |||||||||||||||||||||||||||||||||||||||
Liczba tranzystorów | 7.2 Billion | |||||||||||||||||||||||||||||||||||||||
Die Size | 157 mm² | |||||||||||||||||||||||||||||||||||||||
Technologia | 6 nm | |||||||||||||||||||||||||||||||||||||||
PCIe | 4 8x | |||||||||||||||||||||||||||||||||||||||
Displays | 4 Displays (max.), HDMI 2.0b, DisplayPort 2.0 10G Ready | |||||||||||||||||||||||||||||||||||||||
Data premiery | 01.09.2022 | |||||||||||||||||||||||||||||||||||||||
Witryna producenta | www.intel.com |
Testy
3DM Vant. Perf. total +
Model | CPU | GPU | RAM | Wartość | |
---|---|---|---|---|---|
3DMark 06 - Standard 1280x1024 | |||||
Sparkle Intel Arc A310 Elf (3DMark 06 - Standard 1280x1024) | i9-13900K | A310 75 W ? / 1937 MHz 4 GB | 48 GB | 53771 |
- Średnia wartość wyników testów referencyjnych dla tej karty graficzne
* Smaller numbers mean a higher performance
Testy gier
Zamieszczone niżej wyniki pochodzą z testów zrecenzowanych laptopów. Należy pamiętać, że osiągi poszczególnych konfiguracji zależą od zastosowanej pamięci własnej karty (VRAM), zegarów karty (mogą być różne), procesora, ustawień systemu, sterowników i wersji systemu operacyjnego. Tym samym uzyskane wyniki nie muszą być reprezentatywne dla wszystkich laptopów wyposażonych w daną kartę graficzną. By uzyskać szczegółowe informacje o wynikach testów, należy kliknąć na podaną wartość liczbową (fps, czyli kl/s).
Last Epoch
2024Intel Core i9-13900K 3GHz
A310
min: 25.1 fps, P0.1: 27.7 fps, P1: 51.8 fps, max: 397 fps
Intel Core i9-13900K 3GHz
A310
min: 29.4 fps, P0.1: 30 fps, P1: 37.6 fps, max: 154.9 fps
Intel Core i9-13900K 3GHz
A310
min: 27.3 fps, P0.1: 27.5 fps, P1: 32.4 fps, max: 70.7 fps
Intel Core i9-13900K 3GHz
A310
min: 26.4 fps, P0.1: 26.5 fps, P1: 27.4 fps, max: 37.2 fps
Skull & Bones
2024Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Intel Core i9-13900K 3GHz
A310
Problem during benchmarking occured: game wont start crash
Helldivers 2
2024Intel Core i9-13900K 3GHz
A310
min: 17.2 fps, P0.1: 17.2 fps, P1: 17.4 fps, max: 34 fps
Intel Core i9-13900K 3GHz
A310
min: 16.5 fps, P0.1: 16.6 fps, P1: 17.5 fps, max: 30 fps
Intel Core i9-13900K 3GHz
A310
min: 14.8 fps, P0.1: 14.9 fps, P1: 15.2 fps, max: 20.3 fps
Intel Core i9-13900K 3GHz
A310
min: 14.5 fps, P0.1: 14.7 fps, P1: 14.9 fps, max: 19.3 fps
Enshrouded
2024Intel Core i9-13900K 3GHz
A310
min: 17.1 fps, P0.1: 17.2 fps, P1: 17.4 fps, max: 27.8 fps
Intel Core i9-13900K 3GHz
A310
min: 13.3 fps, P0.1: 13.6 fps, P1: 14.9 fps, max: 23.3 fps
Intel Core i9-13900K 3GHz
A310
min: 9.34 fps, P0.1: 9.47 fps, P1: 9.79 fps, max: 20.1 fps
Intel Core i9-13900K 3GHz
A310
min: 6.44 fps, P0.1: 6.45 fps, P1: 6.49 fps, max: 14.8 fps
Palworld
2024Intel Core i9-13900K 3GHz
A310
min: 14.8 fps, P0.1: 15.2 fps, P1: 32.6 fps, max: 122.4 fps
Intel Core i9-13900K 3GHz
A310
min: 14.4 fps, P0.1: 14.8 fps, P1: 29.3 fps, max: 154.6 fps
Intel Core i9-13900K 3GHz
A310
min: 12.3 fps, P0.1: 13.2 fps, P1: 19.2 fps, max: 131.3 fps
Intel Core i9-13900K 3GHz
A310
min: 3.9 fps, P0.1: 5.05 fps, P1: 15.2 fps, max: 26.5 fps
Intel Core i9-13900K 3GHz
A310
min: 30 fps, P0.1: 103.3 fps, P1: 195.1 fps, max: 638 fps
Intel Core i9-13900K 3GHz
A310
min: 25.7 fps, P0.1: 55.4 fps, P1: 126.6 fps, max: 453 fps
Intel Core i9-13900K 3GHz
A310
min: 26.8 fps, P0.1: 62.4 fps, P1: 117.6 fps, max: 371 fps
Ready or Not
2023Intel Core i9-13900K 3GHz
A310
min: 20.6 fps, P0.1: 42.2 fps, P1: 55.3 fps, max: 554 fps
Intel Core i9-13900K 3GHz
A310
min: 32.2 fps, P0.1: 35.1 fps, P1: 41.5 fps, max: 474 fps
Intel Core i9-13900K 3GHz
A310
min: 13.1 fps, P0.1: 20.1 fps, P1: 29.9 fps, max: 410 fps
Intel Core i9-13900K 3GHz
A310
min: 14.9 fps, P0.1: 16.6 fps, P1: 17.9 fps, max: 379 fps
The Finals
2023Intel Core i9-13900K 3GHz
A310
min: 56.9 fps, P0.1: 59.1 fps, P1: 61.1 fps, max: 102 fps
Intel Core i9-13900K 3GHz
A310
min: 38.4 fps, P0.1: 39 fps, P1: 41 fps, max: 66.5 fps
Intel Core i9-13900K 3GHz
A310
min: 33.6 fps, P0.1: 34.2 fps, P1: 37.1 fps, max: 57.1 fps
Intel Core i9-13900K 3GHz
A310
min: 24.6 fps, P0.1: 25 fps, P1: 27.2 fps, max: 40.1 fps
EA Sports WRC
2023Intel Core i9-13900K 3GHz
A310
min: 11.8 fps, P0.1: 12.3 fps, P1: 16.6 fps, max: 298 fps
Intel Core i9-13900K 3GHz
A310
min: 13.5 fps, P0.1: 13.6 fps, P1: 13.7 fps, max: 195.6 fps
Intel Core i9-13900K 3GHz
A310
min: 7.35 fps, P0.1: 10.1 fps, P1: 10.8 fps, max: 114.3 fps
Intel Core i9-13900K 3GHz
A310
min: 9.44 fps, P0.1: 9.52 fps, P1: 9.99 fps, max: 137.2 fps
Alan Wake 2
2023Intel Core i9-13900K 3GHz
A310
min: 13.2 fps, P0.1: 13.3 fps, P1: 14.2 fps, max: 19.2 fps
Intel Core i9-13900K 3GHz
A310
min: 11.3 fps, P0.1: 11.3 fps, P1: 12.1 fps, max: 15.5 fps
Intel Core i9-13900K 3GHz
A310
min: 9.9 fps, P0.1: 9.96 fps, P1: 10.5 fps, max: 14 fps
Lords of the Fallen
2023Intel Core i9-13900K 3GHz
A310
min: 6.77 fps, P0.1: 7.06 fps, P1: 14.2 fps, max: 210 fps
Intel Core i9-13900K 3GHz
A310
min: 14.9 fps, P0.1: 15.6 fps, P1: 16.7 fps, max: 57.3 fps
Intel Core i9-13900K 3GHz
A310
min: 4.08 fps, P0.1: 6.38 fps, P1: 14.2 fps, max: 185.5 fps
Intel Core i9-13900K 3GHz
A310
min: 5.96 fps, P0.1: 6.51 fps, P1: 8.89 fps, max: 137.8 fps
Total War Pharaoh
2023Counter-Strike 2
2023Intel Core i9-13900K 3GHz
A310
min: 119.2 fps, P0.1: 121.2 fps, P1: 124.9 fps, max: 243 fps
Intel Core i9-13900K 3GHz
A310
min: 13 fps, P0.1: 82.6 fps, P1: 87.5 fps, max: 159.8 fps
Intel Core i9-13900K 3GHz
A310
min: 15 fps, P0.1: 15.4 fps, P1: 30.2 fps, max: 107.6 fps
Intel Core i9-13900K 3GHz
A310
min: 13.1 fps, P0.1: 14.8 fps, P1: 21.3 fps, max: 103.7 fps
Baldur's Gate 3
2023Intel Core i9-13900K 3GHz
A310
min: 27 fps, P0.1: 27.1 fps, P1: 28.2 fps, max: 80.9 fps
Intel Core i9-13900K 3GHz
A310
min: 16.2 fps, P0.1: 16.5 fps, P1: 21 fps, max: 68.8 fps
Intel Core i9-13900K 3GHz
A310
min: 11.4 fps, P0.1: 13 fps, P1: 16.2 fps, max: 60.1 fps
Intel Core i9-13900K 3GHz
A310
min: 14 fps, P0.1: 14 fps, P1: 15.7 fps, max: 55.7 fps
Lies of P
2023Intel Core i9-13900K 3GHz
A310
min: 19.9 fps, P0.1: 24 fps, P1: 25.8 fps, max: 354 fps
Intel Core i9-13900K 3GHz
A310
min: 20.6 fps, P0.1: 21.2 fps, P1: 21.8 fps, max: 321 fps
Intel Core i9-13900K 3GHz
A310
min: 17.4 fps, P0.1: 17.4 fps, P1: 18.1 fps, max: 284 fps
Intel Core i9-13900K 3GHz
A310
min: 12.8 fps, P0.1: 14.2 fps, P1: 15.3 fps, max: 285 fps
The Crew Motorfest
2023Starfield
2023Intel Core i9-13900K 3GHz
A310
min: 12.3 fps, P0.1: 12.3 fps, P1: 12.7 fps, max: 21.2 fps
Intel Core i9-13900K 3GHz
A310
min: 10.6 fps, P0.1: 10.7 fps, P1: 10.9 fps, max: 17.2 fps
Intel Core i9-13900K 3GHz
A310
min: 10.8 fps, P0.1: 10.9 fps, P1: 11.1 fps, max: 15.6 fps
Intel Core i9-13900K 3GHz
A310
min: 7.2 fps, P0.1: 7.2 fps, P1: 8.38 fps, max: 12.3 fps
Armored Core 6
2023Intel Core i9-13900K 3GHz
A310
min: 21.5 fps, P0.1: 34.2 fps, P1: 43.6 fps, max: 137.2 fps
Intel Core i9-13900K 3GHz
A310
min: 30 fps, P0.1: 32 fps, P1: 35.4 fps, max: 56 fps
Intel Core i9-13900K 3GHz
A310
min: 8.83 fps, P0.1: 29 fps, P1: 31.6 fps, max: 97.4 fps
Intel Core i9-13900K 3GHz
A310
min: 21.4 fps, P0.1: 21.6 fps, P1: 23.6 fps, max: 35 fps
Atlas Fallen
2023Intel Core i9-13900K 3GHz
A310
min: 20.4 fps, P0.1: 20.4 fps, P1: 20.9 fps, max: 60 fps
Intel Core i9-13900K 3GHz
A310
min: 19 fps, P0.1: 19.2 fps, P1: 20.5 fps, max: 62.8 fps
Intel Core i9-13900K 3GHz
A310
min: 19.9 fps, P0.1: 19.9 fps, P1: 20 fps, max: 55.7 fps
Intel Core i9-13900K 3GHz
A310
min: 4.77 fps, P0.1: 5.19 fps, P1: 6.8 fps, max: 10.2 fps
Intel Core i9-13900K 3GHz
A310
min: 15.6 fps, P0.1: 17.2 fps, P1: 23 fps, max: 45.8 fps
Intel Core i9-13900K 3GHz
A310
min: 14.7 fps, P0.1: 15.8 fps, P1: 18 fps, max: 36.7 fps
Intel Core i9-13900K 3GHz
A310
min: 11 fps, P0.1: 11 fps, P1: 13.5 fps, max: 30.8 fps
Intel Core i9-13900K 3GHz
A310
min: 10.1 fps, P0.1: 10.8 fps, P1: 11.7 fps, max: 22 fps
F1 23
2023Intel Core i9-13900K 3GHz
A310
min: 16 fps, P0.1: 26.1 fps, P1: 29.3 fps, max: 55.9 fps
Intel Core i9-13900K 3GHz
A310
min: 22.7 fps, P0.1: 22.9 fps, P1: 24.7 fps, max: 38.6 fps
Intel Core i9-13900K 3GHz
A310
min: 16.3 fps, P0.1: 16.6 fps, P1: 17.6 fps, max: 31.8 fps
Intel Core i9-13900K 3GHz
A310
min: 7.07 fps, P0.1: 7.11 fps, P1: 7.56 fps, max: 10.9 fps
Company of Heroes 3
2023Sons of the Forest
2023Intel Core i9-13900K 3GHz
A310
min: 15.3 fps, P0.1: 15.6 fps, P1: 17.5 fps, max: 42.5 fps
Intel Core i9-13900K 3GHz
A310
min: 8.27 fps, P0.1: 8.43 fps, P1: 10.2 fps, max: 28.5 fps
Intel Core i9-13900K 3GHz
A310
min: 4.21 fps, P0.1: 4.53 fps, P1: 7.9 fps, max: 77.2 fps
Intel Core i9-13900K 3GHz
A310
min: 1.534 fps, P0.1: 2.52 fps, P1: 8.67 fps, max: 27.9 fps
Atomic Heart
2023Intel Core i9-13900K 3GHz
A310
min: 44.6 fps, P0.1: 45.2 fps, P1: 47.1 fps, max: 65.9 fps
Intel Core i9-13900K 3GHz
A310
min: 23.2 fps, P0.1: 33.5 fps, P1: 35.1 fps, max: 96.8 fps
Intel Core i9-13900K 3GHz
A310
min: 15.3 fps, P0.1: 23.1 fps, P1: 24 fps, max: 80.4 fps
Intel Core i9-13900K 3GHz
A310
min: 14.6 fps, P0.1: 16.2 fps, P1: 16.9 fps, max: 27 fps
Returnal
2023Hogwarts Legacy
2023Intel Core i9-13900K 3GHz
A310
min: 20.2 fps, P0.1: 31.3 fps, P1: 37 fps, max: 177.1 fps
Intel Core i9-13900K 3GHz
A310
min: 17 fps, P0.1: 23.5 fps, P1: 29 fps, max: 140.1 fps
Intel Core i9-13900K 3GHz
A310
min: 13.2 fps, P0.1: 14.7 fps, P1: 17.6 fps, max: 32.7 fps
Intel Core i9-13900K 3GHz
A310
min: 10.1 fps, P0.1: 10.4 fps, P1: 11.3 fps, max: 20.7 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 85.2 fps, P1: 160.6 fps, max: 800 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 65.9 fps, P1: 68.8 fps, max: 99.8 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 48.8 fps, P1: 52.2 fps, max: 84.8 fps
1.47.22.14 D3D12
Intel Core i9-13900K 3GHz
A310
min: 33.7 fps, P1: 43.4 fps, max: 112.6 fps
Far Cry 5
2018The Witcher 3
2015GTA V
2015Intel Core i9-13900K 3GHz
A310
min: 2.91 fps, P1: 200 fps, max: 656 fps
Intel Core i9-13900K 3GHz
A310
min: 4.4 fps, P1: 28.6 fps, max: 186.9 fps
low | med. | high | ultra | QHD | 4K | |
---|---|---|---|---|---|---|
Last Epoch | 62.5 | 53.4 | 39.6 | 30.9 | ||
Skull & Bones | ||||||
Helldivers 2 | 22.4 | 19.5 | 16.7 | 16.3 | ||
Enshrouded | 20.4 | 18 | 13.8 | 9.88 | ||
Palworld | 38.3 | 33.2 | 23.2 | 20.9 | ||
Prince of Persia The Lost Crown | 260 | 154.7 | 141.6 | |||
Ready or Not | 102.2 | 75.6 | 58.3 | 34.6 | ||
The Finals | 75 | 53.1 | 46.6 | 34.6 | ||
Avatar Frontiers of Pandora | 16 | 14 | 11 | 8.1 | ||
EA Sports WRC | 34.3 | 27.3 | 18.6 | 16.8 | ||
Alan Wake 2 | 16.3 | 13.9 | 12.3 | |||
Lords of the Fallen | 22.7 | 22.2 | 18.4 | 14 | ||
Total War Pharaoh | 111 | 73.6 | 41.6 | 32.3 | ||
Assassin's Creed Mirage | 37 | 32 | 25 | 20 | ||
Counter-Strike 2 | 153.5 | 106.3 | 37.5 | 27.7 | ||
Cyberpunk 2077 2.1 Phantom Liberty | 41 | 31.1 | 25.7 | 23.7 | ||
Baldur's Gate 3 | 40.6 | 32 | 25.5 | 24.9 | ||
Lies of P | 49.3 | 42 | 36 | 30.3 | ||
The Crew Motorfest | 37 | 33 | 27 | 22 | ||
Starfield | 17.3 | 14.2 | 13 | 10.3 | ||
Armored Core 6 | 56.3 | 43.8 | 39 | 26.9 | ||
Atlas Fallen | 32.6 | 31.8 | 26.7 | 8.12 | ||
Ratchet & Clank Rift Apart | 30.3 | 24.6 | 19.1 | 16.1 | ||
F1 23 | 88 | 75 | 42 | 12 | ||
Resident Evil 4 Remake | 42.4 | 30.1 | 21.6 | 9.5 | ||
Company of Heroes 3 | 35.2 | 31.2 | 25.4 | 24.8 | ||
Sons of the Forest | 29.9 | 18.9 | 17.4 | 17.1 | ||
Atomic Heart | 54.2 | 40.3 | 27.4 | 18.8 | ||
Returnal | 30 | 29 | 26 | 21 | ||
Hogwarts Legacy | 42.3 | 35.2 | 21.5 | 15.4 | ||
Strange Brigade | 187.3 | 79.7 | 65.3 | 53.8 | ||
Far Cry 5 | 99 | 51 | 47 | 44 | ||
Final Fantasy XV Benchmark | 41.7 | 24.1 | ||||
The Witcher 3 | 176 | 108 | 56 | 29 | ||
GTA V | 187.7 | 187.6 | 38.3 | 16.8 | ||
< 30 fps < 60 fps < 120 fps ≥ 120 fps | 7 15 6 4 | 10 16 6 2 | 21 11 1 1 | 24 7 1 | | |
Więcej informacji w rankingu płynności w grach
#0 ran 0s before starting gpusingle class +0s ... 0s
#1 no ids found in url (should be separated by "_") +0s ... 0s
#2 not redirecting to Ajax server +0s ... 0s
#3 did not recreate cache, as it is less than 5 days old! Created at Thu, 19 Dec 2024 05:31:27 +0100 +0.001s ... 0.001s
#4 no comparison url found in template nbc.compare_page_1 needed +0.033s ... 0.034s
#5 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.034s
#6 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s
#7 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s
#8 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.035s
#9 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s
#10 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s
#11 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.036s
#12 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s
#13 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s
#14 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s
#15 no comparison url found in template nbc.compare_page_1 needed +0s ... 0.037s
#16 composed specs +0s ... 0.038s
#17 did output specs +0s ... 0.038s
#18 start showIntegratedCPUs +0s ... 0.038s
#19 getting avg benchmarks for device 12464 +0.032s ... 0.07s
#20 got single benchmarks 12464 +0.008s ... 0.078s
#21 got avg benchmarks for devices +0s ... 0.078s
#22 min, max, avg, median took s +0.475s ... 0.553s
#23 before gaming benchmark output +0s ... 0.553s
#24 Got 136 rows for game benchmarks. +0.009s ... 0.561s
#25 composed SQL query for gamebenchmarks +0s ... 0.561s
#26 got data and put it in $dataArray +0.021s ... 0.583s
#27 benchmarks composed for output. +1.205s ... 1.788s
#28 no comparison url found in template nbc.compare_page_1 needed +0.004s ... 1.792s
#29 return log +0s ... 1.792s
Brak recenzji dla tej karty graficznej.
