Name: Beelink SER5
Brand: Beelink

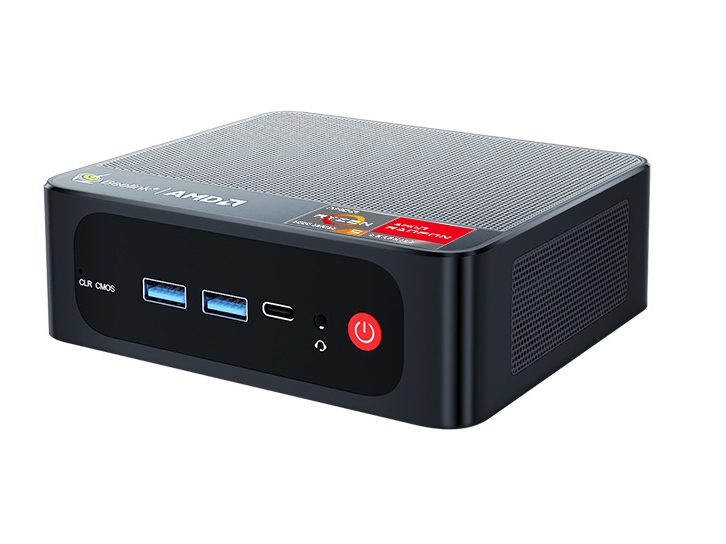

Beelink SER5 to przystępny cenowo mini PC w przeciwieństwie do droższych serii GTR lub SER Pro, które mogą być wyposażone w szybsze procesory z serii H. SER5 wyróżnia się tym, że jest jednym z niewielu mini PC dostarczanych z procesorem AMD Zen 3 Ryzen 5 5560U.

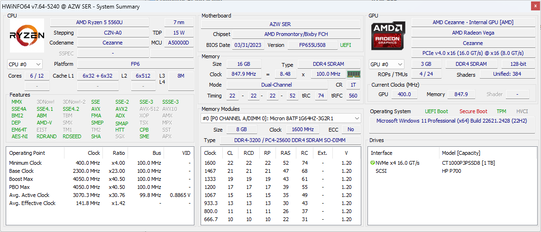

Nasza jednostka testowa została skonfigurowana z procesorem Ryzen 5 5560U, 16 GB pamięci RAM, 500 GB dyskiem SSD i systemem Windows 11 za jedyne 230 USD w sprzedaży detalicznej. Konkuruje on z innymi budżetowymi mini PC, takimi jakGeekom A5, GMKtec NucBoxlub Minisforum EM680.

Więcej recenzji Beelink:

Sprawa

Beelink jest w stanie utrzymać większość swoich mini PC w przystępnej cenie, wykorzystując tę samą konstrukcję obudowy w różnych modelach, ale z nieco innymi funkcjami zewnętrznymi. Na przykład SER5 jest dokładnie taki sam jak SER6 pod względem wymiarów, ale bez zdejmowanej pokrywy płyty górnej. Jest również bardzo podobna do SER7 który jest tylko kilka milimetrów grubszy, aby lepiej pomieścić szybszy procesor z serii HS. Materiały plastikowe i metalowe są poza tym takie same, co sprawia, że pierwsze wrażenie jest podobne do serii Intel NUC.

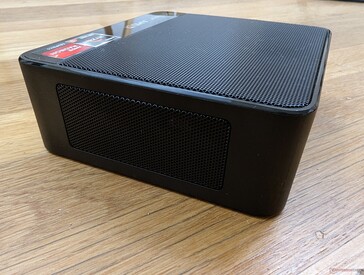

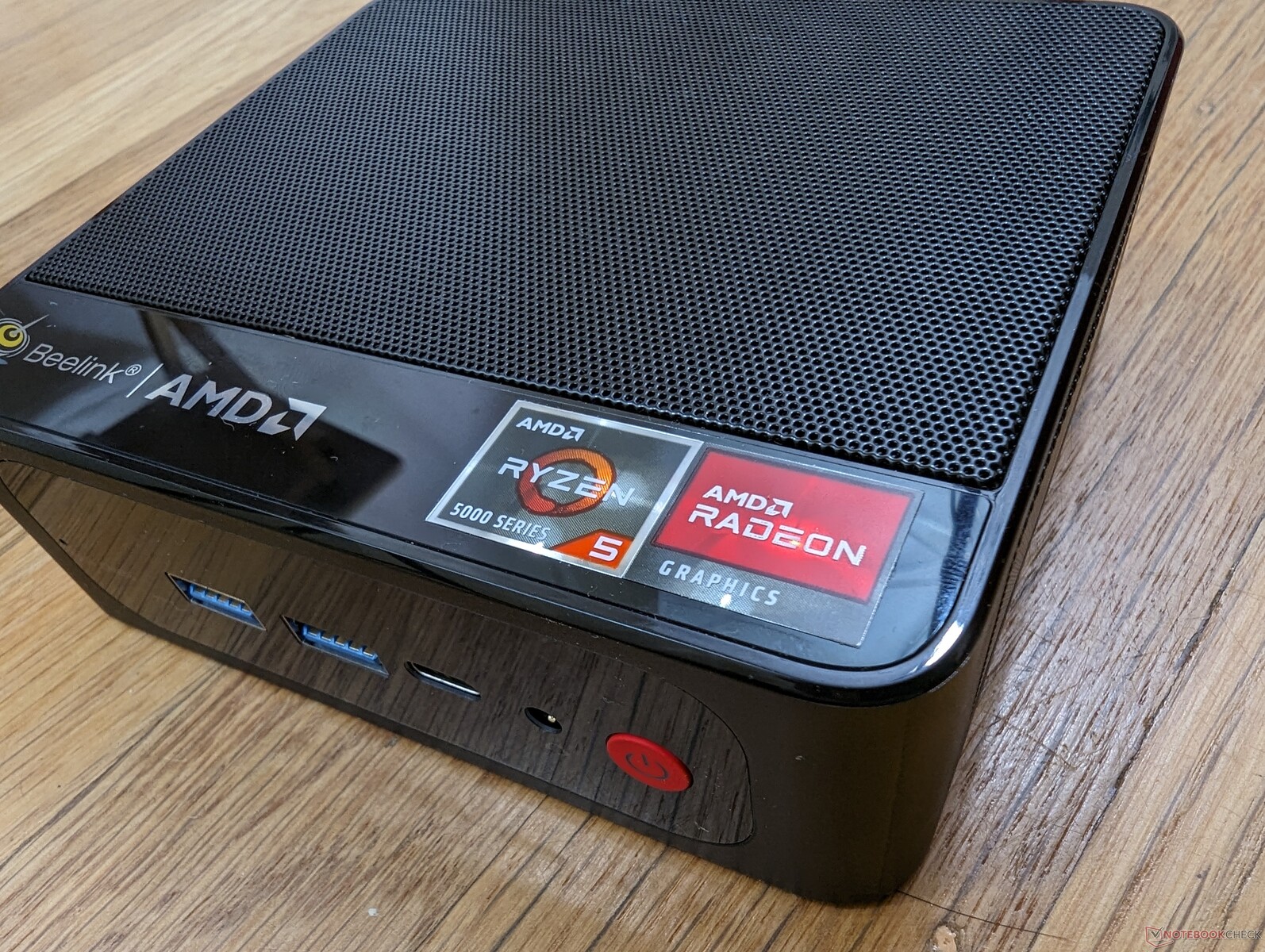

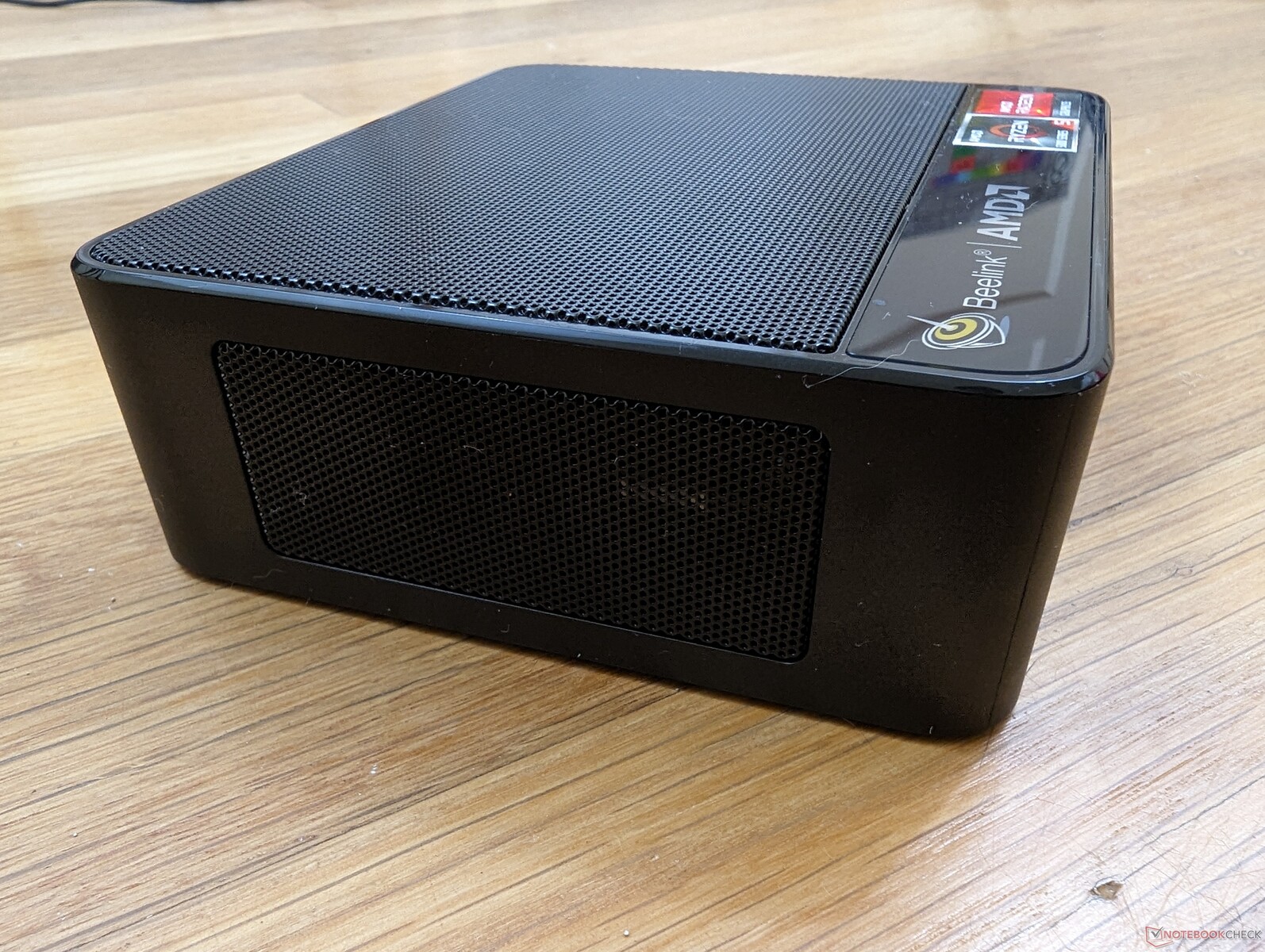

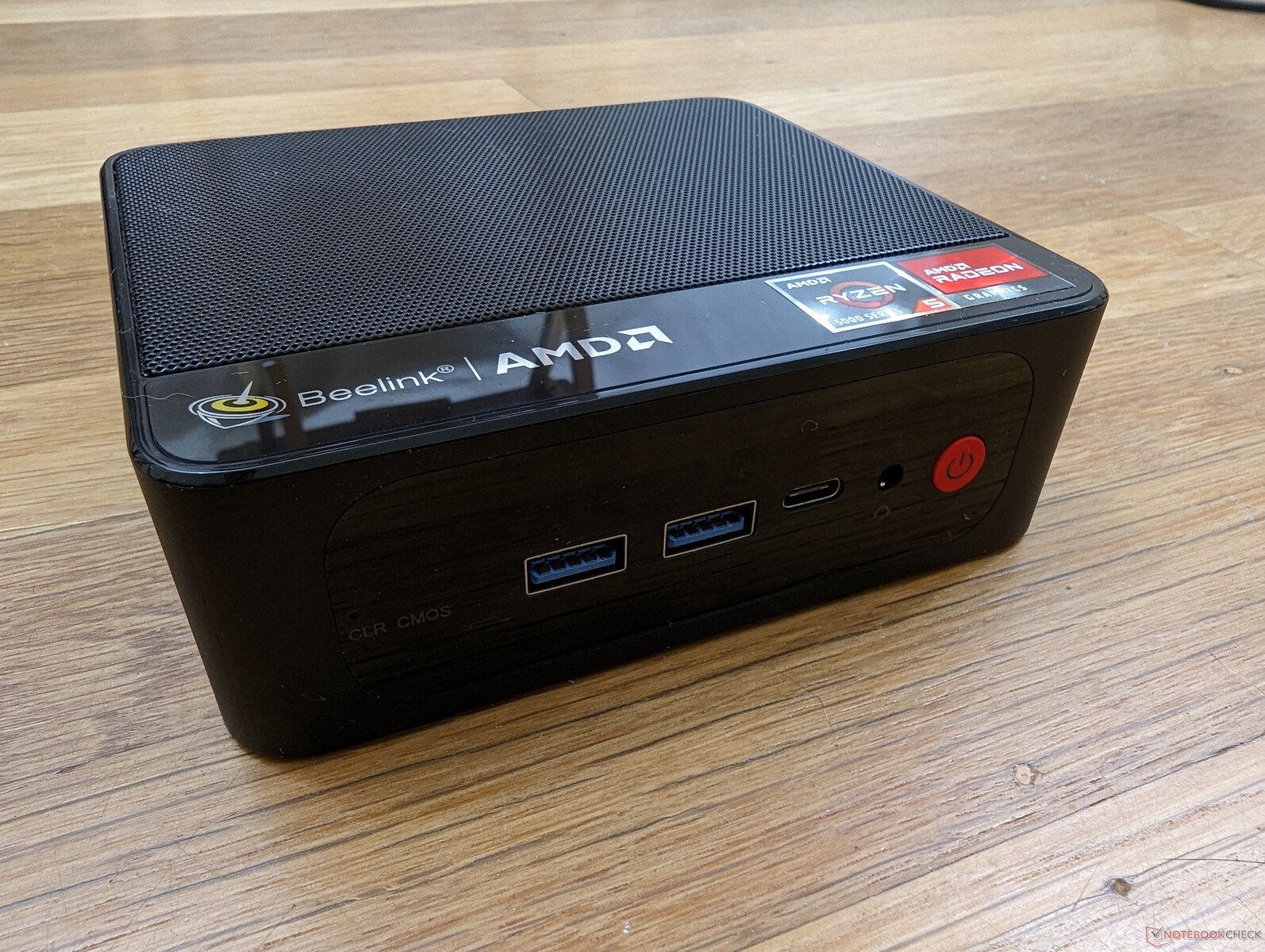

Błyszczący plastikowy blat z metalową siatką, przez którą wpada świeże powietrze

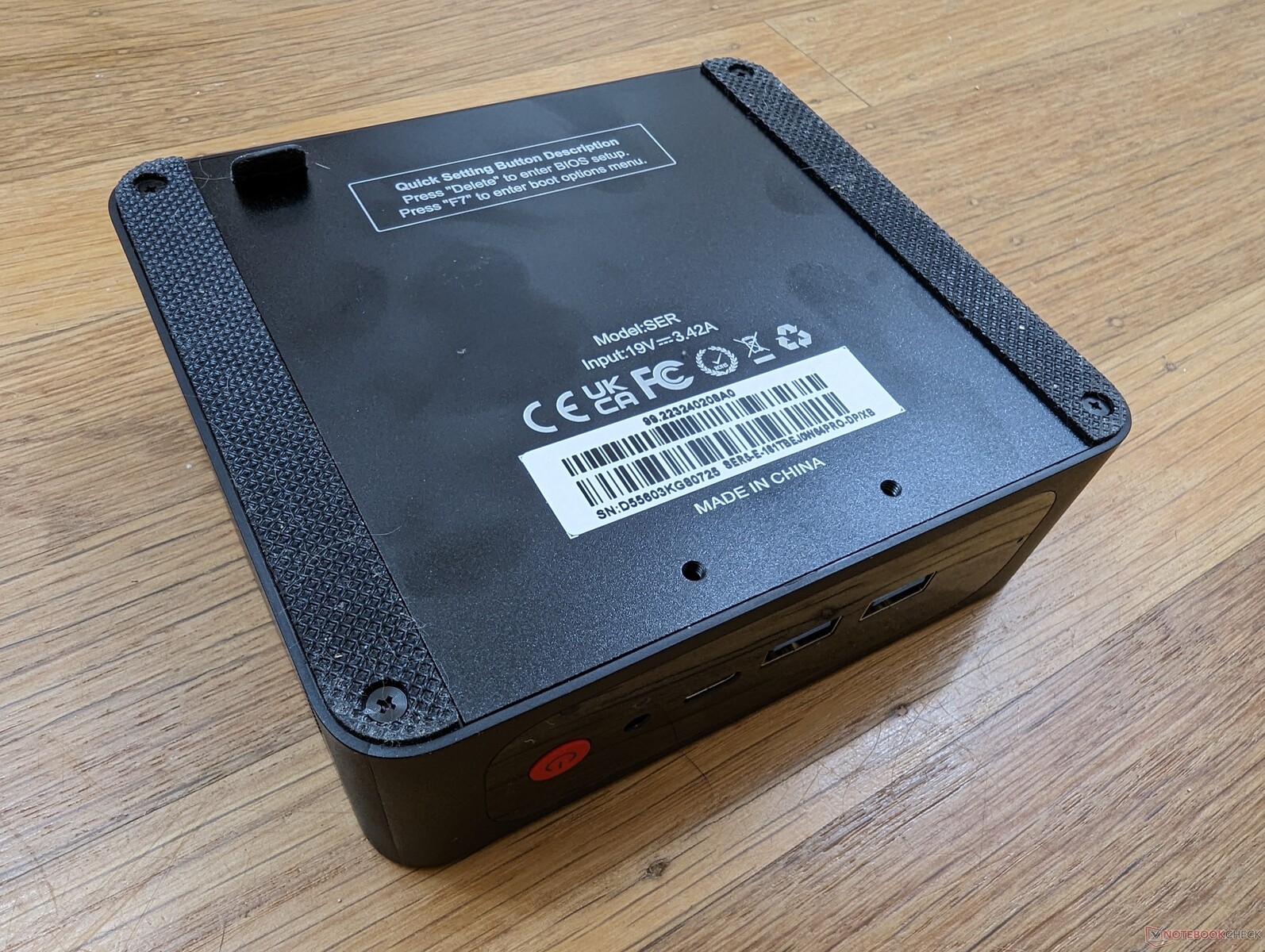

Gumowe dolne nóżki z uchwytem do serwisowania

Dwa otwory do zamocowania zewnętrznego uchwytu VESA w razie potrzeby

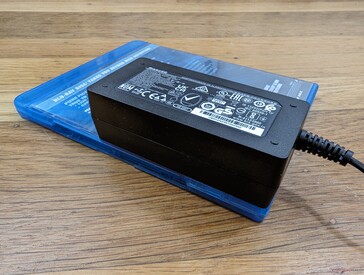

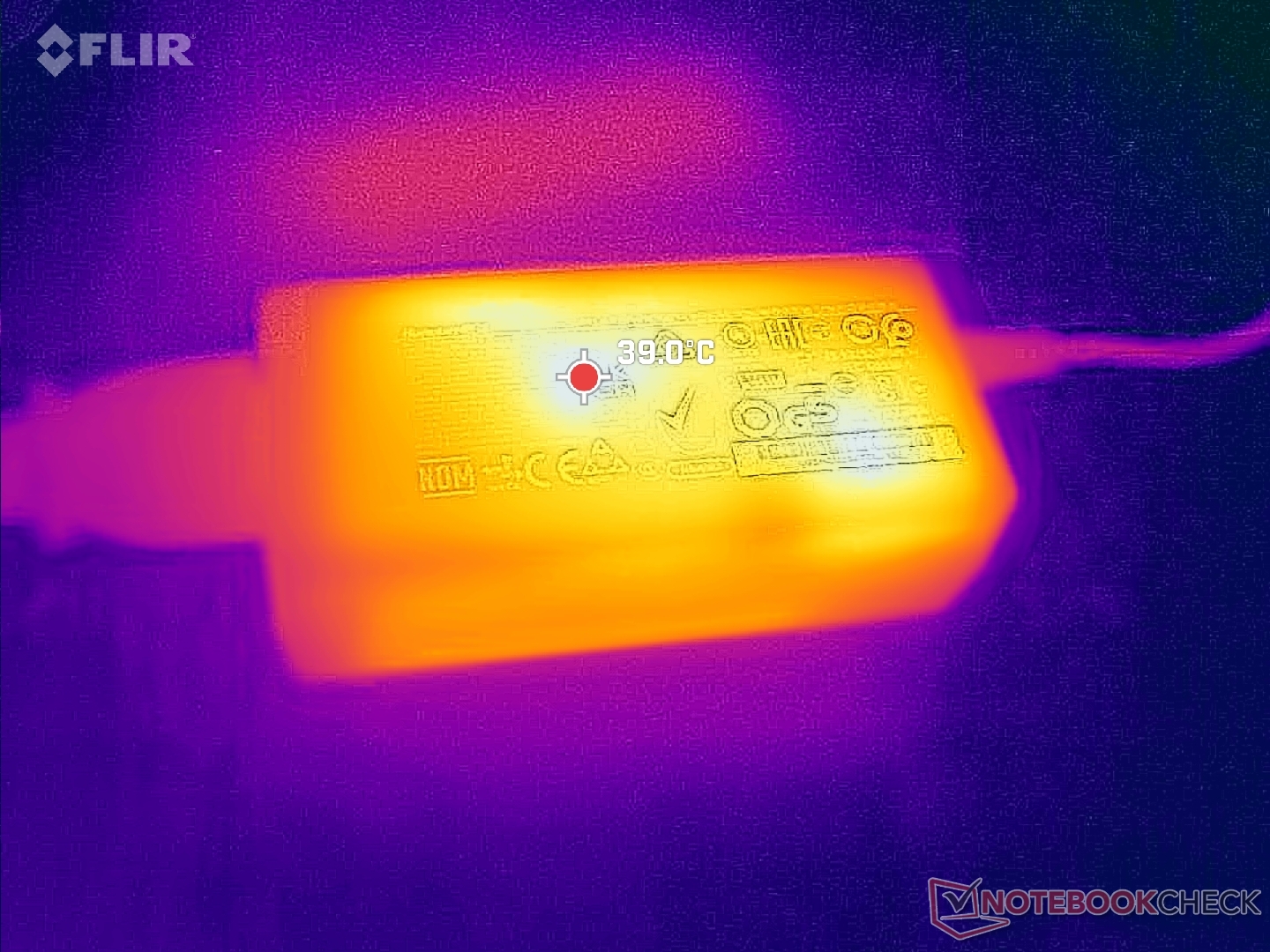

Mały (9,5 x 4,5 x 2,9 cm) zasilacz sieciowy 65 W

Porównanie wielkości

Beelink SER7 Beelink SER5 Beelink SEi12 Core i5-1235U Geekom A5 GMK NucBox K3 Pro Intel NUC 13 Pro Desk Edition Kit DIN A5 ❌

Łączność

System nie jest niestety kompatybilny z USB4 lub Thunderbolt. Jego port USB-C obsługuje DisplayPort, ale nie Power Delivery, co oznacza, że nie można zasilać mini PC za pomocą adapterów USB-C.

Przód: 2x USB-A 3.2, USB-C z DisplayPort, zestaw słuchawkowy 3,5 mm, przycisk zasilania

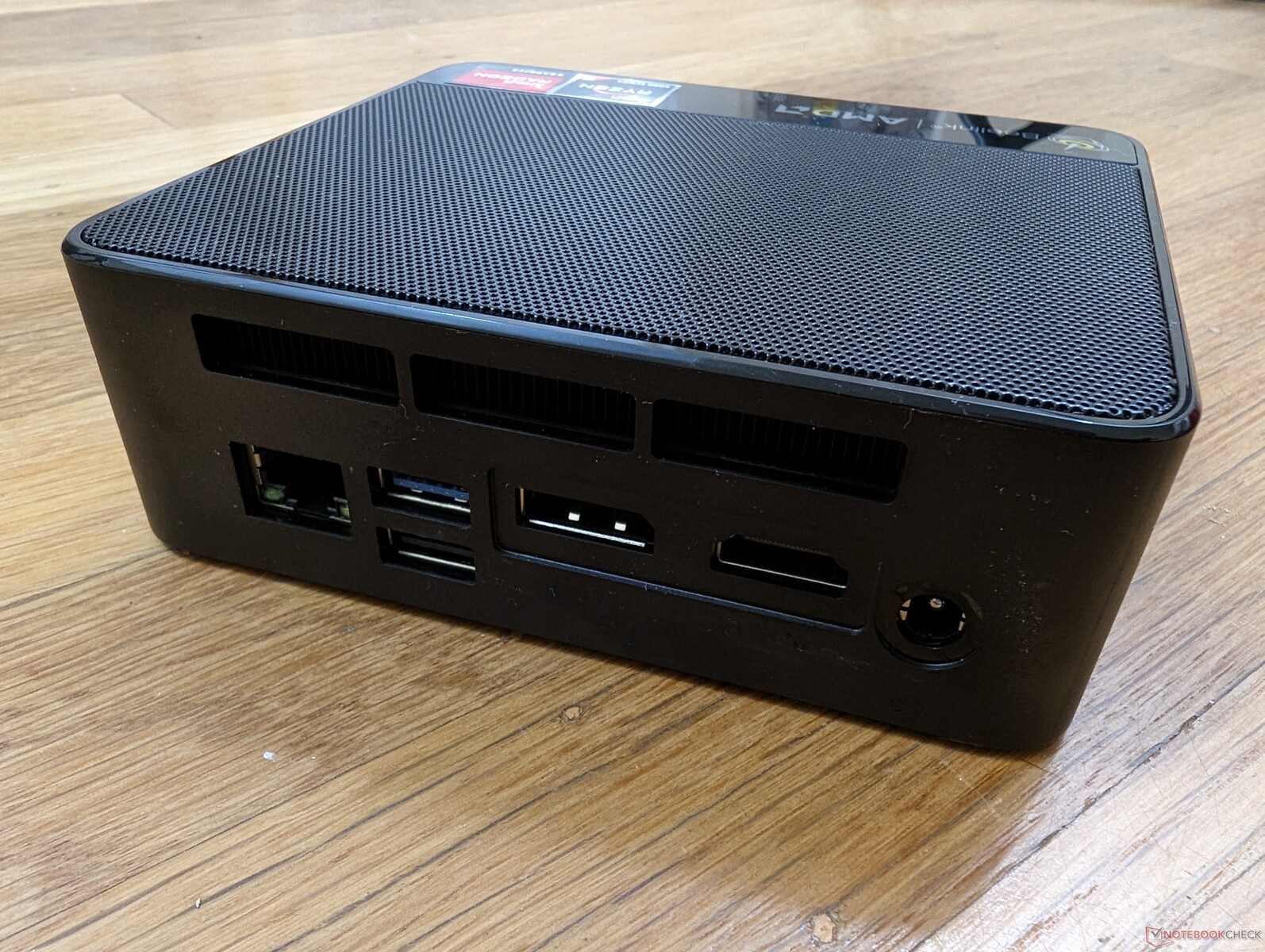

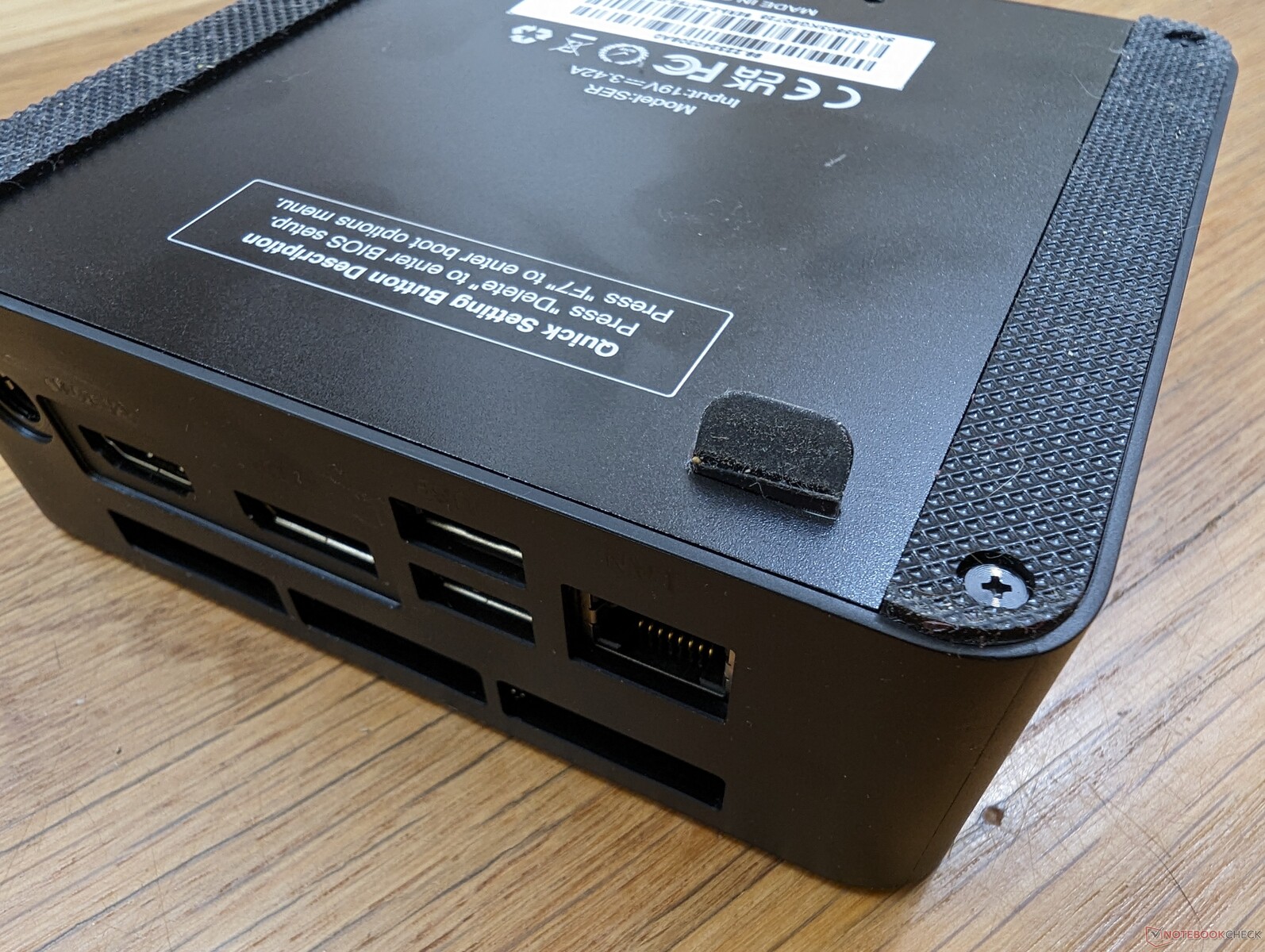

Tył: Gigabit RJ-45, USB-A 3.2, USB-A 2.0, DisplayPort 1.4, HDMI 2.0

Komunikacja

Intel AX200 jest standardowo wyposażony w Wi-Fi 6 i Bluetooth 5.2. Nie obsługuje Wi-Fi 6E prawdopodobnie w celu obniżenia kosztów

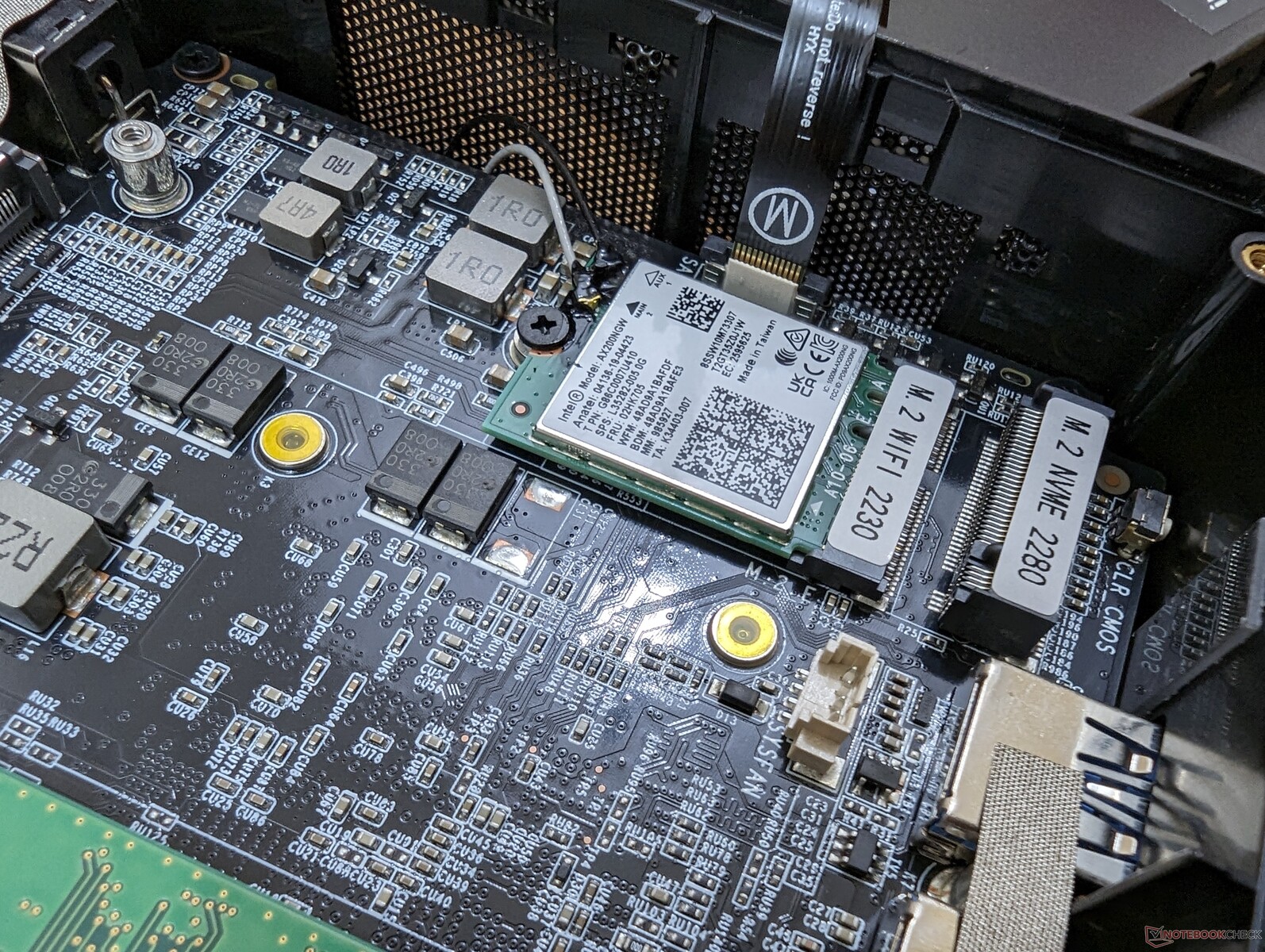

Wyjmowany moduł M.2 WLAN znajduje się pod dyskiem SSD M.2

Networking
iperf3 transmit AXE11000
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1491 (1413^min - 1572^max) MBit/s +17%
Beelink SER7 Intel Wi-Fi 6 AX200	1324 (665^min - 1408^max) MBit/s +4%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s +2%
Beelink SER5 Intel Wi-Fi 6 AX200	1278 (649^min - 1345^max) MBit/s
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1171 (923^min - 1342^max) MBit/s -8%
Geekom A5 Realtek RTL8852BE	834 (730^min - 861^max) MBit/s -35%
iperf3 receive AXE11000
Beelink SER5 Intel Wi-Fi 6 AX200	1411 (1230^min - 1580^max) MBit/s
Beelink SEi12 Core i5-1235U Intel Wi-Fi 6 AX201	1384 (1200^min - 1495^max) MBit/s -2%
GMK NucBox K3 Pro Intel Wi-Fi 6 AX201	1297 (1164^min - 1393^max) MBit/s -8%
Beelink SER7 Intel Wi-Fi 6 AX200	1193 (588^min - 1333^max) MBit/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -21%
Geekom A5 Realtek RTL8852BE	946 (856^min - 970^max) MBit/s -33%
iperf3 transmit AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s
iperf3 receive AXE11000 6GHz
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s

Beelink SER5; iperf3 transmit AXE11000; iperf 3.1.3: Ø1256 (649-1345)

Beelink SER5; iperf3 receive AXE11000; iperf 3.1.3: Ø1410 (1230-1580)

Konserwacja

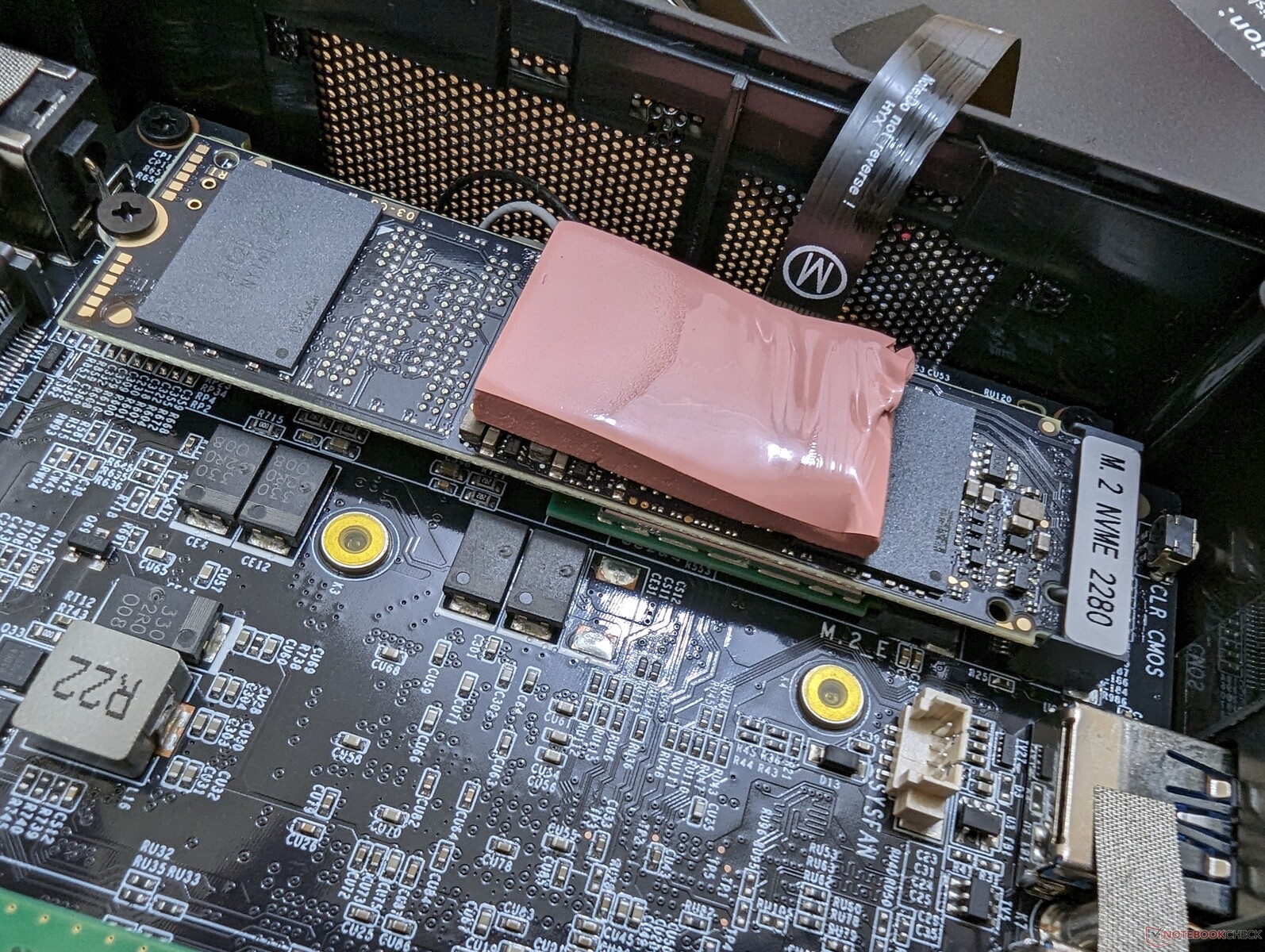

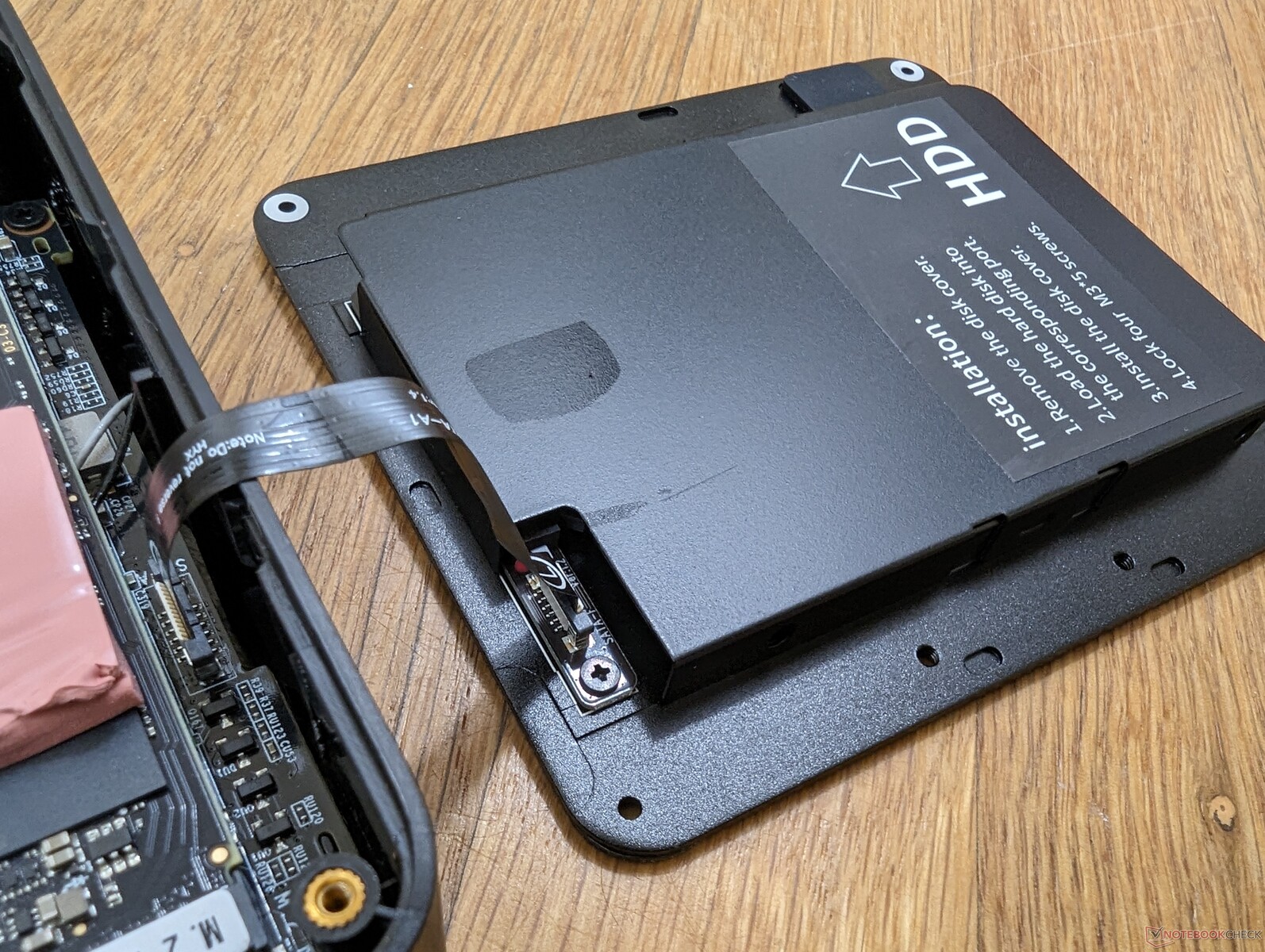

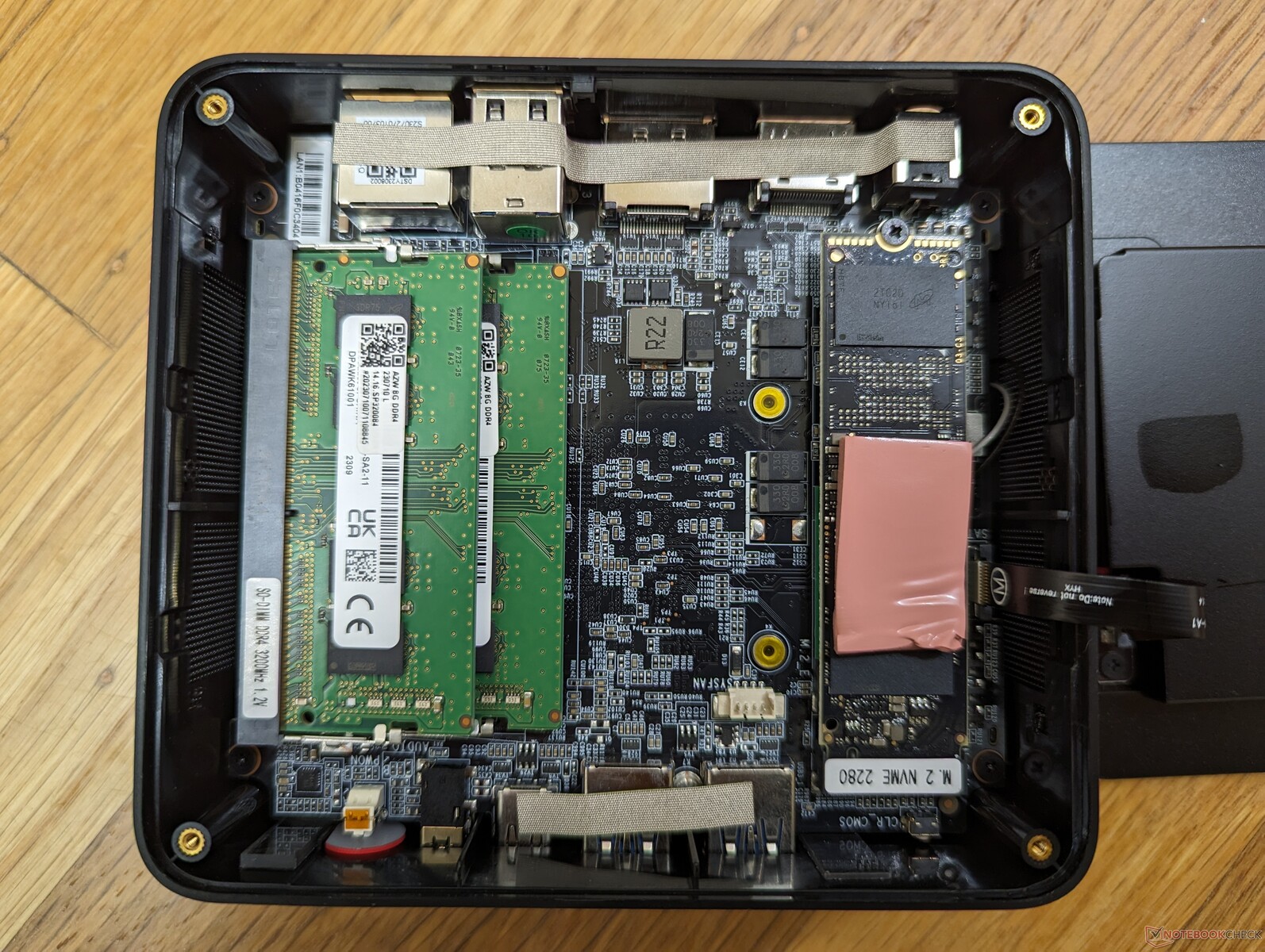

Łatwy dostęp do 2 gniazd SODIMM, 1 gniazda M.2 2280 SSD, 1 gniazda SATA 2,5 cala i modułu M.2 WLAN

Akcesoria i gwarancja

Pudełko detaliczne zawiera dwa kable HDMI, uchwyt ścienny VESA, zasilacz sieciowy i instrukcję obsługi. Standardowa roczna ograniczona gwarancja producenta ma zastosowanie w przypadku zakupu w USA.

Wydajność

Warunki testowania

Przed przeprowadzeniem poniższych testów ustawiliśmy system Windows w tryb wydajności. Beelink nie instaluje żadnych specjalistycznych aplikacji typu centrum sterowania, w przeciwieństwie do większości innych producentów.

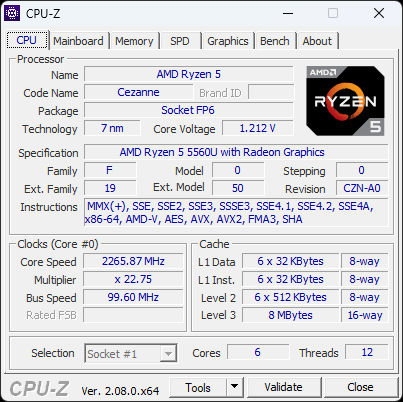

Procesor

Procesor Ryzen 5 5560U działa niemal identycznie jak Ryzen 5 7530U aczkolwiek z nieco niższą wydajnością jednowątkową. Oba układy to sześciordzeniowe procesory oparte na tej samej architekturze Zen 3 o podobnym docelowym TDP. Ryzen 5 5560U jest porównywalny do konkurencyjnego Core i5-1235Uw większości przypadków.

Cinebench R15 Multi Loop

Beelink SER5 AMD Ryzen 5 5560U: Ø1274 (1263.74-1280.29)

Beelink SER7 AMD Ryzen 7 7840HS: Ø2544 (2511.62-2564.76)

Beelink SEi12 Core i5-1235U Intel Core i5-1235U: Ø1219 (1203.04-1409.15)

Geekom A5 AMD Ryzen 7 5800H: Ø1715 (1692.05-1838.74)

GMK NucBox K3 Pro Intel Core i7-12650H: Ø1420 (1391.69-1691.83)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

Cinebench R23 / Multi Core
Beelink SER7 AMD Ryzen 7 7840HS	16105 (15785.6^min - 16105.2^max) Points +110%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	14465 (9293.64^min - 14465.4^max) Points +89%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +59%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	11797 Points +54%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +51%
Acemagic AM20 AMD Ryzen 7 7735H	10920 Points +42%
Geekom A5 AMD Ryzen 7 5800H	10819 Points +41%
GMK NucBox K3 Pro Intel Core i7-12650H	10691 (9260.68^min - 10691.5^max) Points +39%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	9564 Points +25%
Acemagic AD15 Intel Core i7-11800H	9503 Points +24%
NiPoGi CK10 Intel Core i5-12450H	8129 Points +6%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	8128 (7685.59^min - 8128.32^max) Points +6%
HP ProBook 445 G10 AMD Ryzen 5 7530U	7859 Points +3%
Beelink SER5 AMD Ryzen 5 5560U	7667 (7546.82^min - 7667.18^max) Points
Average AMD Ryzen 5 5560U ()	7667 Points 0%

Cinebench R23 / Single Core
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1898 Points +51%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +49%
GMK NucBox K3 Pro Intel Core i7-12650H	1792 Points +42%
Beelink SER7 AMD Ryzen 7 7840HS	1774 Points +41%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	1742 Points +38%
NiPoGi CK10 Intel Core i5-12450H	1667 Points +32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1610 Points +28%
Acemagic AM20 AMD Ryzen 7 7735H	1536 Points +22%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points +19%
Acemagic AD15 Intel Core i7-11800H	1496 Points +19%
HP ProBook 445 G10 AMD Ryzen 5 7530U	1452 Points +15%
Geekom A5 AMD Ryzen 7 5800H	1405 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1375 Points +9%
Beelink SER5 AMD Ryzen 5 5560U	1260 Points
Average AMD Ryzen 5 5560U ()	1260 Points 0%

Cinebench R20 / CPU (Multi Core)
Beelink SER7 AMD Ryzen 7 7840HS	6344 Points +110%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	5800 Points +92%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +55%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	4618 Points +53%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +50%
Acemagic AM20 AMD Ryzen 7 7735H	4354 Points +44%
Geekom A5 AMD Ryzen 7 5800H	4229 Points +40%
GMK NucBox K3 Pro Intel Core i7-12650H	4058 Points +34%
Acemagic AD15 Intel Core i7-11800H	3779 Points +25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	3768 Points +25%
NiPoGi CK10 Intel Core i5-12450H	3237 Points +7%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	3111 Points +3%
HP ProBook 445 G10 AMD Ryzen 5 7530U	3043 Points +1%
Beelink SER5 AMD Ryzen 5 5560U	3019 Points
Average AMD Ryzen 5 5560U ()	3019 Points 0%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +45%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	721 Points +45%
Beelink SER7 AMD Ryzen 7 7840HS	698 Points +40%
GMK NucBox K3 Pro Intel Core i7-12650H	691 Points +39%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	677 Points +36%
NiPoGi CK10 Intel Core i5-12450H	644 Points +29%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	620 Points +24%
Acemagic AM20 AMD Ryzen 7 7735H	601 Points +21%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points +19%
Acemagic AD15 Intel Core i7-11800H	574 Points +15%
HP ProBook 445 G10 AMD Ryzen 5 7530U	566 Points +14%
Geekom A5 AMD Ryzen 7 5800H	551 Points +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	533 Points +7%
Beelink SER5 AMD Ryzen 5 5560U	498 Points
Average AMD Ryzen 5 5560U ()	498 Points 0%

Cinebench R15 / CPU Multi 64Bit
Beelink SER7 AMD Ryzen 7 7840HS	2565 (2511.62^min - 2564.76^max) Points +100%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	2240 (1862.02^min - 2240.14^max) Points +75%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +55%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +54%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	1932 (1798.56^min - 1931.99^max) Points +51%
Acemagic AM20 AMD Ryzen 7 7735H	1825 Points +43%
Geekom A5 AMD Ryzen 7 5800H	1773 Points +39%
GMK NucBox K3 Pro Intel Core i7-12650H	1692 (1391.69^min - 1691.83^max) Points +32%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1596 Points +25%
Acemagic AD15 Intel Core i7-11800H	1591 Points +24%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1409 (1203.04^min - 1409.15^max) Points +10%
HP ProBook 445 G10 AMD Ryzen 5 7530U	1328 (1245.87^min - 1328.42^max) Points +4%
Beelink SER5 AMD Ryzen 5 5560U	1280 (1263.74^min - 1280.29^max) Points
Average AMD Ryzen 5 5560U ()	1280 Points 0%
NiPoGi CK10 Intel Core i5-12450H	1211 Points -5%

Cinebench R15 / CPU Single 64Bit
Beelink SER7 AMD Ryzen 7 7840HS	283 Points +40%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	272 Points +35%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	260 Points +29%
GMK NucBox K3 Pro Intel Core i7-12650H	256 Points +27%
Acemagic AM20 AMD Ryzen 7 7735H	246 Points +22%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points +21%
NiPoGi CK10 Intel Core i5-12450H	238 Points +18%
HP ProBook 445 G10 AMD Ryzen 5 7530U	234 Points +16%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	231 Points +14%
Geekom A5 AMD Ryzen 7 5800H	227 Points +12%
Acemagic AD15 Intel Core i7-11800H	226 Points +12%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	225 Points +11%
Beelink SER5 AMD Ryzen 5 5560U	202 Points
Average AMD Ryzen 5 5560U ()	202 Points 0%

Blender / v2.79 BMW27 CPU
NiPoGi CK10 Intel Core i5-12450H	422 Seconds * -8%
Beelink SER5 AMD Ryzen 5 5560U	392 Seconds *
Average AMD Ryzen 5 5560U ()	392 Seconds * -0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	390 Seconds * +1%
HP ProBook 445 G10 AMD Ryzen 5 7530U	384 Seconds * +2%
GMK NucBox K3 Pro Intel Core i7-12650H	330 Seconds * +16%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	319 Seconds * +19%
Acemagic AD15 Intel Core i7-11800H	319 Seconds * +19%
Geekom A5 AMD Ryzen 7 5800H	293 Seconds * +25%
Acemagic AM20 AMD Ryzen 7 7735H	280 Seconds * +29%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	270 Seconds * +31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * +32%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	216 Seconds * +45%
Beelink SER7 AMD Ryzen 7 7840HS	196 Seconds * +50%

7-Zip 18.03 / 7z b 4
Beelink SER7 AMD Ryzen 7 7840HS	69882 MIPS +83%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +51%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	54733 MIPS +43%
Geekom A5 AMD Ryzen 7 5800H	53954 MIPS +41%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	53700 MIPS +40%
Acemagic AM20 AMD Ryzen 7 7735H	52518 MIPS +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +34%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	46562 MIPS +22%
Acemagic AD15 Intel Core i7-11800H	43146 MIPS +13%
GMK NucBox K3 Pro Intel Core i7-12650H	43031 MIPS +12%
Beelink SER5 AMD Ryzen 5 5560U	38281 MIPS
Average AMD Ryzen 5 5560U ()	38281 MIPS 0%
HP ProBook 445 G10 AMD Ryzen 5 7530U	37983 MIPS -1%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	35580 MIPS -7%
NiPoGi CK10 Intel Core i5-12450H	33549 MIPS -12%

7-Zip 18.03 / 7z b 4 -mmt1
Beelink SER7 AMD Ryzen 7 7840HS	6734 MIPS +42%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	6082 MIPS +28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	6014 MIPS +27%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +23%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS +22%
GMK NucBox K3 Pro Intel Core i7-12650H	5772 MIPS +22%
Acemagic AD15 Intel Core i7-11800H	5732 MIPS +21%
Acemagic AM20 AMD Ryzen 7 7735H	5621 MIPS +19%
Geekom A5 AMD Ryzen 7 5800H	5486 MIPS +16%
HP ProBook 445 G10 AMD Ryzen 5 7530U	5434 MIPS +15%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	5369 MIPS +13%
NiPoGi CK10 Intel Core i5-12450H	5278 MIPS +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	5192 MIPS +10%
Beelink SER5 AMD Ryzen 5 5560U	4740 MIPS
Average AMD Ryzen 5 5560U ()	4740 MIPS 0%

Geekbench 5.5 / Multi-Core
Beelink SER7 AMD Ryzen 7 7840HS	11423 Points +92%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	10361 Points +74%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +72%
GMK NucBox K3 Pro Intel Core i7-12650H	9810 Points +65%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	9644 Points +62%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points +58%
Geekom A5 AMD Ryzen 7 5800H	8823 Points +48%
Acemagic AM20 AMD Ryzen 7 7735H	8612 Points +45%
Acemagic AD15 Intel Core i7-11800H	7976 Points +34%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	7804 Points +31%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	7253 Points +22%
NiPoGi CK10 Intel Core i5-12450H	6804 Points +14%
Beelink SER5 AMD Ryzen 5 5560U	5955 Points
Average AMD Ryzen 5 5560U ()	5955 Points 0%
HP ProBook 445 G10 AMD Ryzen 5 7530U	5608 Points -6%

Geekbench 5.5 / Single-Core
Beelink SER7 AMD Ryzen 7 7840HS	1983 Points +50%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	1842 Points +40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +39%
GMK NucBox K3 Pro Intel Core i7-12650H	1790 Points +36%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	1775 Points +35%
NiPoGi CK10 Intel Core i5-12450H	1665 Points +26%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	1633 Points +24%
Acemagic AD15 Intel Core i7-11800H	1603 Points +22%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points +19%
Acemagic AM20 AMD Ryzen 7 7735H	1563 Points +19%
Geekom A5 AMD Ryzen 7 5800H	1494 Points +13%
HP ProBook 445 G10 AMD Ryzen 5 7530U	1462 Points +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	1443 Points +9%
Beelink SER5 AMD Ryzen 5 5560U	1318 Points
Average AMD Ryzen 5 5560U ()	1318 Points 0%

HWBOT x265 Benchmark v2.2 / 4k Preset
Beelink SER7 AMD Ryzen 7 7840HS	20.4 fps +104%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	17.6 fps +76%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +51%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	14.4 fps +44%
Acemagic AM20 AMD Ryzen 7 7735H	14.1 fps +41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps +39%
Geekom A5 AMD Ryzen 7 5800H	13.3 fps +33%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	12.4 fps +24%
GMK NucBox K3 Pro Intel Core i7-12650H	12.3 fps +23%
Acemagic AD15 Intel Core i7-11800H	12 fps +20%
Beelink SER5 AMD Ryzen 5 5560U	10 fps
Average AMD Ryzen 5 5560U ()	10 fps 0%
HP ProBook 445 G10 AMD Ryzen 5 7530U	9.95 fps 0%
NiPoGi CK10 Intel Core i5-12450H	9.47 fps -5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	9.43 fps -6%

LibreOffice / 20 Documents To PDF
Beelink SER5 AMD Ryzen 5 5560U	57.1 s *
Average AMD Ryzen 5 5560U ()	57.1 s * -0%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	56.7 s * +1%
HP ProBook 445 G10 AMD Ryzen 5 7530U	54.4 s * +5%
Geekom A5 AMD Ryzen 7 5800H	54.3 s * +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	48.7 s * +15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * +18%
Acemagic AD15 Intel Core i7-11800H	46.3 s * +19%
Acemagic AM20 AMD Ryzen 7 7735H	46.1 s * +19%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * +19%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	45.6 s * +20%
NiPoGi CK10 Intel Core i5-12450H	42.8 s * +25%
GMK NucBox K3 Pro Intel Core i7-12650H	40 s * +30%
Beelink SER7 AMD Ryzen 7 7840HS	39.7 s * +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	37.6 s * +34%

R Benchmark 2.5 / Overall mean
Beelink SER5 AMD Ryzen 5 5560U	0.584 sec *
Average AMD Ryzen 5 5560U ()	0.584 sec * -0%
Acemagic AD15 Intel Core i7-11800H	0.559 sec * +4%
Acemagic AM20 AMD Ryzen 7 7735H	0.536 sec * +8%
HP ProBook 445 G10 AMD Ryzen 5 7530U	0.528 sec * +10%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H	0.526 sec * +10%
Geekom A5 AMD Ryzen 7 5800H	0.523 sec * +10%
NiPoGi CK10 Intel Core i5-12450H	0.517 sec * +11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U	0.512 sec * +12%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * +16%
GMK NucBox K3 Pro Intel Core i7-12650H	0.4701 sec * +20%
Lenovo ThinkPad T14s G4-21F8002TGE AMD Ryzen 7 7840U	0.4653 sec * +20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H	0.4512 sec * +23%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +23%
Beelink SER7 AMD Ryzen 7 7840HS	0.4446 sec * +24%

Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... im mniej tym lepiej

Performance Rating
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	99.3 pt
Geekom A5 AMD Ryzen 7 5800H, Vega 8	64.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	55 pt
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	53.2 pt
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	47.4 pt
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	41.1 pt

AIDA64 / FP32 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	25685 KRay/s +189%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	12468 KRay/s +40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s +26%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	9406 KRay/s +6%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8895 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	6784 KRay/s -24%

AIDA64 / FPU Julia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	109853 Points +93%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	77847 Points +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points 0%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	56914 Points
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	48790 Points -14%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	34444 Points -39%

AIDA64 / CPU SHA3
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	4783 MB/s +146%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	2707 MB/s +39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s +37%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	2094 MB/s +8%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	1943 MB/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	1884 MB/s -3%

AIDA64 / CPU Queen
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	111969 Points +66%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	91846 Points +36%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points +29%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	78091 Points +16%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	67352 Points
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	59756 Points -11%

AIDA64 / FPU SinJulia
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	14705 Points +73%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	10972 Points +29%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	8505 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -15%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	6561 Points -23%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	4644 Points -45%

AIDA64 / FPU Mandel
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	58699 Points +87%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	42543 Points +36%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	31339 Points
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points -11%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	23640 Points -25%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	16394 Points -48%

AIDA64 / CPU AES
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	161216 MB/s +104%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	108262 MB/s +37%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	82548 MB/s +5%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	78948 MB/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	67140 MB/s -15%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s -32%

AIDA64 / CPU ZLib
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	949 MB/s +86%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +52%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	700 MB/s +38%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	633 MB/s +24%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	601 MB/s +18%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	509 MB/s

AIDA64 / FP64 Ray-Trace
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	13904 KRay/s +206%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	6380 KRay/s +41%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s +31%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	5237 KRay/s +15%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	4540 KRay/s
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	3532 KRay/s -22%

AIDA64 / CPU PhotoWorxx
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	44164 MPixel/s +146%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	41088 MPixel/s +129%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	29523 MPixel/s +65%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +63%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	25113 MPixel/s +40%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	17917 MPixel/s

Wydajność systemu

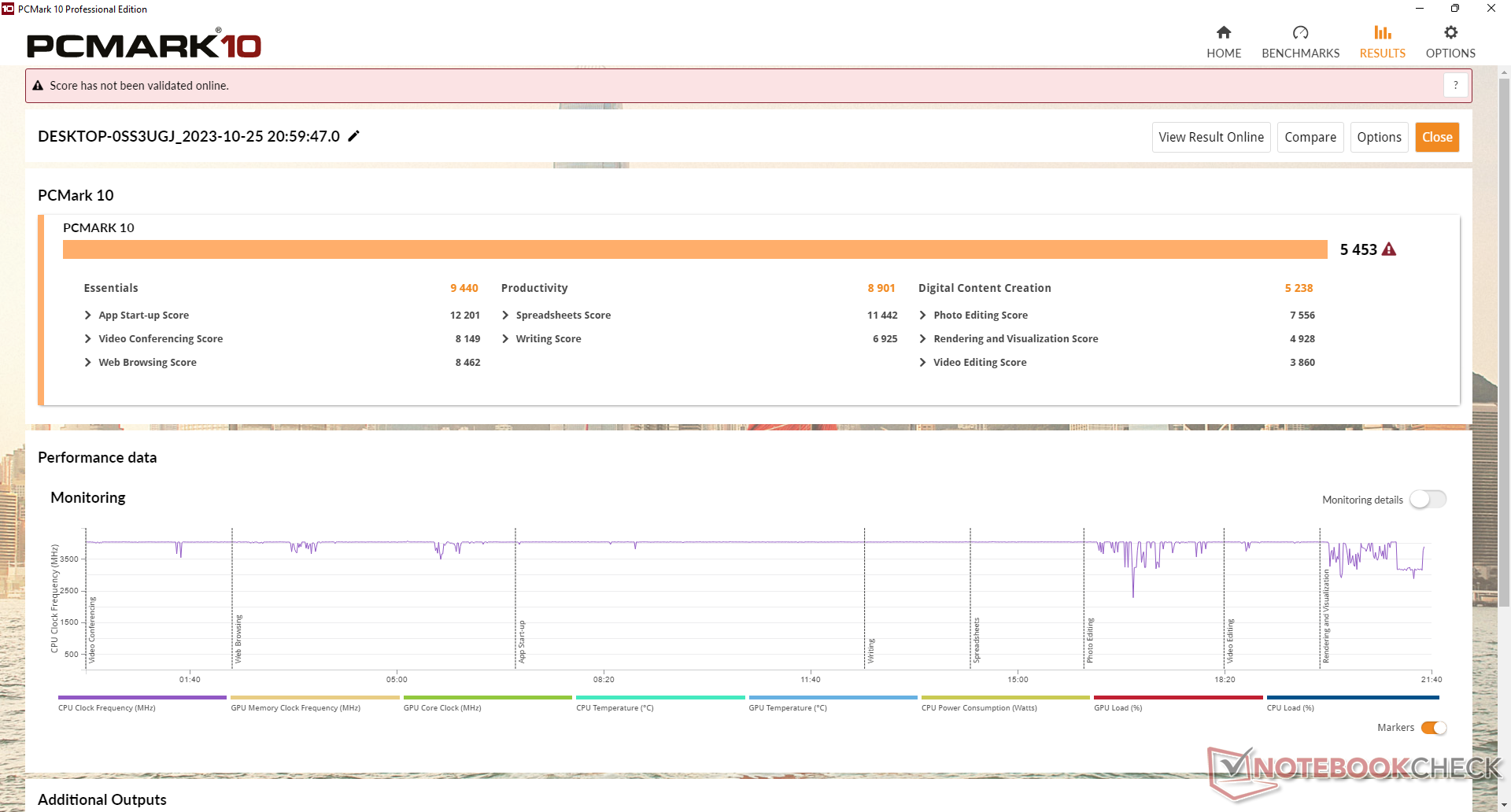

PCMark 10 / Score
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	7225 Points +32%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6149 Points +13%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points +8%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	5855 Points +7%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5543 Points +2%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5453 Points

PCMark 10 / Essentials
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +17%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	10845 Points +15%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10819 Points +15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	10797 Points +14%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	10356 Points +10%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	9440 Points

PCMark 10 / Productivity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	10452 Points +17%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	9311 Points +5%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	8901 Points
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	7803 Points -12%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	7354 Points -17%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -26%

PCMark 10 / Digital Content Creation
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	9052 Points +73%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +45%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	6544 Points +25%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	6468 Points +23%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	5798 Points +11%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	5238 Points

CrossMark / Overall
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1700 Points +42%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1644 Points +37%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points +33%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1573 Points +32%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1429 Points +19%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1196 Points

CrossMark / Productivity
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1676 Points +33%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1621 Points +29%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points +22%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1503 Points +19%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1408 Points +12%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1259 Points

CrossMark / Creativity
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1953 Points +69%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +53%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1753 Points +52%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1546 Points +34%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1523 Points +32%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1153 Points

CrossMark / Responsiveness
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	1867 Points +63%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +15%
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1301 Points +14%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	1293 Points +13%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1233 Points +8%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	1144 Points

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	69735 MB/s +80%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	69325 MB/s +79%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +14%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	43870 MB/s +13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	43215 MB/s +12%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	38690 MB/s

AIDA64 / Memory Read
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	67412 MB/s +69%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	61911 MB/s +56%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46616 MB/s +17%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46241 MB/s +16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s +12%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	39794 MB/s

AIDA64 / Memory Write
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	87358 MB/s +112%
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	59361 MB/s +44%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	46475 MB/s +13%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	46407 MB/s +13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s +11%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	41162 MB/s

AIDA64 / Memory Latency
GMK NucBox K3 Pro Intel Core i7-12650H, UHD Graphics 64EUs	97.2 ns * -4%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * -3%
Beelink SER5 AMD Ryzen 5 5560U, Vega 6	93.1 ns *
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Iris Xe G7 80EUs	91.6 ns * +2%
Beelink SER7 AMD Ryzen 7 7840HS, Radeon 780M	85.1 ns * +9%
Geekom A5 AMD Ryzen 7 5800H, Vega 8	81.4 ns * +13%

* ... im mniej tym lepiej

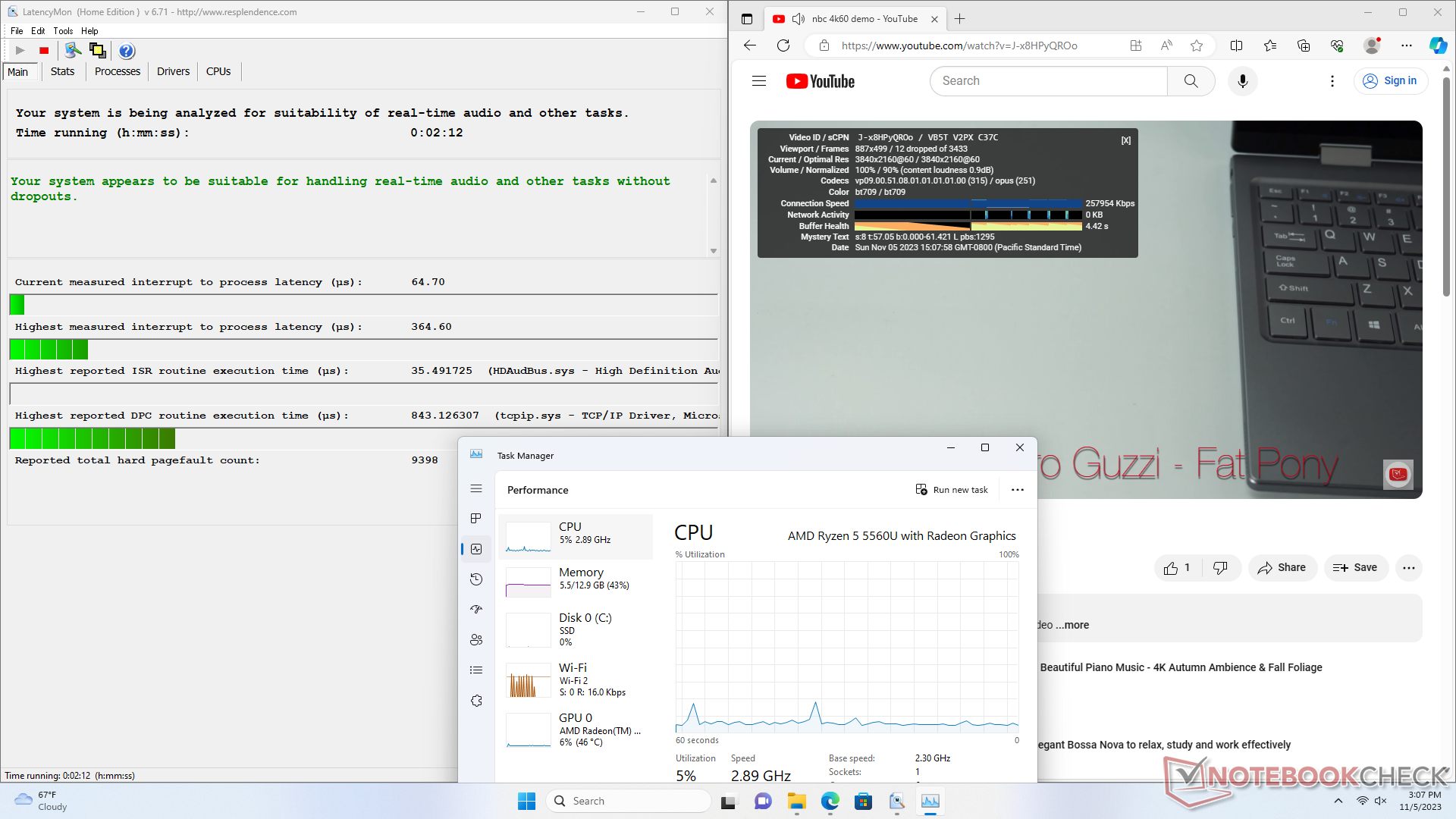

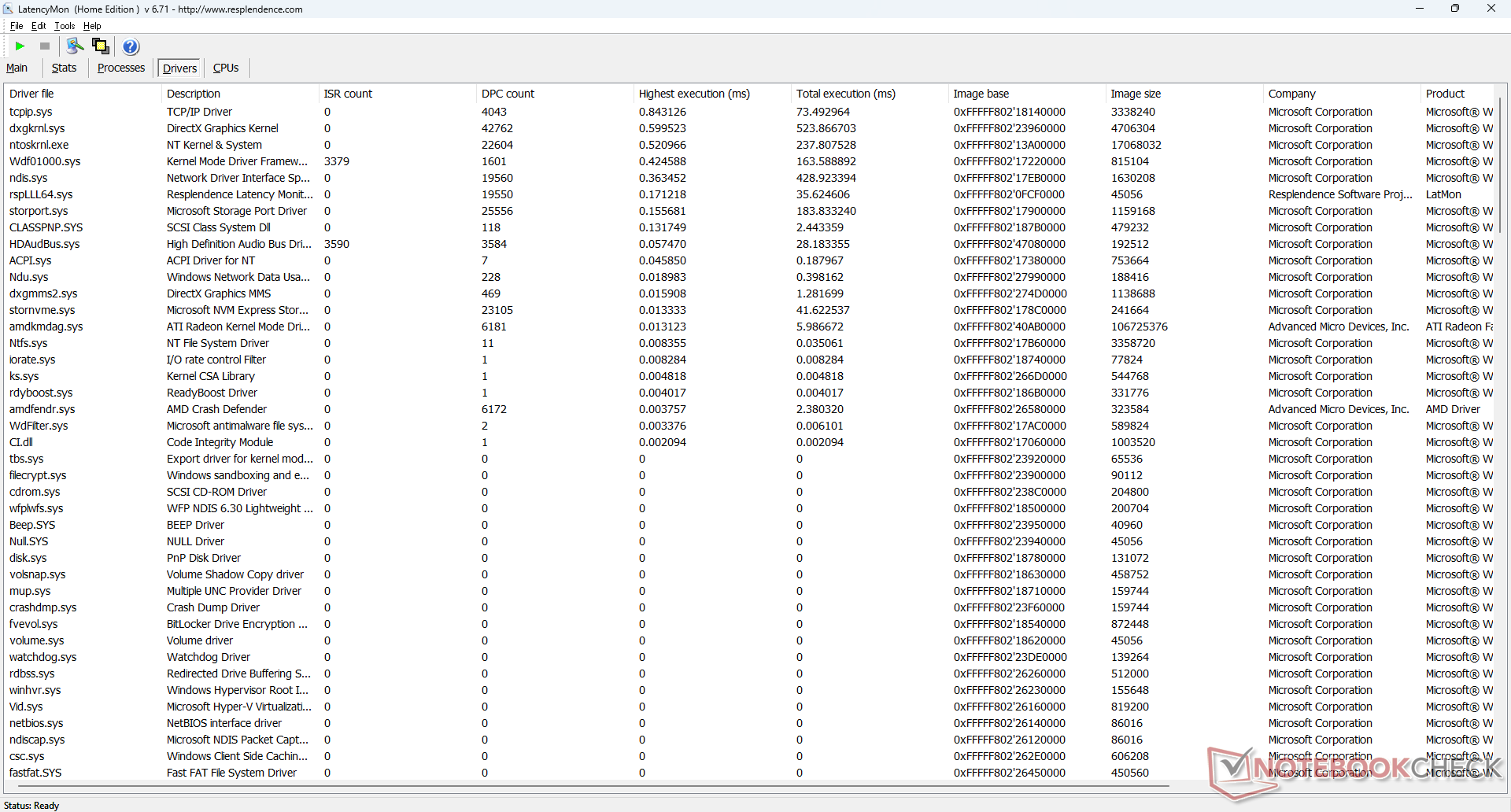

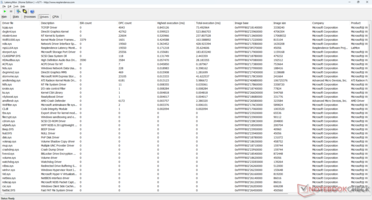

Opóźnienie DPC

LatencyMon nie ujawnia żadnych poważnych problemów z DPC. Niestety, odtwarzanie wideo 4K przy 60 FPS jest niedoskonałe, ponieważ jesteśmy w stanie zarejestrować 12 porzuconych klatek w 60-sekundowym przedziale czasowym, nawet po aktualizacji do najnowszych sterowników Adrenalin.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	1415.8 μs * -288%
Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	1310.5 μs * -259%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * -193%
Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	830.3 μs * -128%
Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	647.9 μs * -78%
Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	364.6 μs *

* ... im mniej tym lepiej

Urządzenia pamięci masowej

Nasze urządzenie jest dostarczane z tym samymCrucial P3 Plus CT1000P3PSSD8 jaki można znaleźć w SER7 i GTR7. Prędkości są ograniczone do PCIe3 zamiast szybszego standardu PCIe4.

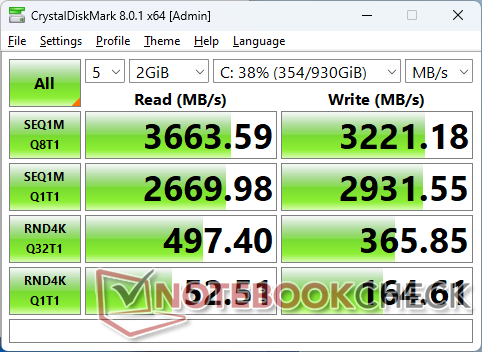

CrystalDiskMark 5.2 / 6

AS SSD

DiskSpd

Crucial P3 Plus CT1000P3PSSD8

CDM 5/6 Read Seq Q32T1: 3667 MB/s

CDM 5/6 Write Seq Q32T1: 3215 MB/s

CDM 5/6 Read 4K Q32T1: 497.8 MB/s

CDM 5/6 Write 4K Q32T1: 367 MB/s

CDM 5 Read Seq: 2666 MB/s

CDM 5 Write Seq: 2911 MB/s

CDM 5/6 Read 4K: 52.16 MB/s

CDM 5/6 Write 4K: 160.6 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	78.4 pt
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	76.6 pt
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	71.9 pt
Geekom A5 Lexar NM620 512GB	63.7 pt
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	59.6 pt
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.5 pt

DiskSpd
seq read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +28%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2718 (2645.56^min - 2717.91^max) MB/s +4%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2615 (2607.21^min - 2614.94^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2512 (2493.51^min - 2511.76^max) MB/s -4%
Geekom A5 Lexar NM620 512GB	2371 (2315.68^min - 2370.91^max) MB/s -9%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2003 (1792.88^min - 2003.18^max) MB/s -23%
seq write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3404 (38.3^min - 3403.58^max) MB/s +18%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +17%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2878 (2868.83^min - 2877.62^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2848 (2821.72^min - 2847.93^max) MB/s -1%
Geekom A5 Lexar NM620 512GB	2668 (292.6^min - 2668^max) MB/s -7%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1919 (1852.07^min - 1919.04^max) MB/s -33%
seq q8 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +48%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	4893 (3920.33^min - 4893.08^max) MB/s +33%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3673 (3327.76^min - 3673.17^max) MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3632 (3373.44^min - 3632.06^max) MB/s -1%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3481 (3104.12^min - 3480.68^max) MB/s -5%
Geekom A5 Lexar NM620 512GB	3444 (2979.63^min - 3443.98^max) MB/s -6%
seq q8 t1 write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +54%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3220 (3120.61^min - 3219.7^max) MB/s
Geekom A5 Lexar NM620 512GB	3117 (3075.4^min - 3117.21^max) MB/s -3%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2841 (2828.64^min - 2841.01^max) MB/s -12%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2408 (2336.17^min - 2407.96^max) MB/s -25%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	739 (52.85^min - 739.46^max) MB/s -77%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +61%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	79.3 (78.06^min - 79.29^max) MB/s +51%
Geekom A5 Lexar NM620 512GB	54.5 (37.15^min - 54.54^max) MB/s +4%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	52.5 (52.31^min - 52.46^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	50.3 (48.8^min - 50.32^max) MB/s -4%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	44.2 (41.58^min - 44.2^max) MB/s -16%
4k q1 t1 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	391 (374.32^min - 390.86^max) MB/s +125%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	173.4 (172.45^min - 173.36^max) MB/s
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	163.5 (154.58^min - 163.51^max) MB/s -6%
Geekom A5 Lexar NM620 512GB	148.4 (147.43^min - 148.38^max) MB/s -14%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -17%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	139.4 (137.92^min - 139.38^max) MB/s -20%
4k q32 t16 read
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2810 (2697.36^min - 2809.61^max) MB/s +1%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2781 (2776.44^min - 2781.48^max) MB/s
Geekom A5 Lexar NM620 512GB	1960 MB/s -30%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1942 (1940.61^min - 1941.63^max) MB/s -30%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1132 (1079.47^min - 1132.07^max) MB/s -59%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -71%
4k q32 t16 write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2219 (2197.25^min - 2218.83^max) MB/s 0%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2218 (2164.78^min - 2217.8^max) MB/s
Geekom A5 Lexar NM620 512GB	1370 (84.65^min - 1370.23^max) MB/s -38%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1066 (54.15^min - 1066.13^max) MB/s -52%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	535 (489.88^min - 535.49^max) MB/s -76%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -80%

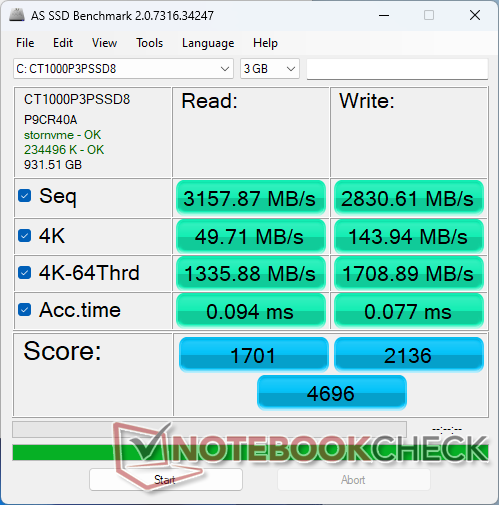

AS SSD
Score Total
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +12%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	4696 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	4619 Points -2%
Geekom A5 Lexar NM620 512GB	4006 Points -15%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	3294 Points -30%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	2617 Points -44%
Score Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1701 Points
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1633 Points -4%
Geekom A5 Lexar NM620 512GB	1502 Points -12%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1367 Points -20%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -22%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	1215 Points -29%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +56%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	2278 Points +7%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2136 Points
Geekom A5 Lexar NM620 512GB	1739 Points -19%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1282 Points -40%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	800 Points -63%
Seq Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +44%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3900.61 MB/s +24%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	3206.84 MB/s +2%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	3157.87 MB/s
Geekom A5 Lexar NM620 512GB	3020 MB/s -4%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	2968.96 MB/s -6%
Seq Write
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	3390.67 MB/s +20%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	2830.61 MB/s
Geekom A5 Lexar NM620 512GB	2714 MB/s -4%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -5%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1698.68 MB/s -40%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	463.76 MB/s -84%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +45%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	59.54 MB/s +20%
Geekom A5 Lexar NM620 512GB	57.7 MB/s +16%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	51.31 MB/s +3%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	49.71 MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	37.69 MB/s -24%
4K Write
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	280.94 MB/s +95%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	205.98 MB/s +43%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +16%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	143.94 MB/s
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	129.29 MB/s -10%
Geekom A5 Lexar NM620 512GB	125.5 MB/s -13%
4K-64 Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1335.88 MB/s
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1252.33 MB/s -6%
Geekom A5 Lexar NM620 512GB	1143 MB/s -14%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	1018.3 MB/s -24%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -41%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	787.73 MB/s -41%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +69%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	1950.21 MB/s +14%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	1708.89 MB/s
Geekom A5 Lexar NM620 512GB	1342 MB/s -21%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	906.2 MB/s -47%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	331.93 MB/s -81%
Access Time Read
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.094 ms *
Geekom A5 Lexar NM620 512GB	0.08 ms * +15%
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.079 ms * +16%
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.066 ms * +30%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +36%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.049 ms * +48%
Access Time Write
GMK NucBox K3 Pro Lexar NM610 Pro NM610P001T-HNNNG	0.367 ms * -377%
Geekom A5 Lexar NM620 512GB	0.13 ms * -69%
Beelink SER5 Crucial P3 Plus CT1000P3PSSD8	0.077 ms *
Beelink SER7 Crucial P3 Plus CT1000P3PSSD8	0.076 ms * +1%
Beelink SEi12 Core i5-1235U Kingston NV1 SNVS/500GCN	0.07 ms * +9%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +69%

* ... im mniej tym lepiej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Beelink SER5: Ø3663 (3379.77-3671.48)

Wydajność GPU

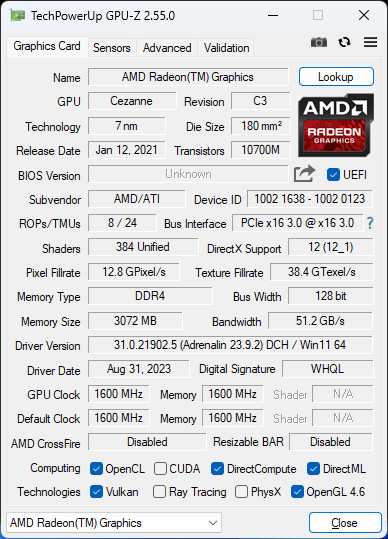

Ryzen 5 5560U wykorzystuje starszą kartę graficznąRadeon RX Vega 6 zamiast Radeon 680M lub 780M które można znaleźć w nowszych procesorach opartych na architekturze Zen 4. RX Vega 6 jest najbardziej porównywalny do Iris Xe 80 EUs które można znaleźć w większości minikomputerów Core i5. Ten konkretny procesor graficzny jest przeznaczony do strumieniowania i odtwarzania wideo 4K, ponieważ większość natywnych gier 3D nie działa dobrze na tym systemie.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Beelink SER7 ^-1! AMD Radeon 780M, AMD Ryzen 7 7840HS	100 pt
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	89.4 pt
GMK NucBox K2 ^-1! AMD Radeon 680M, AMD Ryzen 7 7735HS	85.8 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	62.8 pt
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	56.6 pt
Lenovo IdeaCentre Mini 01IRH8 ^-1! Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	54.6 pt
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	49.8 pt
GMK NucBox K3 Pro ^-1! Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	47.5 pt
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	46.7 pt
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	43.4 pt
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	38.4 pt
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	34.3 pt
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000)	33.6 pt
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	27.2 pt

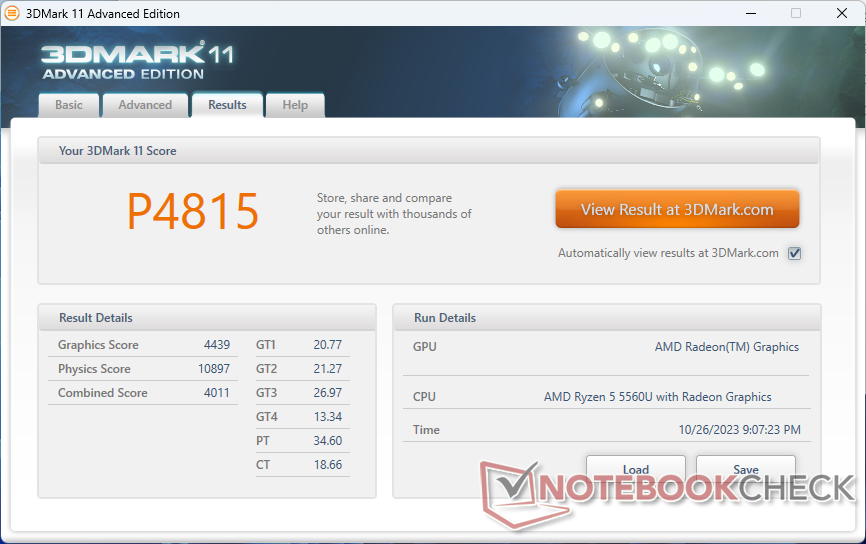

3DMark 11 - 1280x720 Performance GPU
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	12845 Points +189%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	11116 Points +150%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +135%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +65%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	7101 Points +60%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	6914 Points +56%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	6079 Points +37%
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	6024 Points +36%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	5566 Points +25%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	5054 Points +14%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	4439 Points
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (3401 - 4713, n=23)	4146 Points -7%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3886 Points -12%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	3168 Points -29%

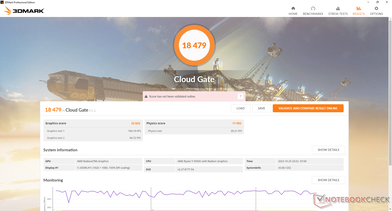

3DMark

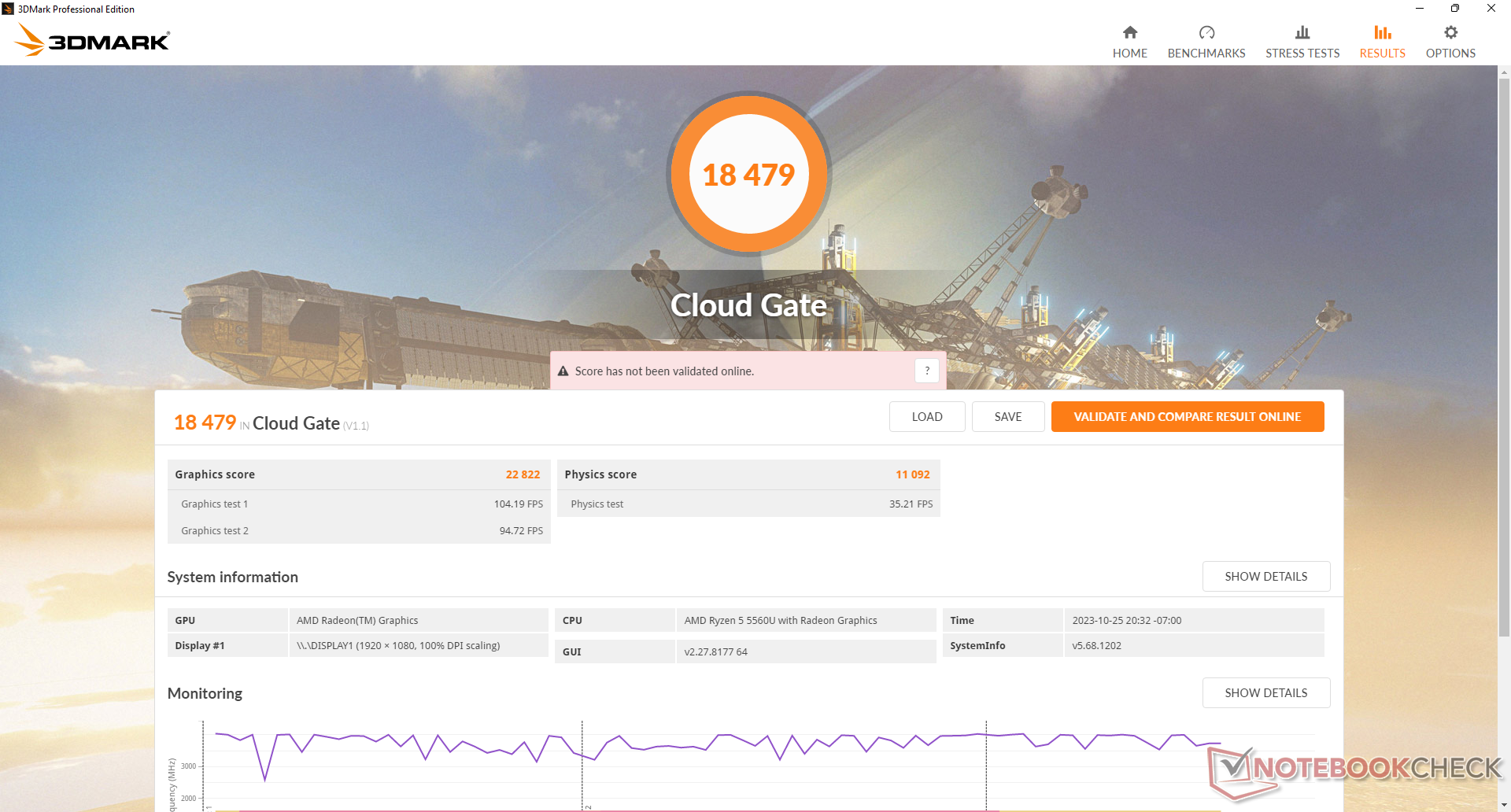

1280x720 Cloud Gate Standard Graphics
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	45528 Points +99%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	32875 Points +44%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	32427 Points +42%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	29927 Points +31%
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	28931 Points +27%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	22822 Points
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	22363 Points -2%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (15227 - 24163, n=16)	20712 Points -9%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	19949 Points -13%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	15662 Points -31%

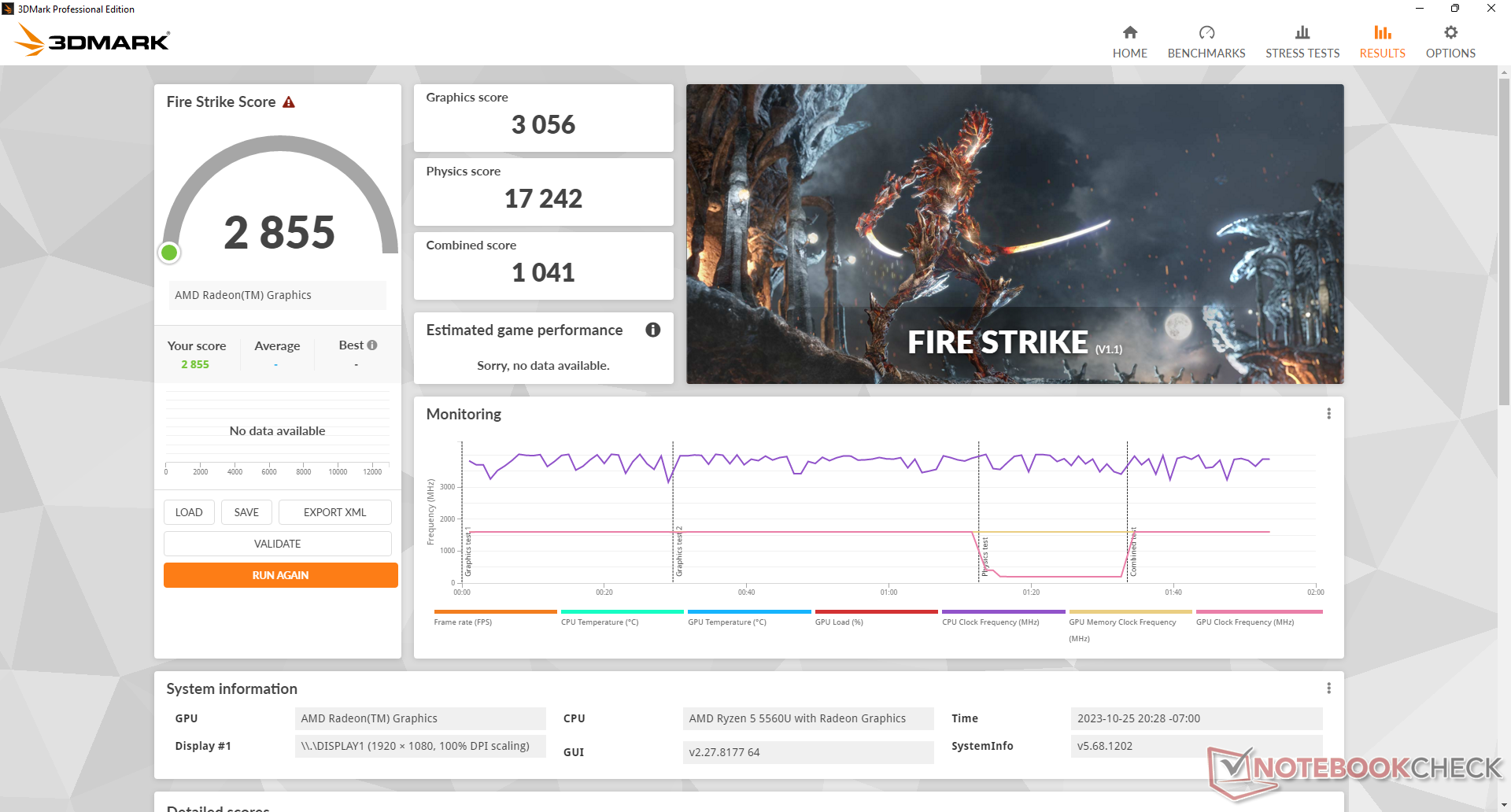

1920x1080 Fire Strike Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	8001 Points +162%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +148%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	7530 Points +146%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +84%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	4808 Points +57%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	4567 Points +49%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	4567 Points +49%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	3971 Points +30%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	3939 Points +29%
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	3663 Points +20%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	3056 Points
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	3026 Points -1%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (2122 - 3239, n=23)	2673 Points -13%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	2495 Points -18%
2560x1440 Time Spy Graphics
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	2908 Points +192%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points +145%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	2429 Points +144%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +68%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1508 Points +51%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1418 Points +42%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1288 Points +29%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1247 Points +25%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1147 Points +15%
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1118 Points +12%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	996 Points
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	855 Points -14%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (650 - 996, n=22)	821 Points -18%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	658 Points -34%

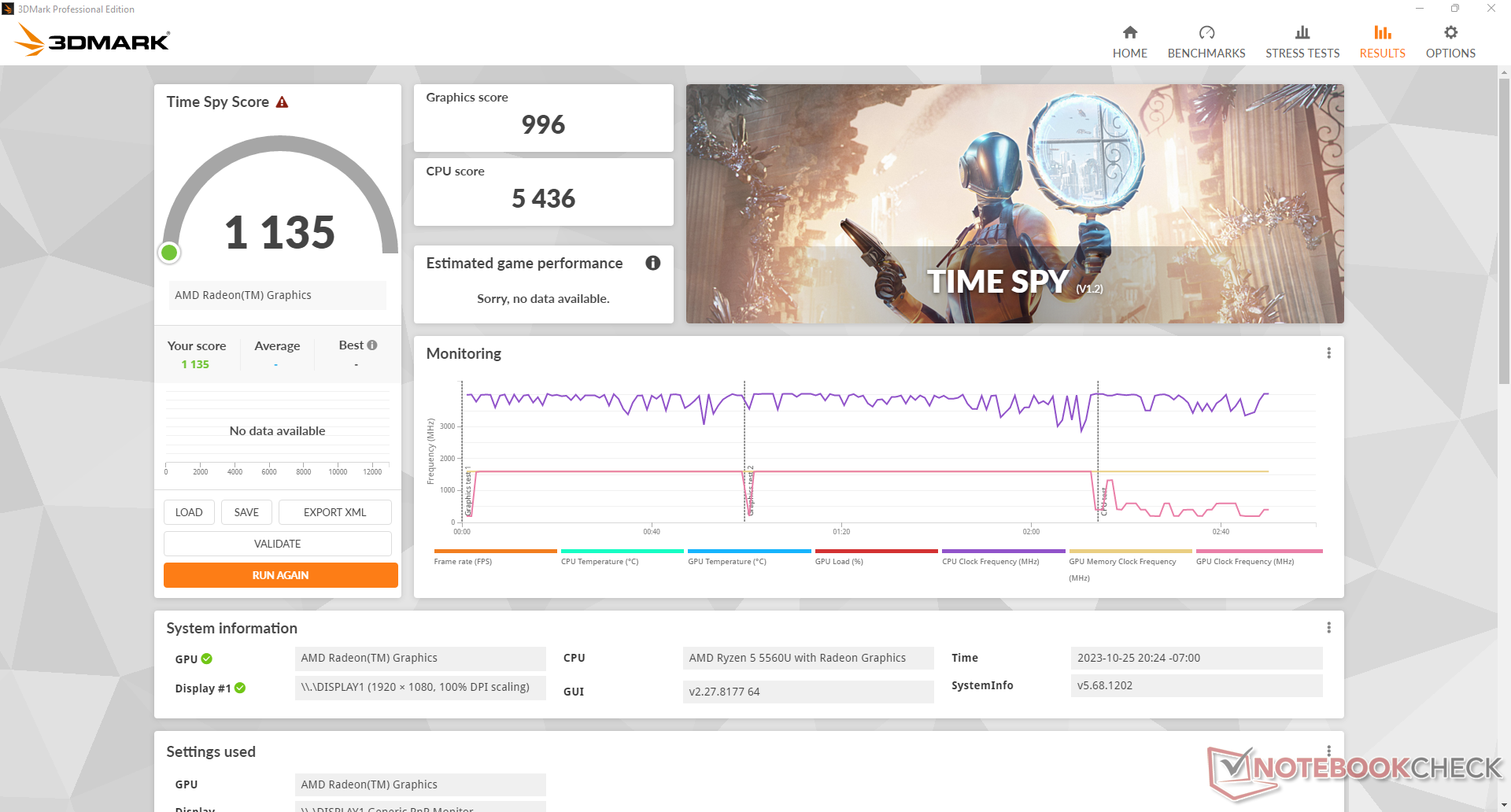

2560x1440 Time Spy Score
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	3270 Points +188%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2738 Points +141%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	2712 Points +139%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1903 Points +68%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	1724 Points +52%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	1620 Points +43%
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	1478 Points +30%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	1420 Points +25%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	1311 Points +16%
Dell Inspiron 14 7435 2-in-1 AMD Radeon RX Vega 7, AMD Ryzen 5 7530U	1270 Points +12%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	1135 Points
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	981 Points -14%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (744 - 1135, n=24)	938 Points -17%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	763 Points -33%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (675 - 813, n=2)	744 Seconds * -10%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	675 Seconds *
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	570 Seconds * +16%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	477 Seconds * +29%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	284 Seconds * +58%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds * +60%
v3.3 Classroom CPU
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (677 - 1170, n=3)	938 Seconds * -39%
NiPoGi CK10 Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i5-12450H	767 Seconds * -13%
Beelink SEi12 Core i5-1235U Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1235U	707 Seconds * -4%
Beelink SER5 AMD Radeon RX Vega 6 (Ryzen 4000/5000), AMD Ryzen 5 5560U	677 Seconds *
GMK NucBox K3 Pro Intel UHD Graphics 64EUs (Alder Lake 12th Gen), Intel Core i7-12650H	570 Seconds * +16%
Acemagic AD15 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i7-11800H	559 Seconds * +17%
Minisforum Venus Series UM560 XT AMD Radeon RX Vega 7, AMD Ryzen 5 5600H	556 Seconds * +18%
Geekom A5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5800H	513 Seconds * +24%
Acemagic AM20 AMD Radeon 680M, AMD Ryzen 7 7735H	487 Seconds * +28%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-13700H	441 Seconds * +35%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +35%
Beelink SER7 AMD Radeon 780M, AMD Ryzen 7 7840HS	318 Seconds * +53%

* ... im mniej tym lepiej

Final Fantasy XV Benchmark
1280x720 Lite Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	76.5 fps +138%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	64.7 fps +101%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +97%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +42%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	45.3 fps +41%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	40.8 fps +27%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	39.6 fps +23%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	37.4 fps +16%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	35.7 fps +11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.2 fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	28.1 fps -13%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (15.6 - 32.2, n=9)	25.9 fps -20%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.6 fps -27%
1920x1080 Standard Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	38.2 fps +137%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	35.5 fps +120%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +105%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps +51%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.4 fps +39%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.9 fps +36%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	20.2 fps +25%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 fps +24%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	19.3 fps +20%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	16.1 fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	14.5 fps -10%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (10.6 - 16.1, n=8)	13.4 fps -17%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	12.4 fps -23%
1920x1080 High Quality
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.5 fps +148%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	25.7 fps +123%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps +116%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +51%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.9 fps +38%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15.2 fps +32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	14.6 fps +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.3 fps +24%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.5 fps +17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.5 fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	10.4 fps -10%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (4.82 - 11.5, n=6)	8.6 fps -25%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.57 fps -25%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	148.1 (121^min) fps +152%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps +107%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	116.4 (10.1^min, 21.9^P0.1, 75.6^P1) fps +98%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +73%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	85.8 (61^min) fps +46%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	85.6 (16^min, 36.2^P0.1, 60.2^P1) fps +46%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	85.3 (69^min) fps +45%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	77.7 (46^min) fps +32%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	75.4 fps +28%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	59.5 (19.9^min, 24.7^P0.1, 33.7^P1) fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	58.8 (52^min) fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	47.3 (4.78^min, 19.9^P0.1, 25.3^P1) fps -20%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (32.8 - 60, n=21)	46.9 fps -20%
1366x768 Medium Graphics & Postprocessing
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	97.1 (91^min) fps +149%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps +95%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	56 (53^min) fps +44%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 (52^min) fps +39%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.1 (16.8^min, 34.9^P0.1, 43.7^P1) fps +39%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	51.4 (16.6^min, 27.5^P0.1, 43.3^P1) fps +32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.7 (43^min) fps +25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	45.4 fps +16%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	39 (36^min) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	36.4 (17.3^min, 17.8^P0.1, 20.4^P1) fps -7%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (21.3 - 39, n=13)	29.6 fps -24%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (45^min) fps +161%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	40.2 (12.2^min, 17.8^P0.1, 30.7^P1) fps +114%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps +102%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps +78%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	30.1 (28^min) fps +60%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	26.8 (26^min) fps +43%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26 (23^min) fps +38%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26 (20.8^min, 21.4^P0.1, 22.6^P1) fps +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	23 fps +22%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	19.2 (9.37^min, 9.7^P0.1, 10.7^P1) fps +2%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18.8 (17^min) fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.1 (8.34^min, 8.6^P0.1, 8.83^P1) fps -14%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (10.7 - 19.4, n=20)	15 fps -20%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.5 (28^min) fps +158%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	26.3 (13.4^min, 14.2^P0.1, 16.7^P1) fps +123%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps +92%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17.6 (14.7^min, 14.7^P0.1, 15.4^P1) fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +43%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	14.8 fps +25%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.8 (12^min) fps +17%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	12.4 (11^min) fps +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	12.2 (11^min) fps +3%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.8 (11^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (8.6 - 11.8, n=9)	10.4 fps -12%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	9.57 (4.5^min, 5.38^P0.1, 5.84^P1) fps -19%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.22 (4.84^min, 4.86^P0.1, 5.03^P1) fps -30%

GTA V
1024x768 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	166 (4.54^min, 125^P1) fps +49%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps +37%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	144.2 (9.88^min, 90.9^P1) fps +30%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	140.7 (5.04^min, 90.9^P1) fps +27%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	140.1 (17.4^min, 90.9^P1) fps +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps +12%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	117.5 (24.8^min, 71.4^P1) fps +6%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	111.2 (8.07^min, 76.9^P1) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	108.8 (14.4^min, 71.4^P1) fps -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	103.8 (6.31^min, 71.4^P1) fps -7%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	100.8 (23.7^min, 71.4^P1) fps -9%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (78.2 - 111.2, n=6)	89.3 fps -20%
1920x1080 Lowest Settings possible
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	129.1 (9.37^min, 90.9^P1) fps +102%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps +76%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	112.4 (11.6^min, 76.9^P1) fps +76%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps +37%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	86.7 (18.2^min, 58.8^P1) fps +35%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	81.3 (8.33^min, 58.8^P1) fps +27%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	67.2 (25.1^min, 45.5^P1) fps +5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	64.6 (20.6^min, 45.5^P1) fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64 (8.04^min, 45.5^P1) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	58.8 (28.4^min, 43.5^P1) fps -8%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (49.5 - 64, n=4)	54.9 fps -14%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	51.2 (9.34^min, 38.5^P1) fps -20%
1366x768 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	158.4 (14.6^min, 111.1^P1) fps +62%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps +43%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	130.5 (10.5^min, 83.3^P1) fps +34%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	123 (64.2^min, 83.3^P1) fps +26%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	122.2 (9.95^min, 76.9^P1) fps +25%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps +5%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	98.7 (7.72^min, 66.7^P1) fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	97.5 (36.1^min, 62.5^P1) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	91.9 (52.8^min, 62.5^P1) fps -6%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	89.6 (7.2^min, 62.5^P1) fps -8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	84 (16.1^min, 55.6^P1) fps -14%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (69.9 - 97.5, n=5)	80.7 fps -17%
1920x1080 Normal/Off AF:4x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	132.3 (14.1^min, 83.3^P1) fps +106%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps +77%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	111.3 (10.5^min, 71.4^P1) fps +74%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	88.2 (28.6^min, 55.6^P1) fps +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	82.7 (12.3^min, 58.8^P1) fps +29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps +17%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	64.7 (21.2^min, 43.5^P1) fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	64.1 (29.4^min, 45.5^P1) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	59.2 (24^min, 43.5^P1) fps -8%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	57.5 (17.4^min, 38.5^P1) fps -10%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (50.1 - 64.1, n=5)	54.8 fps -15%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	52 (25.2^min, 37^P1) fps -19%
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	68.3 (4.5^min, 45.5^P1) fps +178%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	52.9 (4^min, 35.7^P1) fps +115%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps +111%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.1 (10.8^min, 25.6^P1) fps +43%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	31.7 (15.9^min, 23.3^P1) fps +29%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (11.1^min, 17.9^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (20.1 - 24.6, n=6)	21.5 fps -13%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps -15%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.2 (9.35^min, 13.5^P1) fps -30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	15.9 (6.66^min, 12.5^P1) fps -35%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	13.7 (7.54^min, 9.71^P1) fps -44%
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.5 (3.06^min, 18.9^P1) fps +146%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps +114%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	23.2 (3.58^min, 16.4^P1) fps +107%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	15.5 (4.68^min, 11.4^P1) fps +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15 (2.37^min, 10.6^P1) fps +34%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	11.2 (6.84^min, 7.58^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (8 - 11.2, n=6)	9.37 fps -16%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps -21%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.41 (3.52^min, 4.12^P1) fps -34%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	6.8 (3.29^min, 3.76^P1) fps -39%

X-Plane 11.11
1280x720 low (fps_test=1)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps +76%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.8 fps +52%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	56.7 fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +44%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	52.6 fps +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	49.5 fps +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	48.4 fps +27%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	43.4 fps +14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	41.3 fps +9%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.4 fps +1%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (33.1 - 45.6, n=20)	38.2 fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	38 fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	36.2 fps -5%
1920x1080 med (fps_test=2)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps +93%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	44 fps +61%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.5 fps +59%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +50%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	39.3 fps +43%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	37 fps +35%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	33.1 fps +21%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	32.9 fps +20%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	32.8 fps +20%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (25.2 - 33.8, n=20)	28.8 fps +5%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	27.4 fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	25.8 fps -6%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	24.2 fps -12%
1920x1080 high (fps_test=3)
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps +75%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.5 fps +51%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +46%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	35.4 fps +46%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	34.2 fps +41%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	31.9 fps +32%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	29.5 fps +22%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	28.5 fps +18%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	26 fps +7%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (22.6 - 29.9, n=20)	25.8 fps +7%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.2 fps
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.5 fps -7%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	21.5 fps -11%

Dota 2 Reborn
1280x720 min (0/3) fastest
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	156.9 (136.5^min) fps +42%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	137.7 (114.5^min) fps +24%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	129.5 (112.6^min) fps +17%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	125.7 (106.9^min) fps +14%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	119.5 (88.3^min) fps +8%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	116 (101.7^min) fps +5%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps +3%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	110.7 (97.6^min) fps
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	110.5 (89^min) fps 0%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	106.2 (84.2^min) fps -4%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (81.6 - 134.4, n=21)	96.2 fps -13%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	93.8 (8.8^min) fps -15%
1366x768 med (1/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	121.1 (100.6^min) fps +33%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +25%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	108.6 (88.6^min) fps +20%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	107.8 (86.5^min) fps +19%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	102.8 (86.7^min) fps +13%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	93.4 (69.8^min) fps +3%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	90.8 (71^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	88.7 (71^min) fps -2%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps -5%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	82.8 (69^min) fps -9%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	79.2 (64.2^min) fps -13%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (62.6 - 119.5, n=21)	76.1 fps -16%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	73.6 (65.4^min) fps -19%
1920x1080 high (2/3)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	95.5 (85.2^min) fps +96%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +73%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	79.5 (69.9^min) fps +63%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.7 (59.9^min) fps +39%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +39%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	62.7 (57.3^min) fps +29%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	62.1 (57.1^min) fps +28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	56.9 (52.4^min) fps +17%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	48.7 (44.8^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	45.5 (42.6^min) fps -7%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	43.3 (40.5^min) fps -11%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (32 - 70.9, n=21)	42.7 fps -12%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	37.1 (33.3^min) fps -24%
1920x1080 ultra (3/3) best looking
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.6 (74.9^min) fps +89%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +62%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	69.2 (61^min) fps +52%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	63.7 (56^min) fps +40%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +33%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	58.2 (54^min) fps +28%
GMK NucBox K3 Pro Intel Core i7-12650H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	57.5 (52.3^min) fps +27%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	52 (47.1^min) fps +15%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	45.4 (42.4^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	42.2 (39.3^min) fps -7%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	40.4 (37.2^min) fps -11%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (30.4 - 66.1, n=21)	40 fps -12%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	33.8 (30.9^min) fps -26%

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	164.2 (129^min, 114^P1) fps +167%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps +140%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	136.4 (113^min, 90^P1) fps +122%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	89.3 (78^min, 72^P1) fps +45%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	80.8 (68^min, 67^P1) fps +31%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	71.6 (59^min, 58^P1) fps +16%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	61.5 (52^min, 51^P1) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	48.4 (40^min, 39^P1) fps -21%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (27.1 - 61.5, n=3)	48 fps -22%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	40.5 (33^min, 33^P1) fps -34%
1920x1080 Low Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	94.6 (81^min, 71^P1) fps +192%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps +155%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	80.2 (68^min, 59^P1) fps +148%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	48.8 (40^min, 38^P1) fps +51%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps +47%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	42.3 (37^min, 33^P1) fps +31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	39.2 (32^min, 31^P1) fps +21%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	32.4 (28^min, 26^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (17.4 - 40.9, n=4)	29.7 fps -8%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	27.1 (21^min, 21^P1) fps -16%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	21.8 (18^min, 18^P1) fps -33%
1920x1080 Medium Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.7 (72^min, 66^P1) fps +200%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps +159%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	69.9 (60^min, 45^P1) fps +144%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps +52%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42.4 (33^min, 35^P1) fps +48%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	31.7 (28^min, 27^P1) fps +11%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	38 (31^min, 31^P1) fps +33%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	36.7 (30^min, 30^P1) fps +28%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	28.6 (25^min, 24^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (25.6 - 28.6, n=2)	27.1 fps -5%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	24.3 (19^min, 19^P1) fps -15%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	19.6 (16^min, 16^P1) fps -31%
1920x1080 High Preset AA:T AF:16x
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	63 (48^min, 51^P1) fps +192%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps +153%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	50.5 (44^min, 37^P1) fps +134%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps +47%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	28.2 (24^min, 23^P1) fps +31%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27 (22^min, 22^P1) fps +25%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21.6 (18^min, 18^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (18.9 - 21.6, n=2)	20.3 fps -6%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	17.2 (14^min, 13^P1) fps -20%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	13.8 (11^min, 11^P1) fps -36%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +57%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.5 (19^min, 19^P1) fps +47%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.7 (17^min, 17^P1) fps +35%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	19.7 fps +29%
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	17.7 (13^min, 13^P1) fps +16%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	15.3 (13^min, 13^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (13.5 - 15.3, n=2)	14.4 fps -6%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps -9%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	13.4 (9^min, 10^P1) fps -12%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	12.3 (9^min, 9^P1) fps -20%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	10.6 (9^min, 9^P1) fps -31%

Strange Brigade
1280x720 lowest AF:1
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.2 (109.1^min, 139.7^P1) fps +107%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	148.9 (66.1^min, 117.4^P1) fps +89%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps +87%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	100.9 (66.3^min, 84.2^P1) fps +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps +25%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	94.4 (16.2^min, 81.3^P1) fps +20%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	89.2 (21.3^min, 32.1^P1) fps +13%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	78.9 (56.9^min, 66.5^P1) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	65.9 (14.2^min, 19.7^P1) fps -16%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (41 - 78.9, n=6)	62.9 fps -20%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	61.7 (14.2^min, 18.8^P1) fps -22%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	55.6 (12.4^min, 18^P1) fps -30%
1920x1080 medium AA:medium AF:4
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.6 (52.2^min, 57^P1) fps +117%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	60.5 (41.9^min, 54.2^P1) fps +100%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps +85%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps +30%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38.8 (24.2^min, 34.3^P1) fps +28%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	36.1 (25.4^min, 31.7^P1) fps +19%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	34.7 (12.5^min, 20^P1) fps +15%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	30.3 (25.6^min, 27.4^P1) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	26.5 (7^min, 12.6^P1) fps -13%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	25.1 (8.8^min, 12.7^P1) fps -17%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (17 - 30.3, n=6)	24.7 fps -18%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	21.6 (6.8^min, 10.4^P1) fps -29%
1920x1080 high AA:high AF:8
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	55.6 (39.2^min, 42.9^P1) fps +126%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	49.5 (29.9^min, 38^P1) fps +101%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps +87%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (23.8^min, 25.8^P1) fps +32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps +30%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	30.1 (19.6^min, 24.1^P1) fps +22%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	29.2 (9^min, 13.5^P1) fps +19%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.6 (19.8^min, 20.3^P1) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	21.4 (5^min, 7.98^P1) fps -13%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (15 - 24.6, n=6)	20.5 fps -17%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	19.8 (5^min, 6.19^P1) fps -20%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.6 (5^min, 5.93^P1) fps -33%
1920x1080 ultra AA:ultra AF:16
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.2 (23.8^min, 32^P1) fps +135%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps +107%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	42.5 (28.1^min, 30.2^P1) fps +107%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.4 (19.7^min, 22.4^P1) fps +34%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +27%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.4 (14.8^min, 17.6^P1) fps +24%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22.9 (5^min, 5.96^P1) fps +12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	20.5 (12.2^min, 14.6^P1) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (16.7 - 20.5, n=5)	18.3 fps -11%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	17.5 (5^min, 5^P1) fps -15%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	16.8 (5^min, 5^P1) fps -18%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	15.6 (5^min, 5^P1) fps -24%

Cyberpunk 2077 1.6
1280x720 Low Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.5 (19.7^min) fps +187%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	59.5 (21.9^min) fps +139%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.9 (19.9^min) fps +12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	24.9 (14.3^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (22 - 24.9, n=2)	23.5 fps -6%
1920x1080 Low Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	43.9 (20.7^min) fps +218%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	35.8 (14.4^min) fps +159%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	16.4 (7.3^min) fps +19%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	13.8 (9.9^min) fps
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	13.4 (8.9^min) fps -3%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (11.2 - 13.8, n=2)	12.5 fps -9%
1920x1080 Medium Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	34.6 (17.5^min) fps +239%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	27.4 (12.8^min) fps +169%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.3 (10.5^min) fps +30%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	11.4 (8^min) fps +12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	10.2 (8^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (9.2 - 10.2, n=2)	9.7 fps -5%
1920x1080 High Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	26.9 (6.5^min) fps +224%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	21 (9.9^min) fps +153%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.9 (8.7^min) fps +31%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	9 (6.7^min) fps +8%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.3 (5.5^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (6.4 - 8.3, n=2)	7.35 fps -11%
1920x1080 Ultra Preset
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.8 (6.1^min) fps +226%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	19.2 (5^min) fps +153%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.3 fps +36%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	7.6 (4.9^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) ()	7.6 fps 0%
Beelink SEi12 Core i5-1235U Intel Core i5-1235U, Intel Iris Xe Graphics G7 80EUs	7.4 (5.3^min) fps -3%

Far Cry 5
1280x720 Low Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	84 (73^min) fps +83%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps +50%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	67 (61^min) fps +46%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	62 (56^min) fps +35%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	57 (51^min) fps +24%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	46 (41^min) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps -2%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	45 (41^min) fps -2%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	36 (32^min) fps -22%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (24 - 46, n=12)	33.2 fps -28%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	30 (26^min) fps -35%
1920x1080 Medium Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	50 (45^min) fps +138%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps +95%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	41 (37^min) fps +95%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps +38%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	29 (26^min) fps +38%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	27 (24^min) fps +29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	22 (20^min) fps +5%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	21 (18^min) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	17 (15^min) fps -19%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (11 - 21, n=10)	15.8 fps -25%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	13 (11^min) fps -38%
1920x1080 High Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	46 (41^min) fps +142%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps +100%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	38 (35^min) fps +100%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps +42%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27 (24^min) fps +42%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25 (22^min) fps +32%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	21 (19^min) fps +11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19 (17^min) fps
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	16 (13^min) fps -16%
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (11 - 19, n=7)	15.4 fps -19%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	12 (10^min) fps -37%
1920x1080 Ultra Preset AA:T
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	44 (39^min) fps +144%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps +100%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	36 (30^min) fps +100%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps +44%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25 (23^min) fps +39%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	23 (20^min) fps +28%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20 (18^min) fps +11%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	18 (16^min) fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (14 - 18, n=4)	15.8 fps -12%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	15 (13^min) fps -17%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	12 (10^min) fps -33%

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	140.6 fps +160%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps +112%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	106 fps +96%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.2 fps +47%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	70.4 fps +30%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps +7%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	54.3 fps +1%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	54 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (38.7 - 54, n=2)	46.4 fps -14%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	29.4 fps -46%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	25.7 fps -52%
1920x1080 Low Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	71.6 fps +180%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps +138%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	56.2 fps +120%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	38 fps +48%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	33.1 fps +29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps +26%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	27.5 fps +7%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	25.6 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) (18.8 - 25.6, n=2)	22.2 fps -13%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	16.7 fps -35%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	13.1 fps -49%
1920x1080 Medium Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	52 fps +167%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps +131%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	42.2 fps +116%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	28.9 fps +48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps +30%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	25.1 fps +29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	20.9 fps +7%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	19.5 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) ()	19.5 fps 0%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	12.7 fps -35%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	9.82 fps -50%
1920x1080 High Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	37.1 fps +207%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps +158%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	28.6 fps +136%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18.1 fps +50%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps +31%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	15.7 fps +30%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	13.5 fps +12%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	12.1 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) ()	12.1 fps 0%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	8.33 fps -31%
Acemagic AD15 Intel Core i7-11800H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	6.35 fps -48%
1920x1080 Badass Preset (DX12)
Beelink SER7 AMD Ryzen 7 7840HS, AMD Radeon 780M	30 fps +237%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps +174%
Acemagic AM20 AMD Ryzen 7 7735H, AMD Radeon 680M	22.5 fps +153%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps +52%
Geekom A5 AMD Ryzen 7 5800H, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.3 fps +49%
Minisforum Venus Series UM560 XT AMD Ryzen 5 5600H, AMD Radeon RX Vega 7	11.5 fps +29%
Lenovo IdeaCentre Mini 01IRH8 Intel Core i7-13700H, Intel Iris Xe Graphics G7 96EUs	10.6 fps +19%
Beelink SER5 AMD Ryzen 5 5560U, AMD Radeon RX Vega 6 (Ryzen 4000/5000)	8.9 fps
Average AMD Radeon RX Vega 6 (Ryzen 4000/5000) ()	8.9 fps 0%
NiPoGi CK10 Intel Core i5-12450H, Intel UHD Graphics 64EUs (Alder Lake 12th Gen)	6.44 fps -28%

Witcher 3 FPS Chart

Beelink SER5: Ø56.3 (48-61)

	low	med.	high	ultra
GTA V (2015)	111.2	97.5	24.6	11.2
The Witcher 3 (2015)	58.8	39	18.8	11.8
Dota 2 Reborn (2015)	110.7	90.8	48.7	45.4
Final Fantasy XV Benchmark (2018)	32.2	16.1	11.5
X-Plane 11.11 (2018)	38	27.4	24.2
Far Cry 5 (2018)	46	21	19	18
Strange Brigade (2018)	78.9	30.3	24.6	20.5
Cyberpunk 2077 1.6 (2022)	13.8	10.2	8.3	7.6
Tiny Tina's Wonderlands (2022)	25.6	19.5	12.1	8.9
F1 22 (2022)	32.4	28.6	21.6	15.3

Emisje

Hałas systemowy

Hałas wentylatora jest jednym z najcichszych, jakich doświadczyliśmy na jakimkolwiek mini PC. Wentylator zazwyczaj oscylował między 28 a 33 dB(A), nawet przy bardzo wymagających obciążeniach, takich jak gry lub obciążenie Prime95. Dla porównania, zasilany przez Core i5 Beelink SEi12 może osiągać nawet 40 dB(A).

Hałas

luz		23.9 / 23.9 / 23.9 dB
obciążenie		28 / 32.8 dB

	30 dB cichy 40 dB(A) słyszalny 50 dB(A) irytujący
min: , med: , max: Earthworks M23R, Arta (odległość 15 cm) environment noise: 23.7 dB(A)

Temperatura

Zasilacz AC może osiągnąć ponad 39 C podczas pracy z wymagającymi obciążeniami

Temperatury powierzchniowe nie stanowią problemu, o ile na wierzchu urządzenia nie są umieszczane żadne papiery lub przedmioty w celu zachowania przepływu powietrza.

Test warunków skrajnych

Procesor przyspieszał do 3,1 GHz podczas inicjowania obciążenia Prime95, po czym spadał nieznacznie do 2,9 GHz przez resztę uruchomienia. Pobór mocy przez płytę główną utrzymywał się na stabilnym poziomie 25 W, czyli dokładnie tak, jak reklamowano dla Ryzena 5 5560U.

Uruchomienie Witcher 3 do reprezentowania wysokich obciążeń, GPU ustabilizowałoby się na poziomie 1600 MHz i 64 C, co jest nieco chłodniejsze niż w głośniejszym Beelink SEi12 napędzanym Core i5.

Zarządzanie energią

Zużycie energii

Całkowite zużycie energii jest bardzo niskie, co przekłada się na wysoką wydajność w przeliczeniu na wat. Na przykład SEi12 z procesorem Core i5 wymagałby aż 51 W podczas pracy Witcher 3 czyli prawie 2 razy więcej niż nasz SER5, mimo że wydajność graficzna jest zbliżona do obu modeli. Niskie zapotrzebowanie na energię jest bezpośrednio odpowiedzialne za niski poziom hałasu wentylatora odnotowany powyżej.

Naprężenie Prime95 rozpoczęło się po 10 sekundach

Prime95+FurMark stres zainicjowany w 10s mark

Pobór mocy

wyłączony / stan wstrzymania	0.98 / 1.06 W
luz	4.4 / 5 / 5.3 W
obciążenie	29.8 / 40.4 W


Legenda: min: , med: , max: Metrahit Energy

	Beelink SER5 R5 5560U, Vega 6, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SER7 R7 7840HS, Radeon 780M, Crucial P3 Plus CT1000P3PSSD8, , x,	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs, Kingston NV1 SNVS/500GCN, , x,	Geekom A5 R7 5800H, Vega 8, Lexar NM620 512GB, , x,	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs, Lexar NM610 Pro NM610P001T-HNNNG, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		-105%	-178%	-82%	-98%	-92%
Idle Minimum *	4.4	6.7 -52%	15.8 -259%	6.9 -57%	7.1 -61%	7 -59%
Idle Average *	5	7.3 -46%	16.8 -236%	7.9 -58%	10.1 -102%	9.2 -84%
Idle Maximum *	5.3	11.6 -119%	17 -221%	8.9 -68%	18.6 -251%	11.8 -123%
Load Average *	29.8	64.1 -115%	54.4 -83%	60.8 -104%	45.3 -52%	45 -51%
Witcher 3 ultra *	28.8	75.8 -163%	50.7 -76%		55.2 -92%
Load Maximum *	40.4	94.8 -135%	119.1 -195%	89.7 -122%	52.9 -31%	97.2 -141%

* ... im mniej tym lepiej

Power Consumption Witcher 3 / Stresstest

Beelink SER5 R5 5560U, Vega 6; Witcher 3 ultra: Ø28.8 (28.3-30.6)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Witcher 3 ultra: Ø50.7 (49.7-63.2)

Beelink SER5 R5 5560U, Vega 6; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39 (38.6-40.4)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 Prime95 28.10 and Furmark 1.25: Ø78.5 (72.1-119.1)

Power Consumption external Monitor

Beelink SER5 R5 5560U, Vega 6; Prime95 V2810 Stress (external Monitor): Ø39.5 (39-39.9)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Prime95 V2810 Stress (external Monitor): Ø63.2 (57.9-102.6)

Beelink SER5 R5 5560U, Vega 6; Cinebench R15 Multi (external Monitor): Ø35.2 (34.9-35.4)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Cinebench R15 Multi (external Monitor): Ø69.5 (56-93.5)

Beelink SER5 R5 5560U, Vega 6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.2 (30.5-32)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø43.8 (39.3-47.7)

Beelink SER5 R5 5560U, Vega 6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.8 (28.3-30.6)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; 1920x1080 The Witcher 3 ultra (external Monitor): Ø50.7 (49.7-63.2)

Beelink SER5 R5 5560U, Vega 6; Idle 1min (external Monitor): Ø4.46 (4.19-5.88)

Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs; Idle 1min (external Monitor): Ø16.6 (15.8-19.1)

Werdykt - niesamowita wydajność w stosunku do ceny i niski poziom hałasu wentylatora

W recenzji: Beelink SER5. Jednostka testowa dostarczona przez Beelink

Dwa najbardziej godne uwagi aspekty SER5 to cichy szum wentylatora i wysoka wydajność w stosunku do ceny wywoławczej. Jego bezpośredni konkurent, Core i5-1235U, może zaoferować nieco szybszą wydajność jednowątkową, ale z zauważalnie gorszą wydajnością na wat, co prowadzi do znacznie głośniejszego hałasu wentylatora. SER5 jest zatem jednym z najcichszych mini PC, jakie do tej pory testowaliśmy, bez uciekania się do okropnie powolnych alternatyw Atom lub Celeron.

Beelink SER5 oferuje wydajność zbliżoną do Core i5 przy niemal niezauważalnym szumie wentylatora.

Użytkownicy, którzy cenią sobie Thunderbolt, nadal będą chcieli rozważyć alternatywy Intela lub nowsze procesory AMD z odpowiednią obsługą USB4, takie jak SER6 Pro. Jednak takie opcje są również znacznie droższe o 2x lub więcej. Biorąc wszystko pod uwagę, SER5 jest jednym z najlepszych mini PC w niskim przedziale cenowym 200 USD.

Cena i dostępność

Amazon wysyła teraz Beelink SER5 w komplecie z 16 GB RAM i 500 GB SSD za jedyne 229 USD.

Beelink SER5 - 06/11/2023 v7 ^(old)
Allen Ngo

Wykonanie

79 / 98 → 80%

Komunikacja

59 / 81 → 73%

Waga

84%

Wyświetlacz

83%

Wydajność w grach

62%

Wydajność w programach użytkowych

93%

Hałas

98%

Średnio

80%

82%

Mini PC - Ważona średnia

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Date	Model	Weight	Height	Resolution
82.1 % v7 ^(old)	11/2023	Beelink SER5 R5 5560U, Vega 6	439 g	42 mm	x
86.6 % v7 ^(old)	09/2023	Beelink SER7 R7 7840HS, Radeon 780M	640 g	49 mm	x
v ^(old)	12/2022	Beelink SEi12 Core i5-1235U i5-1235U, Iris Xe G7 80EUs	465 g	42 mm	x
81.2 % v7 ^(old)	10/2023	Geekom A5 R7 5800H, Vega 8	555 g	49.2 mm	x
82.8 % v7 ^(old)	10/2023	GMK NucBox K3 Pro i7-12650H, UHD Graphics 64EUs	396 g	43.2 mm	x
83.1 % v7 ^(old)	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x

3DMark 11 Performance		4815 pkt.
3DMark Cloud Gate Standard Score		18479 pkt.
3DMark Fire Strike Score		2855 pkt.
3DMark Time Spy Score		1135 pkt.
Pomoc

Debiut wydajności Ryzen 5 5560U: Recenzja mini PC Beelink SER5

Wydajność Intel NUC bez ceny NUC.

Potencjalni konkurenci w porównaniu

Sprawa

Porównanie wielkości

Łączność

Komunikacja

Konserwacja

Akcesoria i gwarancja

Wydajność

Warunki testowania

Procesor

Cinebench R15 Multi Loop

Wydajność systemu

Opóźnienie DPC

Urządzenia pamięci masowej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Wydajność GPU

Witcher 3 FPS Chart

Emisje

Hałas systemowy

Temperatura

Test warunków skrajnych

Zarządzanie energią

Zużycie energii

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Za

Przeciw

Werdykt - niesamowita wydajność w stosunku do ceny i niski poziom hałasu wentylatora

Cena i dostępność

More articles related to this device

Transparency

Price comparison

	Beelink SER5 Vega 6, R5 5560U, Crucial P3 Plus CT1000P3PSSD8	Beelink SER7 Radeon 780M, R7 7840HS, Crucial P3 Plus CT1000P3PSSD8	Beelink SEi12 Core i5-1235U Iris Xe G7 80EUs, i5-1235U, Kingston NV1 SNVS/500GCN	Geekom A5 Vega 8, R7 5800H, Lexar NM620 512GB	GMK NucBox K3 Pro UHD Graphics 64EUs, i7-12650H, Lexar NM610 Pro NM610P001T-HNNNG	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		-16%	-15%	-29%	-18%	-23%
off / environment *	23.7	24.5 -3%	23.3 2%	25 -5%	23.1 3%	25.2 -6%
Idle Minimum *	23.9	25.1 -5%	27.8 -16%	28.2 -18%	25 -5%	28.1 -18%
Idle Average *	23.9	25.1 -5%	27.8 -16%	28.2 -18%	25.5 -7%	28.2 -18%
Idle Maximum *	23.9	25.1 -5%	27.8 -16%	28.2 -18%	25.5 -7%	28.3 -18%
Load Average *	28	35.9 -28%	32 -14%	47.8 -71%	39.9 -43%	42 -50%
Witcher 3 ultra *	27.6	35.6 -29%	34.1 -24%		39.9 -45%
Load Maximum *	32.8	45.4 -38%	39.2 -20%	47.4 -45%	39.9 -22%	42.1 -28%

	Taktowanie CPU (GHz)	Taktowanie GPU (MHz)	Średnia temperatura CPU (°C)
System bezczynności	--	--	42
Prime95Stress	2.8	--	74
Prime95+ FurMark Stress	3.2	1100	75
Witcher 3 Obciążenie	~0.5	1600	64
