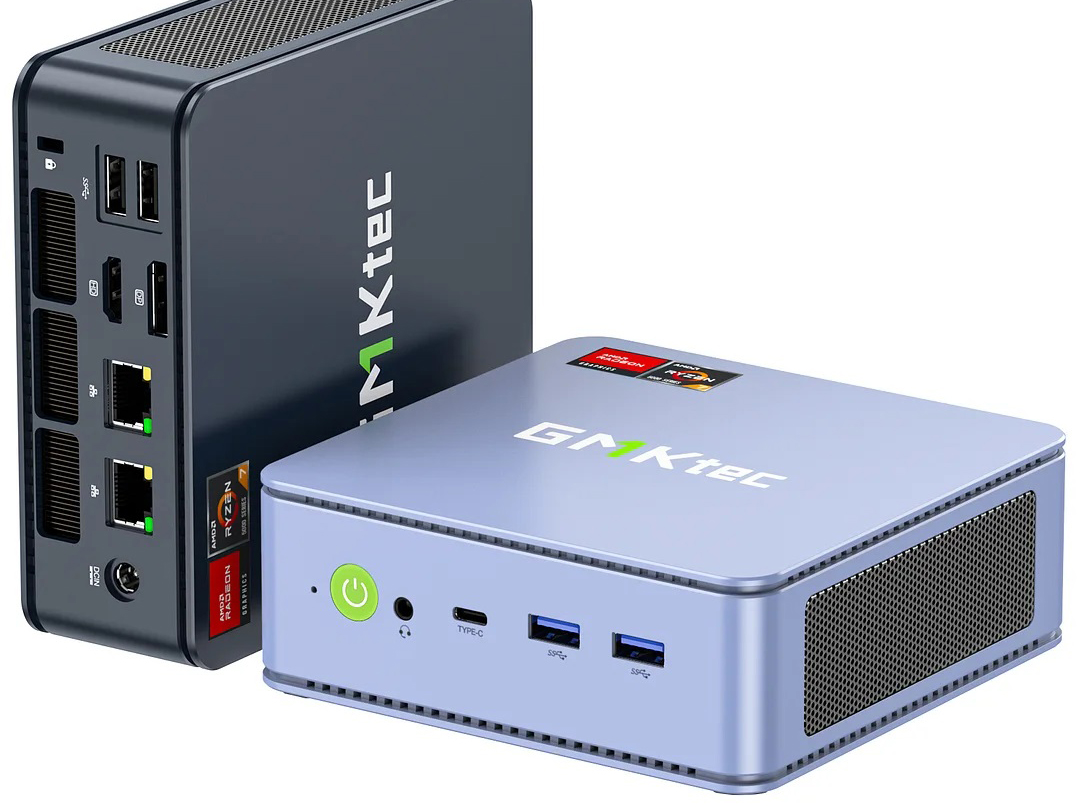

Name: GMK NucBox M5
Brand: GMK

NucBox M5 to najnowszy podstawowy mini PC od GMK w przeciwieństwie do droższej serii NucBox K. Wykorzystuje on starsze opcje procesorów w celu utrzymania niskich kosztów.

Nasza jednostka testowa została skonfigurowana z procesorem Zen 2 Ryzen 7 5700U, 32 GB pamięci RAM DDR4-3200 i 1 TB pamięci masowej za około 470 USD. Jednostki Barebone SKU są również dostępne bez pamięci RAM i pamięci masowej w cenie od 320 USD, ale wszystkie opcje są wyposażone w ten sam procesor.

Alternatywy dla NucBox M4 obejmują inne niedrogie mini PC, takie jak Beelink SER5, BMax B7 Powerlub Maxtang MTN-FP750.

Więcej recenzji GMKtec:

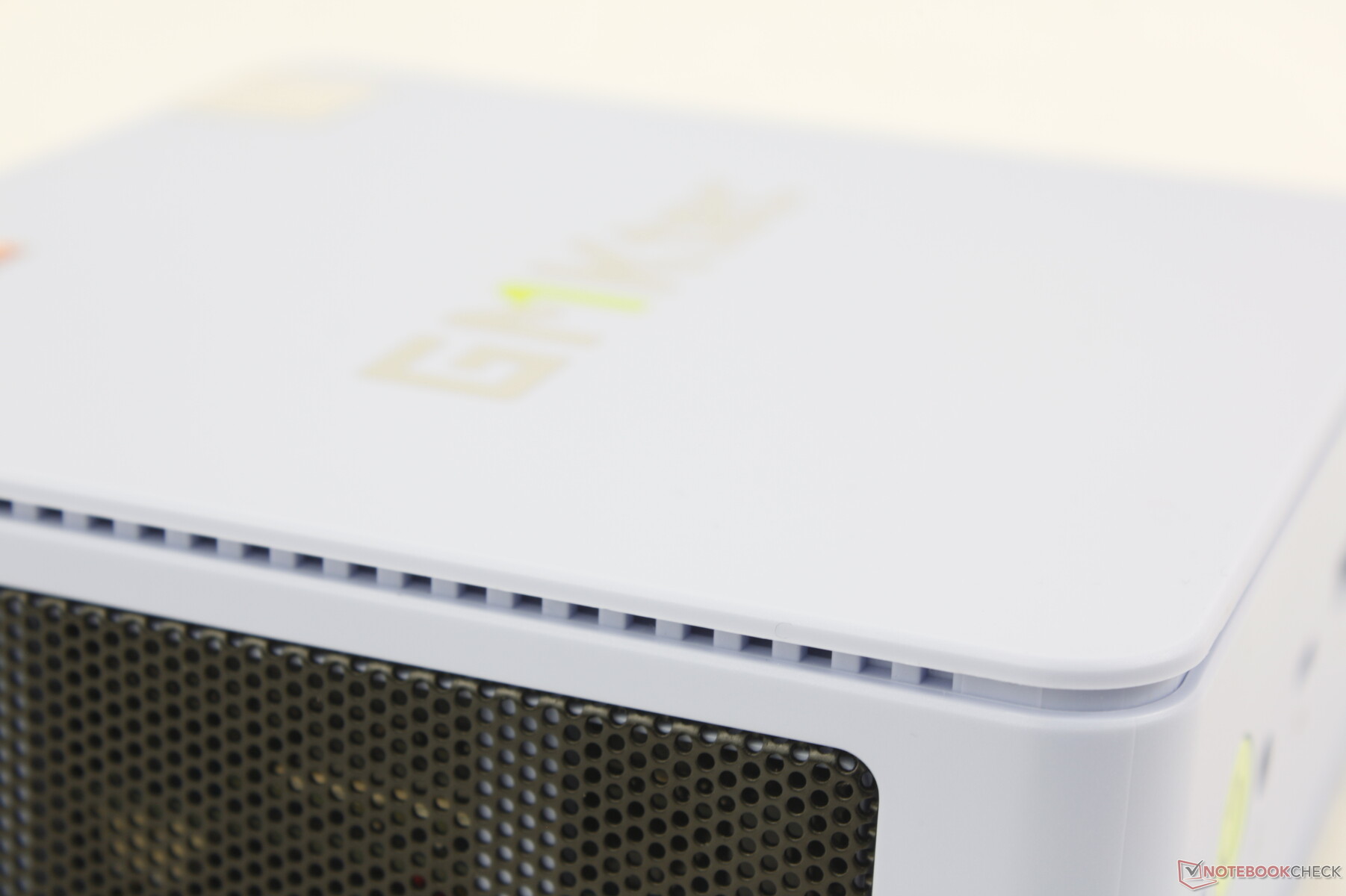

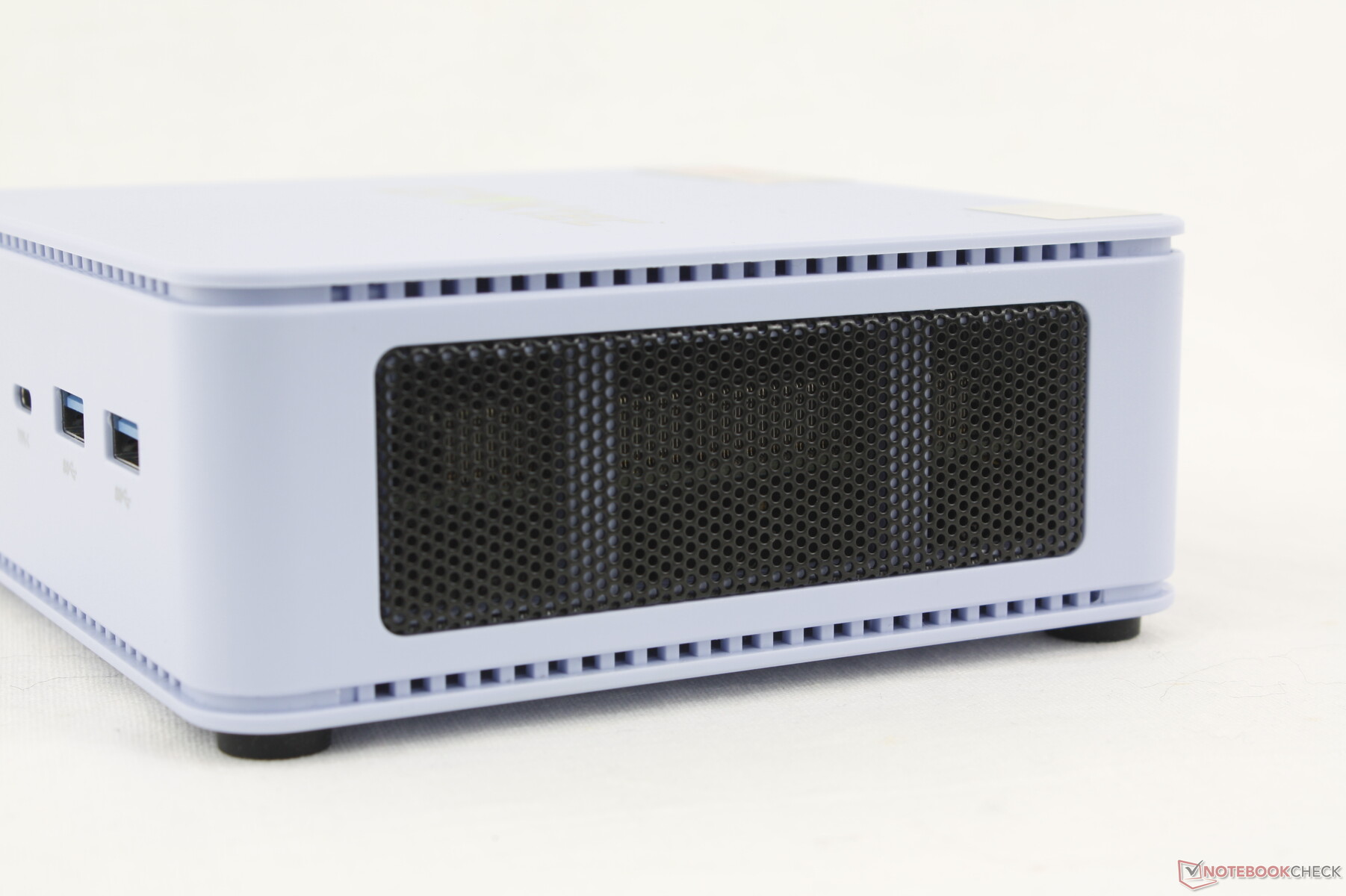

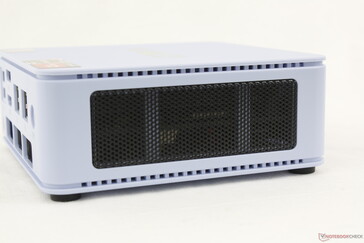

Obudowa - odświeżona konstrukcja z ulepszoną wentylacją

Obudowa jest wizualnie identyczna z NucBox K6. W przypadku NucBox M5 boki obudowy są jednak wykonane z tworzywa sztucznego zamiast metalu, co prawdopodobnie ma na celu utrzymanie niskich kosztów.

W porównaniu do starszego i w większości metalowego NucBox M4 m5 jest znacznie mniejszy i waży prawie o połowę mniej.

Kolory obejmują stalowy niebieski (jak pokazano), niebieski kosmiczny i pastelowy zielony

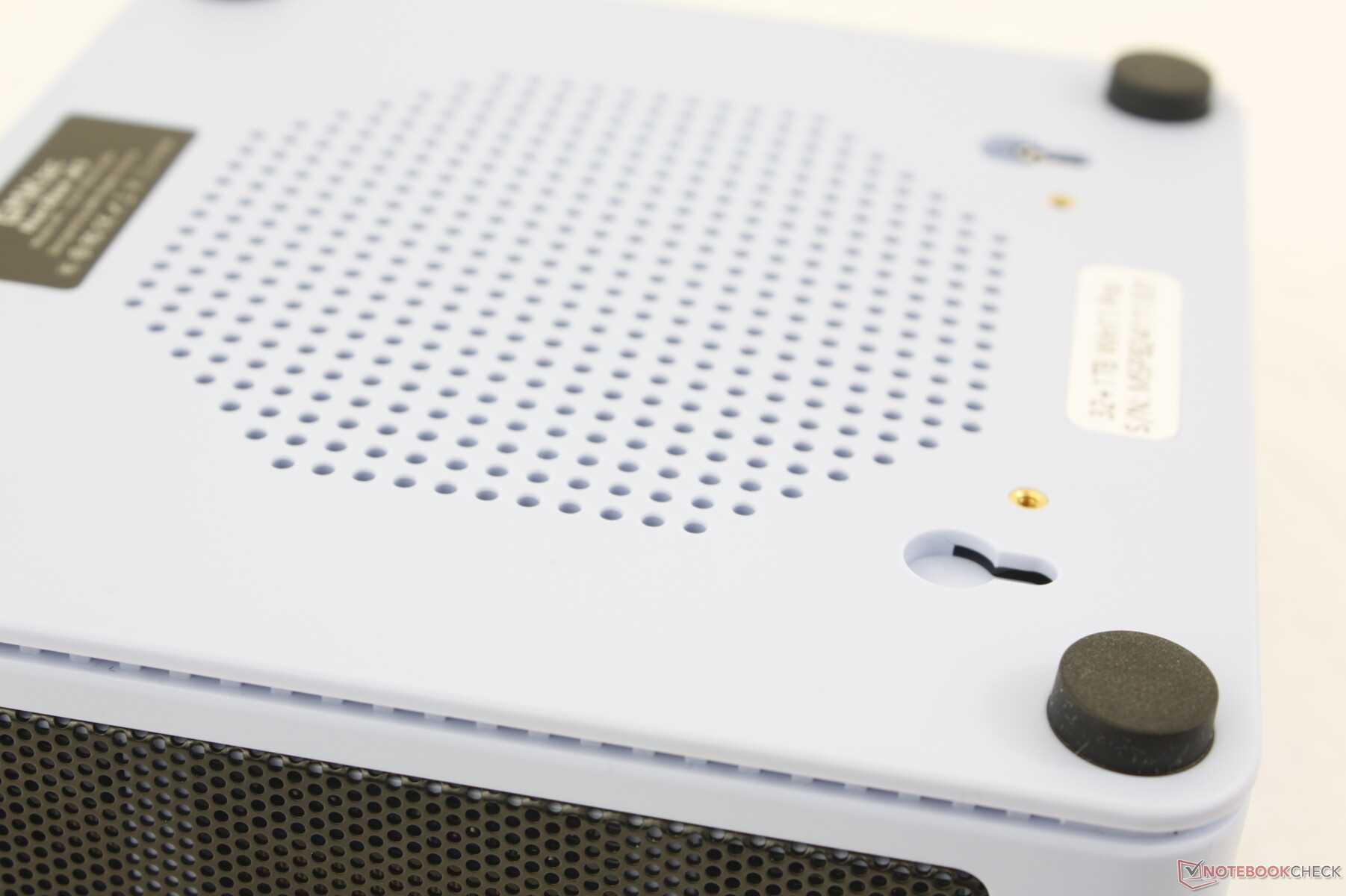

Dolna strona nie jest zdejmowana, ale obsługuje montaż VESA

Porównanie rozmiarów

Łączność

Opcje portów są takie same jak w NucBox K6, ale z dwoma kluczowymi ulepszeniami. Pojedynczy port USB-C nie obsługuje teraz USB4 i Thunderbolt, podczas gdy jeden z tylnych portów USB-A jest teraz 2.0 zamiast 3.2.

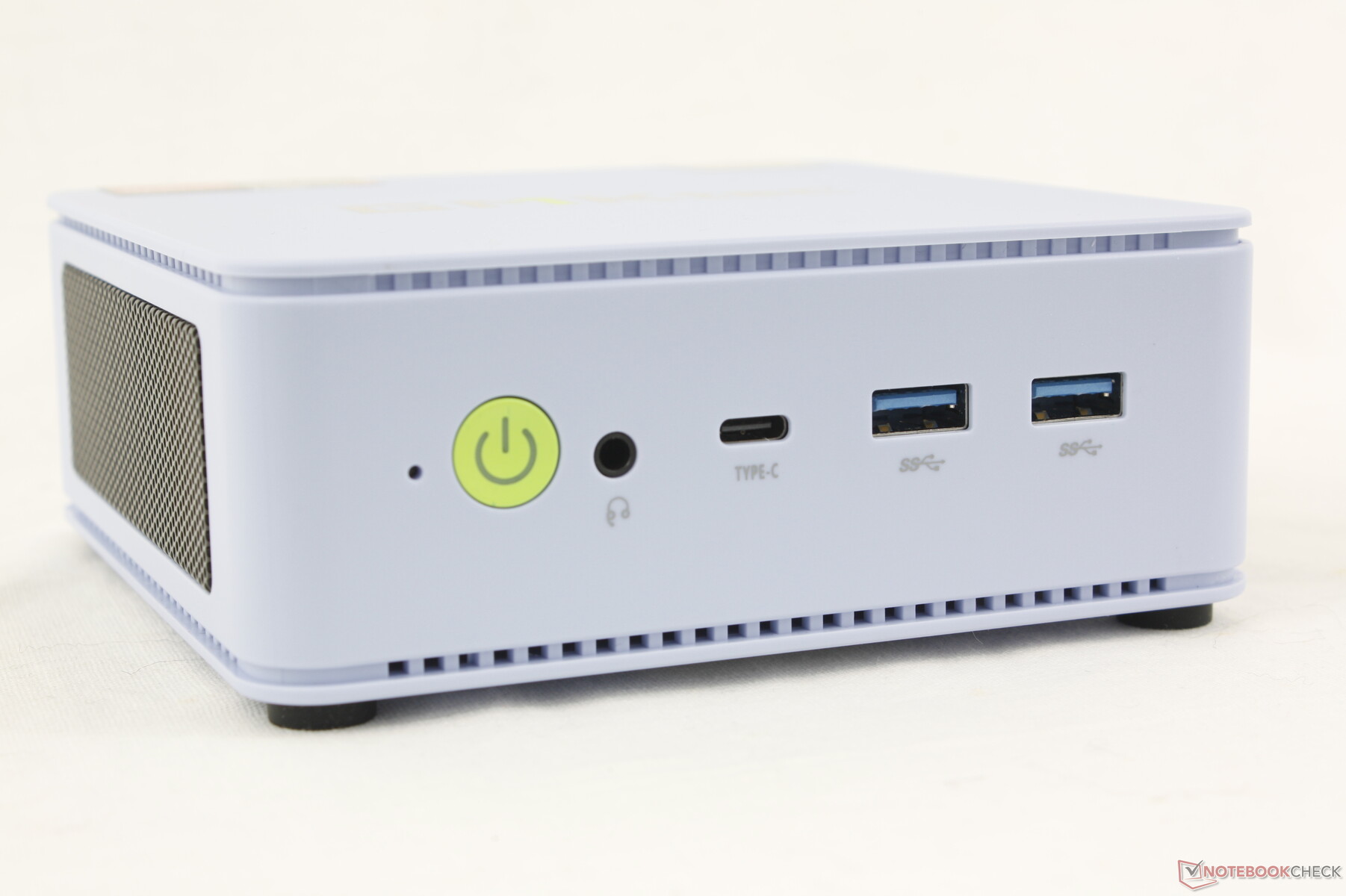

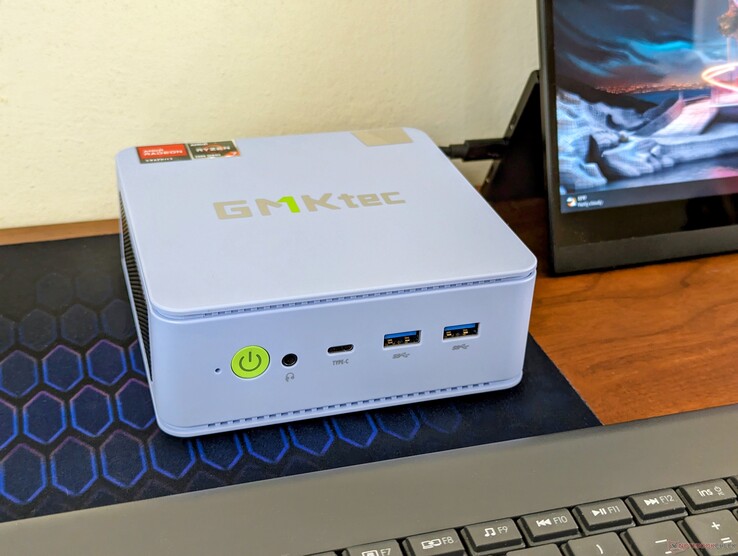

Przód: Przycisk zasilania, zestaw słuchawkowy 3,5 mm, USB-C 4.0 z funkcją Power Delivery + DisplayPort, 2x USB-A 3.2 Gen. 2

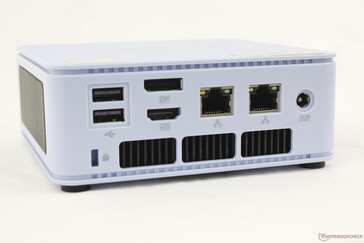

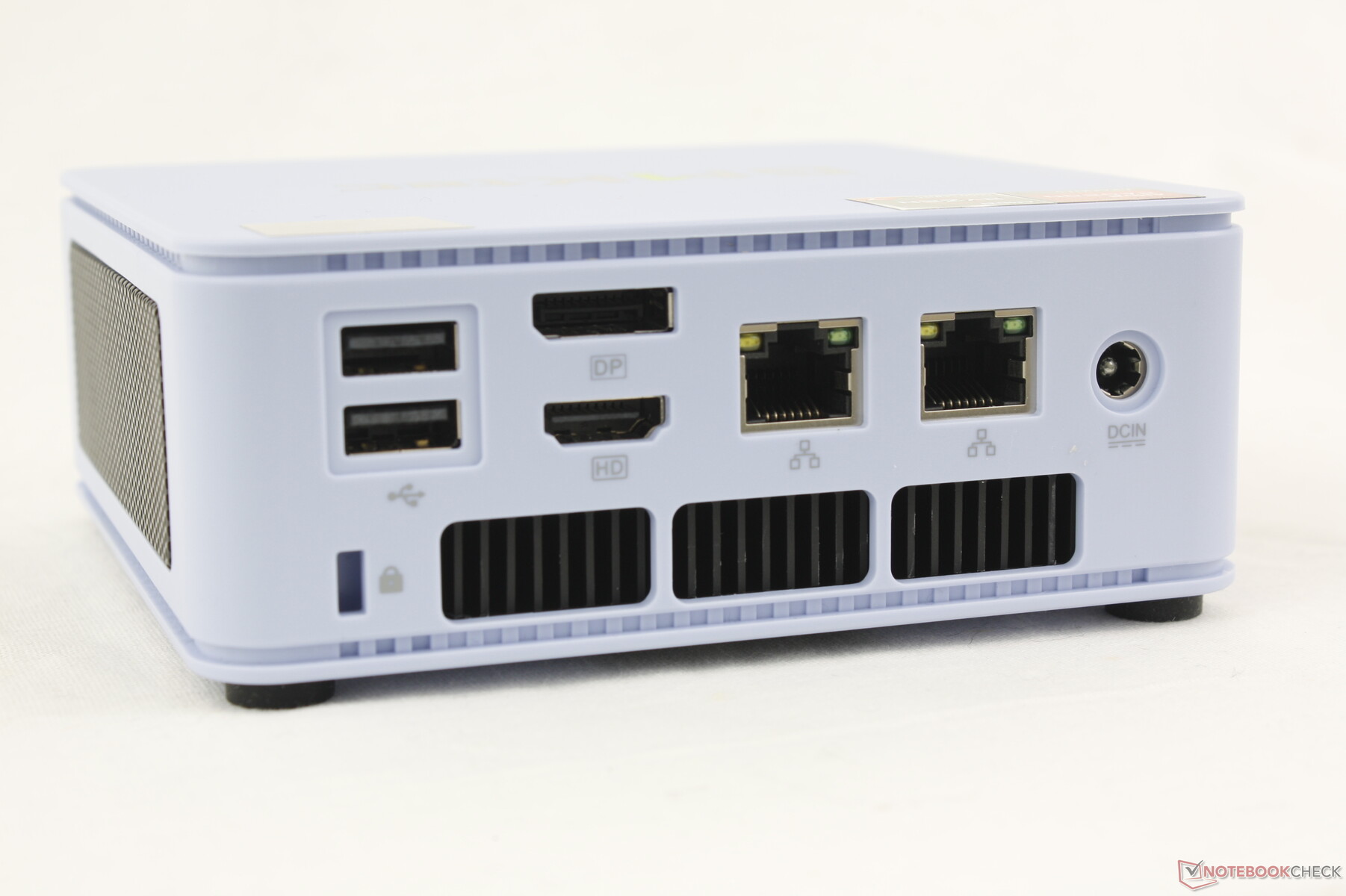

Tył: 2x USB-A 2.0, DisplayPort (4K60), HDMI 2.0 (4K60), 2x RJ-45 (2,5 Gb/s), zasilacz sieciowy, blokada Kensington

Komunikacja

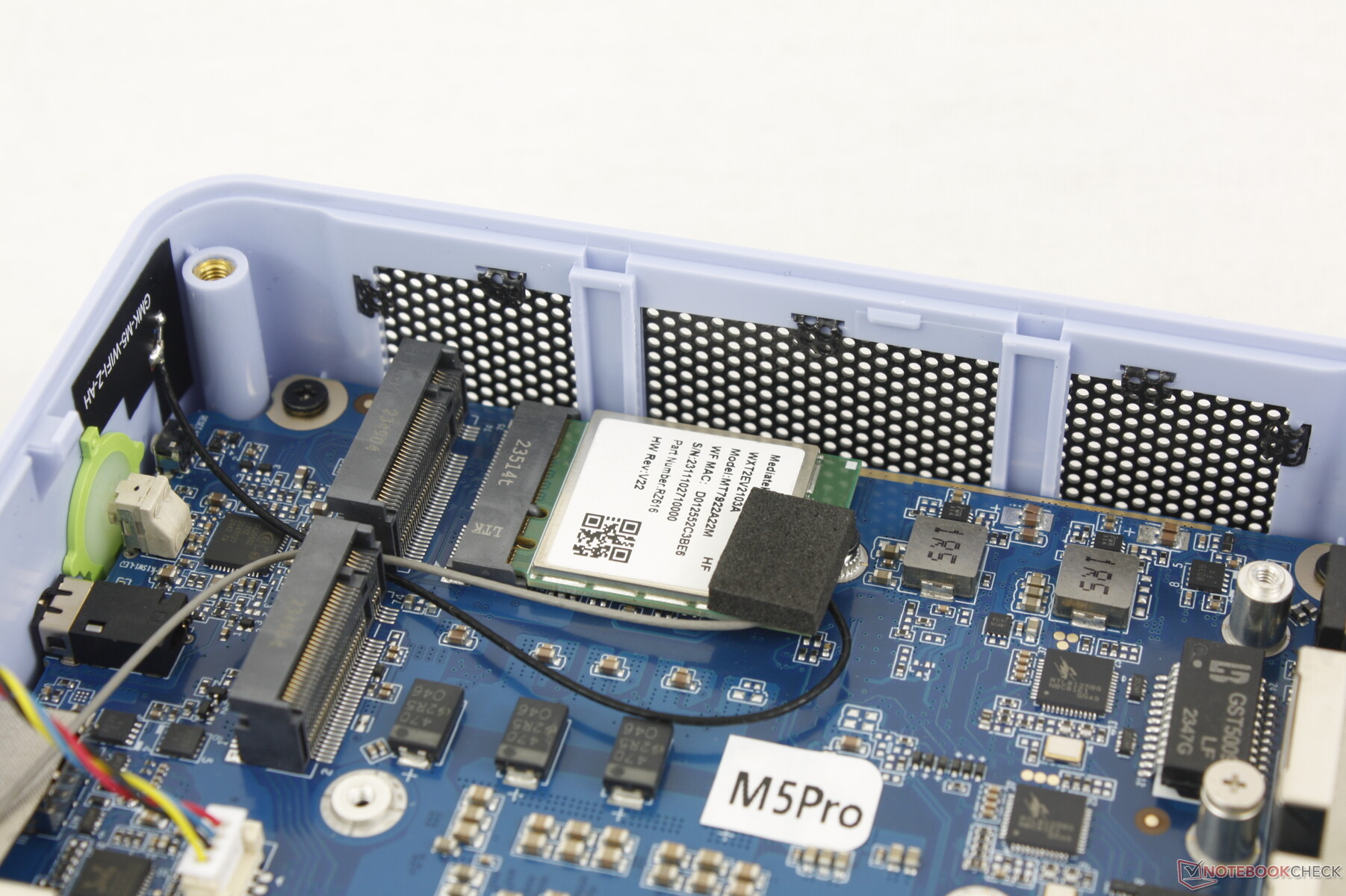

Wyjmowany moduł MediaTek RZ616 Wi-Fi 6E M.2

Networking
iperf3 transmit AXE11000
GMK NucBox M5 MediaTek RZ616	1335 (782^min - 1633^max) MBit/s
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1301 (514^min - 1422^max) MBit/s -3%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	831 (755^min - 940^max) MBit/s -38%
GMK NucBox M4 Realtek RTL8852BE	717 (651^min - 749^max) MBit/s -46%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	709 (369^min - 977^max) MBit/s -47%
GMK NucBox K6 MediaTek RZ616	634 (574^min - 685^max) MBit/s -53%
iperf3 receive AXE11000
GMK NucBox M5 MediaTek RZ616	1264 (1077^min - 1480^max) MBit/s
GMK NucBox K6 MediaTek RZ616	1222 (1074^min - 1368^max) MBit/s -3%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1117 (884^min - 1368^max) MBit/s -12%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	858 (827^min - 886^max) MBit/s -32%
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	838 (728^min - 926^max) MBit/s -34%
GMK NucBox M4 Realtek RTL8852BE	745 (694^min - 805^max) MBit/s -41%
iperf3 transmit AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1615 (767^min - 1670^max) MBit/s +12%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1511 (1451^min - 1552^max) MBit/s +5%
GMK NucBox M5 MediaTek RZ616	1437 (695^min - 1546^max) MBit/s
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1367 (1268^min - 1443^max) MBit/s -5%
GMK NucBox K6 MediaTek RZ616	432 (212^min - 471^max) MBit/s -70%
iperf3 receive AXE11000 6GHz
Acemagic F2A Intel Wi-Fi 7 BE200 320MHz	1770 (1584^min - 1790^max) MBit/s +31%
Intel NUC 13 Pro Desk Edition Kit Intel Wi-Fi 6E AX211	1448 (1357^min - 1490^max) MBit/s +7%
Geekom A7 MediaTek Wi-Fi 6E MT7922 160MHz Wireless LAN Card	1375 (688^min - 1438^max) MBit/s +2%
GMK NucBox M5 MediaTek RZ616	1347 (1315^min - 1439^max) MBit/s
GMK NucBox K6 MediaTek RZ616	984 (937^min - 1048^max) MBit/s -27%

GMK NucBox M5; iperf3 transmit AXE11000 6GHz; iperf 3.1.3: Ø1415 (695-1546)

GMK NucBox M5; iperf3 receive AXE11000 6GHz; iperf 3.1.3: Ø1347 (1315-1439)

Konserwacja

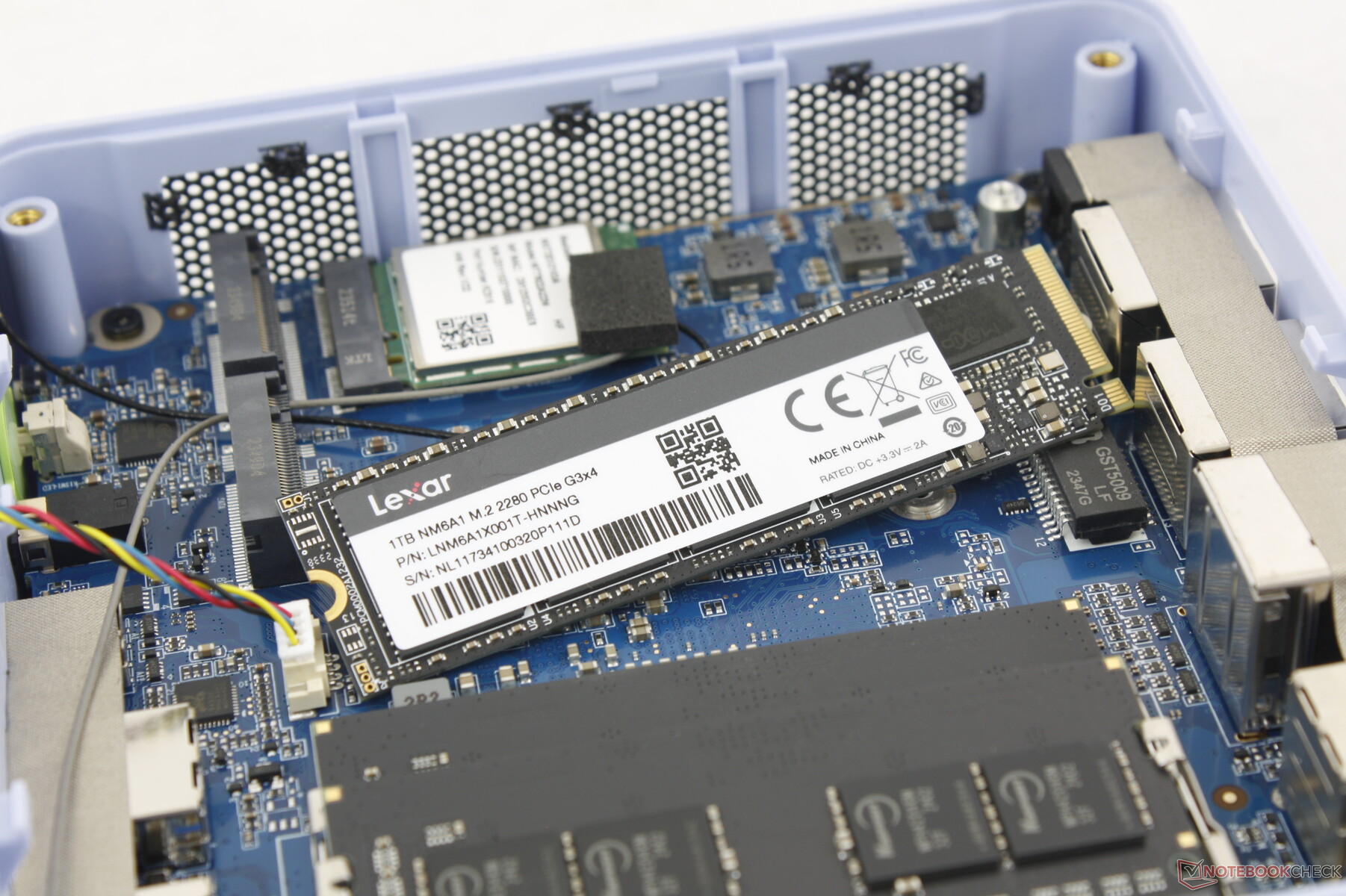

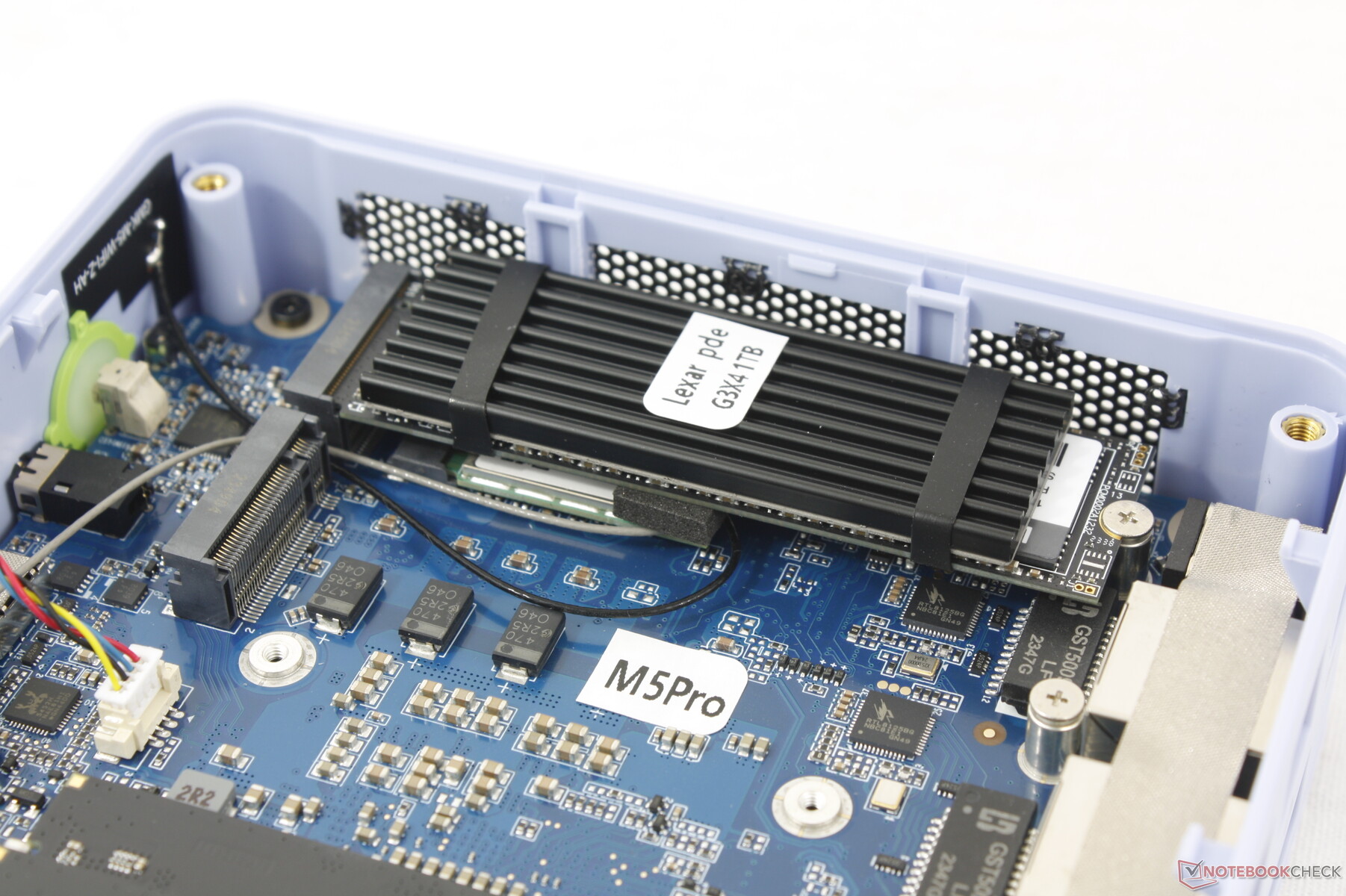

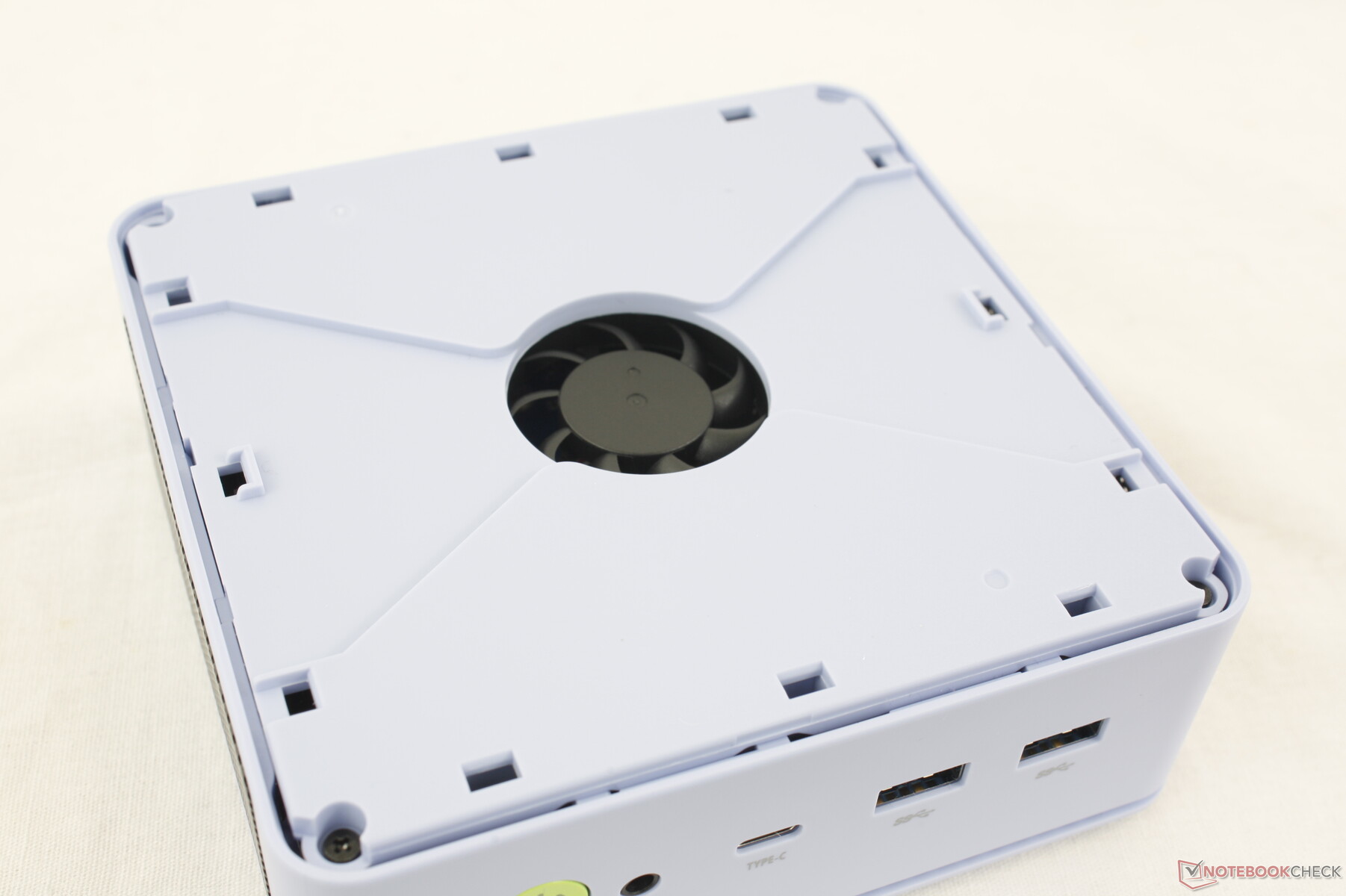

Górna pokrywa odskakuje, odsłaniając znajdującą się pod nią osłonę wentylatora i cztery śruby krzyżakowe, które zapewniają łatwy dostęp do dwóch gniazd DDR4 SODIMM, 2x M.2 2280 SSD i modułu WLAN. Tymczasem dolna pokrywa nie jest zdejmowana, przez co dostęp do drugiej strony płyty głównej jest trudniejszy.

Akcesoria i gwarancja

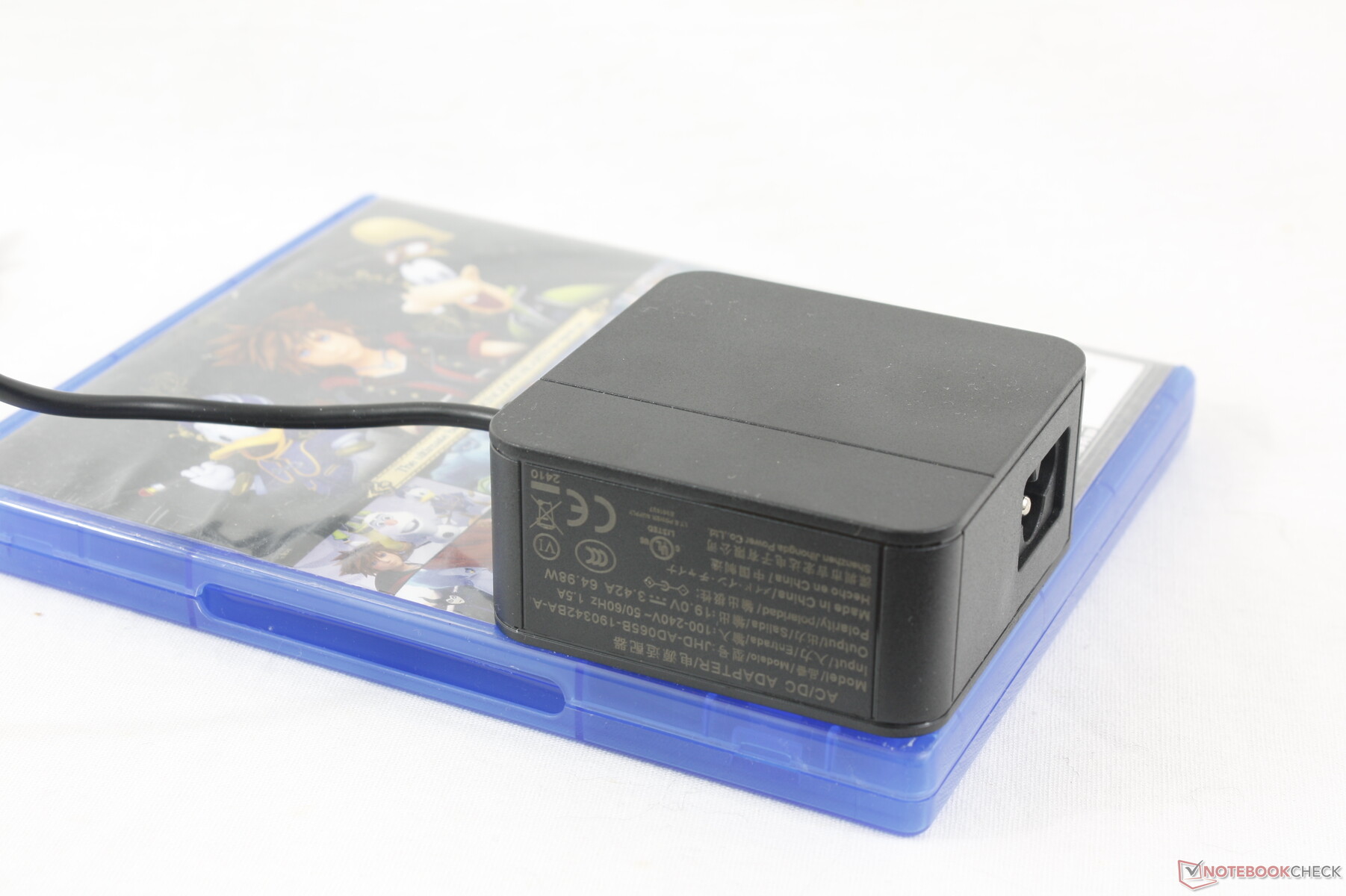

Pudełko detaliczne zawiera kabel HDMI i zdejmowany uchwyt montażowy VESA wraz z zasilaczem sieciowym i dokumentacją. Standardowa roczna ograniczona gwarancja producenta ma zastosowanie w przypadku zakupu w USA.

Wydajność - Zen 2 nie jest tego wart w 2024 roku

Warunki testowania

Przed uruchomieniem poniższych testów porównawczych ustawiliśmy system Windows na tryb wydajności. System jest dostarczany bez oprogramowania typu bloatware lub aplikacji specyficznych dla producenta, co zapewnia czystą obsługę systemu Windows.

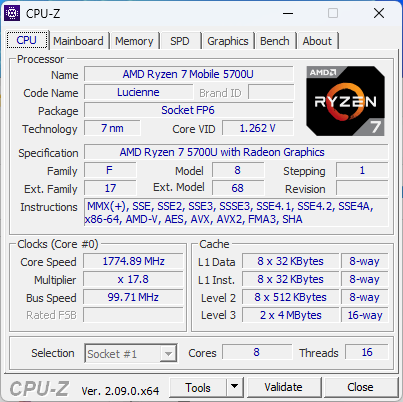

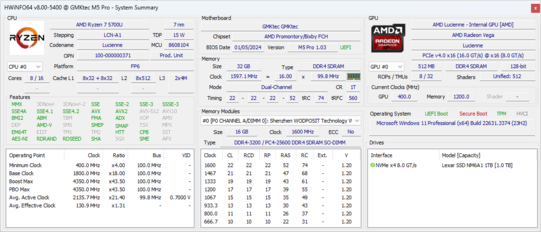

Procesor

Wydajność procesora jest wolniejsza niż oczekiwano. Nasz Ryzen 7 5700U działał od 20 do 25 procent wolniej niż przeciętny laptop w naszej bazie danych wyposażony w dokładnie ten sam procesor. Wciąż jest on w stanie pokonać każdy mobilny Celeron, Pentium lub Atom, ale surowa wydajność jest nieco rozczarowująca, ponieważ wiemy, że Ryzen 7 5700U jest w stanie osiągnąć znacznie więcej.

Ogólna wydajność dorównuje 11. generacji procesorów Intel Core i7-1165G7 jaki można znaleźć w starszej serii 2021 Serii NUC11.

Cinebench R15 Multi Loop

GMK NucBox M5 AMD Ryzen 7 5700U: Ø1108 (1041.59-1129.53)

GMK NucBox M4 Intel Core i9-11900H: Ø1747 (1710.13-1769.75)

GMK NucBox K6 AMD Ryzen 7 7840HS: Ø2520 (2510.2-2537.27)

Acemagic F2A Intel Core Ultra 7 155H: Ø2759 (2690.7-2800.92)

Geekom A7 AMD Ryzen 9 7940HS: Ø2410 (2285.58-2581.81)

Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P: Ø1753 (1686.77-2083.33)

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

CPU Performance Rating
GMK NucBox K6 AMD Ryzen 7 7840HS	92.4 pt
Geekom A7 AMD Ryzen 9 7940HS	92.2 pt
Acemagic F2A Intel Core Ultra 7 155H	90.8 pt
Intel NUC X15 LAPAC71H Intel Core i7-12700H	88.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	81.6 pt
GMK NucBox K2 AMD Ryzen 7 7735HS	76.4 pt
GMK NucBox M4 Intel Core i9-11900H	75.5 pt
Acer TravelMate P4 TMP416-51-55KN ^-2! Intel Core i5-1240P	72.6 pt
Average AMD Ryzen 7 5700U	58.8 pt
GMK NucBox M5 AMD Ryzen 7 5700U	55.9 pt
Intel NUC11ATKPE, N6005 ^-2! Intel Pentium Silver N6005	29.2 pt
Intel NUC11ATKC2, N4505 ^-2! Intel Celeron N4505	19.6 pt
GMK NucBox 3 ^-2! Intel Celeron J4125	12.1 pt

Cinebench R23 / Multi Core
Acemagic F2A Intel Core Ultra 7 155H	18497 Points +178%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16338 Points +146%
GMK NucBox K6 AMD Ryzen 7 7840HS	15947 (9378.75^min - 15947.3^max) Points +140%
Geekom A7 AMD Ryzen 9 7940HS	15556 Points +134%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	12155 Points +83%
GMK NucBox K2 AMD Ryzen 7 7735HS	11584 (11082.5^min - 11584.2^max) Points +74%
GMK NucBox M4 Intel Core i9-11900H	11135 (10740.5^min - 11134.5^max) Points +67%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	10615 Points +60%
Average AMD Ryzen 7 5700U (6649 - 10139, n=18)	8670 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	6649 (6519.7^min - 6648.75^max) Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2475 Points -63%
GMK NucBox 3 Intel Celeron J4125	1186 (1172.17^min - 1186.25^max) Points -82%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1114 Points -83%

Cinebench R23 / Single Core
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1878 Points +48%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1789 Points +41%
Acemagic F2A Intel Core Ultra 7 155H	1771 Points +40%
GMK NucBox K6 AMD Ryzen 7 7840HS	1770 Points +40%
Geekom A7 AMD Ryzen 9 7940HS	1747 Points +38%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1656 Points +31%
GMK NucBox M4 Intel Core i9-11900H	1605 Points +27%
GMK NucBox K2 AMD Ryzen 7 7735HS	1499 Points +18%
GMK NucBox M5 AMD Ryzen 7 5700U	1267 Points
Average AMD Ryzen 7 5700U (1177 - 1268, n=18)	1254 Points -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	694 Points -45%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	592 Points -53%
GMK NucBox 3 Intel Celeron J4125	438 Points -65%

Cinebench R20 / CPU (Multi Core)
Acemagic F2A Intel Core Ultra 7 155H	7188 Points +179%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	6338 Points +146%
Geekom A7 AMD Ryzen 9 7940HS	6277 Points +143%
GMK NucBox K6 AMD Ryzen 7 7840HS	6250 Points +142%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	4687 Points +82%
GMK NucBox K2 AMD Ryzen 7 7735HS	4533 Points +76%
GMK NucBox M4 Intel Core i9-11900H	4324 Points +68%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	4054 Points +57%
Average AMD Ryzen 7 5700U (2309 - 3877, n=19)	3284 Points +27%
GMK NucBox M5 AMD Ryzen 7 5700U	2580 Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	948 Points -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	431 Points -83%
GMK NucBox 3 Intel Celeron J4125	430 Points -83%

Cinebench R20 / CPU (Single Core)
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	723 Points +46%
Geekom A7 AMD Ryzen 9 7940HS	692 Points +40%
GMK NucBox K6 AMD Ryzen 7 7840HS	688 Points +39%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	687 Points +39%
Acemagic F2A Intel Core Ultra 7 155H	679 Points +37%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	636 Points +28%
GMK NucBox M4 Intel Core i9-11900H	615 Points +24%
GMK NucBox K2 AMD Ryzen 7 7735HS	591 Points +19%
GMK NucBox M5 AMD Ryzen 7 5700U	495 Points
Average AMD Ryzen 7 5700U (478 - 495, n=19)	490 Points -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	262 Points -47%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	224 Points -55%
GMK NucBox 3 Intel Celeron J4125	170 Points -66%

Cinebench R15 / CPU Multi 64Bit
Acemagic F2A Intel Core Ultra 7 155H	2738 Points +142%
GMK NucBox K6 AMD Ryzen 7 7840HS	2537 (2510.2^min - 2537.27^max) Points +125%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	2506 Points +122%
Geekom A7 AMD Ryzen 9 7940HS	2470 Points +119%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1990 Points +76%
GMK NucBox K2 AMD Ryzen 7 7735HS	1972 (1875.64^min - 1972^max) Points +75%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1938 Points +72%
GMK NucBox M4 Intel Core i9-11900H	1770 (1710.13^min - 1769.75^max) Points +57%
Average AMD Ryzen 7 5700U (1130 - 1691, n=18)	1469 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	1130 (1041.59^min - 1129.53^max) Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	428 Points -62%
GMK NucBox 3 Intel Celeron J4125	207 (171.15^min - 207.16^max) Points -82%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	191 Points -83%

Cinebench R15 / CPU Single 64Bit
GMK NucBox K6 AMD Ryzen 7 7840HS	280 Points +49%
Geekom A7 AMD Ryzen 9 7940HS	278 Points +48%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	267 Points +42%
Acemagic F2A Intel Core Ultra 7 155H	258 Points +37%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	257 Points +37%
GMK NucBox K2 AMD Ryzen 7 7735HS	244 Points +30%
GMK NucBox M4 Intel Core i9-11900H	243 Points +29%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	236 Points +25%
GMK NucBox M5 AMD Ryzen 7 5700U	188.1 Points
Average AMD Ryzen 7 5700U (184 - 190, n=17)	187.5 Points 0%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	121 Points -36%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	104 Points -45%
GMK NucBox 3 Intel Celeron J4125	63.1 Points -66%

Blender / v2.79 BMW27 CPU
GMK NucBox 3 Intel Celeron J4125	3032 Seconds * -610%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2953 Seconds * -592%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1354 Seconds * -217%
GMK NucBox M5 AMD Ryzen 7 5700U	427 Seconds *
Average AMD Ryzen 7 5700U (292 - 427, n=18)	349 Seconds * +18%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	309 Seconds * +28%
GMK NucBox M4 Intel Core i9-11900H	270 Seconds * +37%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	268 Seconds * +37%
GMK NucBox K2 AMD Ryzen 7 7735HS	259 Seconds * +39%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	235 Seconds * +45%
Geekom A7 AMD Ryzen 9 7940HS	202 Seconds * +53%
GMK NucBox K6 AMD Ryzen 7 7840HS	199 Seconds * +53%
Acemagic F2A Intel Core Ultra 7 155H	178 Seconds * +58%

7-Zip 18.03 / 7z b 4
GMK NucBox K6 AMD Ryzen 7 7840HS	70782 MIPS +107%
Geekom A7 AMD Ryzen 9 7940HS	70707 MIPS +107%
Acemagic F2A Intel Core Ultra 7 155H	66438 MIPS +94%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	61768 MIPS +81%
GMK NucBox K2 AMD Ryzen 7 7735HS	57785 MIPS +69%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	51340 MIPS +50%
GMK NucBox M4 Intel Core i9-11900H	49486 MIPS +45%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	42160 MIPS +23%
Average AMD Ryzen 7 5700U (32529 - 47501, n=18)	40346 MIPS +18%
GMK NucBox M5 AMD Ryzen 7 5700U	34172 MIPS
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	12851 MIPS -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	5871 MIPS -83%
GMK NucBox 3 Intel Celeron J4125	5694 MIPS -83%

7-Zip 18.03 / 7z b 4 -mmt1
Geekom A7 AMD Ryzen 9 7940HS	6744 MIPS +47%
GMK NucBox K6 AMD Ryzen 7 7840HS	6676 MIPS +45%
GMK NucBox M4 Intel Core i9-11900H	6018 MIPS +31%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	5878 MIPS +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	5840 MIPS +27%
GMK NucBox K2 AMD Ryzen 7 7735HS	5790 MIPS +26%
Acemagic F2A Intel Core Ultra 7 155H	5485 MIPS +19%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	5320 MIPS +16%
GMK NucBox M5 AMD Ryzen 7 5700U	4599 MIPS
Average AMD Ryzen 7 5700U (4476 - 4620, n=18)	4564 MIPS -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	3425 MIPS -26%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	2971 MIPS -35%
GMK NucBox 3 Intel Celeron J4125	2237 MIPS -51%

Geekbench 6.3 / Multi-Core
Geekom A7 AMD Ryzen 9 7940HS	13470 Points +115%
GMK NucBox K6 AMD Ryzen 7 7840HS	13184 Points +111%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	13118 Points +110%
Acemagic F2A Intel Core Ultra 7 155H	12385 Points +98%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10997 Points +76%
GMK NucBox K2 AMD Ryzen 7 7735HS	10241 Points +64%
GMK NucBox M4 Intel Core i9-11900H	9401 Points +50%
GMK NucBox M5 AMD Ryzen 7 5700U	6260 Points
Average AMD Ryzen 7 5700U (5643 - 6260, n=3)	5901 Points -6%

Geekbench 6.3 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2704 Points +66%
GMK NucBox K6 AMD Ryzen 7 7840HS	2687 Points +65%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	2575 Points +58%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	2486 Points +53%
Acemagic F2A Intel Core Ultra 7 155H	2410 Points +48%
GMK NucBox M4 Intel Core i9-11900H	2355 Points +45%
GMK NucBox K2 AMD Ryzen 7 7735HS	2098 Points +29%
GMK NucBox M5 AMD Ryzen 7 5700U	1625 Points
Average AMD Ryzen 7 5700U (1573 - 1625, n=3)	1599 Points -2%

Geekbench 5.5 / Multi-Core
Intel NUC X15 LAPAC71H Intel Core i7-12700H	12929 Points +131%
Acemagic F2A Intel Core Ultra 7 155H	12662 Points +126%
Geekom A7 AMD Ryzen 9 7940HS	12261 Points +119%
GMK NucBox K6 AMD Ryzen 7 7840HS	11769 Points +110%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	10269 Points +84%
GMK NucBox K2 AMD Ryzen 7 7735HS	9436 Points +69%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	9284 Points +66%
GMK NucBox M4 Intel Core i9-11900H	8829 Points +58%
Average AMD Ryzen 7 5700U (4254 - 7635, n=17)	6176 Points +10%
GMK NucBox M5 AMD Ryzen 7 5700U	5593 Points
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2402 Points -57%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1225 Points -78%
GMK NucBox 3 Intel Celeron J4125	1198 Points -79%

Geekbench 5.5 / Single-Core
Geekom A7 AMD Ryzen 9 7940HS	2008 Points +67%
GMK NucBox K6 AMD Ryzen 7 7840HS	1986 Points +65%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	1832 Points +52%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	1756 Points +46%
Acemagic F2A Intel Core Ultra 7 155H	1746 Points +45%
GMK NucBox M4 Intel Core i9-11900H	1692 Points +41%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	1624 Points +35%
GMK NucBox K2 AMD Ryzen 7 7735HS	1564 Points +30%
GMK NucBox M5 AMD Ryzen 7 5700U	1203 Points
Average AMD Ryzen 7 5700U (1105 - 1205, n=17)	1184 Points -2%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	738 Points -39%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	647 Points -46%
GMK NucBox 3 Intel Celeron J4125	462 Points -62%

HWBOT x265 Benchmark v2.2 / 4k Preset
Geekom A7 AMD Ryzen 9 7940HS	20.6 fps +144%
GMK NucBox K6 AMD Ryzen 7 7840HS	20.5 fps +143%
Acemagic F2A Intel Core Ultra 7 155H	19.6 fps +132%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	16.9 fps +100%
GMK NucBox K2 AMD Ryzen 7 7735HS	15.1 fps +79%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	13.9 fps +65%
GMK NucBox M4 Intel Core i9-11900H	13.6 fps +61%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	12 fps +42%
Average AMD Ryzen 7 5700U (6.97 - 12.1, n=18)	9.68 fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U	8.44 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	2.34 fps -72%
GMK NucBox 3 Intel Celeron J4125	1.26 fps -85%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.16 fps -86%

LibreOffice / 20 Documents To PDF
GMK NucBox 3 Intel Celeron J4125	159 s * -174%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	111.7 s * -93%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	105.1 s * -81%
Average AMD Ryzen 7 5700U (52.4 - 68.5, n=18)	60.5 s * -4%
GMK NucBox M5 AMD Ryzen 7 5700U	58 s *
Geekom A7 AMD Ryzen 9 7940HS	54.8 s * +6%
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	52.6 s * +9%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	46.9 s * +19%
GMK NucBox K2 AMD Ryzen 7 7735HS	46 s * +21%
Acemagic F2A Intel Core Ultra 7 155H	44.5 s * +23%
GMK NucBox K6 AMD Ryzen 7 7840HS	44.1 s * +24%
GMK NucBox M4 Intel Core i9-11900H	42.3 s * +27%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	37 s * +36%

R Benchmark 2.5 / Overall mean
GMK NucBox 3 Intel Celeron J4125	1.525 sec * -161%
Intel NUC11ATKC2, N4505 Intel Celeron N4505	1.224 sec * -110%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005	1.073 sec * -84%
Average AMD Ryzen 7 5700U (0.567 - 0.641, n=18)	0.592 sec * -1%
GMK NucBox M5 AMD Ryzen 7 5700U	0.584 sec *
Acer TravelMate P4 TMP416-51-55KN Intel Core i5-1240P	0.52 sec * +11%
GMK NucBox M4 Intel Core i9-11900H	0.52 sec * +11%
GMK NucBox K2 AMD Ryzen 7 7735HS	0.4924 sec * +16%
Acemagic F2A Intel Core Ultra 7 155H	0.4652 sec * +20%
Intel NUC X15 LAPAC71H Intel Core i7-12700H	0.4618 sec * +21%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P	0.45 sec * +23%
Geekom A7 AMD Ryzen 9 7940HS	0.4351 sec * +25%
GMK NucBox K6 AMD Ryzen 7 7840HS	0.4343 sec * +26%

CPU Performance Rating: Percent
Cinebench R23: Multi Core | Single Core
Cinebench R20: CPU (Multi Core) | CPU (Single Core)
Cinebench R15: CPU Multi 64Bit | CPU Single 64Bit
Blender: v2.79 BMW27 CPU
7-Zip 18.03: 7z b 4 | 7z b 4 -mmt1
Geekbench 6.3: Multi-Core | Single-Core
Geekbench 5.5: Multi-Core | Single-Core
HWBOT x265 Benchmark v2.2: 4k Preset
LibreOffice : 20 Documents To PDF
R Benchmark 2.5: Overall mean

* ... im mniej tym lepiej

Performance Rating
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	98.4 pt
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	98.2 pt
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	80.3 pt
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	63.9 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53.8 pt
Average AMD Ryzen 7 5700U	51.7 pt
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	43.3 pt

AIDA64 / FP32 Ray-Trace
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	25360 KRay/s +245%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	25359 KRay/s +245%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	17544 KRay/s +139%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	13945 KRay/s +90%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	11188 KRay/s +52%
Average AMD Ryzen 7 5700U (5798 - 12346, n=18)	10262 KRay/s +40%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	7345 KRay/s

AIDA64 / FPU Julia
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	107805 Points +135%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	107540 Points +134%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	88829 Points +93%
Average AMD Ryzen 7 5700U (45926 - 69580, n=18)	58967 Points +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	56942 Points +24%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	56662 Points +23%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	45926 Points

AIDA64 / CPU SHA3
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	4763 MB/s +217%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	4753 MB/s +216%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	4246 MB/s +183%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	3883 MB/s +158%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	2669 MB/s +78%
Average AMD Ryzen 7 5700U (1103 - 2231, n=18)	1883 MB/s +25%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	1503 MB/s

AIDA64 / CPU Queen
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	118174 Points +72%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	111803 Points +62%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	89748 Points +30%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	89081 Points +29%
Average AMD Ryzen 7 5700U (57016 - 99178, n=18)	88954 Points +29%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	86881 Points +26%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	68805 Points

AIDA64 / FPU SinJulia
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	14721 Points +47%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	14663 Points +47%
Average AMD Ryzen 7 5700U (6837 - 14169, n=18)	12106 Points +21%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	10247 Points +3%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	9992 Points
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	9355 Points -6%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	7246 Points -27%

AIDA64 / FPU Mandel
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	57534 Points +139%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	57402 Points +139%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	45718 Points +90%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	35044 Points +46%
Average AMD Ryzen 7 5700U (24053 - 36523, n=18)	30768 Points +28%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	28019 Points +16%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	24053 Points

AIDA64 / CPU AES
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	164414 MB/s +256%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	164041 MB/s +255%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	144741 MB/s +213%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	121537 MB/s +163%
Average AMD Ryzen 7 5700U (34176 - 64646, n=18)	55658 MB/s +20%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	53328 MB/s +15%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46218 MB/s

AIDA64 / CPU ZLib
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	1183 MB/s +131%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	1031 MB/s +101%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	1020 MB/s +99%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	775 MB/s +51%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	738 MB/s +44%
Average AMD Ryzen 7 5700U (513 - 776, n=18)	654 MB/s +27%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	513 MB/s

AIDA64 / FP64 Ray-Trace
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	13642 KRay/s +251%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	13517 KRay/s +247%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	9284 KRay/s +139%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	7587 KRay/s +95%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	5957 KRay/s +53%
Average AMD Ryzen 7 5700U (3247 - 6784, n=18)	5571 KRay/s +43%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	3892 KRay/s

AIDA64 / CPU PhotoWorxx
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	40760 MPixel/s +63%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	40570 MPixel/s +62%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	33092 MPixel/s +32%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	29263 MPixel/s +17%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	25066 MPixel/s
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	23829 MPixel/s -5%
Average AMD Ryzen 7 5700U (6903 - 25066, n=18)	17001 MPixel/s -32%

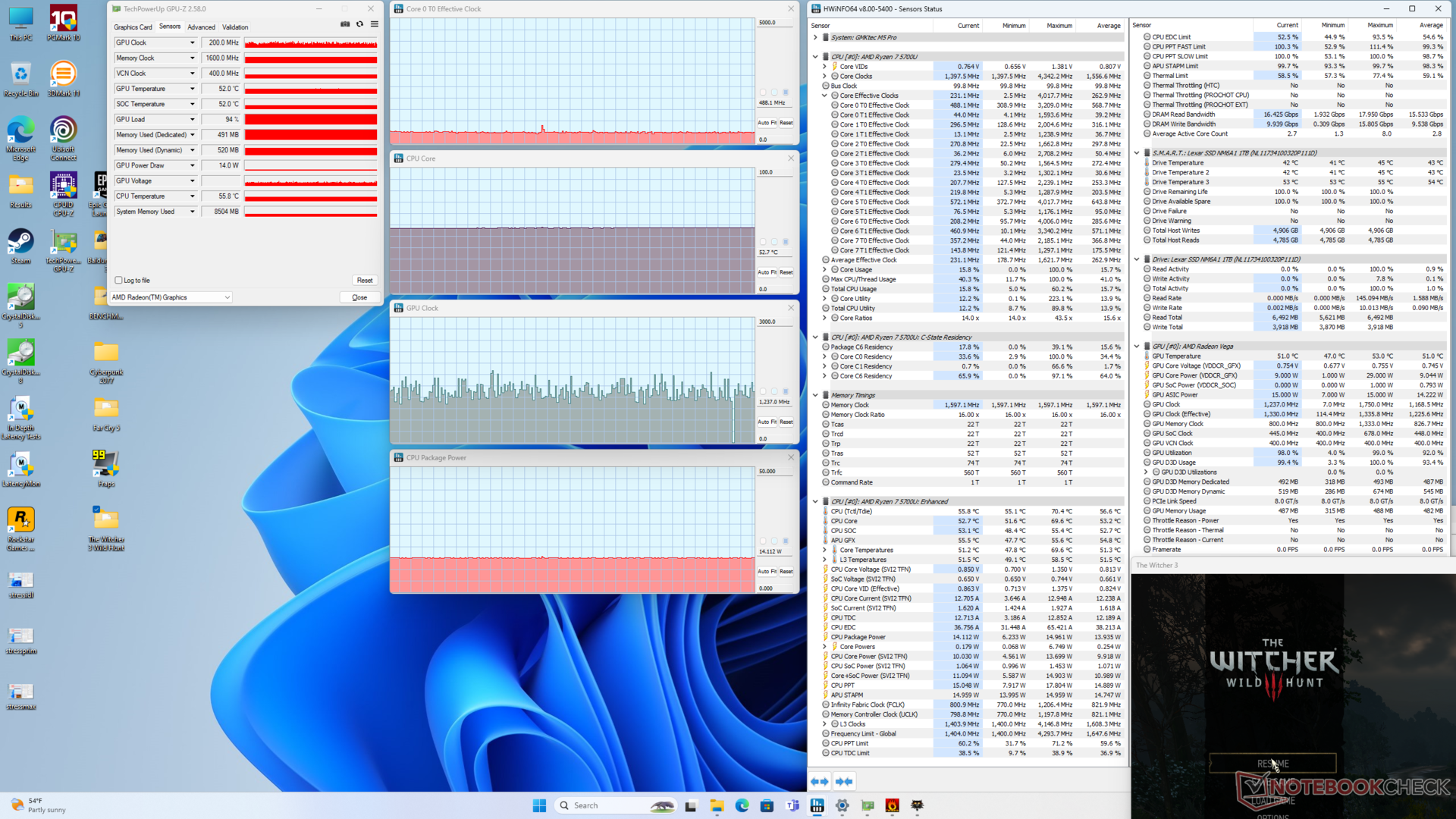

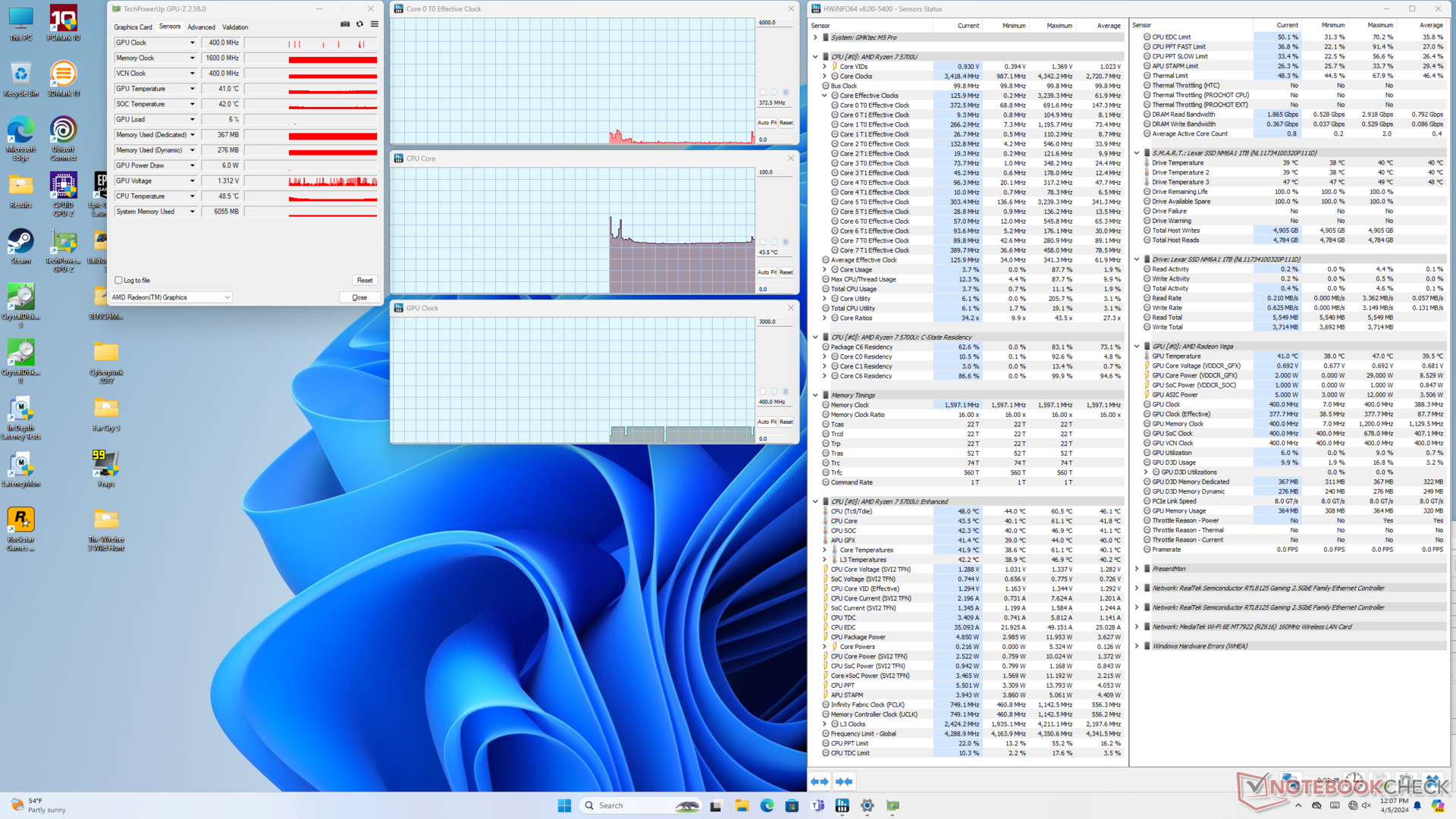

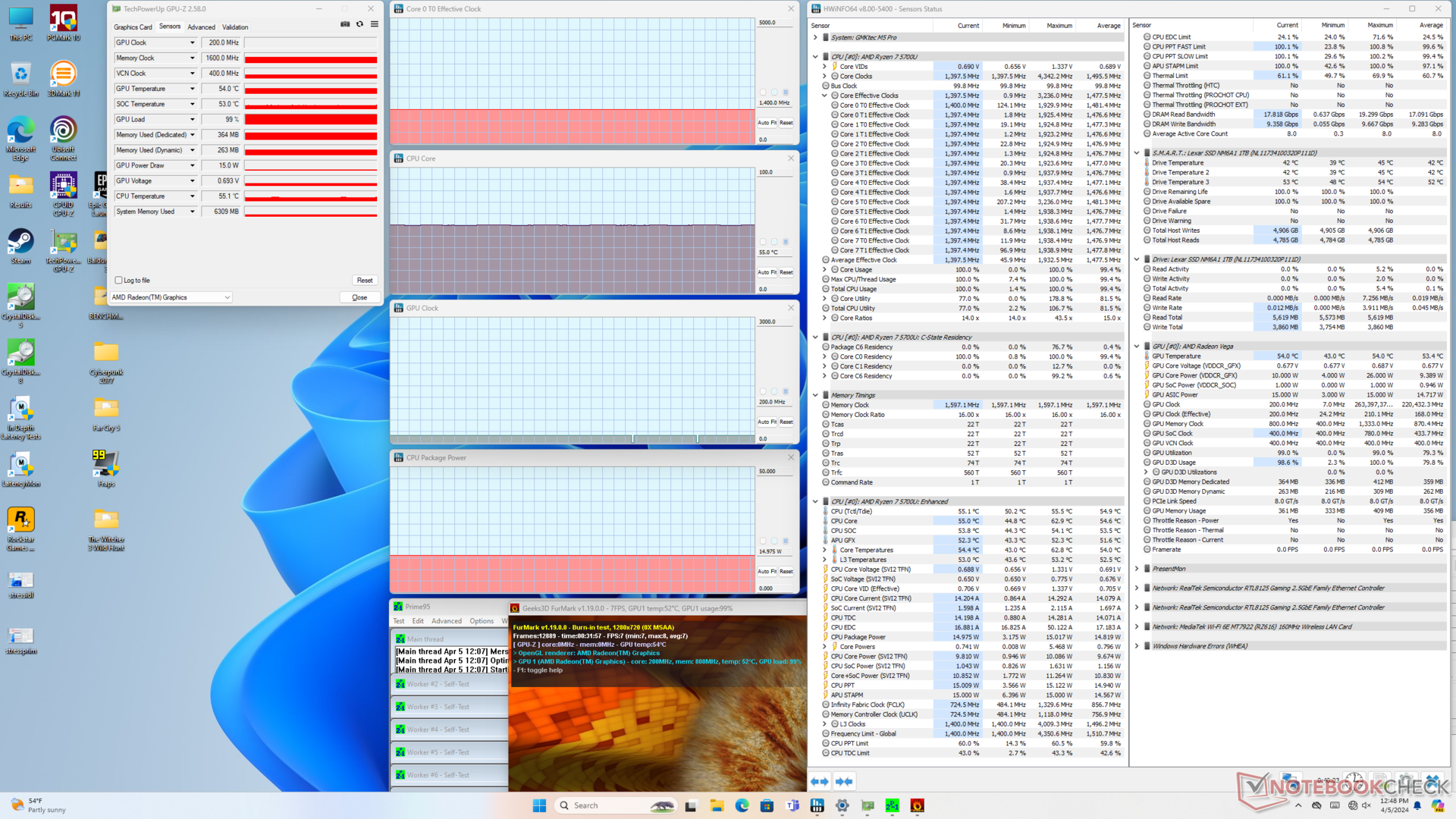

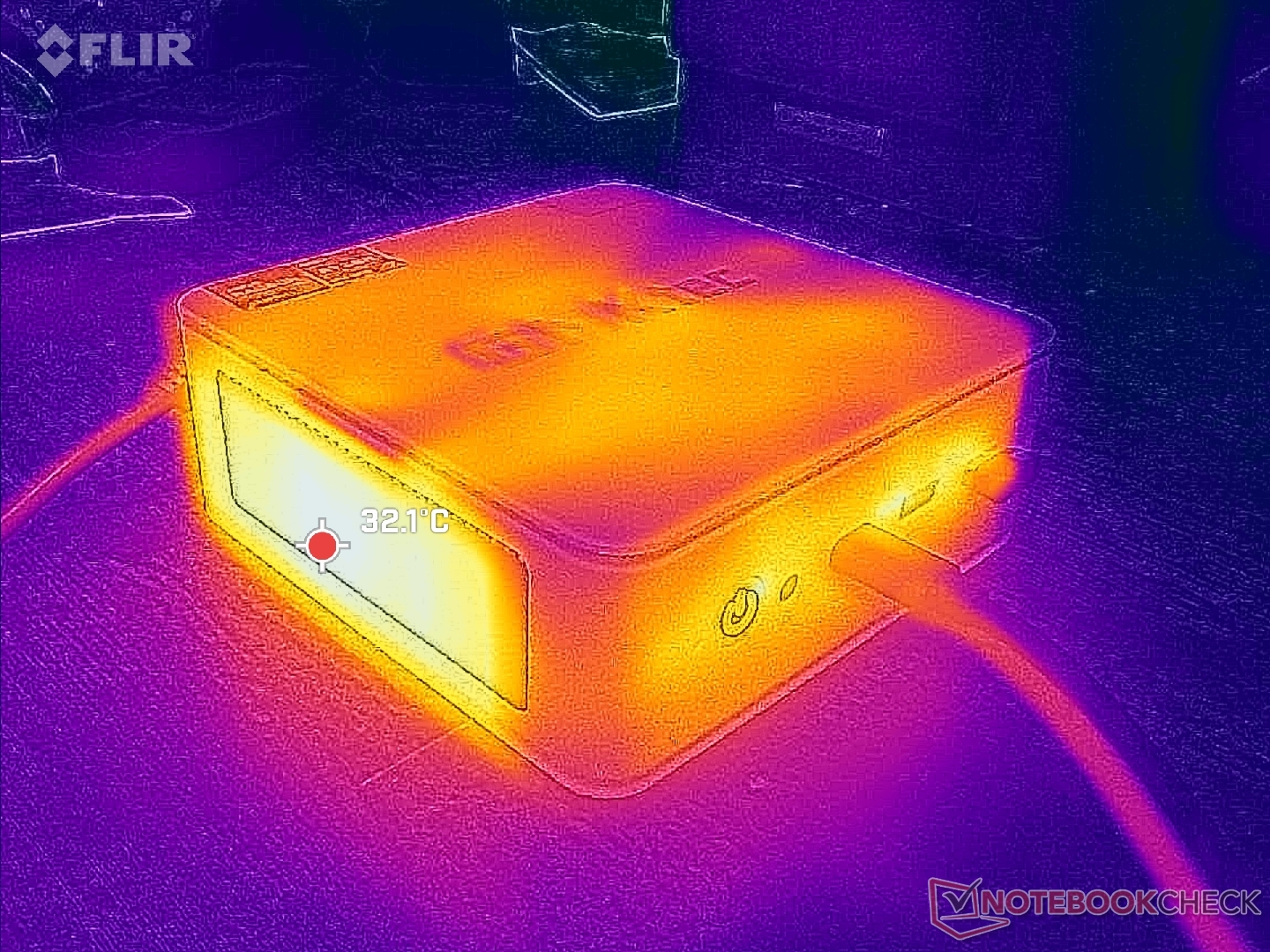

Test warunków skrajnych

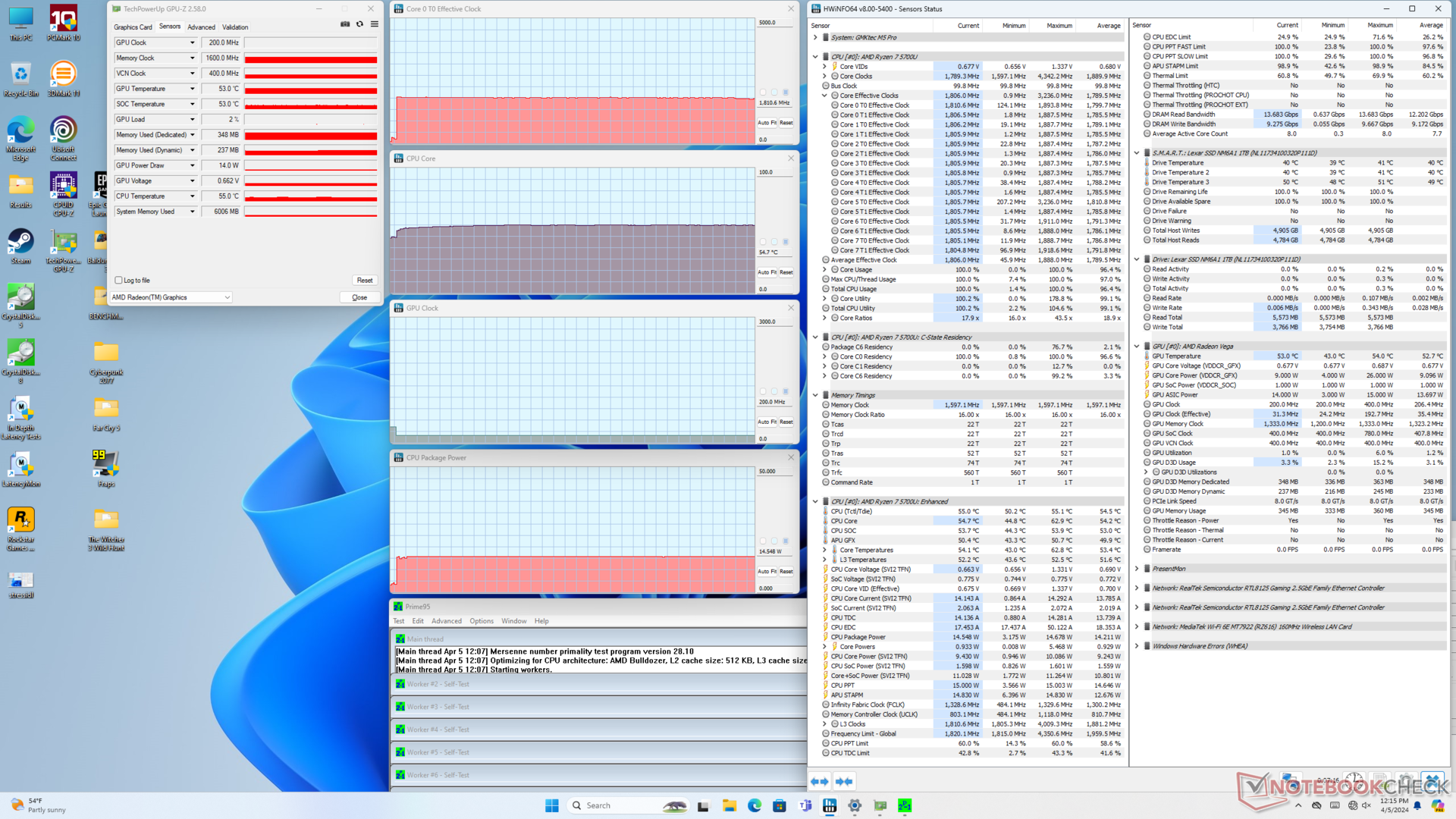

Po uruchomieniu programu Prime95 w celu obciążenia procesora, częstotliwość taktowania i pobór mocy płyty wzrosły odpowiednio do 1,9 GHz i 15 W. Uważamy, że procesor jest zdolny do wyższego poboru mocy do 28 W, zwłaszcza że temperatura rdzenia wynosi tylko 55 C w stresie, ale moc pakietu jest najwyraźniej ograniczona do 15 W w NucBox M5, nawet po dwukrotnym sprawdzeniu ustawień BIOS-u lub profili zasilania systemu Windows. Niski pułap 15 W wyjaśnia również wolniejszą od oczekiwanej wydajność, jak wspomniano w sekcji procesora powyżej.

Temperatura rdzenia ustabilizowała się na poziomie zaledwie 55 C podczas pracy Witcher 3 w porównaniu do 70 C na znacznie szybszym Beelink SER6 Pro.

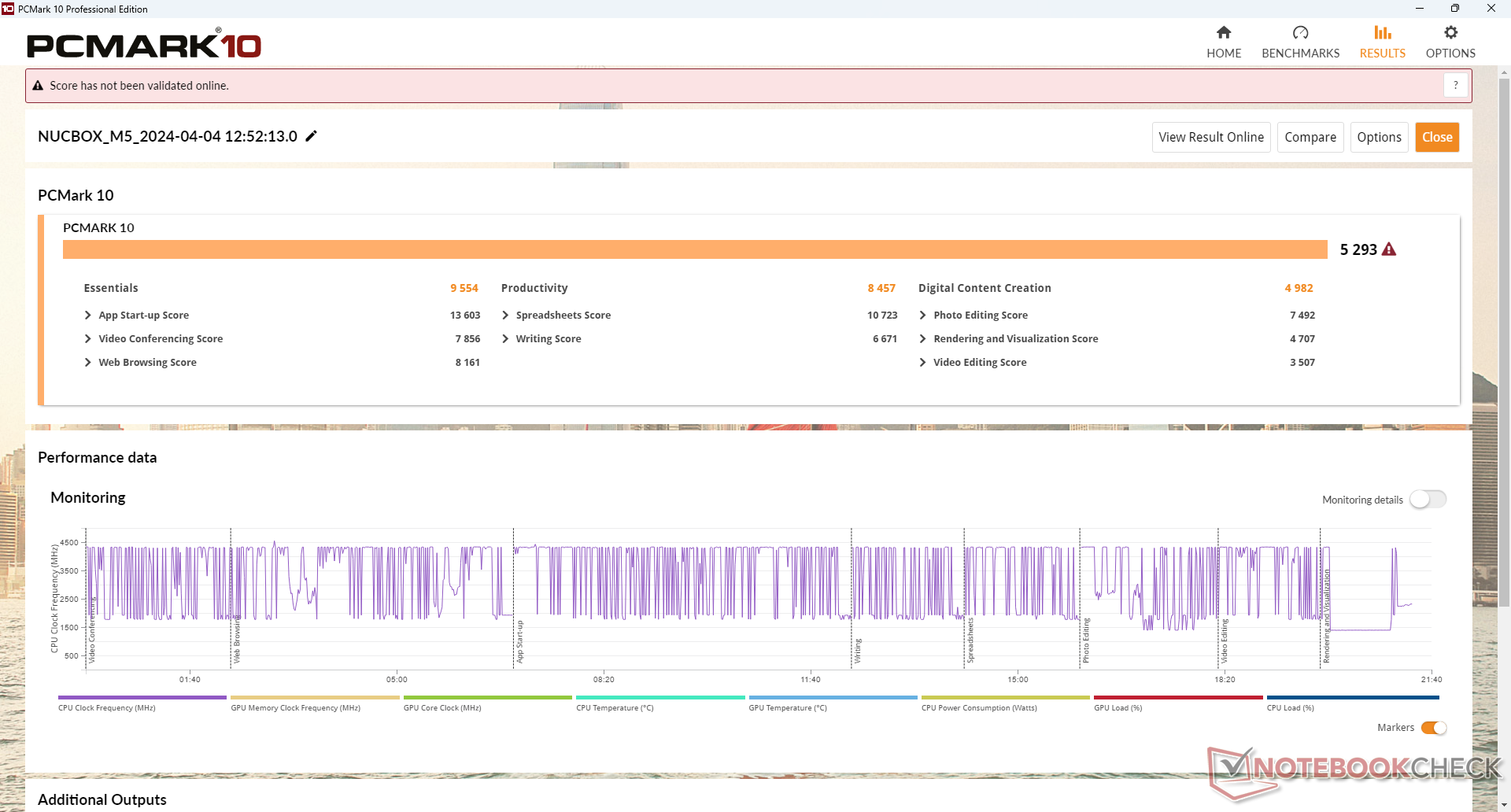

Wydajność systemu

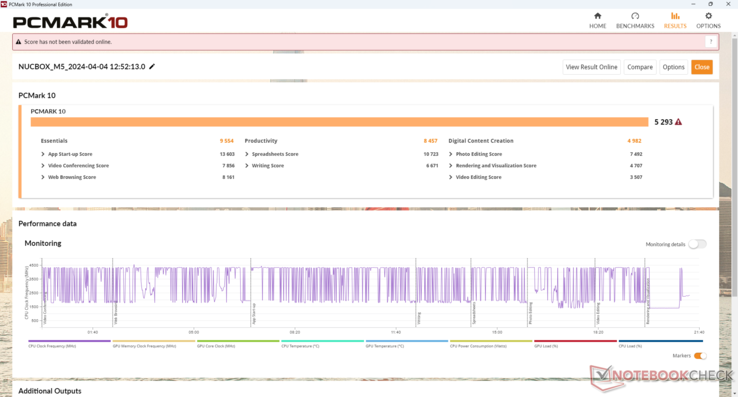

Wyniki PCMark pozostają w tyle za wieloma obecnymi mini PC działającymi na procesorach najnowszej generacji, takimi jak GMK NucBox K6 lub Intel NUC 13 Pro. Wynik podtestu Digital Content Creation jest szczególnie niższy ze względu na powolny zintegrowany procesor graficzny.

PCMark 10 / Score
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	7529 Points +42%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	7455 Points +41%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	7120 Points +35%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	5882 Points +11%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5307 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	5293 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4775 - 5518, n=13)	5236 Points -1%

PCMark 10 / Essentials
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	11214 Points +17%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	11125 Points +16%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	11114 Points +16%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	11035 Points +16%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	10464 Points +10%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	9554 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8347 - 10091, n=13)	9173 Points -4%

PCMark 10 / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10591 Points +25%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	10291 Points +22%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	8901 Points +5%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	8457 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7001 - 8457, n=13)	7849 Points -7%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	7118 Points -16%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	6576 Points -22%

PCMark 10 / Digital Content Creation
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	9893 Points +99%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	9831 Points +97%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	9752 Points +96%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	7612 Points +53%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	5445 Points +9%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (4583 - 5964, n=13)	5424 Points +9%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	4982 Points

CrossMark / Overall
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1873 Points +72%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1861 Points +71%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1802 Points +66%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1632 Points +50%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1596 Points +47%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1087 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (976 - 1183, n=6)	1081 Points -1%

CrossMark / Productivity
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1816 Points +60%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1781 Points +57%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1717 Points +52%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1633 Points +44%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1537 Points +36%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1133 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1048 - 1191, n=6)	1125 Points -1%

CrossMark / Creativity
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	2072 Points +99%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1994 Points +91%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1929 Points +85%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1769 Points +70%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1675 Points +61%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (941 - 1197, n=6)	1057 Points +1%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1042 Points

CrossMark / Responsiveness
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	1706 Points +56%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	1700 Points +56%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1540 Points +41%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	1511 Points +38%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1311 Points +20%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	1091 Points
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (872 - 1159, n=6)	1029 Points -6%

WebXPRT 3 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	333 Points +56%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	328 Points +53%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	301 Points +41%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	286 Points +34%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	276 Points +29%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (202 - 222, n=12)	215 Points 0%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	214 Points

WebXPRT 4 / Overall
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	268 Points +69%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	266 Points +68%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	265 Points +67%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	252 Points +59%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	227 Points +43%
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (158.5 - 225, n=3)	184.6 Points +16%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	158.5 Points

Mozilla Kraken 1.1 / Total
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	802 ms *
Average AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000) (791 - 818, n=13)	801 ms * -0%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	608 ms * +24%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	535 ms * +33%
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	534 ms * +33%
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	503 ms * +37%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	496 ms * +38%

* ... im mniej tym lepiej

AIDA64: Memory Copy | Memory Read | Memory Write | Memory Latency

AIDA64 / Memory Copy
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	69281 MB/s +77%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	67161 MB/s +72%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	62397 MB/s +59%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44299 MB/s +13%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	44216 MB/s +13%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	39126 MB/s
Average AMD Ryzen 7 5700U (15867 - 39326, n=18)	33557 MB/s -14%

AIDA64 / Memory Read
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	64323 MB/s +37%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	61708 MB/s +32%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	61542 MB/s +31%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	50614 MB/s +8%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	46813 MB/s
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	44751 MB/s -4%
Average AMD Ryzen 7 5700U (17632 - 47190, n=18)	40581 MB/s -13%

AIDA64 / Memory Write
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	86810 MB/s +85%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	86528 MB/s +84%
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	65057 MB/s +38%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	47048 MB/s
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	46629 MB/s -1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	45887 MB/s -2%
Average AMD Ryzen 7 5700U (11554 - 47048, n=18)	36896 MB/s -22%

AIDA64 / Memory Latency
Acemagic F2A Intel Core Ultra 7 155H, Arc 8-Core	149 ns * -49%
GMK NucBox M5 AMD Ryzen 7 5700U, Vega 8	100.1 ns *
Average AMD Ryzen 7 5700U (84.9 - 113, n=18)	98.7 ns * +1%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Iris Xe G7 96EUs	96.2 ns * +4%
Geekom A7 AMD Ryzen 9 7940HS, Radeon 780M	89 ns * +11%
GMK NucBox K6 AMD Ryzen 7 7840HS, Radeon 780M	88.1 ns * +12%
GMK NucBox M4 Intel Core i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	71.2 ns * +29%

* ... im mniej tym lepiej

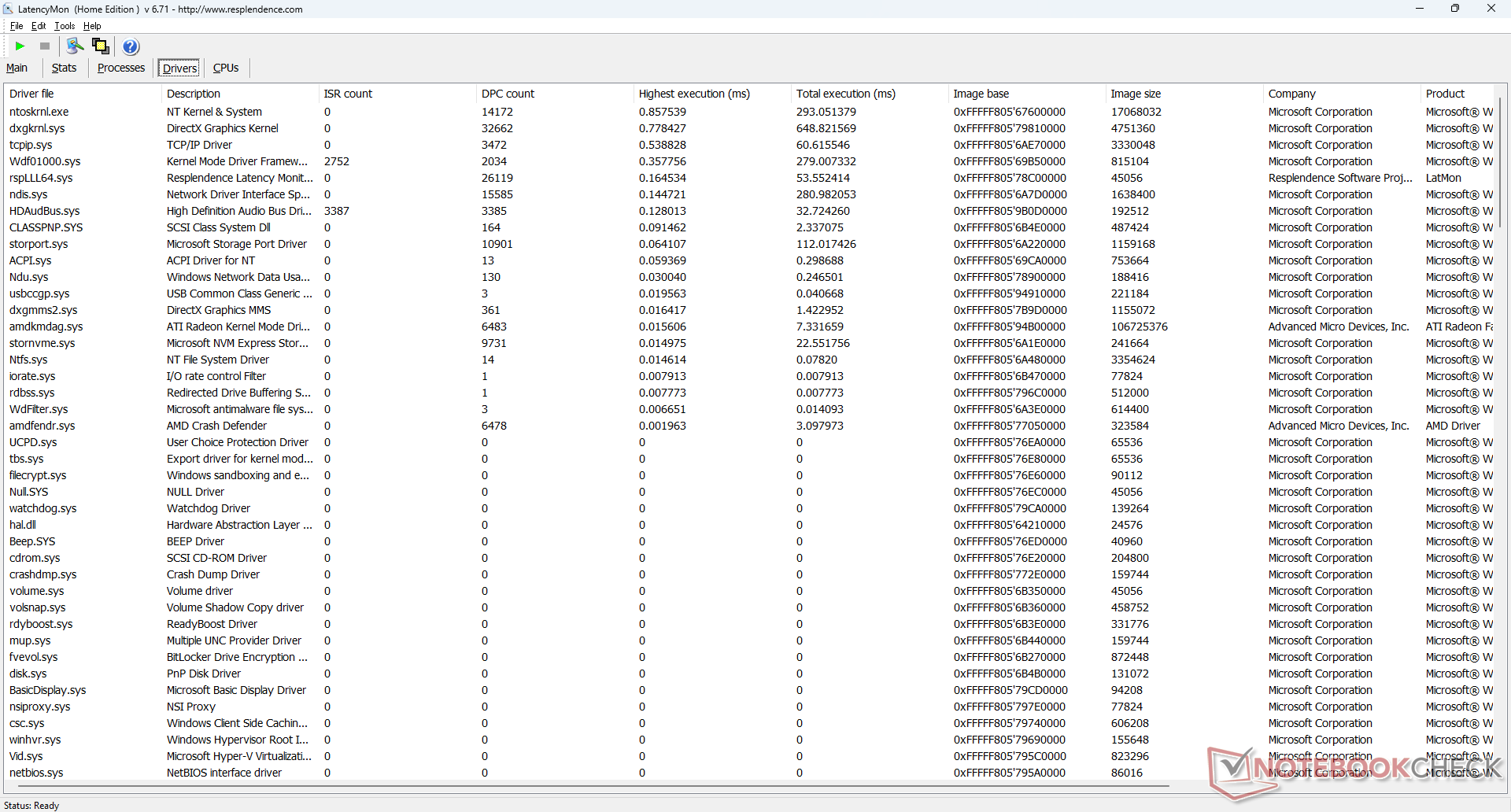

Opóźnienie DPC

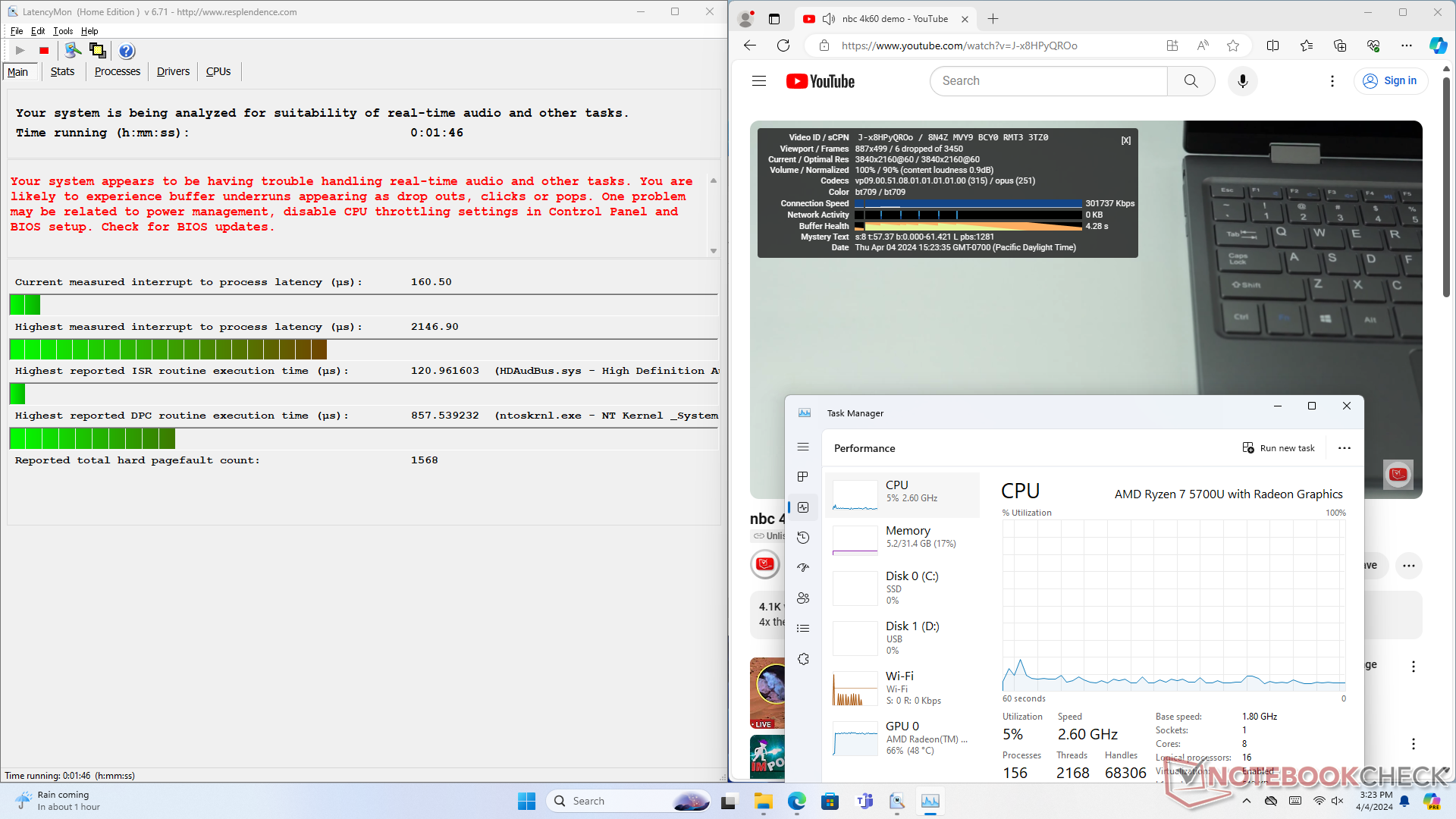

LatencyMon ujawnia drobne problemy z DPC podczas otwierania wielu kart przeglądarki na naszej stronie głównej. odtwarzanie wideo 4K przy 60 FPS jest również niedoskonałe, z 6 utraconymi klatkami zarejestrowanymi w ciągu jednej minuty.

DPC Latencies / LatencyMon - interrupt to process latency (max), Web, Youtube, Prime95
GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	10561.5 μs * -392%
Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	2724 μs * -27%
GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	2146.9 μs *
Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	1616.1 μs * +25%
Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ	1068.7 μs * +50%
GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	231.8 μs * +89%

* ... im mniej tym lepiej

Urządzenia pamięci masowej

Podobnie jak w przypadku NucBox M4, M5 jest dostarczany z dyskiem Lexar PCIe4 x4 NVMe SSD dla stałych prędkości transferu do 3600 MB/s. Prędkości zapisu sekwencyjnego są również całkiem dobre i wynoszą 3100 MB/s, co jest jednym z lepszych dysków SSD PCIe4 średniej klasy.

Co zaskakujące, do dysku SSD dołączony jest radiator, mimo że jest to budżetowy mini PC

Obsługiwane są maksymalnie dwa dyski PCIe4 x4

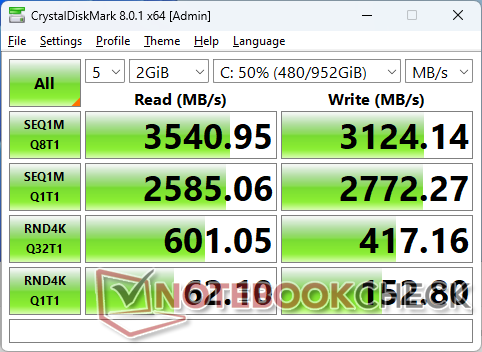

CrystalDiskMark 5.2 / 6

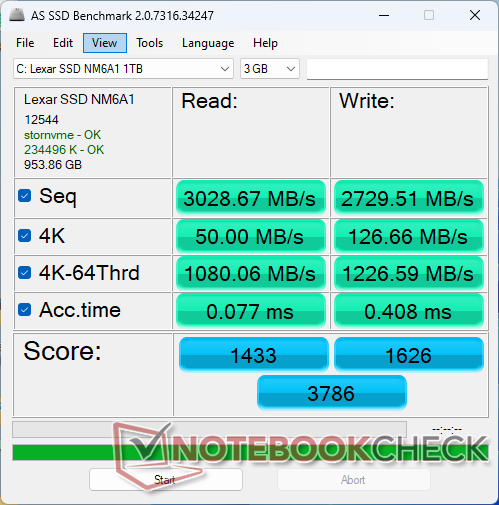

AS SSD

DiskSpd

Lexar 1024GB LNM6A1X001T-HNNNG

CDM 5/6 Read Seq Q32T1: 3542 MB/s

CDM 5/6 Write Seq Q32T1: 3133 MB/s

CDM 5/6 Read 4K Q32T1: 592.8 MB/s

CDM 5/6 Write 4K Q32T1: 408.6 MB/s

CDM 5 Read Seq: 2587 MB/s

CDM 5 Write Seq: 2776 MB/s

CDM 5/6 Read 4K: 62 MB/s

CDM 5/6 Write 4K: 152.3 MB/s

Drive Performance Rating | DiskSpd | AS SSD

Drive Performance Rating - Percent
GMK NucBox K6 MasonSemi 1TB MC7000	91.2 pt
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	68.5 pt
Geekom A7 Acer N5000	61.9 pt
Acemagic F2A Kingston OM8SEP1024Q-A0	55.2 pt
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	52.3 pt
GMK NucBox M4 Lexar NM620 512GB	39.5 pt

DiskSpd
seq read
Geekom A7 Acer N5000	3755 (3733.85^min - 3754.99^max) MB/s +47%
GMK NucBox K6 MasonSemi 1TB MC7000	3703 (3243.89^min - 3702.94^max) MB/s +45%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3337 (3301.03^min - 3337.16^max) MB/s +30%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2560 (2546.51^min - 2560.12^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	1746 (842.64^min - 1745.67^max) MB/s -32%
Acemagic F2A Kingston OM8SEP1024Q-A0	1674 (1242.56^min - 1673.54^max) MB/s -35%
seq write
GMK NucBox K6 MasonSemi 1TB MC7000	5595 (1443.73^min - 5595.13^max) MB/s +103%
Geekom A7 Acer N5000	3492 (3398.43^min - 3491.76^max) MB/s +27%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3356 (3181.73^min - 3356.49^max) MB/s +22%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2752 (2706.58^min - 2751.67^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	2513 (274.86^min - 2513.02^max) MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	1348 (1117.85^min - 1347.87^max) MB/s -51%
seq q8 t1 read
GMK NucBox K6 MasonSemi 1TB MC7000	7069 (6459.52^min - 7068.99^max) MB/s +100%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5438 (4937.74^min - 5438.31^max) MB/s +54%
Geekom A7 Acer N5000	4861 (4468.61^min - 4860.57^max) MB/s +37%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3536 (3096.86^min - 3536.22^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	3422 (3023.08^min - 3421.92^max) MB/s -3%
Acemagic F2A Kingston OM8SEP1024Q-A0	3194 (2810.81^min - 3194.17^max) MB/s -10%
seq q8 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	6669 (1251.16^min - 6668.61^max) MB/s +113%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4955 (4929.56^min - 4955.41^max) MB/s +59%
Geekom A7 Acer N5000	4695 (4470.16^min - 4694.73^max) MB/s +50%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3126 (3077.57^min - 3126.22^max) MB/s
GMK NucBox M4 Lexar NM620 512GB	2858 (295.24^min - 2857.74^max) MB/s -9%
Acemagic F2A Kingston OM8SEP1024Q-A0	2212 (1222.43^min - 2212.27^max) MB/s -29%
4k q1 t1 read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	84.5 (83.02^min - 84.54^max) MB/s +35%
GMK NucBox K6 MasonSemi 1TB MC7000	71 (70.41^min - 71.02^max) MB/s +13%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	62.7 (54.67^min - 62.69^max) MB/s
Geekom A7 Acer N5000	52.3 (51.85^min - 52.27^max) MB/s -17%
Acemagic F2A Kingston OM8SEP1024Q-A0	47.3 (47.07^min - 47.31^max) MB/s -25%
GMK NucBox M4 Lexar NM620 512GB	44 (35.86^min - 44.02^max) MB/s -30%
4k q1 t1 write
GMK NucBox K6 MasonSemi 1TB MC7000	239 (237.67^min - 239.17^max) MB/s +36%
Acemagic F2A Kingston OM8SEP1024Q-A0	187.2 (181.54^min - 187.2^max) MB/s +7%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	175.4 (153.43^min - 175.39^max) MB/s
Geekom A7 Acer N5000	165.9 (164.35^min - 165.92^max) MB/s -5%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	144.6 (143.6^min - 144.57^max) MB/s -18%
GMK NucBox M4 Lexar NM620 512GB	115.9 (99.18^min - 115.92^max) MB/s -34%
4k q32 t16 read
GMK NucBox K6 MasonSemi 1TB MC7000	2463 (2040.37^min - 2463.15^max) MB/s +6%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2315 (2310.04^min - 2315.42^max) MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	1824 (1239.47^min - 1824.09^max) MB/s -21%
GMK NucBox M4 Lexar NM620 512GB	1565 (506.92^min - 1565.24^max) MB/s -32%
Geekom A7 Acer N5000	1560 (1546.89^min - 1559.94^max) MB/s -33%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	808 (792.58^min - 807.51^max) MB/s -65%
4k q32 t16 write
GMK NucBox K6 MasonSemi 1TB MC7000	3983 (3232.63^min - 3982.67^max) MB/s +185%
Acemagic F2A Kingston OM8SEP1024Q-A0	1434 (1410.26^min - 1433.71^max) MB/s +2%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1400 (948.76^min - 1400.43^max) MB/s
Geekom A7 Acer N5000	595 (582.97^min - 594.71^max) MB/s -57%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	454 (443.2^min - 453.53^max) MB/s -68%
GMK NucBox M4 Lexar NM620 512GB	139.6 (45.28^min - 139.63^max) MB/s -90%

AS SSD
Score Total
GMK NucBox K6 MasonSemi 1TB MC7000	7918 Points +109%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	5249 Points +39%
Geekom A7 Acer N5000	5177 Points +37%
Acemagic F2A Kingston OM8SEP1024Q-A0	4412 Points +17%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3786 Points
GMK NucBox M4 Lexar NM620 512GB	3154 Points -17%
Score Read
GMK NucBox K6 MasonSemi 1TB MC7000	3258 Points +127%
Geekom A7 Acer N5000	1685 Points +18%
Acemagic F2A Kingston OM8SEP1024Q-A0	1561 Points +9%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1433 Points
GMK NucBox M4 Lexar NM620 512GB	1423 Points -1%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	1320 Points -8%
Score Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	3326 Points +105%
GMK NucBox K6 MasonSemi 1TB MC7000	3000 Points +85%
Geekom A7 Acer N5000	2676 Points +65%
Acemagic F2A Kingston OM8SEP1024Q-A0	2082 Points +28%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1626 Points
GMK NucBox M4 Lexar NM620 512GB	1102 Points -32%
Seq Read
GMK NucBox K6 MasonSemi 1TB MC7000	5825.09 MB/s +92%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	4536 MB/s +50%
Geekom A7 Acer N5000	3650 MB/s +21%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	3028.67 MB/s
Acemagic F2A Kingston OM8SEP1024Q-A0	3010 MB/s -1%
GMK NucBox M4 Lexar NM620 512GB	2774.25 MB/s -8%
Seq Write
GMK NucBox K6 MasonSemi 1TB MC7000	5783.3 MB/s +112%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	2729.51 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2698 MB/s -1%
Geekom A7 Acer N5000	2611 MB/s -4%
Acemagic F2A Kingston OM8SEP1024Q-A0	2369 MB/s -13%
GMK NucBox M4 Lexar NM620 512GB	606.01 MB/s -78%
4K Read
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	72 MB/s +44%
GMK NucBox K6 MasonSemi 1TB MC7000	65.5 MB/s +31%
GMK NucBox M4 Lexar NM620 512GB	50.83 MB/s +2%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	50 MB/s
Geekom A7 Acer N5000	49.7 MB/s -1%
Acemagic F2A Kingston OM8SEP1024Q-A0	41.8 MB/s -16%
4K Write
Acemagic F2A Kingston OM8SEP1024Q-A0	196.9 MB/s +55%
GMK NucBox K6 MasonSemi 1TB MC7000	190.06 MB/s +50%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	166.8 MB/s +32%
Geekom A7 Acer N5000	160 MB/s +26%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	126.66 MB/s
GMK NucBox M4 Lexar NM620 512GB	108.33 MB/s -14%
4K-64 Read
GMK NucBox K6 MasonSemi 1TB MC7000	2610.4 MB/s +142%
Geekom A7 Acer N5000	1270 MB/s +18%
Acemagic F2A Kingston OM8SEP1024Q-A0	1218 MB/s +13%
GMK NucBox M4 Lexar NM620 512GB	1094.96 MB/s +1%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1080.06 MB/s
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	794 MB/s -26%
4K-64 Write
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	2889 MB/s +136%
Geekom A7 Acer N5000	2255 MB/s +84%
GMK NucBox K6 MasonSemi 1TB MC7000	2231.47 MB/s +82%
Acemagic F2A Kingston OM8SEP1024Q-A0	1649 MB/s +34%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	1226.59 MB/s
GMK NucBox M4 Lexar NM620 512GB	932.87 MB/s -24%
Access Time Read
Geekom A7 Acer N5000	0.138 ms * -79%
GMK NucBox M4 Lexar NM620 512GB	0.103 ms * -34%
GMK NucBox K6 MasonSemi 1TB MC7000	0.079 ms * -3%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.077 ms *
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.06 ms * +22%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.046 ms * +40%
Access Time Write
GMK NucBox M4 Lexar NM620 512GB	0.409 ms * -0%
GMK NucBox M5 Lexar 1024GB LNM6A1X001T-HNNNG	0.408 ms *
GMK NucBox K6 MasonSemi 1TB MC7000	0.196 ms * +52%
Acemagic F2A Kingston OM8SEP1024Q-A0	0.126 ms * +69%
Geekom A7 Acer N5000	0.072 ms * +82%
Intel NUC 13 Pro Desk Edition Kit Samsung PM9A1 MZVL2512HCJQ	0.024 ms * +94%

* ... im mniej tym lepiej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

GMK NucBox M5; diskspd 2.0.17 f: Ø3533 (3333.68-3543.77)

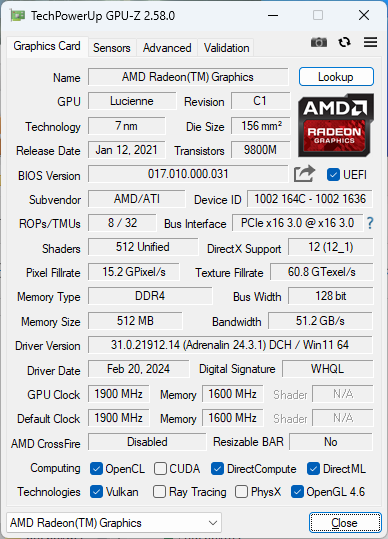

Wydajność GPU - przestarzały Radeon RX Vega 8

Zintegrowany Radeon RX Vega 8 poprzedza model Radeon 680M i 780M które obecnie dominują w minikomputerach i laptopach klasy średniej i wyższej. Jest on znacznie wolniejszy od Radeona 680M o około 50 do 60 procent, aby być bardziej zgodnym z układami Iris Xe Graphics G7 96EUs na procesorach Intel 11. generacji. Radeon RX Vega 8 nie jest w stanie uruchomić większości gier lokalnie przy rozsądnej liczbie klatek na sekundę.

3DMark Performance Rating | 3DMark 11 | 3DMark

3DMark Performance Rating - Percent
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	97.5 pt
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	95.5 pt
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	92.9 pt
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	80.4 pt
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	57.2 pt
Intel NUC 12 Pro Kit NUC12WSBi5 ^-1! Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	45.4 pt
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	41.4 pt
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.8 pt
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	39.5 pt
GMK NucBox M4 ^-1! Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	26.2 pt
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	14 pt
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	6.5 pt
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	3.8 pt

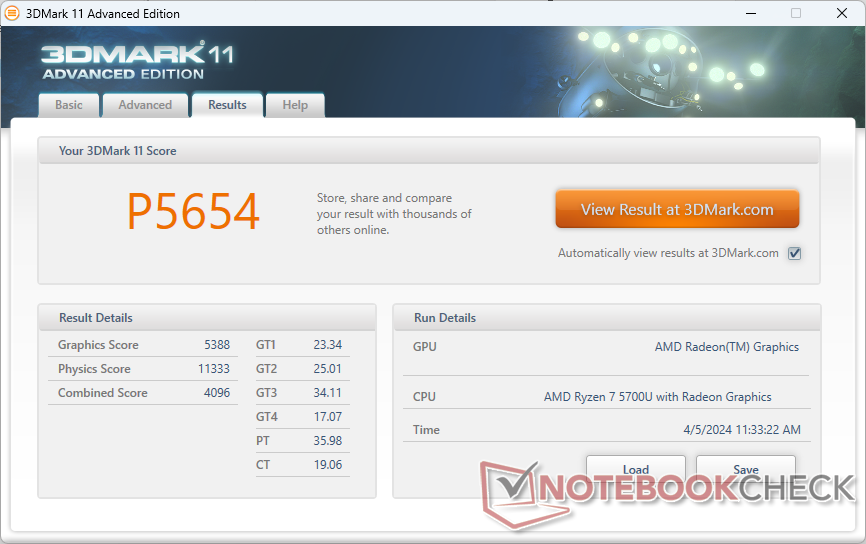

3DMark 11 - 1280x720 Performance GPU
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	13932 Points +159%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	13716 Points +155%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	12085 Points +124%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	10439 Points +94%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	7321 Points +36%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	6027 Points +12%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (3459 - 7591, n=54)	5910 Points +10%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	5631 Points +5%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	5388 Points
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	3122 Points -42%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1872 Points -65%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	854 Points -84%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	508 Points -91%

3DMark

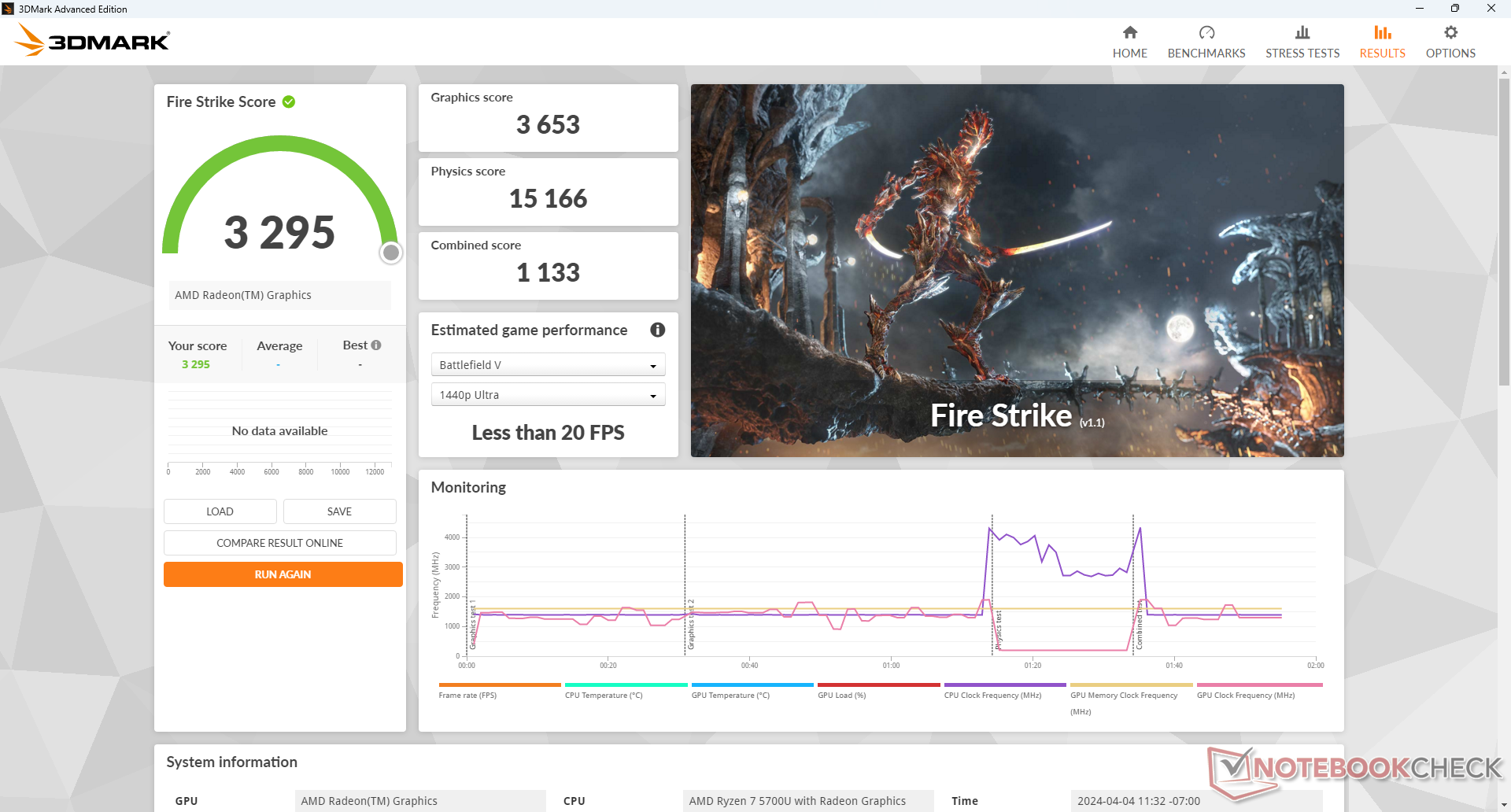

1920x1080 Fire Strike Graphics
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	8391 Points +130%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	8164 Points +123%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	7710 Points +111%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	7570 Points +107%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	5616 Points +54%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	4227 Points +16%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	3724 Points +2%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (1694 - 5041, n=54)	3676 Points +1%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	3653 Points
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	2517 Points -31%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	1351 Points -63%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	653 Points -82%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	378 Points -90%

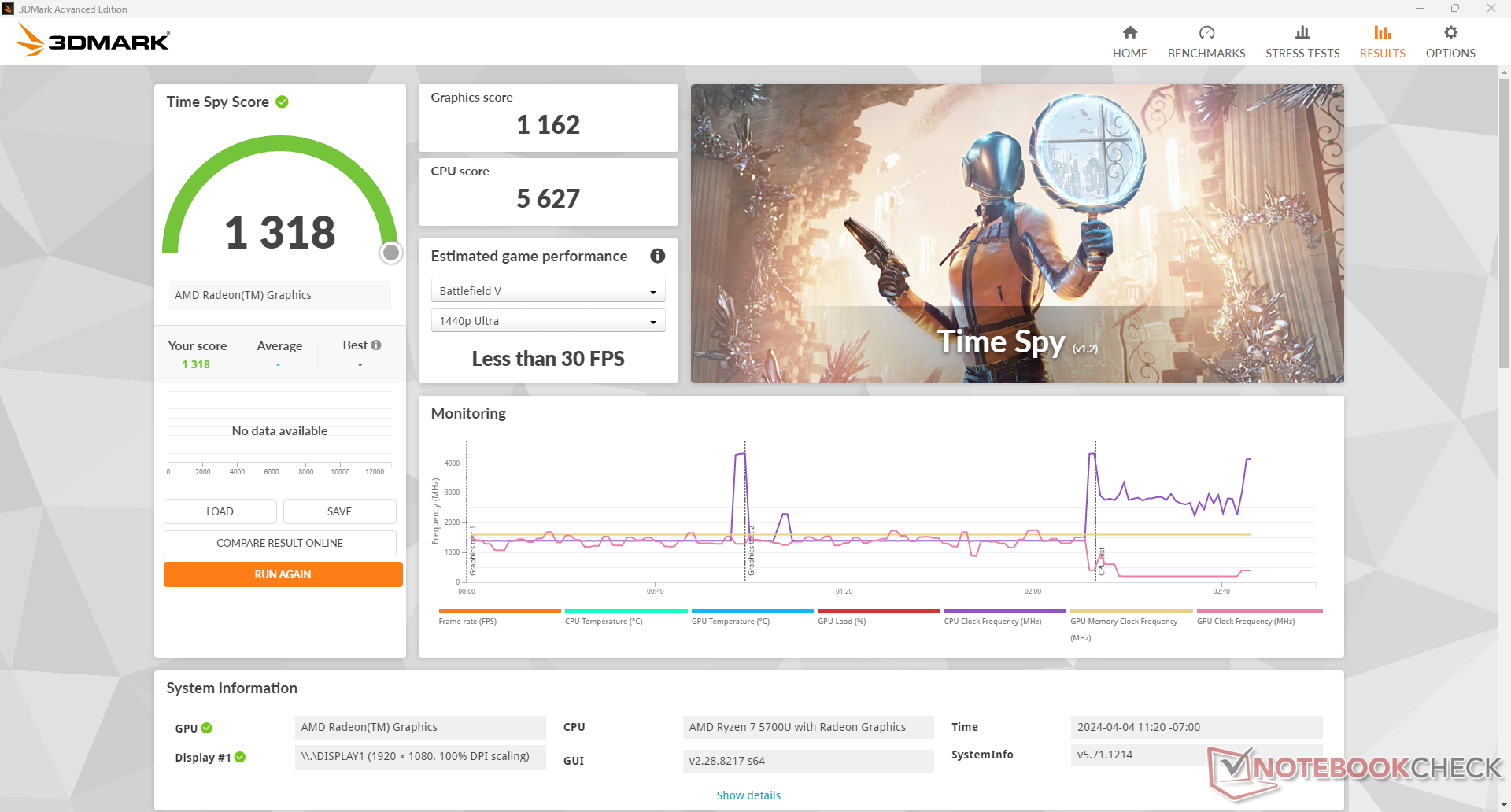

2560x1440 Time Spy Graphics
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	3205 Points +176%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	2968 Points +155%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	2906 Points +150%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	2436 Points +110%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	1672 Points +44%
Intel NUC11PAQi7 Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1165G7	1168 Points +1%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	1162 Points
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (540 - 1557, n=54)	1156 Points -1%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	402 Points -65%
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	179 Points -85%
GMK NucBox 3 Intel UHD Graphics 600, Intel Celeron J4125	102 Points -91%

3DMark Performance Rating | 3DMark 11 | 3DMark

Blender
v3.3 Classroom HIP/AMD
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (477 - 1133, n=12)	702 Seconds *
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	270 Seconds *
v3.3 Classroom CPU
Intel NUC11ATKC2, N4505 Intel UHD Graphics (Jasper Lake 16 EU), Intel Celeron N4505	5764 Seconds * -660%
Intel NUC11ATKPE, N6005 Intel UHD Graphics (Jasper Lake 32 EU), Intel Pentium Silver N6005	2464 Seconds * -225%
GMK NucBox M5 AMD Radeon RX Vega 8 (Ryzen 4000/5000), AMD Ryzen 7 5700U	758 Seconds *
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Iris Xe Graphics G7 80EUs, Intel Core i5-1240P	590 Seconds * +22%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (463 - 758, n=18)	542 Seconds * +28%
GMK NucBox M4 Intel UHD Graphics Xe 32EUs (Tiger Lake-H), Intel Core i9-11900H	479 Seconds * +37%
Intel NUC 13 Pro Desk Edition Kit Intel Iris Xe Graphics G7 96EUs, Intel Core i7-1360P	477 Seconds * +37%
GMK NucBox K2 AMD Radeon 680M, AMD Ryzen 7 7735HS	438 Seconds * +42%
Geekom A7 AMD Radeon 780M, AMD Ryzen 9 7940HS	331 Seconds * +56%
GMK NucBox K6 AMD Radeon 780M, AMD Ryzen 7 7840HS	327 Seconds * +57%
Acemagic F2A Intel Arc 8-Core iGPU, Intel Core Ultra 7 155H	301 Seconds * +60%

* ... im mniej tym lepiej

Performance Rating - Percent
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	98.5 pt
Geekom A7 ^-1! AMD Ryzen 9 7940HS, AMD Radeon 780M	94.5 pt
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	83.2 pt
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	64.2 pt
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	49.9 pt
GMK NucBox M4 ^-1! Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.4 pt

The Witcher 3 - 1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +137%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.6 (12^min, 16.1^P0.1, 21.8^P1) fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +23%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -40%

Final Fantasy XV Benchmark - 1920x1080 High Quality
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +124%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps +91%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.4 fps +86%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps

Strange Brigade - 1920x1080 ultra AA:ultra AF:16
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +115%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	43.8 (23.2^min, 25.6^P1) fps +93%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -28%

Dota 2 Reborn - 1920x1080 ultra (3/3) best looking
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +84%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps +70%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	71.1 (52^min) fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +27%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -31%

X-Plane 11.11 - 1920x1080 high (fps_test=3)
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +62%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +58%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +41%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 fps +39%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -7%

Far Cry 5
1280x720 Low Preset AA:T
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	86 (76^min) fps +105%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	86 (75^min) fps +105%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	69 (62^min) fps +64%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	69 (25^min) fps +64%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22 - 71, n=31)	46 fps +10%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45 (40^min) fps +7%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	42 (36^min) fps
1920x1080 Medium Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	49 (44^min) fps +145%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	47 (41^min) fps +135%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	41 (36^min) fps +105%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	40 (36^min) fps +100%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	29 (27^min) fps +45%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13 - 34, n=31)	22.2 fps +11%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	20 (17^min) fps
1920x1080 High Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	45 (41^min) fps +137%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	43 (38^min) fps +126%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	38 (33^min) fps +100%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	37 (30^min) fps +95%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	27 (25^min) fps +42%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 31, n=30)	20.5 fps +8%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	19 (16^min) fps
1920x1080 Ultra Preset AA:T
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	43 (38^min) fps +153%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	41 (36^min) fps +141%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	36 (31^min) fps +112%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 (31^min) fps +106%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26 (23^min) fps +53%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12 - 29, n=27)	19.3 fps +14%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	17 (15^min) fps

Strange Brigade
1280x720 lowest AF:1
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	377 (71^min, 314^P1) fps +372%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	167.7 (34.3^min, 142.9^P1) fps +110%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (85.9^min, 124^P1) fps +85%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	147.3 (40.8^min, 112.7^P1) fps +85%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	99 (21.7^min, 36.5^P1) fps +24%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	79.8 (20.7^min, 69.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (43 - 117, n=50)	78.6 fps -2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	56.5 (13.2^min, 17.2^P1) fps -29%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	32 (7.4^min, 8.56^P1) fps -60%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	16.2 (5^min, 7.31^P1) fps -80%
1920x1080 medium AA:medium AF:4
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	167.8 (133.4^min, 145.9^P1) fps +418%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	67.9 (43.7^min, 58.3^P1) fps +110%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	61.9 (7.4^min, 53.4^P1) fps +91%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	56 (46.4^min, 49.2^P1) fps +73%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	39.4 (14.1^min, 23^P1) fps +22%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.4 (15.3^min, 28.3^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (16.9 - 45.3, n=49)	30.9 fps -5%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	22.4 (6.3^min, 10.3^P1) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	12.1 (5^min, 5.25^P1) fps -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.5 (5^min, 5^P1) fps -80%
1920x1080 high AA:high AF:8
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	140 (101.9^min, 110.3^P1) fps +422%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	57.9 (7^min, 45^P1) fps +116%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	53.3 (25.6^min, 41.4^P1) fps +99%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.9 (25.6^min, 35.7^P1) fps +71%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32 (8.4^min, 15.8^P1) fps +19%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	26.8 (14.8^min, 19.1^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (14.6 - 37.7, n=49)	26 fps -3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	17.2 (5^min, 5.39^P1) fps -36%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.2 (5^min, 5^P1) fps -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.5 (5^min, 5^P1) fps -76%
1920x1080 ultra AA:ultra AF:16
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	116.6 (15.9^min, 93.3^P1) fps +414%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	48.8 (11.1^min, 31.1^P1) fps +115%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	43.8 (23.2^min, 25.6^P1) fps +93%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.5 (15.8^min, 22.3^P1) fps +87%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	26.1 (5.3^min, 8.13^P1) fps +15%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22.7 (11.3^min, 12.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12.8 - 32.1, n=47)	22.2 fps -2%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.4 (5^min, 5^P1) fps -28%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	13.3 (5^min, 5^P1) fps -41%

The Witcher 3
1024x768 Low Graphics & Postprocessing
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	267.3 (209^min) fps +295%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	155.1 (145^min) fps +129%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	154.6 (12.9^min, 32^P0.1, 98.7^P1) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	126 (36.4^min, 62.1^P0.1, 99.1^P1) fps +86%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	121.6 (89^min) fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	102 fps +51%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	67.6 (60^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (27.2 - 89, n=47)	65.9 fps -3%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	49.7 (44^min) fps -26%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	42 fps -38%
1366x768 Medium Graphics & Postprocessing
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	190.3 (175^min) fps +339%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	99.3 (25.6^min, 43.8^P0.1, 72.1^P1) fps +129%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99 (72^min) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	78 (43.6^min, 56.8^P0.1, 64^P1) fps +80%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	75.9 (71^min) fps +75%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	43.3 (38^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.6 - 55.2, n=35)	40.8 fps -6%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	31 fps -28%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	29.8 (18^min) fps -31%
1920x1080 High Graphics & Postprocessing (Nvidia HairWorks Off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	106.9 (95^min) fps +386%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	50.9 (45^min) fps +131%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	49.6 (13.7^min, 22.8^P0.1, 39.2^P1) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.8 (26.8^min, 32^P0.1, 37.7^P1) fps +104%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	37.9 (35^min) fps +72%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	33.5 fps +52%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	22 (20^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.7 - 26.8, n=46)	20.6 fps -6%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	16.7 (14^min) fps -24%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	15 fps -32%
1920x1080 Ultra Graphics & Postprocessing (HBAO+)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	39.8 (36^min) fps +191%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	32.5 fps +137%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	30.8 (27^min) fps +125%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.6 (12^min, 16.1^P0.1, 21.8^P1) fps +80%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	22.7 (20^min) fps +66%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	16.9 fps +23%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.7 (12^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.07 - 17.6, n=49)	13.7 fps 0%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	8.2 (7^min) fps -40%

Dota 2 Reborn
1280x720 min (0/3) fastest
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	161.2 (11.9^min) fps +62%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	155.8 (135.9^min) fps +56%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	141.2 (122.4^min) fps +42%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	113.8 (8.3^min) fps +14%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	112.3 (96.7^min) fps +13%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (67.9 - 152, n=57)	108.1 fps +8%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	103.2 (59.8^min) fps +4%
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	102.2 (45.3^min) fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	99.7 (85.3^min) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	79.8 (67.5^min) fps -20%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	36.2 (29.6^min) fps -64%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.9 (33.6^min) fps -64%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	34.3 (29.9^min) fps -66%
1366x768 med (1/3)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.8 (104.5^min) fps +55%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	120.6 (96.2^min) fps +50%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.5 (96.1^min) fps +41%
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	101.6 (54.1^min) fps +26%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	86.4 (68.3^min) fps +7%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (49.9 - 122.3, n=57)	86.1 fps +7%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	82.95 (57.1^min) fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	80.6 (61.8^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	70.1 (61.4^min) fps -13%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	35.7 (33.9^min) fps -56%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	27.8 (20.4^min) fps -66%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	26.9 (19.4^min) fps -67%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	14.2 (9.9^min) fps -82%
1920x1080 high (2/3)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	96.8 (50.8^min) fps +92%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	96.8 (17.4^min) fps +92%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	87.6 (75^min) fps +73%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	84.2 (74.4^min) fps +67%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	77.3 (52.5^min) fps +53%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	67.6 (58.9^min) fps +34%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.5 - 76.7, n=57)	51.8 fps +3%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	50.5 (43.1^min) fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	36.1 (33^min) fps -29%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34.6 (33^min) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	19.5 (15.3^min) fps -61%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	11.8 (7.4^min) fps -77%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.8 (5.2^min) fps -87%
1920x1080 ultra (3/3) best looking
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	91.9 (53.5^min) fps +93%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	87.4 (16.1^min) fps +84%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	81 (67.5^min) fps +70%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	73.7 (65.4^min) fps +55%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	71.1 (52^min) fps +49%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	60.5 (52.3^min) fps +27%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (23.3 - 72, n=57)	48.6 fps +2%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	47.6 (40.4^min) fps
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	34 (32.3^min) fps -29%
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	32.8 (29.4^min) fps -31%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	18.3 (14^min) fps -62%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	10.9 (7.7^min) fps -77%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	6.3 (4.4^min) fps -87%

X-Plane 11.11
1280x720 low (fps_test=1)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	70.7 fps +75%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	67.6 fps +67%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	66.7 fps +65%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.9 fps +63%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.1 fps +56%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	54.6 fps +35%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (26.9 - 64.9, n=57)	44.3 fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	40.4 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	38.8 fps -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.4 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	13.2 fps -67%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	7.67 fps -81%
1920x1080 med (fps_test=2)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	55.8 fps +104%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	52.8 fps +93%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.2 fps +77%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	47.3 fps +73%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	42 fps +54%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	41 fps +50%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.1 - 49.6, n=57)	34.6 fps +27%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	26.3 fps -4%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	15.9 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	9.18 fps -66%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.75 fps -83%
1920x1080 high (fps_test=3)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	47.6 fps +90%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	42.4 fps +69%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	40.7 fps +62%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.7 fps +58%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	35.4 fps +41%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	35 fps +39%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (19.1 - 43.1, n=57)	30.5 fps +22%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	25.1 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23.3 fps -7%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.6 fps -42%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	8.58 fps -66%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.5 fps -82%

Final Fantasy XV Benchmark
1280x720 Lite Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	98.5 fps +180%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	80.8 fps +130%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	70.3 fps +100%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	63.4 fps +80%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	63.3 fps +80%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	45.6 fps +30%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	38.3 fps +9%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (21.9 - 50.1, n=52)	35.4 fps +1%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.2 fps
GMK NucBox M4 Intel Core i9-11900H, Intel UHD Graphics Xe 32EUs (Tiger Lake-H)	23 fps -35%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.3 fps -59%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	6.94 fps -80%
GMK NucBox 3 Intel Celeron J4125, Intel UHD Graphics 600	4.13 fps -88%
1920x1080 Standard Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	67.9 fps +277%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	39.3 fps +118%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	34.8 fps +93%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	33.4 fps +86%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	33 fps +83%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24.3 fps +35%
Intel NUC 12 Pro Kit NUC12WSBi5 Intel Core i5-1240P, Intel Iris Xe Graphics G7 80EUs	19.6 fps +9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	18 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11.7 - 25, n=47)	17.9 fps -1%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.71 fps -63%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	3.19 fps -82%
1920x1080 High Quality
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	41.1 fps +214%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.3 fps +124%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25 fps +91%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.8 fps +89%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.4 fps +86%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	17.4 fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.1 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (7.71 - 17.7, n=46)	12.4 fps -5%
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.61 fps -65%
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	2.25 fps -83%

Cyberpunk 2077 2.1 Phantom Liberty
1280x720 Low Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	102 (52.1^min) fps +318%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	77.4 (28.7^min) fps +217%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	44.3 (36.6^min) fps +82%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (24.4 - 28.6, n=2)	26.5 fps +9%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	24.4 (12.7^min) fps
1920x1080 Low Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	71.6 (52.5^min) fps +419%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	46.3 (32.3^min) fps +236%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	29.5 (24.1^min) fps +114%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 (6.57^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11 - 16.7, n=3)	13.8 fps 0%
1920x1080 Medium Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	57 (46^min) fps +423%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	35.2 (10.9^min) fps +223%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.8 (19.6^min) fps +128%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (10.9 - 12.1, n=2)	11.5 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.9 (8.08^min) fps
1920x1080 High Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	50 (37.8^min) fps +445%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	27.7 (9.25^min) fps +202%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	20.4 (13.8^min) fps +122%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	9.17 (6.25^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (5.71 - 9.87, n=3)	8.25 fps -10%
1920x1080 Ultra Preset (FSR off)
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	47.7 (38.3^min) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	24.5 (9.31^min) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	18.4 (12.7^min) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	8.23 fps

F1 22
1280x720 Ultra Low Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	171.9 (142^min, 114^P1) fps +167%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	170 (137^min, 113^P1) fps +164%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	147.3 (118^min, 96^P1) fps +128%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	120.8 (99^min, 92^P1) fps +87%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	80.1 (65^min, 63^P1) fps +24%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (47 - 89.3, n=7)	68.1 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	64.5 (55^min, 54^P1) fps
1920x1080 Low Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	99.8 (12^min, 70^P1) fps +180%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	96.9 (70^min, 53^P1) fps +171%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	82.6 (71^min, 57^P1) fps +131%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	76.3 (64^min, 64^P1) fps +114%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	47.6 (39^min, 39^P1) fps +33%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.2 - 48.8, n=11)	36.5 fps +2%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	35.7 (31^min, 27^P1) fps
1920x1080 Medium Preset AA:T AF:16x
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	88.4 (62^min, 63^P1) fps +174%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	85.9 (67^min, 59^P1) fps +166%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	74.1 (61^min, 47^P1) fps +129%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	70.8 (60^min, 59^P1) fps +119%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	43.4 (36^min, 36^P1) fps +34%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	32.3 (28^min, 25^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (22.5 - 42.4, n=12)	32.3 fps 0%
1920x1080 High Preset AA:T AF:16x
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	66.7 (53^min, 36^P1) fps +180%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	65.1 (56^min, 51^P1) fps +174%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	55 (47^min, 45^P1) fps +131%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	54.7 (47^min, 37^P1) fps +130%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	31.7 (27^min, 26^P1) fps +33%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	23.8 (20^min, 18^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18 - 31.2, n=10)	23.6 fps -1%
1920x1080 Ultra High Preset AA:T AF:16x
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	24 (20^min, 20^P1) fps +43%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (12.6 - 22.5, n=7)	18.6 fps +11%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	18.5 (13^min, 12^P1) fps +10%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	18.4 (12^min, 12^P1) fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	16.8 (13^min, 13^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	14.9 (11^min, 11^P1) fps -11%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	13.9 (9^min, 9^P1) fps -17%

Baldur's Gate 3
1920x1080 Low Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	74.6 (49.5^min, 52.1^P0.1, 56.7^P1) fps +425%
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	40.5 fps +185%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	14.2 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.8 - 14.2, n=2)	14 fps -1%
1920x1080 Medium Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	63 (38.7^min, 42.2^P0.1, 49.2^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	33.7 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	13.3 fps
1920x1080 High Preset
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	55.1 (41.8^min, 42^P0.1, 44^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	28.1 fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) ()	9.41 fps

GTA V
1024x768 Lowest Settings possible
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	177.4 (4.17^min, 142.9^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	167.5 (5.17^min, 125^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	163.4 (2.4^min, 100^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	161 (4.76^min, 100^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	152.3 (5.63^min, 100^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	124.5 (12.7^min, 76.9^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (53.6 - 160, n=47)	100.4 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	26.8 (3.73^min, 14.7^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	25.1 (0.1815^min, 4.85^P1) fps
1920x1080 Lowest Settings possible
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	176.8 (4.35^min, 125^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	127.1 (21.2^min, 90.9^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	124.7 (11.8^min, 83.3^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	119.5 (8.05^min, 83.3^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	112.4 (25^min, 76.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	87.6 (30.9^min, 58.8^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (30.5 - 101, n=32)	64.2 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.6 (8.61^min, 14.7^P1) fps
1366x768 Normal/Off AF:4x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	170.6 (15.2^min, 111.1^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	157.4 (5.24^min, 100^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	153.8 (4.97^min, 90.9^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	148 (4.8^min, 83.3^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	139.1 (7.31^min, 90.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	101.9 (27.6^min, 62.5^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (34 - 148, n=42)	87.7 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	26.1 (8.65^min, 15.4^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	25 (1.613^min, 15.2^P1) fps
1920x1080 Normal/Off AF:4x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	168.4 (5.87^min, 100^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	131.5 (6.41^min, 90.9^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	128.7 (21.5^min, 76.9^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	113.3 (11.4^min, 71.4^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	111 (50.9^min, 76.9^P1) fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	74.8 (27^min, 47.6^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (31.7 - 104, n=32)	65.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	23.2 (6.94^min, 14.1^P1) fps
1920x1080 High/On (Advanced Graphics Off) AA:2xMSAA + FX AF:8x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	94.3 (4.05^min, 55.6^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	66.6 (4.46^min, 37^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	65.7 (3.85^min, 40^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	51.9 (5.75^min, 35.7^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	31.3 (2.94^min, 22.7^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (13.8 - 40.6, n=44)	26.1 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	20.9 (10.5^min, 16.7^P1) fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	10.8 (3.78^min, 7.94^P1) fps
Intel NUC11ATKC2, N4505 Intel Celeron N4505, Intel UHD Graphics (Jasper Lake 16 EU)	5.59 (0.65^min, 3.32^P1) fps
1920x1080 Highest Settings possible AA:4xMSAA + FX AF:16x
Intel NUC X15 LAPAC71H Intel Core i7-12700H, Intel Arc A730M	40.1 (4.48^min, 27^P1) fps
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	26 (2.62^min, 17.5^P1) fps
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	25.7 (4.34^min, 14.1^P1) fps
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24 (5.07^min, 15.9^P1) fps
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	12.7 (2.71^min, 9.35^P1) fps
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (6 - 18.2, n=41)	11.1 fps
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	8.8 (4.66^min, 7.35^P1) fps

Tiny Tina's Wonderlands
1280x720 Lowest Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	139 fps +155%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	114.6 fps +110%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	98.6 fps +81%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	83.8 fps +54%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (54.5 - 82.2, n=7)	66.4 fps +22%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	57.7 fps +6%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	54.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	14.5 fps -73%
1920x1080 Low Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	74.6 fps +173%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	61 fps +123%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	50.4 fps +85%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	48.8 fps +79%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (25.4 - 38.4, n=7)	32.6 fps +19%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	32.3 fps +18%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	27.3 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	5.43 fps -80%
1920x1080 Medium Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	52.2 fps +143%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	45.1 fps +110%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	40.6 fps +89%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	36.2 fps +68%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	25.4 fps +18%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (18.7 - 29.1, n=7)	24.4 fps +13%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	21.5 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	6.63 fps -69%
1920x1080 High Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	36.6 fps +165%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	31.2 fps +126%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	29.9 fps +117%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	29.1 fps +111%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	15.9 fps +15%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (11.5 - 18.6, n=7)	15.4 fps +12%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	13.8 fps
Intel NUC11ATKPE, N6005 Intel Pentium Silver N6005, Intel UHD Graphics (Jasper Lake 32 EU)	4.25 fps -69%
1920x1080 Badass Preset (DX12)
GMK NucBox K6 AMD Ryzen 7 7840HS, AMD Radeon 780M	29.5 fps +186%
Geekom A7 AMD Ryzen 9 7940HS, AMD Radeon 780M	26.5 fps +157%
GMK NucBox K2 AMD Ryzen 7 7735HS, AMD Radeon 680M	24.4 fps +137%
Acemagic F2A Intel Core Ultra 7 155H, Intel Arc 8-Core iGPU	24.1 fps +134%
Intel NUC 13 Pro Desk Edition Kit Intel Core i7-1360P, Intel Iris Xe Graphics G7 96EUs	13.5 fps +31%
Average AMD Radeon RX Vega 8 (Ryzen 4000/5000) (8.19 - 15, n=7)	11.3 fps +10%
GMK NucBox M5 AMD Ryzen 7 5700U, AMD Radeon RX Vega 8 (Ryzen 4000/5000)	10.3 fps

Witcher 3 FPS Chart

GMK NucBox M5: Ø60.7 (40-63)

	low	med.	high	ultra
The Witcher 3 (2015)	67.6	43.3	22	13.7
Dota 2 Reborn (2015)	99.7	80.6	50.5	47.6
Final Fantasy XV Benchmark (2018)	35.2	18	13.1
X-Plane 11.11 (2018)	40.4	27.3	25.1
Far Cry 5 (2018)	42	20	19	17
Strange Brigade (2018)	79.8	32.4	26.8	22.7
Tiny Tina's Wonderlands (2022)	27.3	21.5	13.8	10.3
F1 22 (2022)	35.7	32.3	23.8	16.8
Baldur's Gate 3 (2023)	14.2
Cyberpunk 2077 2.1 Phantom Liberty (2023)	13.8	10.9	9.17

Emisje

Hałas systemowy

Dwa wewnętrzne wentylatory, jeden nad płytą główną i jeden pod nią

Hałas wentylatora jest zawsze obecny na poziomie 33,8 dB(A), niezależnie od obciążenia ekranu lub ustawienia profilu. Cichy warkot jest słyszalny w środowisku HTPC, takim jak salon, ale nie jest na tyle głośny, by rozpraszać uwagę.

Zakres obrotów wentylatora jest na szczęście dość wąski, więc różnica między maksymalnym i minimalnym hałasem wentylatora jest stosunkowo niewielka. Na przykład, jesteśmy w stanie zarejestrować maksymalnie zaledwie 37 dB(A) w porównaniu do ponad 48 dB(A) na NucBox K6 lub Acemagic F2A.

Hałas

luz		33.8 / 33.8 / 33.8 dB
obciążenie		36.5 / 36.9 dB

	30 dB cichy 40 dB(A) słyszalny 50 dB(A) irytujący
min: , med: , max: Earthworks M23R, Arta (odległość 15 cm) environment noise: 23.4 dB(A)

Temperatura

Temperatury powierzchniowe nie są problemem ze względu na zbędną wentylację wokół obudowy. System wykorzystuje dwa wentylatory, podobnie jak w NucBox K6, chociaż jeden wentylator byłby prawdopodobnie wystarczający, biorąc pod uwagę procesor Core z serii U o niskiej mocy.

Zarządzanie energią

Zużycie energii

Uruchomienie Witcher 3 przy typowych wysokich obciążeniach pobierałby około 35 W, czyli nieco mniej niż połowę tego, czego wymaga NucBox K6. Oszczędność energii jest wystarczająca, aby uczynić NucBox M5 bardziej wydajnym niż większość innych mini PC, co koreluje również z niskim maksymalnym hałasem wentylatora i pułapem TDP. W rezultacie cierpi na tym jednak wydajność CPU i GPU.

Model ten dostarczany jest ze znacznie mniejszym (~6,8 x 6,8 x 3,2 cm) zasilaczem sieciowym 65 W w porównaniu do zasilacza 130 W dostarczanego z NucBox K6. Obsługiwane są zasilacze USB-C innych producentów.

(Uwaga redaktora: Ta sekcja zostanie zaktualizowana po zakończeniu naprawy naszego multimetru Metrahit Energy jeszcze w tym miesiącu. Przepraszamy za niedogodności)

Pobór mocy

wyłączony / stan wstrzymania	0.59 / 1.3 W
luz	5.9 / 6.2 / 6.4 W
obciążenie	28.2 / 29.5 W


Legenda: min: , med: , max: Metrahit Energy

	GMK NucBox M5 R7 5700U, Vega 8, Lexar 1024GB LNM6A1X001T-HNNNG, , x,	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H), Lexar NM620 512GB, , x,	GMK NucBox K6 R7 7840HS, Radeon 780M, MasonSemi 1TB MC7000, , x,	Acemagic F2A Ultra 7 155H, Arc 8-Core, Kingston OM8SEP1024Q-A0, , x,	Geekom A7 R9 7940HS, Radeon 780M, Acer N5000, , x,	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs, Samsung PM9A1 MZVL2512HCJQ, , x,
Power Consumption		-153%	-96%	-123%	-64%	-88%
Idle Minimum *	5.9	15.2 -158%	6.7 -14%	9.1 -54%	3.8 36%	7 -19%
Idle Average *	6.2	17.2 -177%	7 -13%	10.3 -66%	4.8 23%	9.2 -48%
Idle Maximum *	6.4	17.4 -172%	7.6 -19%	14.4 -125%	6.5 -2%	11.8 -84%
Load Average *	28.2	40 -42%	74.3 -163%	54.9 -95%	71.9 -155%	45 -60%
Witcher 3 ultra *	27.5	50.6 -84%	75 -173%
Load Maximum *	29.5	112.8 -282%	85.7 -191%	110.4 -274%	94.7 -221%	97.2 -229%

* ... im mniej tym lepiej

Power Consumption Witcher 3 / Stresstest

GMK NucBox M5 R7 5700U, Vega 8; Witcher 3 ultra: Ø27.5 (26.7-28.1)

Beelink SER5 R5 5560U, Vega 6; Witcher 3 ultra: Ø28.8 (28.3-30.6)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 Prime95 28.10 and Furmark 1.25: Ø27.7 (27.4-29.5)

Beelink SER5 R5 5560U, Vega 6; 1280x720 Prime95 28.10 and Furmark 1.25: Ø39 (38.6-40.4)

Power Consumption external Monitor

GMK NucBox M5 R7 5700U, Vega 8; Prime95 V2810 Stress (external Monitor): Ø27.6 (27.3-28)

Beelink SER5 R5 5560U, Vega 6; Prime95 V2810 Stress (external Monitor): Ø39.5 (39-39.9)

GMK NucBox M5 R7 5700U, Vega 8; Cinebench R15 Multi (external Monitor): Ø25.6 (25-25.9)

Beelink SER5 R5 5560U, Vega 6; Cinebench R15 Multi (external Monitor): Ø35.2 (34.9-35.4)

GMK NucBox M5 R7 5700U, Vega 8; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø30.1 (29.6-30.5)

Beelink SER5 R5 5560U, Vega 6; 1280x720 FurMark 1.19 GPU Stress Test (external Monitor): Ø31.2 (30.5-32)

GMK NucBox M5 R7 5700U, Vega 8; 1920x1080 The Witcher 3 ultra (external Monitor): Ø27.5 (26.7-28.1)

Beelink SER5 R5 5560U, Vega 6; 1920x1080 The Witcher 3 ultra (external Monitor): Ø28.8 (28.3-30.6)

GMK NucBox M5 R7 5700U, Vega 8; Idle 1min (external Monitor): Ø6.26 (6.02-7.71)

Beelink SER5 R5 5560U, Vega 6; Idle 1min (external Monitor): Ø4.46 (4.19-5.88)

Werdykt - dostępne są lepsze opcje

NucBox M5 kosztuje obecnie od 300 do 380 dolarów z pamięcią RAM i pamięcią masową. Tymczasem NucBox K6 można znaleźć za 500 USD, oferując przy tym od 2x do 2,5x wyższą wydajność CPU i GPU, nie będąc przy tym ani większym, ani cięższym. Nie trzeba dodawać, że trudno jest polecić NucBox M5, gdy GMktec oferuje już obiektywnie lepszą alternatywę za niewiele więcej. Nawet poza GMktec, Beelink SER6 można znaleźć za mniej niż 500 USD z dużo większą wydajnością niż NucBox M5.

NucBox M5 niekoniecznie jest złym systemem, ale istnieje kilka znacznie szybszych mini PC dostępnych w tym samym przedziale cenowym <500 USD.

NucBox M5 wyróżnia się kilkoma cechami, w tym podwójnymi portami RJ-45 2,5 Gb/s, podwójnymi wentylatorami i radiatorem SSD, które są stosunkowo rzadkie w budżetowych mini PC. Niemniej jednak, słaba wydajność w stosunku do ceny przyćmiewa wszelkie zalety tego modelu.

Cena i dostępność

GMKtec dostarcza obecnie NucBox M5 za 320 USD jako zestaw barebones do 470 USD w konfiguracji z 32 GB pamięci RAM i 1 TB pamięci masowej.

Alternatywnie, Amazon ma w sprzedaży SKU za mniej niż 300 USD z 16 GB pamięci RAM i 512 GB pamięci masowej.

GMK NucBox M5 - 10/04/2024 v7 ^(old)
Allen Ngo

Wykonanie

82 / 98 → 84%

Komunikacja

60 / 81 → 73%

Waga

83%

Wydajność w grach

63%

Wydajność w programach użytkowych

92%

Hałas

80%

Średnio

77%

79%

Mini PC - Ważona średnia

Transparency

The selection of devices to be reviewed is made by our editorial team. The test sample was provided to the author as a loan by the manufacturer or retailer for the purpose of this review. The lender had no influence on this review, nor did the manufacturer receive a copy of this review before publication. There was no obligation to publish this review. We never accept compensation or payment in return for our reviews. As an independent media company, Notebookcheck is not subjected to the authority of manufacturers, retailers or publishers.

This is how Notebookcheck is testing

Every year, Notebookcheck independently reviews hundreds of laptops and smartphones using standardized procedures to ensure that all results are comparable. We have continuously developed our test methods for around 20 years and set industry standards in the process. In our test labs, high-quality measuring equipment is utilized by experienced technicians and editors. These tests involve a multi-stage validation process. Our complex rating system is based on hundreds of well-founded measurements and benchmarks, which maintains objectivity. Further information on our test methods can be found here.

Rating	Date	Model	Weight	Height	Resolution
78.9 % v7 ^(old)	04/2024	GMK NucBox M5 R7 5700U, Vega 8	505 g	48 mm	x
81.1 % v7 ^(old)	12/2023	GMK NucBox M4 i9-11900H, UHD Graphics Xe 32EUs (Tiger Lake-H)	951 g	37 mm	x
83.6 % v7 ^(old)	04/2024	GMK NucBox K6 R7 7840HS, Radeon 780M	514 g	47 mm	x
83.4 % v7 ^(old)	04/2024	Acemagic F2A Ultra 7 155H, Arc 8-Core	768 g	57 mm	x
82.6 % v7 ^(old)	03/2024	Geekom A7 R9 7940HS, Radeon 780M	417 g	38 mm	x
83.1 % v7 ^(old)	08/2023	Intel NUC 13 Pro Desk Edition Kit i7-1360P, Iris Xe G7 96EUs	558 g	37 mm	x

	Taktowanie CPU (GHz)	Taktowanie GPU (MHz)	Średnia temperatura CPU (°C)
System bezczynności	--	--	43
Prime95Stress	1.8	--	55
Prime95+ FurMark Stress	1.4	200	55
Witcher 3 Obciążenie	~0.5	~1237	53

Recenzja mini PC GMK NucBox M5: AMD Zen 2 ma już swoje lata

Niedrogie, ale przestarzałe.

Potencjalni konkurenci w porównaniu

Obudowa - odświeżona konstrukcja z ulepszoną wentylacją

Porównanie rozmiarów

Łączność

Komunikacja

Konserwacja

Akcesoria i gwarancja

Wydajność - Zen 2 nie jest tego wart w 2024 roku

Warunki testowania

Procesor

Cinebench R15 Multi Loop

Test warunków skrajnych

Wydajność systemu

Opóźnienie DPC

Urządzenia pamięci masowej

Disk Throttling: DiskSpd Read Loop, Queue Depth 8

Wydajność GPU - przestarzały Radeon RX Vega 8

Witcher 3 FPS Chart

Emisje

Hałas systemowy

Temperatura

Zarządzanie energią

Zużycie energii

Power Consumption Witcher 3 / Stresstest

Power Consumption external Monitor

Za

Przeciw

Werdykt - dostępne są lepsze opcje

Cena i dostępność

More articles related to this device

Transparency

Price comparison

3DMark 11 Performance		5654 pkt.
3DMark Cloud Gate Standard Score		19551 pkt.
3DMark Fire Strike Score		3295 pkt.
3DMark Time Spy Score		1318 pkt.
Pomoc

	GMK NucBox M5 Vega 8, R7 5700U, Lexar 1024GB LNM6A1X001T-HNNNG	GMK NucBox M4 UHD Graphics Xe 32EUs (Tiger Lake-H), i9-11900H, Lexar NM620 512GB	GMK NucBox K6 Radeon 780M, R7 7840HS, MasonSemi 1TB MC7000	Acemagic F2A Arc 8-Core, Ultra 7 155H, Kingston OM8SEP1024Q-A0	Geekom A7 Radeon 780M, R9 7940HS, Acer N5000	Intel NUC 13 Pro Desk Edition Kit Iris Xe G7 96EUs, i7-1360P, Samsung PM9A1 MZVL2512HCJQ
Noise		12%	-9%	-3%	-9%	2%
off / environment *	23.4	22.7 3%	23.2 1%	24.9 -6%	25.4 -9%	25.2 -8%
Idle Minimum *	33.8	24.4 28%	31.3 7%	25.4 25%	33.3 1%	28.1 17%
Idle Average *	33.8	24.4 28%	31.3 7%	25.7 24%	33.6 1%	28.2 17%
Idle Maximum *	33.8	28 17%	33.4 1%	25.7 24%	33.7 -0%	28.3 16%
Load Average *	36.5	28 23%	47.5 -30%	47.8 -31%	43.3 -19%	42 -15%
Witcher 3 ultra *	36.8	33.7 8%	43.6 -18%	45.23 -23%	43.2 -17%
Load Maximum *	36.9	44.6 -21%	47.7 -29%	49 -33%	43.3 -17%	42.1 -14%
